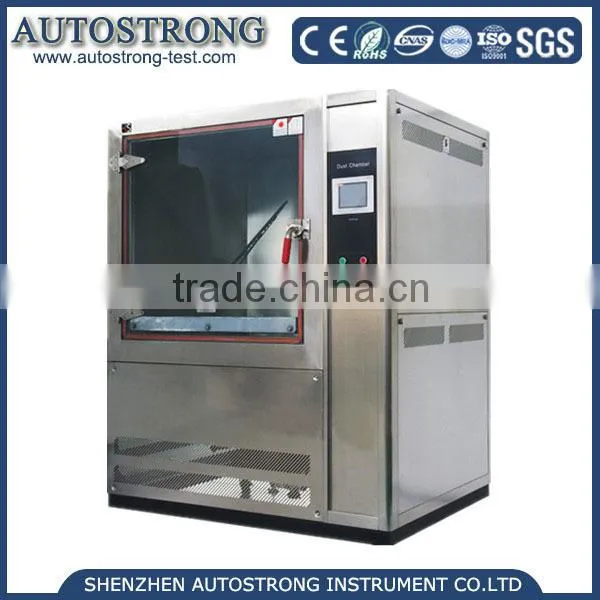

Sand and Dust Environmental Test Chamber
Application
Dust Test Chamber is able to supply a complete range of solutions for carrying out Dust Test Specifications.
This dust test chamber provides testing as per various IEC-60529standards.
Combination of various testing cycles are available in a completely mono block construction.
All settings can be done in an ergonomically designed control panel with accurate and uniform dust agitation.
Specifications
Model |
AUTO-SC |
||
Internal dimension (D*W*H) mm |
1200*800*800 |
||
External dimension (D*W*H) mm |
1300*1300*2200 |
||
Interior material |
SUS304 Stainless steel |
||
Exterior material |
Galvanized steel plate |
||
Viewing window |
There is viewing window on the door, allow operator to see the specimen |
||
Specimen power socket |
Dust-proof socket |
||
Controller |
Programmable touch screen controller |
||
Metal net dimension |
Nominal line diameter is 50um, nominal separation distance between line 75um |
||
Air blower |
All plastic centrifugal fan |
||
Vacuum system |
Equipped with pressure gage, air filter, three pieces of pressure regulation, and connection tube ,vacuum pump is optional |
||
|
Concentration of dust
|
10kg |
||
Testing Temp |
5~25°C |
||
Flow rate of dust (m/s) |
5m/s |
||
cement amount |
2kg/m3 ~ 4kg/m3 |
||
Testing Time |
continuous |
1-9999(S,M,H)adjustable |
|
Circle |
1-9999(S,M,H)adjustable |
||
Accessories |
Vacuum pump, Dustproof plug (220V), Wiper, Casters with adjusters |
||
Power Source |
1 Phase AC220V 1KW |
||
Packing&shipping
Company profile:
AUTOSTRONG is a reputed manufacturer of Laboratory safety test equipments and has engaged in Research &Development and Manufacture test equipments for many years. All our products are strictly designed and manufactured in accordance with IEC,CE,EN,VDE,ASTM,ISO and other international standards.
