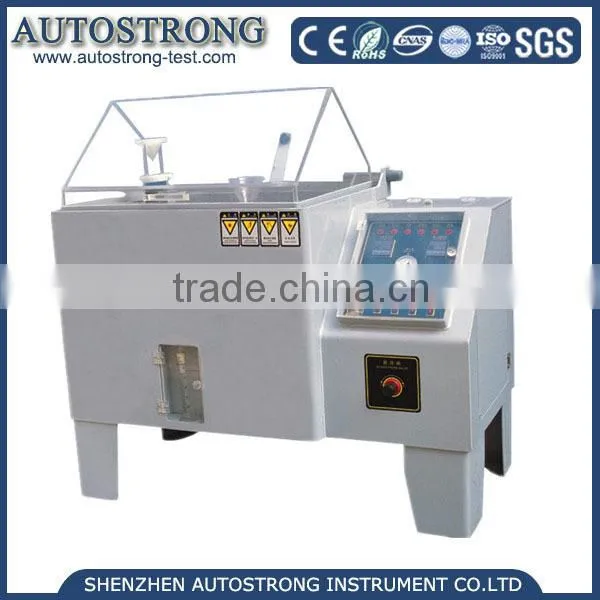

Cimate Chamber Salt Spray Tester
Standard:
This Salt Spray Tester is strictly designed and manufactured in accordance with CNS:3627,3385,4159,7669,8886; JIS:D0201,H8502,H8610, K5400,Z2371 ISO:3768,3769,3770; ASTM: 8117,B268
Application:

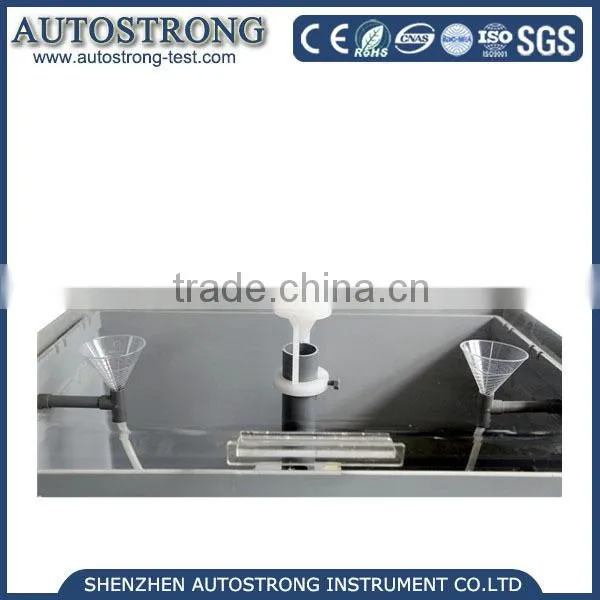

Bo Nute principle draw salt water and then spray, atomization uniform, no crystallization of the blocking phenomenon,to ensure continuous testing, the compressed air nozzle on the way through it leading to the bubble column was wet, the corrosion solution and air nozzle atomized into a corrosive mist, inside the heater to maintain the temperature inside.
Technical parameters:
Model |
Auto-60 |
Auto-90 |
Auto-120 |
Inner Box Size |
600*450*400(W*D*H*) |
900*600*500(W*D*H) |
1200*800*500(W*D*H) |
OutsideBox Size |
1070*580*1030(W*D*H*) |
1380*800*1150(W*D*H) |
1700*950*1210(W*D*H) |
Power |
220V,1.5KW ,50HZ |
220V,1.5KW ,50HZ |
220V,3KW,50HZ |
Testing capacity |
108L |
270L |
480L |
Customized service are provided. (unit:mm) | |||
Technical Features:
- Box material : Local temperature and humidity inside and outside the box are used for A-level gray high-corrosive PVC, for salt spray, copper acetate, and other test specifications test.
- Saturation pressure barrel : It uses the A-level German imports of gray PVC material.
- Laboratory Racks: It uses sophisticated Class A gray PVC material designed "V" shape
long, products tested by the 15 ° -30 ° angle be adjusted.
- Laboratory cover:It uses a 5mm thick transparent imported high toughness PVC board,
bending method designed to cover 100 degree ridge-type transparent
- With power failure memory function of time, so after the original call time to complete
the remaining time of the experimental work, with a double over-temperature protection,
water shortage warning, ensure safety
- Technical basis:According to JIS, ASTM, CNS, GB standard parameter setting operation
Standard Laboratory |
Air pressure barrel |
|
Salt spray test |
NSS ,ACSS |
35°C±1°C 47°C±1°C |
Corrosion test |
CASS |
50°C±1°C 63°C±1°C |
Packaging: Wooden Case
Shipping Method: Express/By Air/By Sea
Company profile:
AUTOSTRONG is a reputed manufacturer of Laboratory safety test equipments and has engaged in Research &Development and Manufacture test equipments for many years. All our products are strictly designed and manufactured in accordance with IEC,CE,EN,VDE,ASTM,ISO and other international standards.
