Specifications

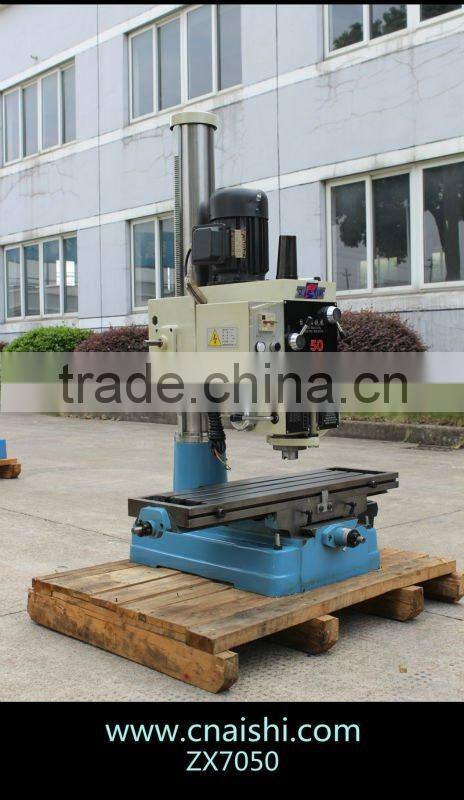

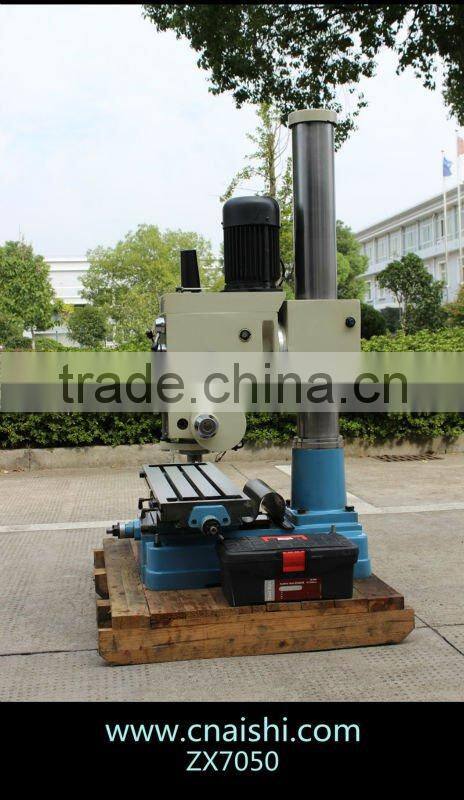

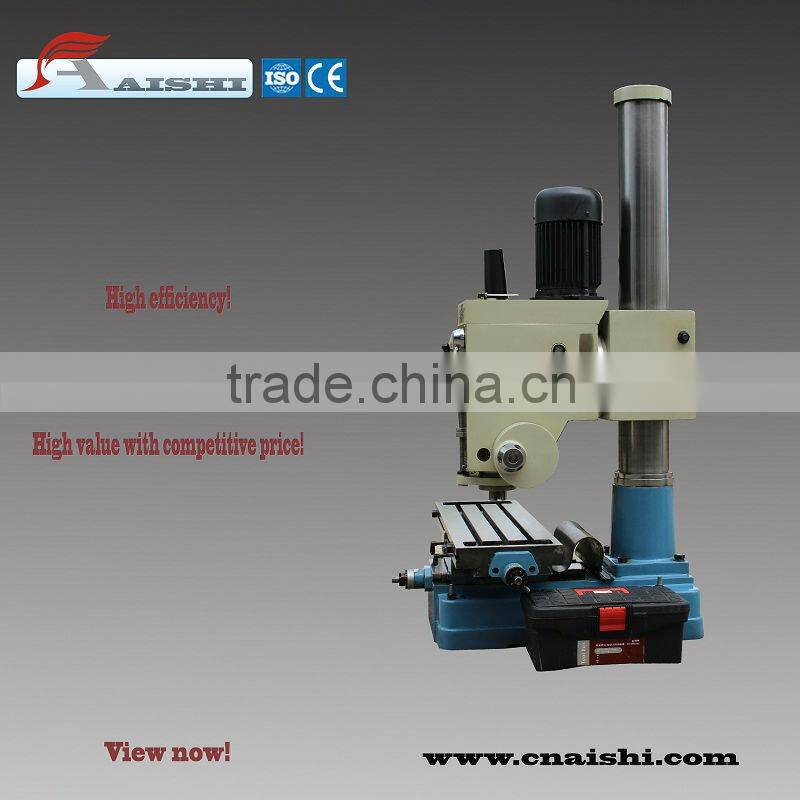

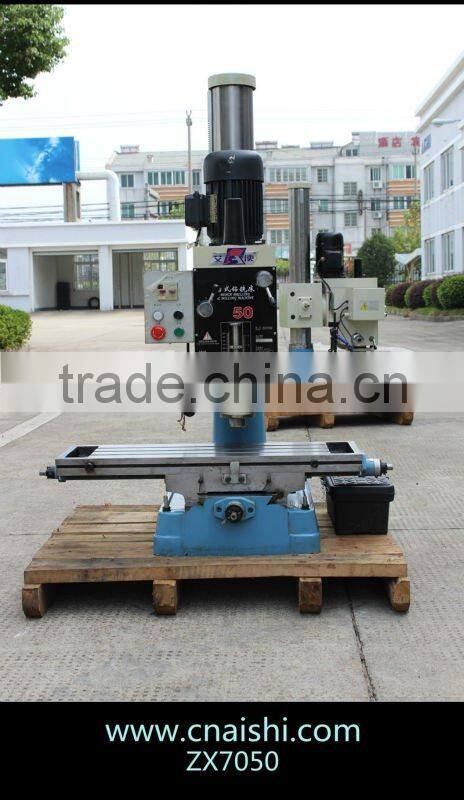

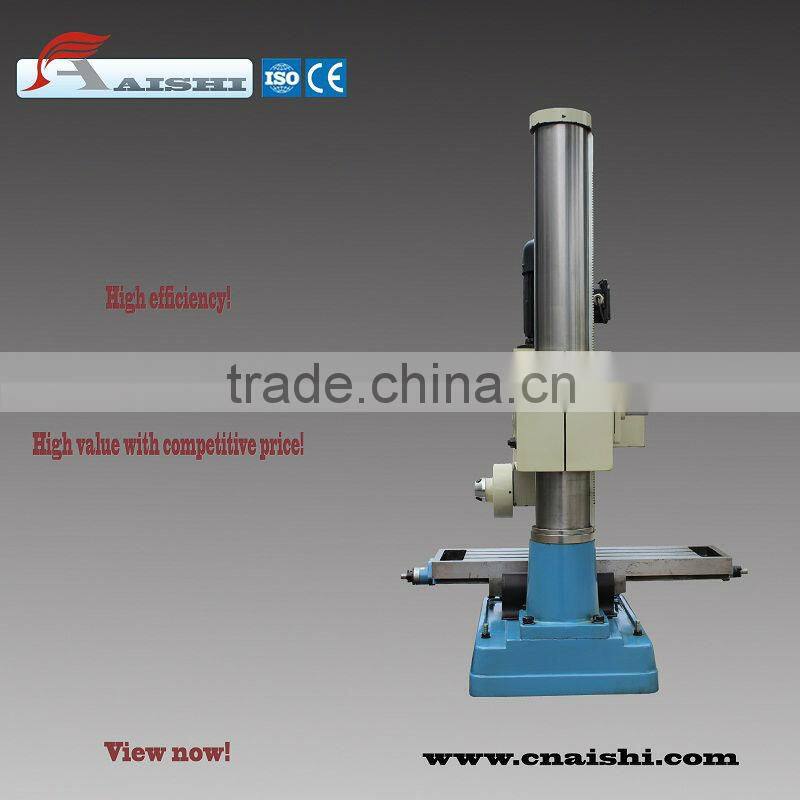

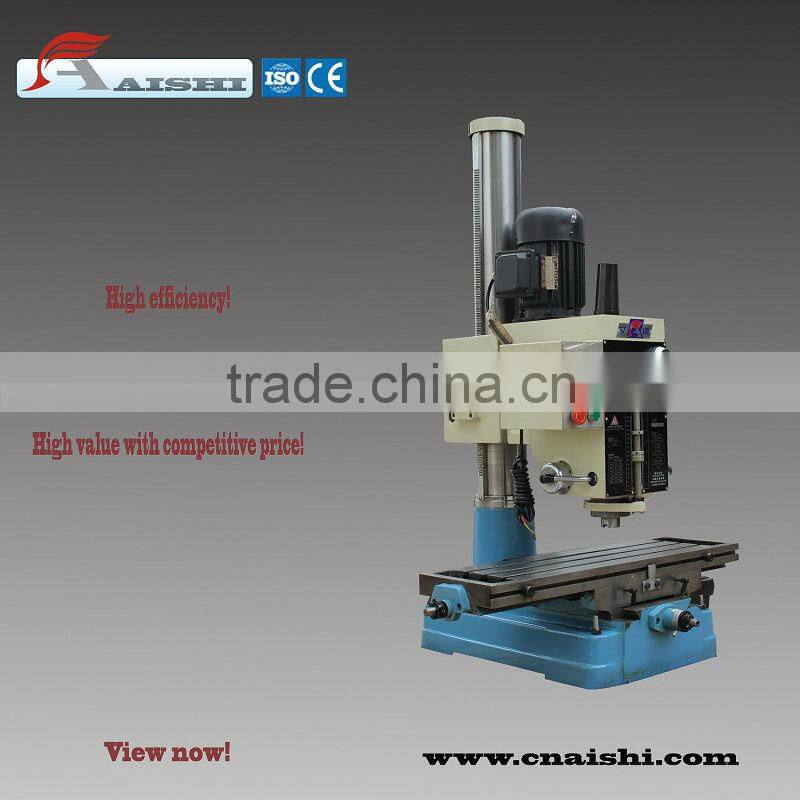

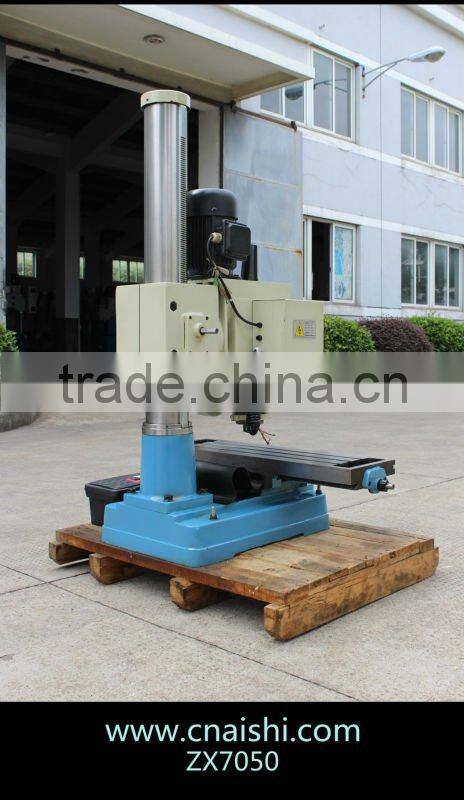

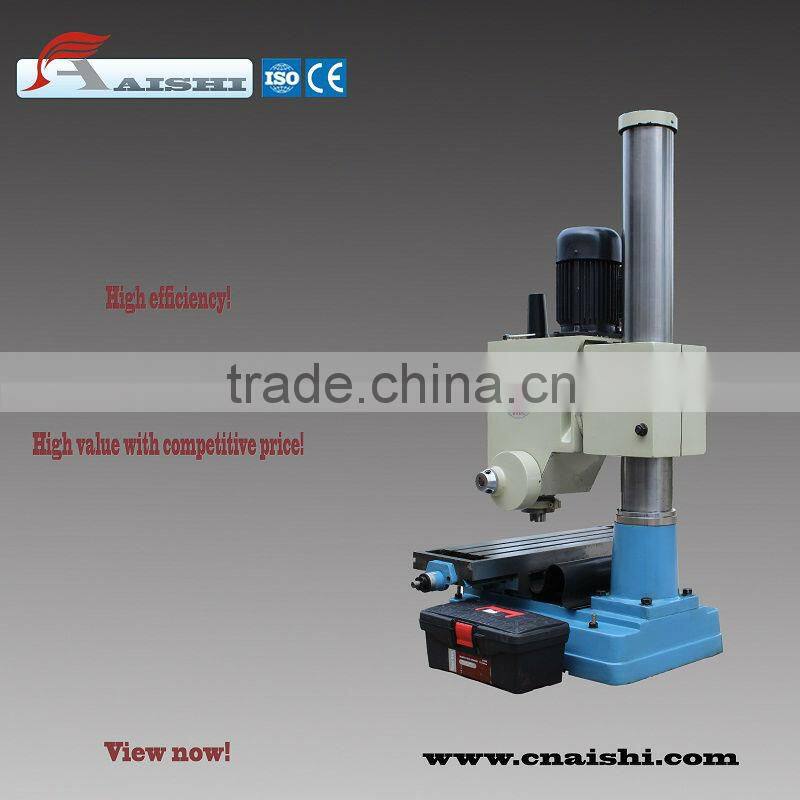

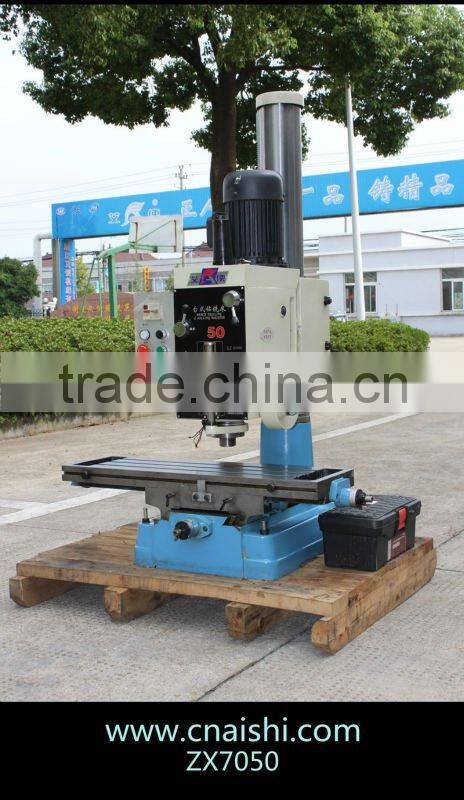

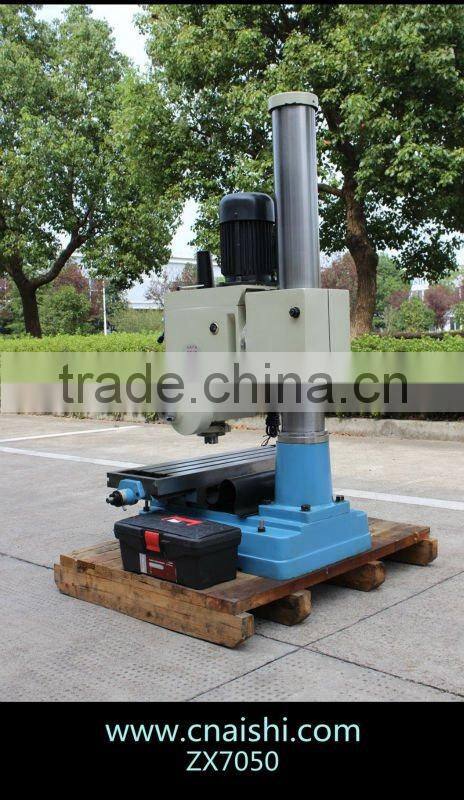

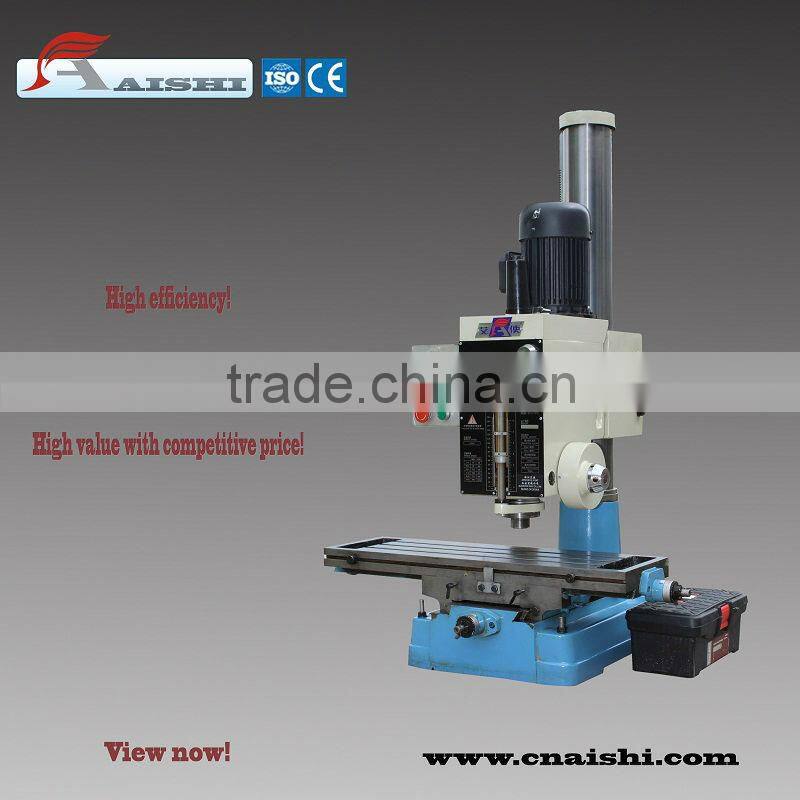

Aishi machine is perfect for mass producing and training purpuses table drilling machineBench Model: ZX7050 Bench Drilling and Milling Machine
·Adopting gears as the main transmission approach, ZX7050 Bench drilling and milling machine is featured in large torque,capable of fulfilling the tasks such as boring,broaching and reaming as well as different types of milling.The boring and milling capability of the machine is unique.
·The gears are lubricated with oil-immersion method,which ensures the smooth running and reduces the noise.
·The technology of advancing system in ZX7050 Bench drilling and milling machine is a patent of the enterprise. The extraordinary performance of the manual feeding mechanism shall effectively reduce the cost of the production for the users.
·The stroke mechanism is another patent of the enterprise,which combines the rig-adjusting and fine-adjusting,resulting in convenient operation and esthetic appearance.
Drilling and milling machine
| Model | ZX7032 | ZX7050 | ZX7050/I | ZX7540 |
| Max. Drilling capacity(cast) | / | Cast:Ø50mm | Cast:Ø50mm | / |
| Max. Drilling capacity(steel) | Ø31.5mm | Steel:Ø45mm | Steel:Ø45mm | Ø40mm |
| Max. tapping capacity | M12mm | / | / | / |
| Max. end milling capacity | Ø22mm | Ø32mm | Ø32mm | Ø28mm |
| Max. face milling capacity | Ø80mm | Ø100mm | Ø100mm | Ø80mm |
| Spindle taper | MT3 | MT4 | MT4 | MT4 |
| Max. travel of Spindle | 130mm | 150mm | 150mm | 150mm |
| Max. distance from spindle nose to worktable | 460mm | 600mm | 580mm | 500mm |
| Max. distance from spindle axis to column | 202.5mm | 310mm | 290mm | 235mm |
| Spindle speed range | 96-2107r/min | 40-995r/min | 60-1160r/min | 40-1545r/min |
| Spindle speed steps | 12steps | 6steps | 6steps | 12steps |
| Dimension of worktable (L×W) | 730×210mm | 800×240mm | 800×240mm | 730×210mm |
| Max. travel of worktable(X×Y) | 500×180mm | 575×190mm | 575×240mm | 500×210mm |
| Diameter of column | / | Ø130mm | / | / |
| Main motor | 1.5kw | 1.1kw | 1.5or2.2kw | 1.1 kw |
| Machine dimension (L×W×H) | 1050×1010×1100mm | 720×560×1635mm | 720×560×1635mm | 1170×1100×1880mm |
| Net weight | 275kg | 340kg | 400kg | 440kg |
| Assembly options | Power feed | *X,Y,Z power feed | *X,Y,Z Power Feed | Power feed |
