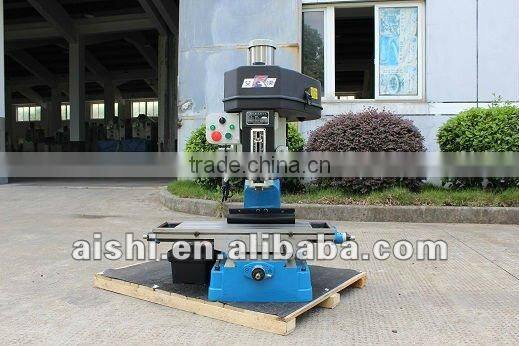

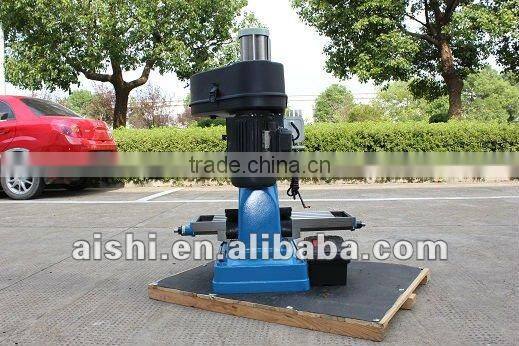

ZX7032 Bench Drilling and Milling Machine,bench Drilling Machine
US$ 1,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Drilling Speed:
96~2107
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZX7050/I Drilling and Milling MachineUS$ 2,450 - 3,000MOQ: 1 Set -
ZX7540 Vertical Drilling and Milling MachineUS$ 1,000 - 3,000MOQ: 1 Set
-
ZX7050 Bench Drilling and Milling MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
LF Mini Drill Machine,small Manual Drilling MachineUS$ 1,500 - 2,200MOQ: 2 Sets
-
Z4050 Small Drilling Machine,manual Drilling MahineUS$ 2,150 - 2,650MOQ: 1 Set
Condition
New
CNC or Not
Normal
Drilling Speed
96~2107
Place of Origin
Zhejiang, China
Brand Name
Aishi
Model Number
ZX7032
Voltage
220/380V
Power(W)
1.5kw
Dimension(L*W*H)
1050*1010*1100mm
Weight
275kg
Certification
CE
Specifications
Aishi machine is perfect for mass producing and training purpuses bench drilling machineZX7032 Bench Drilling and Milling Machine
1,The machine has compact size and is easy to install.Its capability to bore 31.5mm holes is unique among similar products.
2,The belt transmission turns out 12 different speeds ranging from 96 rounds/min to 2107 rounds/min,optional according to the customers'specific needs.
3,This model enjoys flexible speed adjustment method.To adjust the speed,simply open the case and loose the handle.
4,A fine adjustment mechanism is attached on the advancing system of the main shaft,which contributes to the improved processing quality of the drilling and milling.
| MODEL | ZX7032 |
| CAPACITY | |
| Drilling capacity(max.) | Ø31.5mm |
| Tapping capacity(max.) | M12 |
| Milling capacity end mill cutter(max.) | Ø22mm |
| Milling capacity cutter head(max.) | Ø80mm |
| SPINDLE | |
| Spindle taper | MT3 |
| Spindle speed | 96-2107rpm |
| Spindle speed steps | 12 |
| Distance spindle-column | 202.5mm |
| SPINDLE HOLEING FIXTURE | |
| Z-axis travel | 130mm |
| COLUMN | |
| Column diameter | Ø115mm |
| CROSS TABLE | |
| Table (L×W) | 730×210mm |
| Table load | 100kg |
| Y-axis travel | 180mm |
| X-axis travel | 500mm |
| T-slot | 14mm/45mm/4 |
| Distance spindle-cross table(max.) | 460mm |
| ELECTRIC SUPPLY | |
| Motor | 1.5kW |
| Motor coolant pump | / |
| DIMENSION AND WEIGHT | |
| Overall dimension (L×W×H) | 1050×1010×1100mm |
| Packing size (L×W×H) | 760×1070×1143mm |
| Net weight/Gross weight | 275kg |
| ASSEMBLY OPTIONS | |
| Z-axis power feed | NO |
| X-axis power feed | YES |
| Y-axis power feed | YES |
