Farm Irrigation Used Pressed Steel Sectional Water Tank With Hot Dip Galvanized Accessories
- 300 Set / Sets per Month
- Any China port
- T/T Credit Card
- High Volume Fiberglass Plastic Farm Water Tank With Air Vent
- Agriculture Used Pressed Sectional Water Tank For Commercial Facilities
- Drinking Water Tank, Square Water Storage Tank, SS304 Stainless Steel Water Tank
- Combined Type 100 Gallon Water Tank With Ball Float Valves
- Externally Braced FRP Fiberglass Sectional Water Tank For Good Price
- Stainless Steel Grade 304/316 Sectional Panel Firefighting Water Tank
Product Details
Place of Origin: | Hebei, China | Brand Name: | Fenjin | Model Number: | WT-F1 |
Packaging Details
Standard export package/Wooden case/Steel frame/Pallet for irrigation water tank or as customer require
Product Description
Farm Irrigation Used Pressed Steel Sectional Water Tank With Hot Dip Galvanized Accessories
Irrigation Water Tank Introudction
Hot galvanized surface attractive and durable, good for health, it can prevent secondary pollution.
Field-assembled using standard panels, which are bolted with nontoxic rubber inserts in between.
Water capacity varies from 1.0 cubic meter to 1000 cubic meters, height may reach as great as 5 meters.
Irrigation Water Tank Application
1. Industrial Water Treatment with multi-layer media
2. Water Softening Application
3. Centralized Filtration System for high rise residential and commercial buildings such as condominiums, high rise office building, hotels and resorts.
4. Aquaculture, fish farming and hatchery filtration system
5. Many other water filtration and treatment applications.
Irrigation Water Tank Technical Parameter
V (m3) | L (mm) | B (mm) | H (mm) | Top panel (mm) | Bottom panel (mm) | Edge Distance (mm) | Spacing (mm) | No. |
1 | 1000 | 1000 | 1000 | 1.2 | 1.5 | 200 | 600 | 2 |
6 | 2000 | 2000 | 1500 | 1.2 | 1.5 | 200 | 540 | 4 |
10 | 2500 | 2000 | 2000 | 1.2 | 2 | 200 | 530 | 5 |
15 | 3000 | 2000 | 2500 | 1.2 | 2 | 300 | 600 | 2 |
20 | 4000 | 2000 | 2500 | 1.2 | 2 | 150 | 530 | 8 |
24 | 4000 | 3000 | 2000 | 1.2 | 2.5 | 260 | 580 | 7 |
30 | 5000 | 3000 | 2000 | 1.2 | 3 | 260 | 640 | 8 |
40 | 5000 | 4000 | 2000 | 1.5 | 3 | 260 | 640 | 8 |
50 | 5000 | 5000 | 2000 | 1.5 | 3 | 200 | 640 | 8 |
100 | 10000 | 5000 | 2000 | 1.5 | 3 | 200 | 640 | 16 |
500 | 25000 | 5000 | 4000 | 1.5 | 3 | 200 | 615 | 41 |
1000 | 25000 | 10000 | 4000 | 1.5 | 3 | 200 | 615 | 41 |
Irrigation Water Tank Certifications

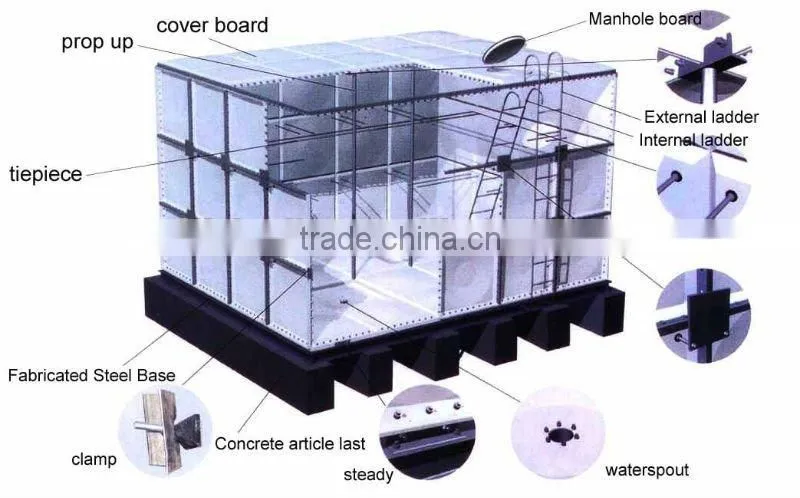

Irrigation Water Tank Accessories
1 Panels
The panel is made of Q235 steel by hydraulic punching machine;
The size of the panel is :1220*1220mm, 1000*1000mm,1000*500mm, 500*500mm;
The thickness of the panel mainly includes: 5mm, 4.5mm, 3mm, 2.5mm, 2mm, 1.5mm. It is different according to the tank dimension.
2 Flanges
The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.

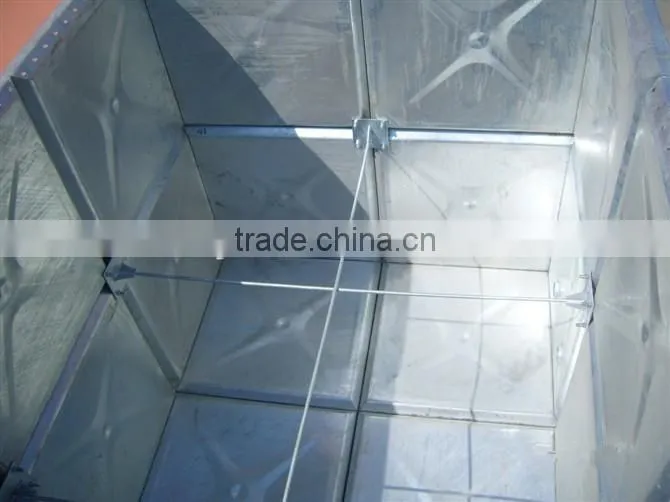

3 Reinforcement
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of hot-dipped
galvanized material.
4 Bolt. nut & washers
Hot-dipped galvanized material.
5 Sealing material
Non-toxic, rubber foam tape shall be used in between the joints.
6 Ladders and Level Indicator
Internal & external ladder shall be made of hot-dipped galvanized material.
1 ISO Management and BV audited company
2 Various style of FRP products for you choose, like frp water tank, frp grating, frp cooling tower, frp profiles, etc
3 We offer competitive price with good quality products
4 We have the most convenient transport and prompt delivery.
5 We supply good after-sales service, we will follow up each situation, if have problems, we will find out the reason and deal with positively.
