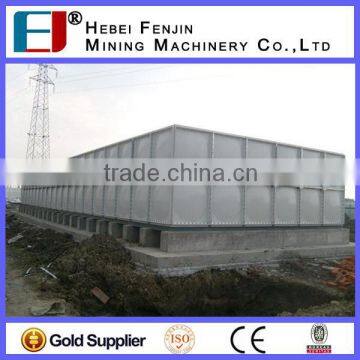

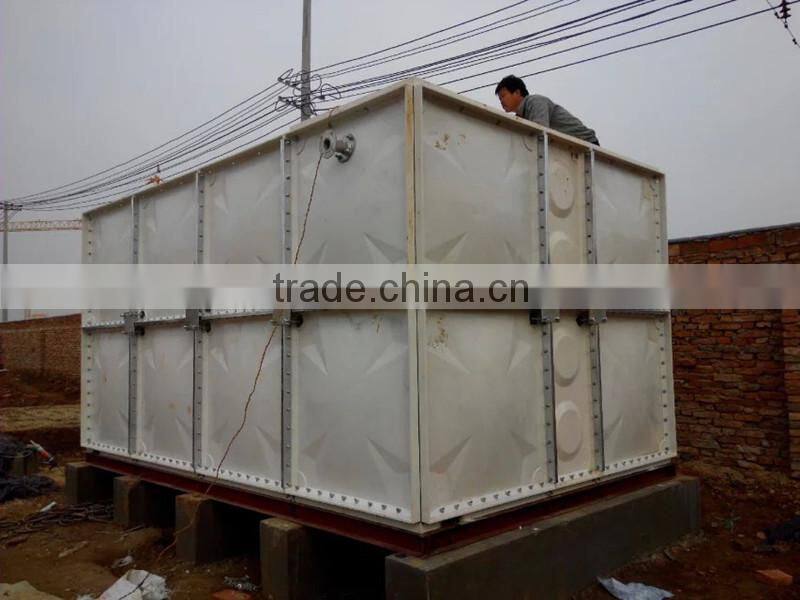

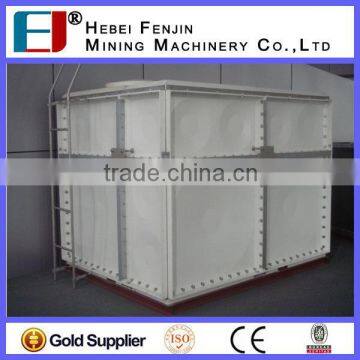

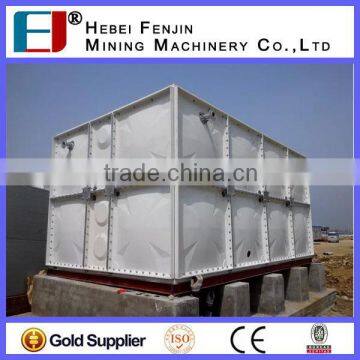

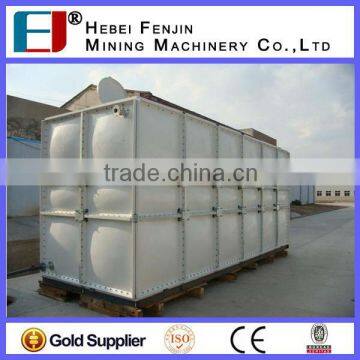

Food Grade GRP Modular Panel Water Tank With Division Wall
GRP Panel Water Tank Introudction
The panel tank is a modular system, enabling a tank of any desired size and shape to be constructed. Panel sizes are from 0.5 to 1.0 meters in height and could be combined to create a tank up to 4m high. Formed from hot pressed GRP, and available in gray color. All units offer the option of integral insulation.
GRP Panel Water Tank Physical and Chemical Function
Project |
Performance index |
Tensile strength,Mpa |
≥60 |
Bending strength,Mpa |
≥100 |
Bending modulus,Gpa |
≥7.0 |
Pap hardness |
≥60 |
Bibulous rate,% |
≤1.0 |
Glass fiber content,% |
≥25 |
GRP Panel Water Tank Application
1). Potable drinking water storage
2). Rainwater storage
3). Emergency water Storage
4). Pump chambers
5). Hospital, buildings, building site, school and other place

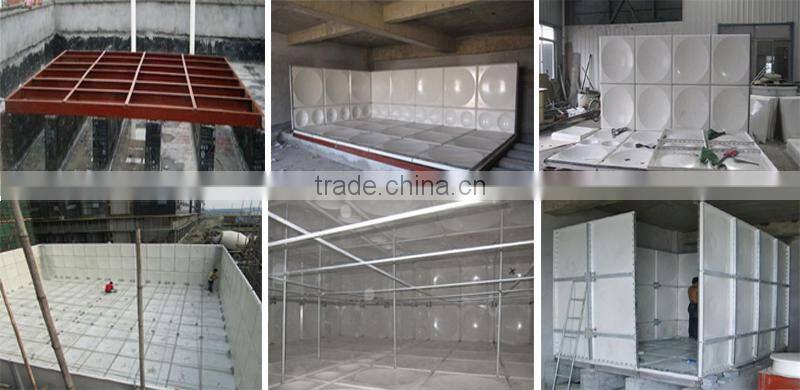

GRP Panel Water Tank Assembly
Step 1. Install steel footings on leveled concrete foundations.
Step 2. Align GRP panels to be pre-assembled.
Step 3. Place rubber sealant from ready-to-use roll between panels.
Step 4. Connect panels with bolts and nuts.
Step 5. Position bottom panel sections, and finish up base of tank.
Step 6. Position three sides of the tank.
Step 7. Position and fix top panels and if required, top support pipes and plates.
Step 8. Install reinforcement if required.
Step 9. Close up the tank with the fourth side.
Step 10. Finish the internal or external reinforcement.
Step 11. Fill and test.
GRP Panel Water Tank Certifications
GRP Panel Water Tank Accessories
1 ISO Management and BV audited company
2 Various style of FRP products for you choose, like frp water tank, frp grating, frp cooling tower, frp profiles, etc
3 We offer competitive price with good quality products
4 We have the most convenient transport and prompt delivery.
5 We supply good after-sales service, we will follow up each situation, if have problems, we will find out the reason and deal with positively.
Q: 1. Can I have a sample order?
A: Yes, sample is available. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Usually 7 days or according to quantity
Q: 3. What is the minimum order quantity?
A: Our MOQ is 1 set
Q: 4. What is the price policy of your company?
A: The price is different according to the order quantity , the more the cheaper.
For more detailed information, you can contact us freely
Q: 5. What is the package?
A: We offer pallets, wooden case, steel frame packaging, or according to customer's demand
Q: 6. Can I visit your company?
A: Welcome, look forward to your arrival and we will pick up you from Beijing airport and lead you to visit our factory
