Non Pollution Modular Hot Dip Galvanized Steel Water Tank For Firefighting
Galvanized Steel Water Tank Introudction
Hot galvanized surface attractive and durable, good for health, it can prevent secondary pollution.
Field-assembled using standard panels, which are bolted with nontoxic rubber inserts in between.
Water capacity varies from 1.0 cubic meter to 1000 cubic meters, height may reach as great as 5 meters.
Galvanzied Steel Water Tank Application
(1) Construction water storing
(2) The regulating tank
(3) Heating system's inflation water tank
(4) The condensate tank as well as the building construction
(5) The geological prospecting
(6) The defense project and so on temporarily store water tank
(7) Many other water filtration and treatment applications.
Galvanized Steel Water Tank Technical Parameter
|
V (m3) |
L (mm) |
B (mm) |
H (mm) |
Top panel (mm) |
Bottom panel (mm) |
Edge Distance (mm) |
Spacing (mm) |
No. |
1 |
1000 |
1000 |
1000 |
1.2 |
1.5 |
200 |
600 |
2 |
6 |
2000 |
2000 |
1500 |
1.2 |
1.5 |
200 |
540 |
4 |
10 |
2500 |
2000 |
2000 |
1.2 |
2 |
200 |
530 |
5 |
15 |
3000 |
2000 |
2500 |
1.2 |
2 |
300 |
600 |
2 |
20 |
4000 |
2000 |
2500 |
1.2 |
2 |
150 |
530 |
8 |
24 |
4000 |
3000 |
2000 |
1.2 |
2.5 |
260 |
580 |
7 |
30 |
5000 |
3000 |
2000 |
1.2 |
3 |
260 |
640 |
8 |
40 |
5000 |
4000 |
2000 |
1.5 |
3 |
260 |
640 |
8 |
50 |
5000 |
5000 |
2000 |
1.5 |
3 |
200 |
640 |
8 |
100 |
10000 |
5000 |
2000 |
1.5 |
3 |
200 |
640 |
16 |
500 |
25000 |
5000 |
4000 |
1.5 |
3 |
200 |
615 |
41 |
1000 |
25000 |
10000 |
4000 |
1.5 |
3 |
200 |
615 |
41 |
Galvanized Steel Water Tank Certifications
Galvanized Steel Water Tank Accessories

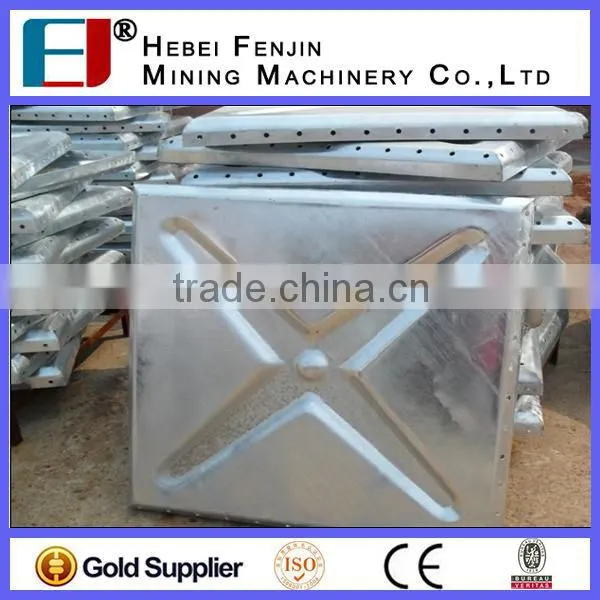

1 Panels
The panel is made of Q235 steel by hydraulic punching machine;
The size of the panel is :1220*1220mm, 1000*1000mm,1000*500mm, 500*500mm;
The thickness of the panel mainly includes: 5mm, 4.5mm, 3mm, 2.5mm, 2mm, 1.5mm. It is different according to the tank dimension.
2 Flanges
The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
3 Reinforcement
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of hot-dipped
galvanized material.
4 Bolt. nut & washers
Hot-dipped galvanized material.
5 Sealing material
Non-toxic, rubber foam tape shall be used in between the joints.
6 Ladders and Level Indicator
Internal & external ladder shall be made of hot-dipped galvanized material.
Galvanized Steel Water Tank Packaging & Shipping
1 ISO Management and BV audited company
2 Various style of FRP products for you choose, like frp water tank, frp grating, frp cooling tower, frp profiles, etc
3 We offer competitive price with good quality products
4 We have the most convenient transport and prompt delivery.
5 We supply good after-sales service, we will follow up each situation, if have problems, we will find out the reason and deal with positively.
Q: 1. Can I have a sample order?
A: Yes, sample is available. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Usually 7 days or according to quantity
Q: 3. What is the minimum order quantity?
A: Our MOQ is 1 set
Q: 4. What is the price policy of your company?
A: The price is different according to the order quantity , the more the cheaper.
For more detailed information, you can contact us freely
Q: 5. What is the package?
A: We offer pallets, wooden case, steel frame packaging, or according to customer's demand
Q: 6. Can I visit your company?
A: Welcome, look forward to your arrival and we will pick up you from Beijing airport and lead you to visit our factory
