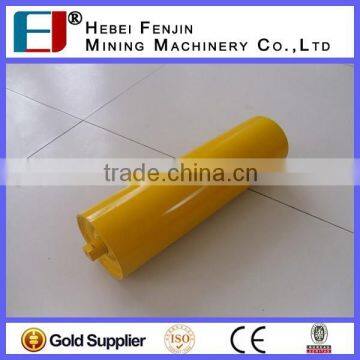

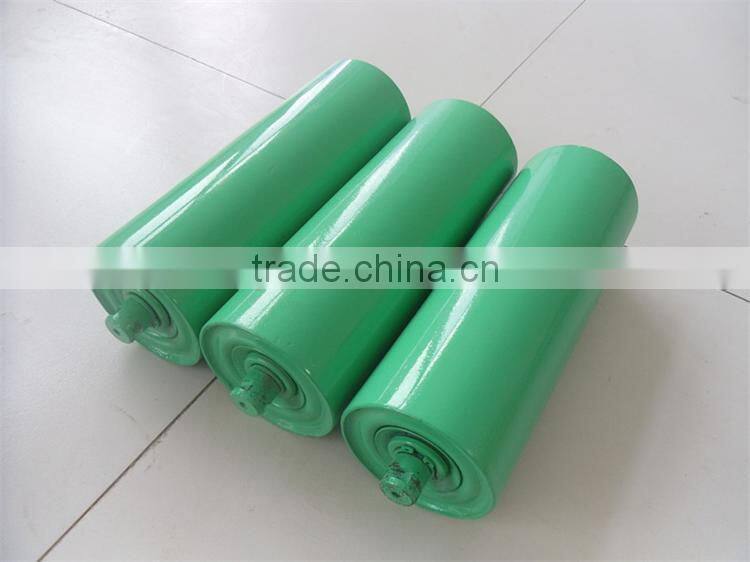

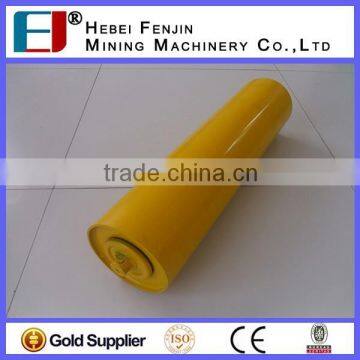

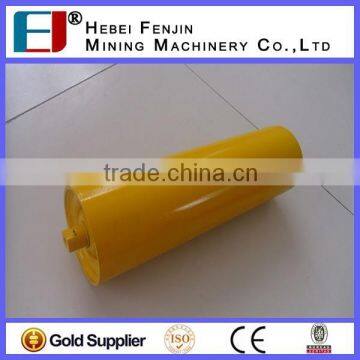

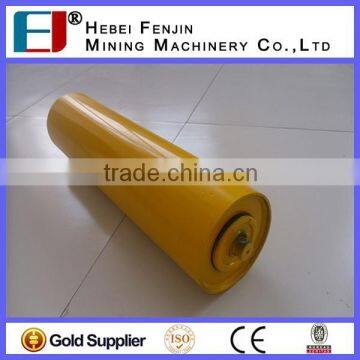

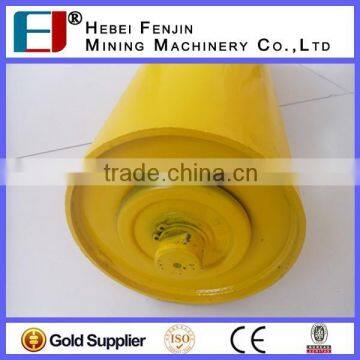

High Performance Conveyor Belt Support Roller, Trough Roller For Conveyor
Conveyor Support Roller Introduction
Conveyor support roller is used for supporting the weight of the basecoat rubber belt. It consists of
shell, axis, bearing, bearing pedestal and seal ring.
Specification of Conveyor Support Roller
Standard Diameter |
Length scope(mm) | Bearings Type(Min-Max) | Idler’s Shell Wall Thinkness | |
mm |
Inch |
|||
63.5 |
21/2 |
150-3500 | 204 | 3.0mm-3.75mm |
76 |
3 |
150-3500 | 204 205 | 3.0mm-4.0mm |
89 |
31/3 |
150-3500 | 204 205 | 3.0mm-4.0mm |
102 |
4 |
150-3500 | 204 205 305 | 3.5mm-4.0mm |
108 |
41/4 |
150-3500 | 204 205 305 306 | 3.5mm-4.0mm |
114 |
41/2 |
150-3500 | 204 205 305 306 | 3.5mm-4.5mm |
127 |
5 |
150-3500 | 204 205 305 306 | 3.5mm-4.5mm |
133 |
51/4 |
150-3500 | 204 206 207 305 306 | 3.5mm-4.5mm |
140 |
51/2 |
150-3500 | 204 206 207 305 306 | 3.5mm-4.5mm |
152 |
6 |
150-3500 | 204 206 207 305 306 307 308 | 4.0mm-4.5mm |
159 |
61/4 |
150-3500 | 204 206 207 305 306 307 308 | 4.0mm-4.5mm |
165 |
61/2 |
150-3500 | 207 305 306 307 308 | 4.5mm-6.0mm |
177.8 |
7 |
150-3500 | 207 306 307 308 309 | 4.5mm-6.0mm |
190.7 |
71/2 |
150-3500 | 207 306 307 308 309 | 4.5mm-6.0mm |
194 |
75/8 |
150-3500 | 207 307 308 309 310 | 4.5mm-6.0mm |
219 |
85/8 |
150-3500 | 308 309 310 | 4.5mm-6.0mm |
Advantages of Conveyor Support Roller
(1)Easy installation and nice flexibility;
(2)Low friction coefficient;
(3)Dust- and water-proof;
(4)Fine welding technique ensure roller with low vibration and noise
(5)Electrostatic spraying technic makes the roller more durable and good-looking;
(6)Strict inspection standard ensures our high quality product.

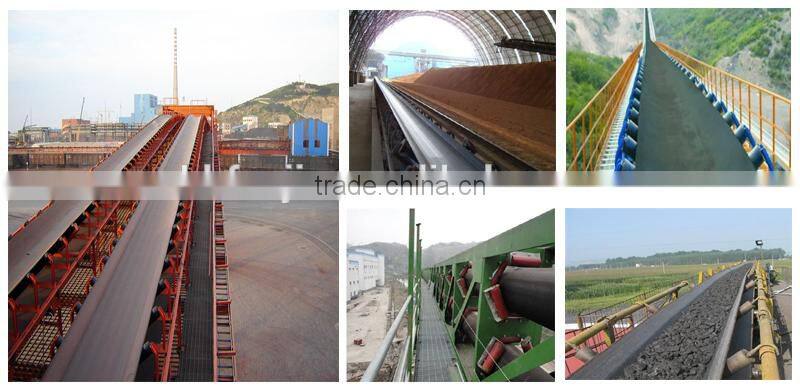

Conveyor Belt Roller Applications
---Cement Industry
---Chemical Industry
---Coal Industry
---Salt Industry
---Ceramic Industry
---Sugar Industry
---Paper and Pulp Industry
---Iron and Steel Industry
---Pharmaceuticals Industry
---Textile Industry
---Leather and Plastic Industry
---Food Processing Industry
Fenjin Roller, Service to Every Industry
Conveyor Support Roller Certifications & Patents
Fenjin brand conveyor belt troughing idlers have been passed the ISO9001:2008 and Safety
Certificate for Mining Products. Our company also got the patents for conveyor parts. High
quality and competitive price, our products has got a good reputation both in home and abroad.

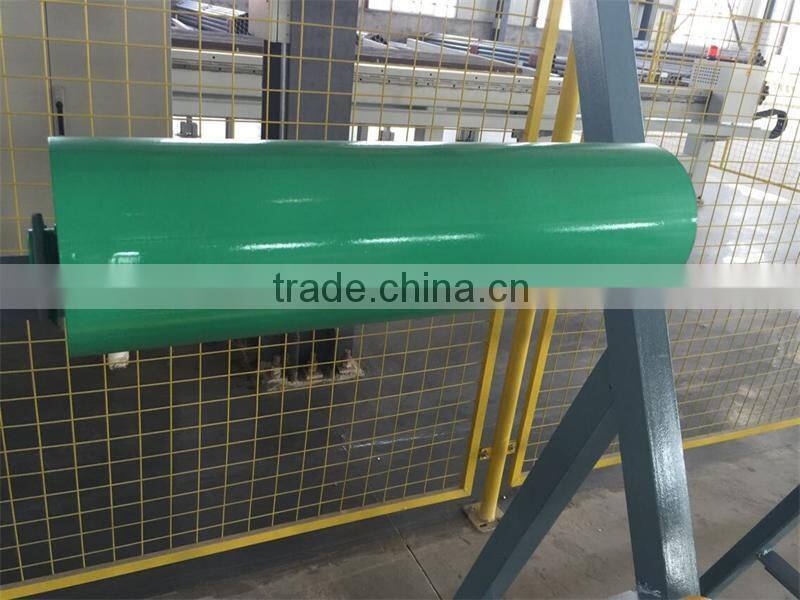

Conveyor Support Roller Production Flow
Conveyor Support Roller Packaging & Shipping
Conveyor support roller package type: standard wooden box or as per your requirements
Port of loading: Tianjin Xingang or any China port
MOQ: 50 PCS
Capacity: 30000 pcs per month
1. Any inquires will be replied within 8 working hours.
2. Professional roller products manufacturer, welcome to visit our website and factory.
3. Customized design is available
4. High quality, reasonable & competitive price.
5. Fast lead time,
6. We have strong cooperation with forwarder, you also can chose your own shipping forwarder.
Fenjin unique full-automatic roller production line represents the international most advanced roller
manufacturing level, mainly including shaft, roller processing, welding, assembly line, spraying, dry production line. High machining accuracy, uniform and stable quality, which can realize continuous
and efficient professional production, every 27 to 37 seconds to produce a roller, roller diameter from 89 mm to 89 mm, length can up to 2600 mm.
The roller has achieved automatic production line with high efficiency and high quality production an satisfy the needs of users by the large.
1 What is the business of your company?
Hebei Fenjin Mining Machinery Co., Ltd is specialized in designing and manufacturing conveying
machinery, conveyor rollers, conveyor pulley, impact idler, nylon roller, aligning roller, friction
roller, taper idler, flat roller, return roller, spiral roller, belt cleaner, conveyor idler bracket
2 What is the advantages compared to other suppliers?
Fenjin has the unique full automatic roller production line, high machining accuracy, uniform and
stable quality, which can realize continuous and efficient professional production, so Fenjin can
provide good quality product and service to our customers.
3 Can we visit your company?
No problem, we are a professional manufacturer, look forward to your arrival and we will lead
you to visit our factory.
4 What is the lead time?
In general, mass production needs 15-30 days, also according to the order volume.
5 Can you accept mixed batch of different products?
Yes, we support different product mix wholesale, no limit of raw materials and mechanical parts, and color specifications, etc
6 How about the packing ?
We can provide wooden packing, plywood board packing, 20 feet container, 40 feet container
