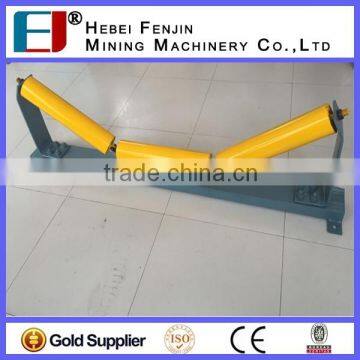

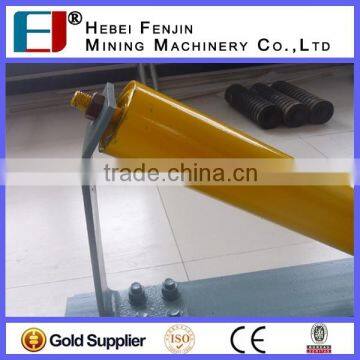

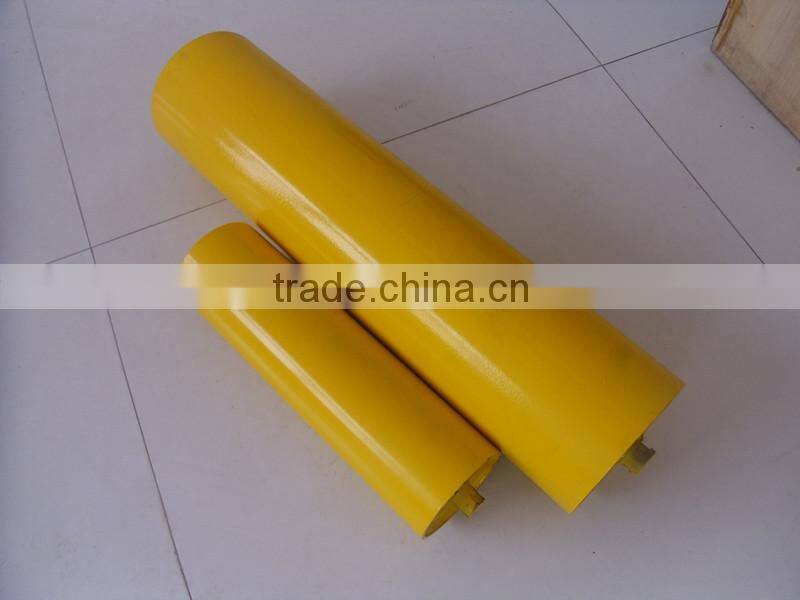

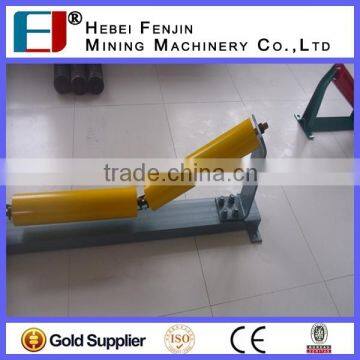

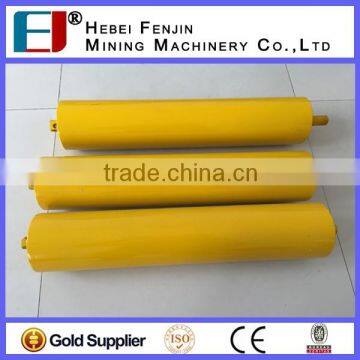

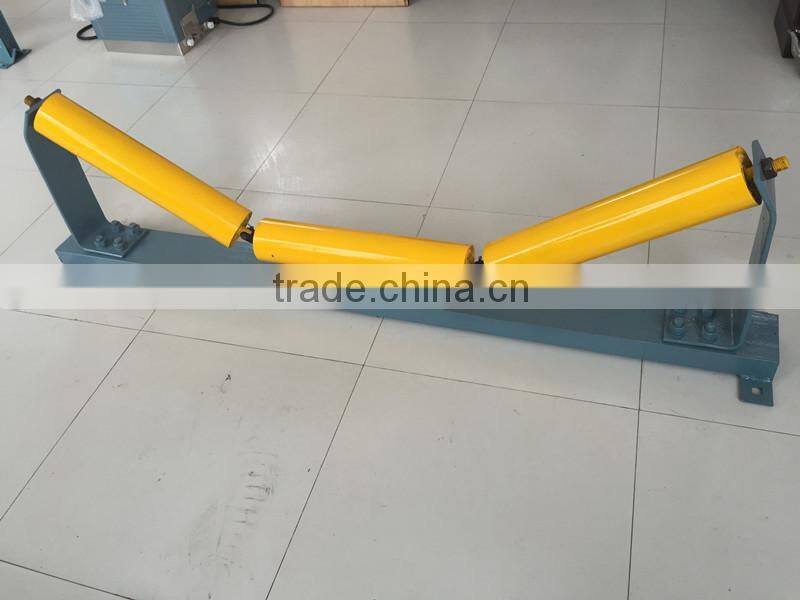

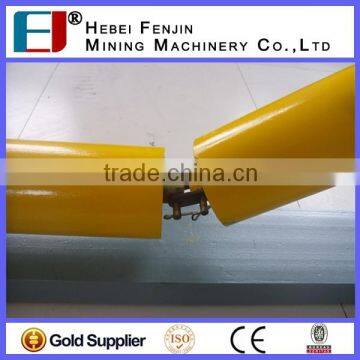

Steel Tube Q235 Troughing Type Carrying Idler Roller With Electrostatic Painting
Carrying Idler Roller Introduction
Carrying idler roller is widely used in mining ,metallurgy ,coal and other industries ,the belt conveyor can be used to transfer bulk materials or material in pieces ,according to different transferring requirements ,the transferring system can be of only one belt conveyor or consists of several conveyors ,or combined with other transferring equipments .the belt conveyor can be installed horizontally or a slope to meet the needs of different transferring requirements.
Specification of Carrying Idler Roller
Standard Diameter |
Length scope(mm) | Bearings Type(Min-Max) | Idler’s Shell Wall Thinkness | |
mm |
Inch |
|||
63.5 |
21/2 |
150-3500 | 204 | 3.0mm-3.75mm |
76 |
3 |
150-3500 | 204 205 | 3.0mm-4.0mm |
89 |
31/3 |
150-3500 | 204 205 | 3.0mm-4.0mm |
102 |
4 |
150-3500 | 204 205 305 | 3.5mm-4.0mm |
108 |
41/4 |
150-3500 | 204 205 305 306 | 3.5mm-4.0mm |
114 |
41/2 |
150-3500 | 204 205 305 306 | 3.5mm-4.5mm |
127 |
5 |
150-3500 | 204 205 305 306 | 3.5mm-4.5mm |
133 |
51/4 |
150-3500 | 204 206 207 305 306 | 3.5mm-4.5mm |
140 |
51/2 |
150-3500 | 204 206 207 305 306 | 3.5mm-4.5mm |
152 |
6 |
150-3500 | 204 206 207 305 306 307 308 | 4.0mm-4.5mm |
159 |
61/4 |
150-3500 | 204 206 207 305 306 307 308 | 4.0mm-4.5mm |
165 |
61/2 |
150-3500 | 207 305 306 307 308 | 4.5mm-6.0mm |
177.8 |
7 |
150-3500 | 207 306 307 308 309 | 4.5mm-6.0mm |
190.7 |
71/2 |
150-3500 | 207 306 307 308 309 | 4.5mm-6.0mm |
194 |
75/8 |
150-3500 | 207 307 308 309 310 | 4.5mm-6.0mm |
219 |
85/8 |
150-3500 | 308 309 310 | 4.5mm-6.0mm |
Performance of Carrying Idler Roller
---High Performance Pipe Conveyor Idler Roller, Trough Roller
---Good performance of self-lubrication,wear resistance and no caking. The surface of roller is not easy to scale.
---Low frication coefficient and it is good for belt.
---Flexible and smooth movement, and low driving power consumption.
---Light weight, easy installation and replacement. Reduce the labor intensity and maintenance.
---The Labyrinth seals makes waterproof and dustproof effect more significant.

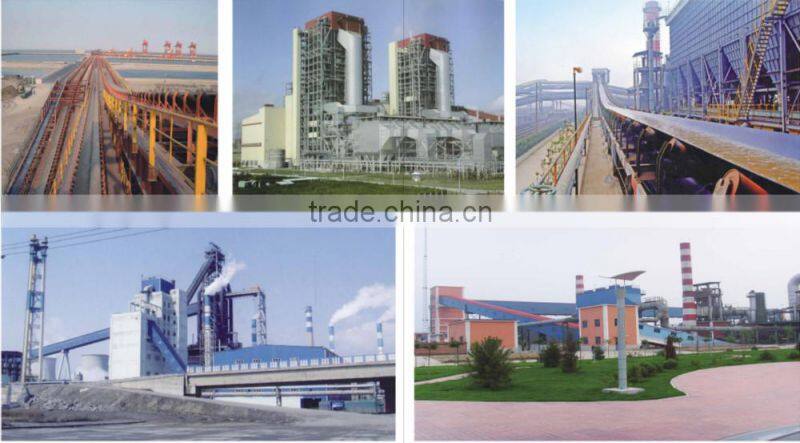

Carrying Idler Roller Applications
Fenjin Roller, Service to Every Industry
Carrying Idler Roller Certifications & Patents
Fenjin brand conveyor belt troughing idlers have been passed the ISO9001:2008 and Safety
Certificate for Mining Products. Our company also got the patents for conveyor parts. High
quality and competitive price, our products has got a good reputation both in home and abroad.
Carrying Idler Roller Packaging & Shipping
Carrying idler roller package type: standard wooden box or as per your requirements
Port of loading: Tianjin Xingang or any China port
MOQ: 50 PCS
Capacity: 30000 pcs per month
1 We are a professional manufacturer , provide you the competitive factory price.
2 Various style of roller products for you choose, like trough roller, impact roller, taper roller etc.
3 We ensure the deliver time and the high quality for you, and the best after-sale service.
4 Any problem, no matter big or small, we will do our best to solve it with you, made you satisfied.
5 We have the international leading full automatic flexible roller assembly production line, the annual production capacity is more than 700,000 pieces.
Fenjin unique full-automatic roller production line represents the international most advanced roller
manufacturing level, mainly including shaft, roller processing, welding, assembly line, spraying, dry production line. High machining accuracy, uniform and stable quality, which can realize continuous
and efficient professional production, every 27 to 37 seconds to produce a roller, roller diameter from 89 mm to 89 mm, length can up to 2600 mm.
The roller has achieved automatic production line with high efficiency and high quality production an satisfy the needs of users by the large.
