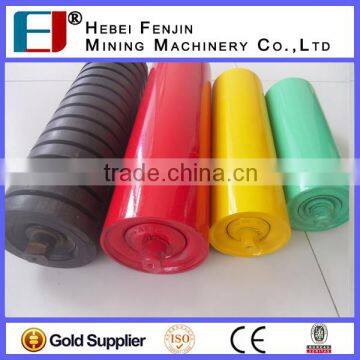

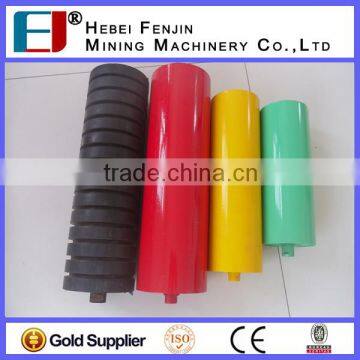

Industrial rubber EP conveyor belt roller
1) Diameter: 60mm-219mm.
2)Length: 190-3400mm.
3) Tube: Q235(GB) equal to S235JR(DIN)
4) Shaft: 45# steel(GB) equal to C45(DIN)
5) Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
6)Grease:Lithium soap type grease,grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
7) Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
8) Welding: Mixed gas shielded arc welding end.
9)Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
The company Hebei Fenjin gathered in large number of shape creation,unity innovation,scientific res
earch innovation talented person who are excellent in production, management,created an elite team
who can meet the needs of all level.Among them,including 110 employees,30 technical specialists,8 senior technical persons.Advanced firstclass production equipment,complete testingequipment,the company has the modern most advanced fullautomatic flexible roller assembly production line,truly re
alized fullautomatic from raw material to finished product to inspection,the roller production reached the international advanced standard.
Prduction process:
Fen Jin brand belt conveyor roller material handing equipment,roller has been exported to more than 30 countries all over the world and particularly suitable for South America market. we have professional engineers and all of them have rich experience in this field, we can design the goods independently and make roller by your design.
FenJin brand conveyor belt idler roller have been certificated by the ISO9001/2008 and Safety Certificate for Mining Products. With high quality and competitive prices, our products enjoy a good reputation both in home and the abroad.
we can meet the standards GB, ISO, CEMA, DIN, JIS, ETC
1) Ultrahigh abrasion resistance and anti-adherence effect, less coefficient of friction, belt service
life can be extended 1 to 2 times
2) Free-maintenance.
3) Flame resistance, anti-static, aging resistance and corrosion resistance.
4) High mechanical strength.
5) Seal is free from leak, low noise, little revolution resistance,uniformed running and longer operating life.
6) More working temperature (below 100 degree).
7) Light weight, easy to installation.
8) Safety and healthy, can be used for food and medicine material.
Production capacity: as usual 5000 pieces/ week and urgent order is acceptable
Roll groove conveyor roller / roller used in coal mining industry, cement industry, power plants and ports.
Standard Diameter |
Length scope(mm) |
Bearings Type(Min-Max) |
Idler’s Shell Wall Thinkness |
|
mm |
Inch |
|||
63.5 |
21/2 |
150-3500 |
204 |
3.0mm-3.75mm |
76 |
3 |
150-3500 |
204 205 |
3.0mm-4.0mm |
89 |
31/3 |
150-3500 |
204 205 |
3.0mm-4.0mm |
102 |
4 |
150-3500 |
204 205 305 |
3.5mm-4.0mm |
108 |
41/4 |
150-3500 |
204 205 305 306 |
3.5mm-4.0mm |
114 |
41/2 |
150-3500 |
204 205 305 306 |
3.5mm-4.5mm |
127 |
5 |
150-3500 |
204 205 305 306 |
3.5mm-4.5mm |
133 |
51/4 |
150-3500 |
204 206 207 305 306 |
3.5mm-4.5mm |
140 |
51/2 |
150-3500 |
204 206 207 305 306 |
3.5mm-4.5mm |
152 |
6 |
150-3500 |
204 206 207 305 306 307 308 |
4.0mm-4.5mm |
159 |
61/4 |
150-3500 |
204 206 207 305 306 307 308 |
4.0mm-4.5mm |
165 |
61/2 |
150-3500 |
207 305 306 307 308 |
4.5mm-6.0mm |
177.8 |
7 |
150-3500 |
207 306 307 308 309 |
4.5mm-6.0mm |
190.7 |
71/2 |
150-3500 |
207 306 307 308 309 |
4.5mm-6.0mm |
194 |
75/8 |
150-3500 |
207 307 308 309 310 |
4.5mm-6.0mm |
219 |
85/8 |
150-3500 |
308 309 310 |
4.5mm-6.0mm |
1).Pipe diameter(mm): 60, 63, 76, 89, 108, 133, 159,176,194,219
2).Shaft diameter(mm):20, 25, 30, 35, 40,45,50
3).Bearing size: 6204, 6205, 6206, 6207,6305, 6306, 6307, 6308,6309,6310,6311,6312,6313
4).Bearing Housing type: pressed housing, cast iron bearing housing, polymer housing
5).Seal: Multiple labyrinth seal, Waterproof, dustproof, corrosion resistance
6).Standard: ISO,CE,BV
belt conveyor idler roller used in coal mining industry, cement industry,
power plants and ports.

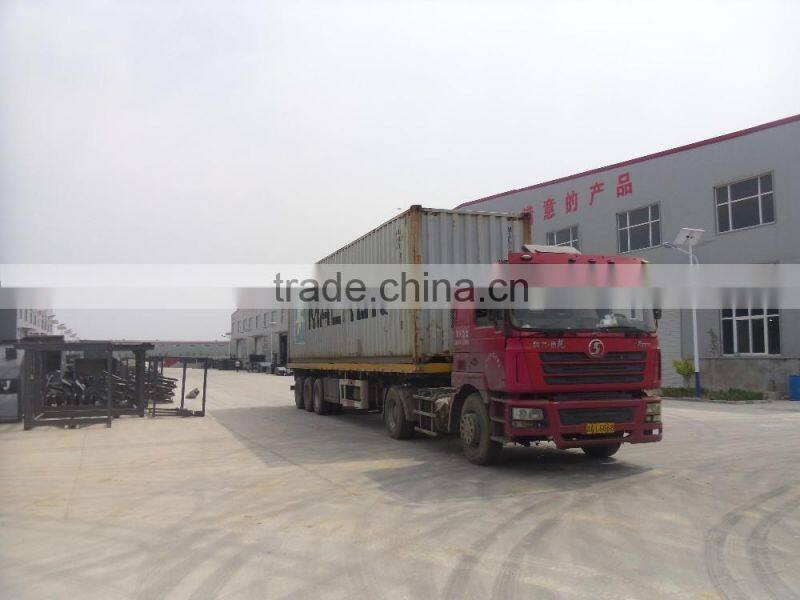

consignment
