Alibaba China Supplier Troughing Steel Pipe Conveyor Rollers For Port Facilities
Hebei Fenjin Mining Machinery Co., Ltd has the international leading full-automatic flexible roller assembly production line at present, covering an area of 80000 square meters
Mainly engaged in designing and manufacturing belt conveyors, various conveyor rollers, conveyor pulley, conveyor parts and so on. The products has been exported to more than 30 countries, the products are well received by our customers and got a good reputation.
About Pipe Conveyor Rollers
Roller consists of steel pipe, shaft (axis), bearing housing, bearing, labyrinth seal, cover, protective cover, seal ring
Pipe Conveyor Rollers Specification
NO. |
Standard Diameter |
Length Scope (mm) |
Bearings Type Min~Max |
Idler's Shell Wall Thickness |
|
|
mm |
Inch |
|
|
|
1 |
63.5 |
2 1/2 |
150-3500 |
203 204 |
3.0mm~4.0 mm |
2 |
76 |
3 |
150-3500 |
204 |
3.0mm~4.5 mm |
3 |
89 |
3 1/3 |
150-3500 |
204 205 |
3.0mm~4.5 mm |
4 |
102 |
4 |
150-3500 |
204 205 206 305 |
3.2mm~4.5 mm |
5 |
108 |
4 1/4 |
150-3500 |
204 205 206 305 306 |
3.5mm~4.5 mm |
6 |
114 |
4 1/2 |
150-3500 |
204 205 206 305 306 |
3.5mm~4.5 mm |
7 |
127 |
5 |
150-3500 |
204 205 206 305 306 |
3.5mm~5.0 mm |
8 |
133 |
5 1/4 |
150-3500 |
204 205 206 207 305 306 |
3.5mm~5.0 mm |
9 |
140 |
5 1/2 |
150-3500 |
205 206 207 305 306 307 |
3.5mm~5.0 mm |
10 |
152 |
6 |
150-3500 |
205 206 207 305 306 307 308 |
4.0mm~5.0 mm |
11 |
159 |
6 1/4 |
150-3500 |
205 206 207 305 306 307 308 |
4.0mm~5.0 mm |
12 |
165 |
6 1/2 |
150-3500 |
206 207 305 306 307 308 |
4.5mm~6.0 mm |
13 |
177.8 |
7 |
150-3500 |
207 306 307 308 309 |
4.5mm~6.0 mm |
14 |
190.7 |
7 1/2 |
150-3500 |
207 306 307 308 309 310 |
4.5mm~7.0 mm |
15 |
194 |
7 5/8 |
150-3500 |
207 306 307 308 309 310 |
4.5mm~8.0 mm |
16 |
219 |
8 5/8 |
150-3500 |
308 309 310 312 |
4.5mm~8.0 mm |

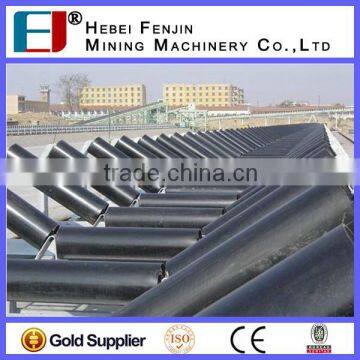

Pipe Conveyor Rollers Applications
Industrial steel roller is widely used in the original dock transporting places where dust is bigger and the environment has high corrosive, such as mining, power, steel, stone materials factory, cement and coking plant, coal washing factory, salt plant, alkali plant, fertilizer factory, dock and so on.
Fenjin Roller, Service to Every Industry
Pipe Conveyor Roller Certifications & Patents
Fenjin brand conveyor belt troughing idlers have been passed the ISO9001:2008 and Safety
Certificate for Mining Products. Our company also got the patents for conveyor parts. High
quality and competitive price, our products has got a good reputation both in home and abroad.

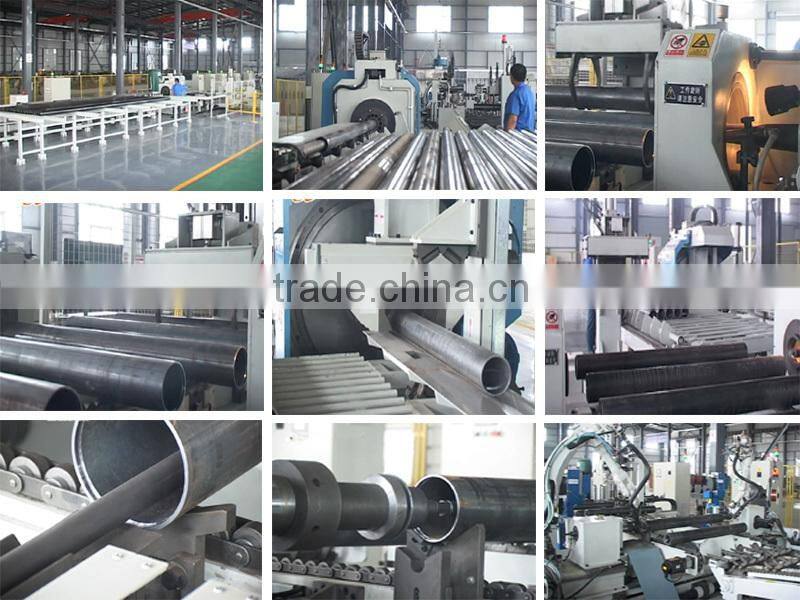

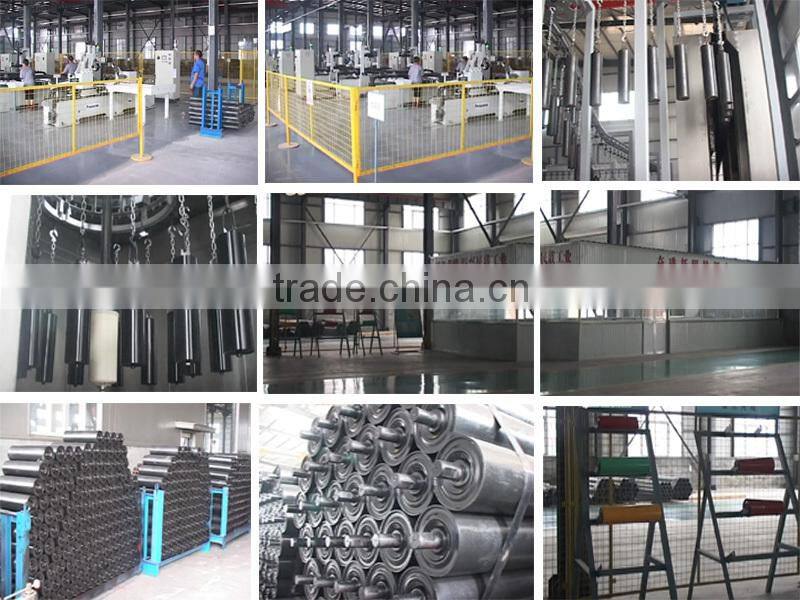

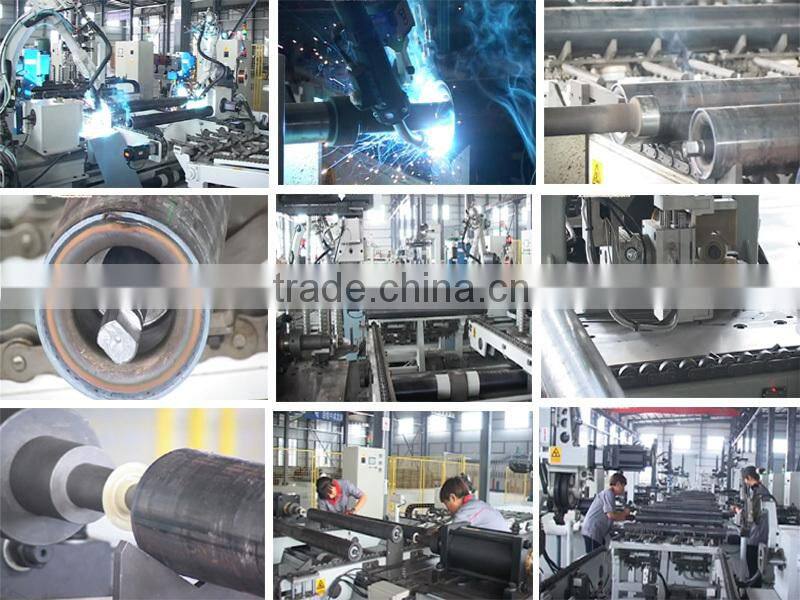

Pipe Conveyor Roller Production Flow

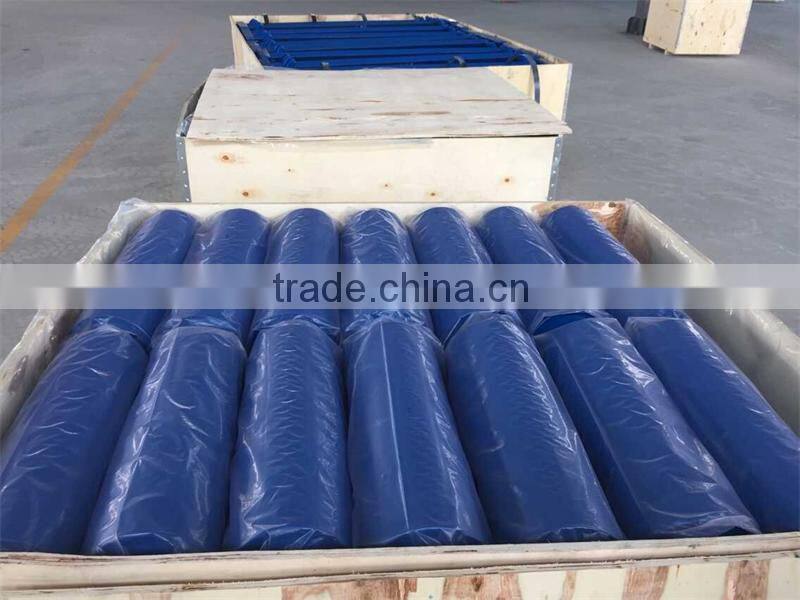

Pipe Conveyor Roller Packaging & Shipping
Pipe conveyor roller package type: standard wooden box or as per your requirements
Port of loading: Tianjin Xingang or any China port
MOQ: 50 PCS
Capacity: 30000 pcs per month
1 We are a professional manufacturer , provide you the competitive factory price.
2 Various style of roller products for you choose, like trough roller, impact roller, taper roller etc.
3 We ensure the deliver time and the high quality for you, and the best after-sale service.
4 Any problem, no matter big or small, we will do our best to solve it with you, made you satisfied.
5 We have the international leading full automatic flexible roller assembly production line, the annual production capacity is more than 700,000 pieces.
1 What is the business of your company?
Hebei Fenjin Mining Machinery Co., Ltd is specialized in designing and manufacturing conveying
machinery, conveyor rollers, conveyor pulley, impact idler, nylon roller, aligning roller, friction
roller, taper idler, flat roller, return roller, spiral roller, belt cleaner, conveyor idler bracket
2 What is the advantages compared to other suppliers?
Fenjin has the unique full automatic roller production line, high machining accuracy, uniform and
stable quality, which can realize continuous and efficient professional production, so Fenjin can
provide good quality product and service to our customers.
3 Can we visit your company?
No problem, we are a professional manufacturer, look forward to your arrival and we will lead
you to visit our factory.
4 What is the lead time?
In general, mass production needs 15-30 days, also according to the order volume.
5 Can you accept mixed batch of different products?
Yes, we support different product mix wholesale, no limit of raw materials and mechanical parts, and color specifications, etc
6 How about the packing ?
We can provide wooden packing, plywood board packing, 20 feet container, 40 feet container
Hebei Fenjin Mining Machinery Co., Ltd is a hightech enterprises professionally on research,
development, production, sales and service for mining machines, trough idlers, rollers and frames.
The company provides customers with quality products. Fenjin idlers, rollers and frames are widely
used in collieries, quarries, timber mills, gold mines, iron ore plants and bulk material handing facilities.Our conveyor idlers, rollers and frames is constantly being developed to meet customer's increasing demands and to reflect market trends.
