Help CenterElectric DC Remote Control Central Door Lock Motor
Related Products
-
250kgs DC 24V Electric Supply Roller Shutter Door MotorUS$ 86 - 96MOQ: 1 Set -
250kgs DC 24V Electric Roller Shutter Electric Gate DC MotorUS$ 86 - 96MOQ: 1 Set
-
250kgs DC Automatic Remote Control 24V DC Roller Door Motor,electric Motors for Roller Shutter DoorsUS$ 85 - 95MOQ: 1 Set
-
AC/DC 24V Automatic Side/Central Mounted Roller Shutter/Door Motor/Opener/OperatorUS$ 70 - 95MOQ: 10 Sets
-
250kgs DC 24V Roller Shutter Side Motor Gate Motor RemoteUS$ 85 - 95MOQ: 1 Set
Specifications
central door lock motor1.aluminum slloy housing
2.electronic limit swich
3.rolling code,high security
ft start and soft

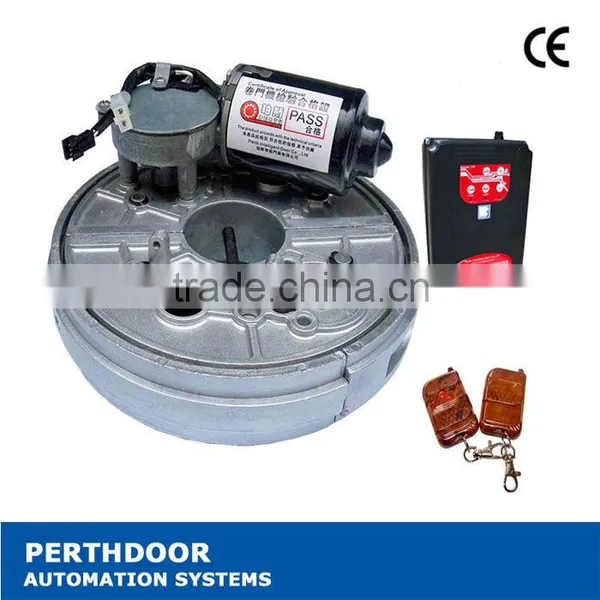

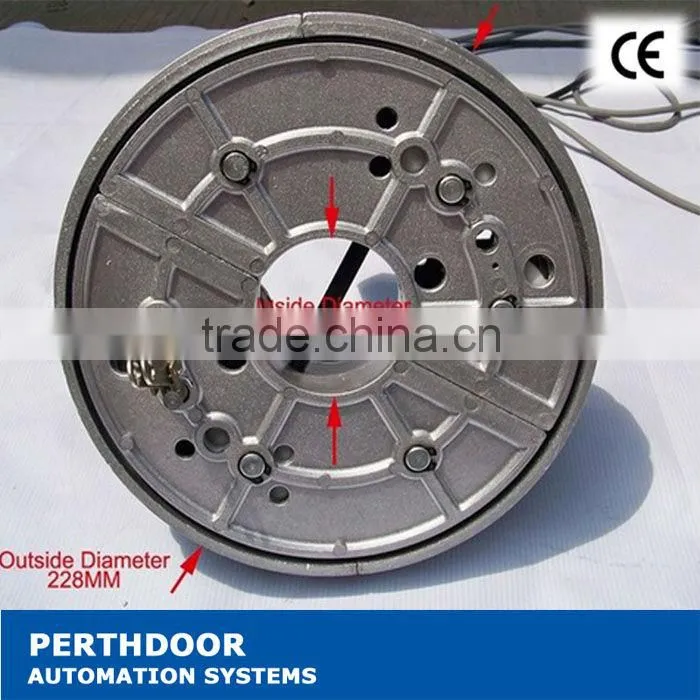

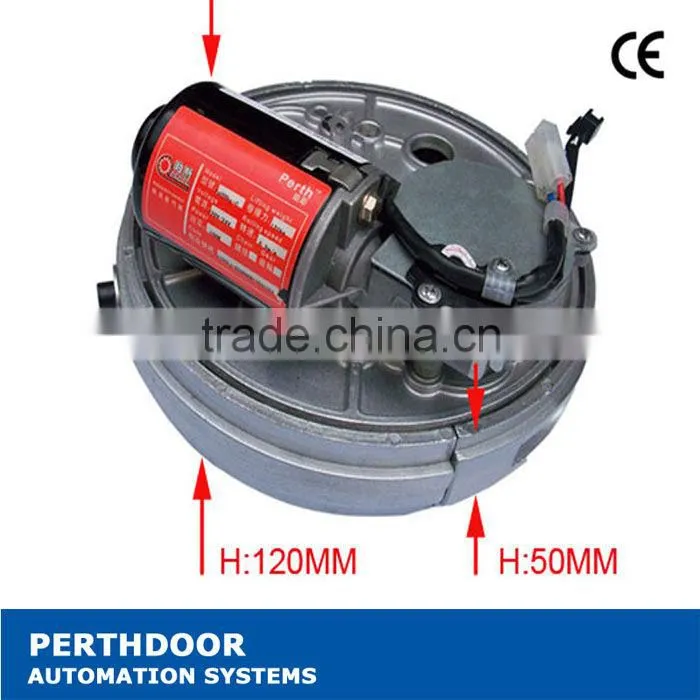

Central Door Lock Motor
Features:
1: Aluminum housing, durable and light. It is suitable for automating exsiting manual
roller door.
2: Romote control or button on control box. Running status indication function.
3: 433Hz frequency rolling code has far remote control distance, strong penetration,
high security and stable performance.
4: Mechanical / Electronic limit switch to adjust opening and closing limit.
5: Battery backup system, in case of power failure.
6: LED courtesy light, it will automatically open and close for 3mins when it is activated.
7: Optional car load opener let you free of worry about power failure.
8: Selectable photocell and horn for connection.
9: Low noise, high performance and long service life.
10: Soft start and soft stop mode: slow---fast---slow.
Central Install High Speed Spring balance Rolling shutter motor/opener/operator
Specification:
Model |
Power Supply |
Output Power |
Rated Power |
Working Speed |
Max. Door Weight |
Working Temp. |
Max. Door Area |
Limit Switch |
Battery Spec. |
PR- ZA01 |
AC 220V 50Hz |
DC 24V |
100W
|
0.2m/s |
250kgs | -25'C~50'C | 18sq.m |
Mechanical | ____ |
|
PR- ZA01B |
AC 220V 50Hz |
DC 24V |
100W |
0.2m/s |
250kgs |
-25'C~50'C | 18sq.m |
Mechanical | 12V/2.8A*2 |
|
PR- ZB01 |
AC 220V 50Hz |
DC 24V |
100W |
0.2m/s |
250kgs | -25'C~50'C |
18sq.m |
Electronic |
____ |
PZB01B |
AC 220V 50Hz |
DC 24V |
100W |
0.2m/s |
250kgs | -25'C~50'C |
18sq.m |
Electronic |
12V/2.8A*2 |
