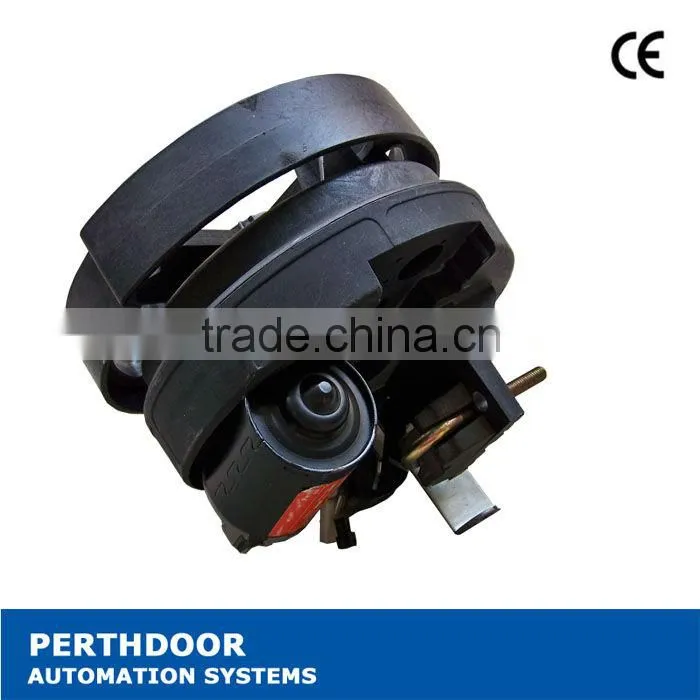

Help Center250kgs DC Automatic Remote Control 24V DC Roller Door Motor,electric Motors for Roller Shutter Doors
Related Products
-
AC/DC 24V Automatic Side/Central Mounted Roller Shutter/Door Motor/Opener/OperatorUS$ 70 - 95MOQ: 10 Sets -
250kgs DC 24V Roller Shutter Side Motor Gate Motor RemoteUS$ 85 - 95MOQ: 1 Set
-
Garage Door Opener China ManufactureUS$ 85 - 95MOQ: 1 Set
-
Roller Shutter Motor SuppliersUS$ 85 - 95MOQ: 1 Set
-
DC Automatic Roller Door Motor/Roller Door Opener/Roller Door OperatorUS$ 150 - 168MOQ: 10 Sets
Specifications
24V DC roller door motor1:Side built
2:Alluminum alloy housing
3:Low noise,high performance
4:Electronic limit swi

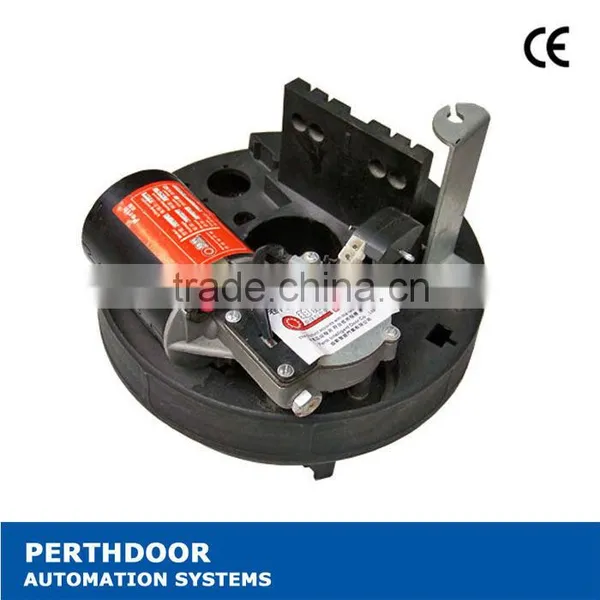

24V DC Roller Door Motor
Features:
1: Plastic housing, durable and light.
2: It is suitable for side installation of new Australian style roller door, easy and fast installation.
3: Romote control or button on control box. Running status indication function.
4: 433Hz frequency rolling code has far remote control distance, strong penetration, high security and stable performance.
5: Mechanical/Electronic limit switch to adjust opening and closing limit.
6: Battery backup system, in case of power failure.
7: LED courtesy light, it will automatically open and close for 3mins when it is activated.
8: Optional car load opener let you free of worry about power failure.
9: Selectable photocell and horn for connection.
10: Low noise, high performance and long service life.
11: Soft start and soft stop mode: slow---fast---slow.
Specification:
| Model |
Power Supply |
Output Power |
Rated Power |
Working Speed |
Max. Door Weight |
Working Temp. |
Max. Door Area |
Limit Switch |
Battery Spec. |
| PR- CA02 | AC 220V 50Hz |
DC 24V |
120W |
0.2m/s |
130Kgs | -25'C~50'C |
24sq.m |
Mechanical | ____ |
| PR-CA02B | AC 220V 50Hz |
DC 24V |
120W |
0.2m/s |
130Kgs | -25'C~50'C |
24sq.m |
Mechanical | 12V/2.8A*2 |
PR-CB02 |
AC 220V 50Hz |
DC 24V |
120W |
0.2m/s |
130Kgs | -25'C~50'C |
24sq.m |
Electronic |
____ |
PR-CB02B |
AC 220V 50Hz |
DC 24V |
120W |
0.2m/s |
130Kgs | -25'C~50'C |
24sq.m |
Electronic |
12V/2.8A*2 |
...
