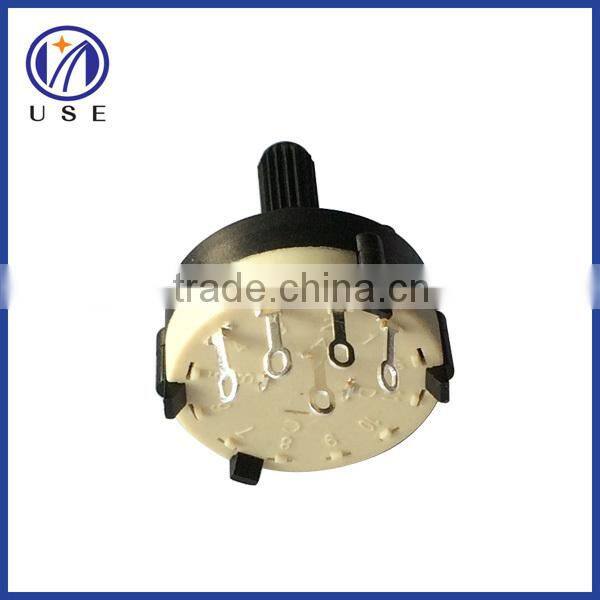

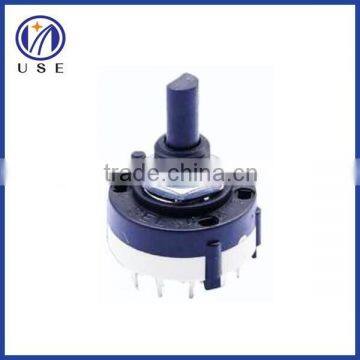

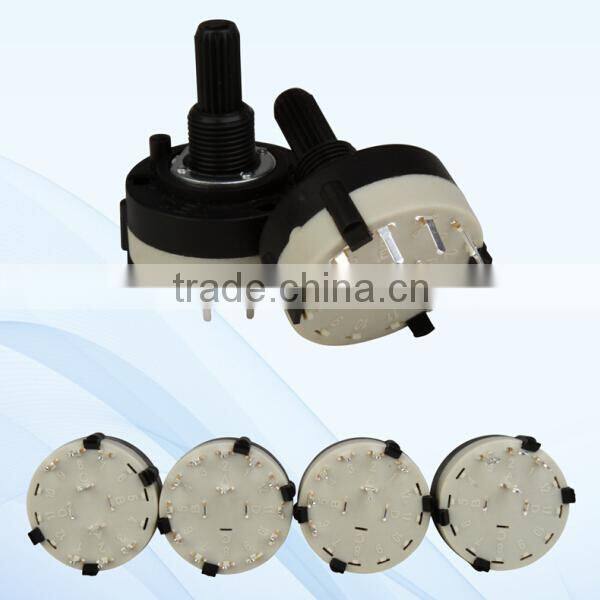

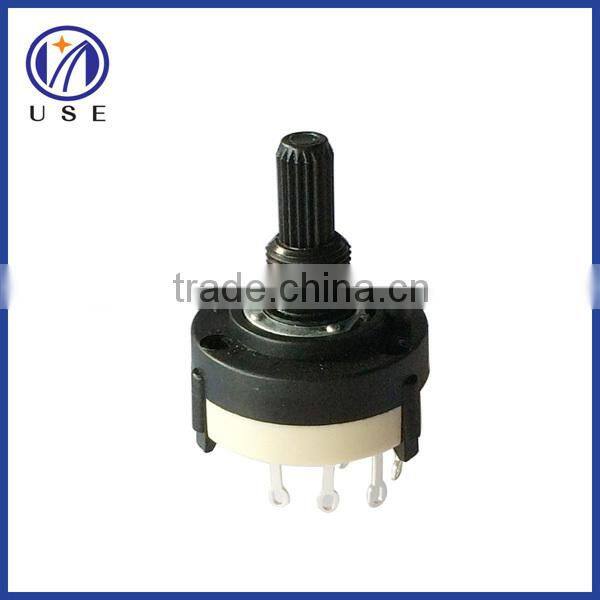

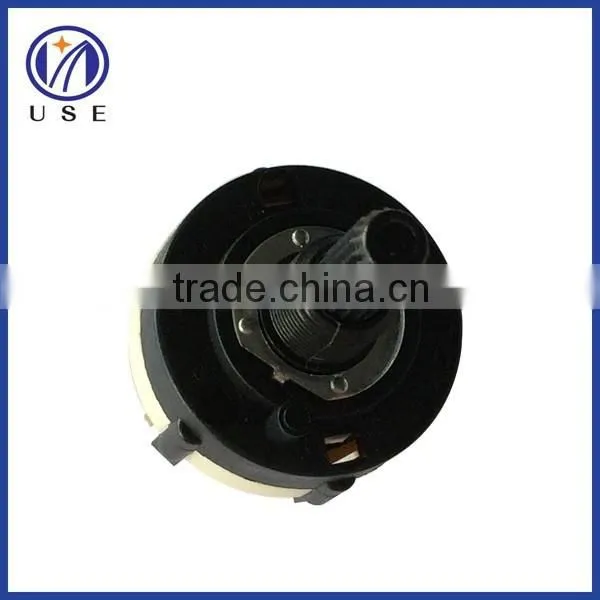

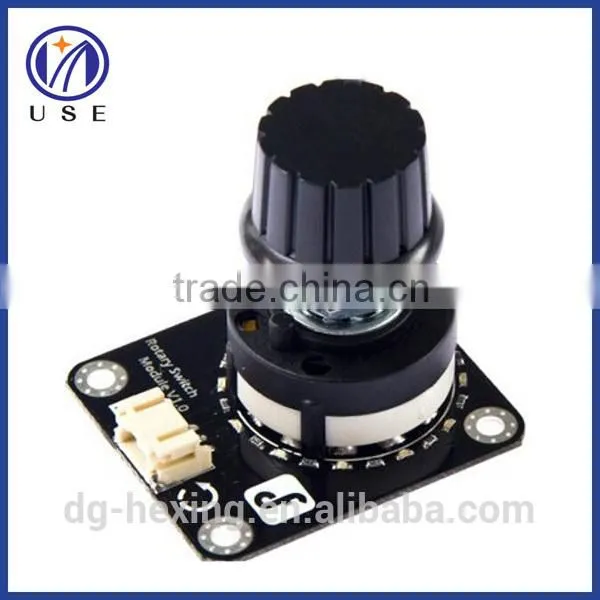

26mm Multi-position Rotary Switch for Appliances

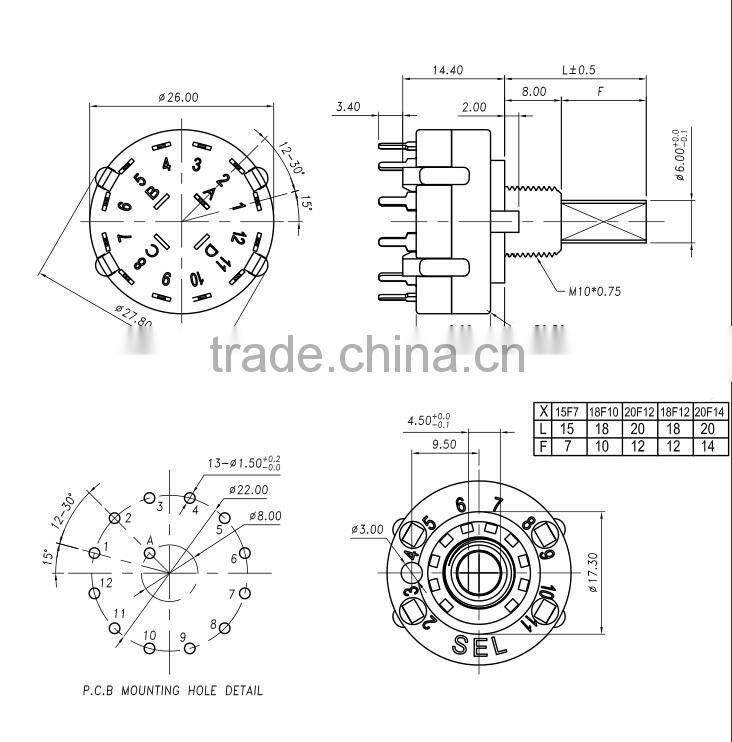

Dia 26mm  rotary switch for appliances
household appliance mulit-position switch, heavy torque switches
2 to 12 position are available

Rated voltage:DC 16V;operating current:0.3A
Operating range : Temperature:-20℃to 85℃,relative humidity:≤90%
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
Switching characteristics: break before make
Each point of view : 30°
Number of poleand positions: 1 pole of 2 to 12 positions, 2 poles of 2 to 6 positions.
Detent torque: 15±5mN.m to 30±5mN.m (0.015±0.05Kgf.cm to 0.30±0.05Kgf.cm) Shaft rotatable at -40℃~+5℃

Rotation: 360 degree rotary switch is available.
Rotational life: 30,000 cycles
use for: rotary switch for appliances

  250 pcs in a styrofoam box,2000 pcs in a carton

  FOB Shenzhen

1>Professinal manufacture and specilizing in rotary encoder and potentiometer for 13 years.

2> ISO9001:2008 manufactory,custom as your demand,we are sure to make a great manufacturing for you.

3>Quick and exact lead time.

4>We have QC team for every procedure and 100% satisfaction guaranteed.

5>OEM and ODM is welcome

6>Any questions and requirements ,we will reply you within 24 hours.

 Dongguan Unionstar Electronic Co., Ltd was established in 2001 in Dongguan City, Guangdong Province, China.

Specialized in encoders, rotary encoders, rotary encoder switches, multi-way rotary switches, tact switches, potentiometers,

etc. They are widely used in loudspeaker, DVD player, car audio and video, GPS, radio, coffee machine, cooker, medical equipment, sport equipment, etc. Welcome all of you to cooperate with us!

Application

Hong Kong HKDTC Fair in 2015

Factory Views

1, What's the function of  rotary switch?

Reply: For the rotary switch, it widly be used for volume control, temprature control, changeover function, etc. It's widly be used     for home appliance,  such as oven, coffee machine, refrigrator, jucer, LED light, guitar, etc.

2, How to choose rotary switch?

Reply: For this rotary switch, it has 3 different rotational torque of it, you could choose it as your knob size and the manual feeling.

For example, if you choose a rotary switch for oven, you could choose a heavy rotational torque, such as 400gf.cm to 600gf.cm.

And if you choose a rotary switch for guitar volume control, you could choose 100gf.cm to 200gf.cm for it. For more questions about it, please contact us directly.
