4 position single pole rotary electrical switches
USD $0.3 - $0.6
/ Piece
1200 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Shenzhen or Guangzhou
- Credit Card
You May Like
-
LJV RE09101AB-V01-0026 Incremental rotary encoder, 10 pulses, 20 positions, horizontal, with press switch, shaft length 15mm
-
EC18/RE18 Digital Absolute Encoder Rotary Type For Wash Machine Control Panel，Logical encoder,12 Channel encoder
-
EC16/RE16 incremental rotary encoder, 12 position/12 pulses, IP67 waterproof, without press switch
-
RS126 double pole, double throw, Self -return switch,Reset Switch,Left and right rotation
-
RS26 1 Pole Position 10 Selectable Band Rotary Channel Selector Switch
-
RS12 gear switch Multi-position rotary switch 2 gear 4 gear audio semi-circular handle rotary switch
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | USE | Model Number: | RS1701-H7.7E2-13.5F5.5-1D4 |
| Max. Current: | 0.3A | Max. Voltage: | DC 16V | Mechanical Life: | 30,000 cycles |
Product Description
Product Description

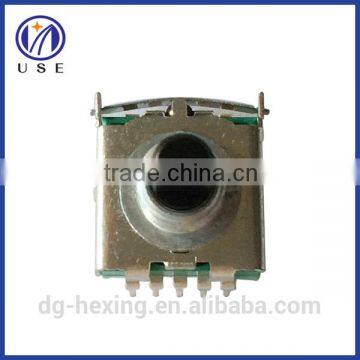

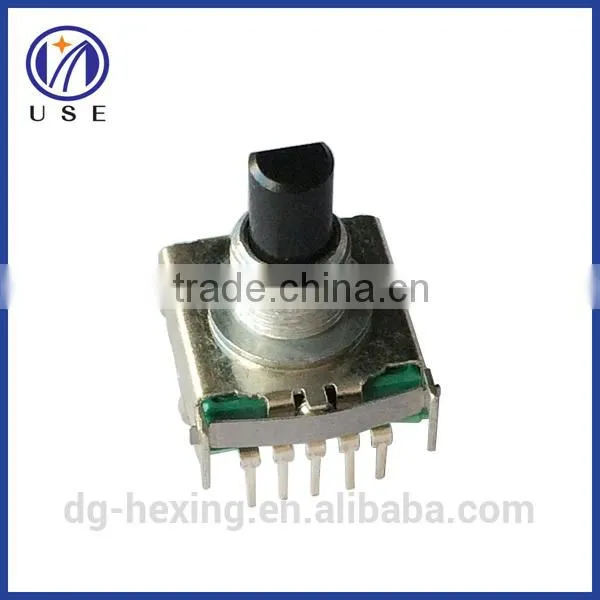

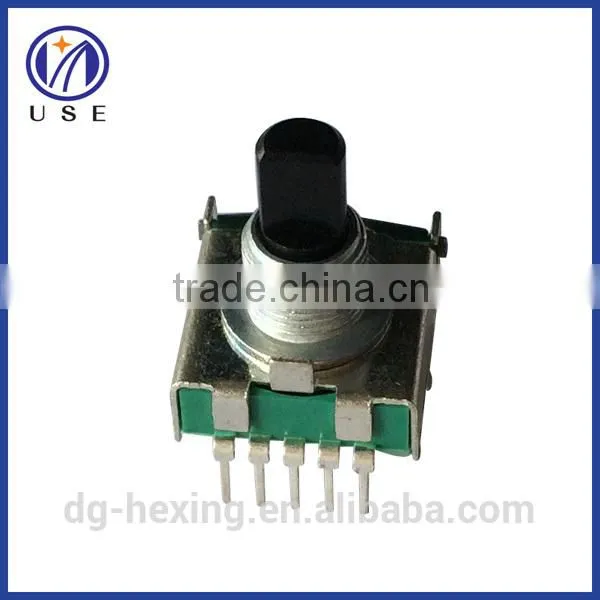

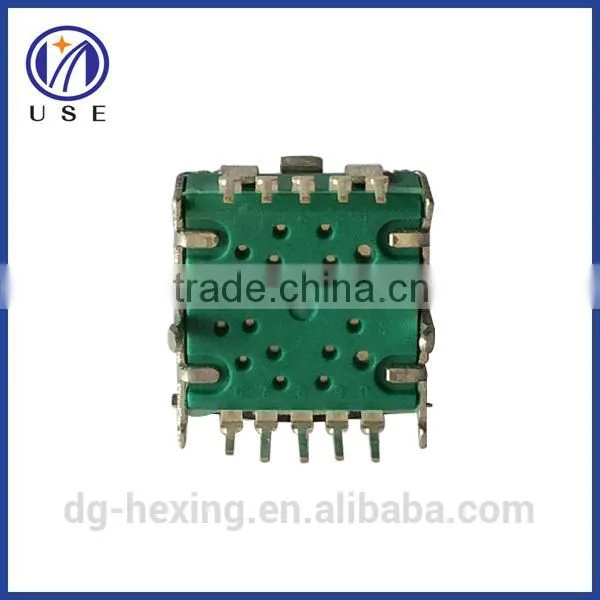

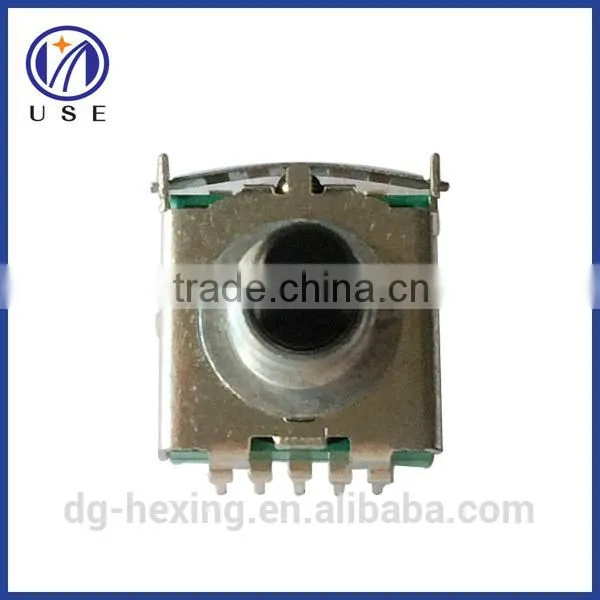

| Name: | 17mm band switch with 1 pole 4 detents |
| Brand: | USE |
| Technology: | Japan |
| Part No.: | RS1701-H7.7E2-13.5F5.5-1D4 |
| Rated Voltage: | DC 16V |
| Operating Current: | 0.3A |
| Contact Resistance: | 100mΩ Max. |
| Insulation Resistance: | 100mΩ Min. |
| Number of pole and detent: | 1 poles of 4 detents |
| Structure: | Vertical mount , 10pin |
| Each Point of View: | 30° or 45 ° |
| Operating temperature: | -40° to 85° |
| Sample time | within 3 workdays |
| Mass production time | 7 workdays since order confirmed |
Packaging & Shipping
150 pcs in a styrofoam box, 1200 pcs in a carton.
GW: 6 KG/CTN
Size: 0.05 CB Ms/ CTN
FOB Shenzhen or Guangzhou
Our Services
1. USE brand encoder from Japan technology.
2. Lowest price in China as lowest cost.
3. Within 3 workdays of samples , 7 workdays of mass production.
4. 5 free samples for your test.
5. Small order for your trail order is welcome.
6. 100% passed quality.
7. ISO:9001 and RoHS passed.
8. Qinck feedback in 24 hours.
Company Information
Dongguan Unionstar Electronic Co., Ltd was established in 2001 in Dongguan City, Guangdong Province, China.
Specialized in encoders, rotary encoders, rotary encoder switches, multi-way rotary switches, tact switches, potentiometers,
etc. They are widly used in loudspeckers, DVD player, car audio and vedio, GPS, radio, coffee machine, cooker, medical equipment, sport equipment, etc. Welcome all of you to cooperate with us!
Application
Hong Kong HKDTC Fair in 2015

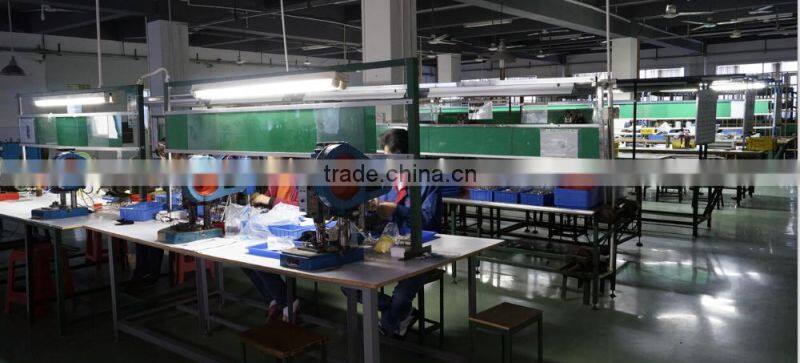

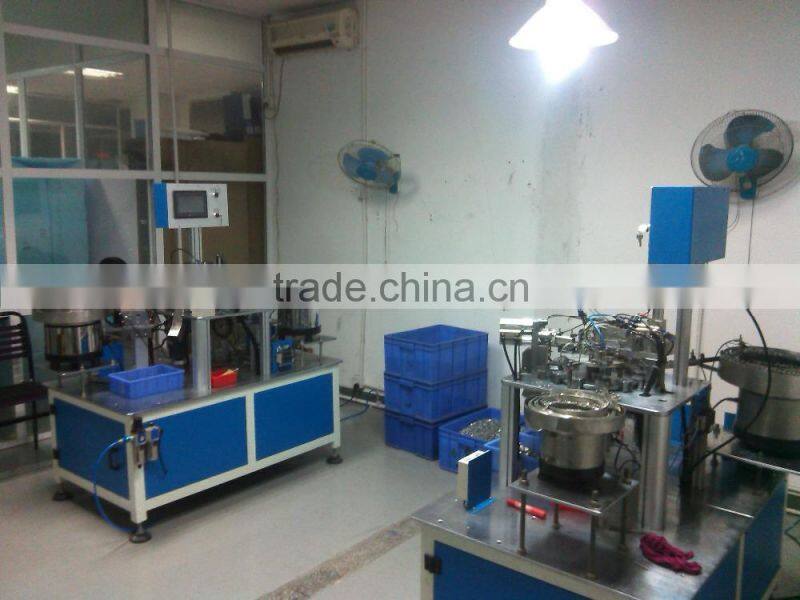

Factory view
FAQ
Contact Us
- Dongguan Unionstar Electronic Co., Ltd.
- Contact nameAlice Shi
- AddressNO 16, Luyibuwei, Tianxin Village,Tiangxia Town,Dongguan City,Guangdong province,China Dongguan,Guangdong
