automatic plastic hospital bed with reasonable price EMB-5L

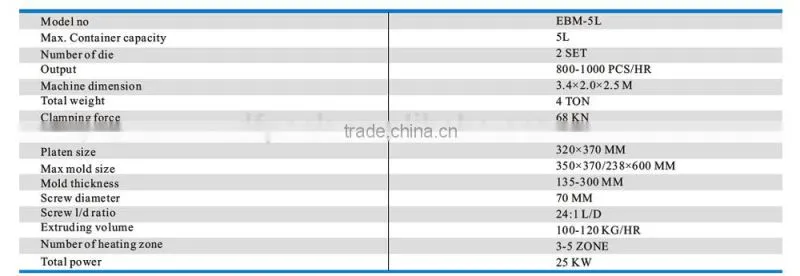

Max. container capacity

   L

5

Number of die

set

2

Output

pcs/hr

800-1000

Machine Dimension

m

3.4×2.0×2.5

Total weight

ton

4

Clamping force

KN

68

platen opening stroke

mm

150-500

platen size

mm

320×370

Max mold size

mm

350×370/238×600

Mold thickness

mm

135-300

Screw diameter

mm

70

Screw L/D ratio

L/D

24:1

Extruding Volume

Kg/hr

100-120

Number of heating zone

zone

3--5

Total power

KW

25

Item

Setting

1. Hydraulic system

Oil pump:Duplex vane pump KEET(SINO-JAPAN JOINT)

Hydraulic valve:KEET(SINO-JAPAN JOINT)

Proportional valve:KEET(SINO-JAPAN JOINT)

Oil pressure control:double proportional pressure control

2. Electrical system

1. PLC: Mitsubishi(JAPAN)

2. Touch screen:Mitsubishi(JAPAN)

4.  Inverter:EURA (SINO-JAPAN JOINT)

6. Time relay:CHNT(CHINA)

7. Proximity switch: CHNT(CHINA)

8. AC Conductor:EURA (SINO-JAPAN JOINT)

9. Control switch:CHNT(CHINA)

10. Breaker: CHNT(CHINA)

3. Clamping unit

Mode: Bi-directional synchronous structure to clamp the mold
Driving mode:differential fast mold motion with double pulling rods to assure large container volume

4. Die

Structure: with accumulator head
Runner:first-in first-out
Material of runner parts:38CrMoAlA;42CrMo
