2015 barreled water filler made in china BPP-120
♦Descriptions Of Product
Automatic Barrel Packing Production Line
The filling line specially produces 3-5 gallons barreled drinking water,with type 120 type,240 type,300 type.It integrates bottle washing ,filling and capping into one unit.In order to achieve the purpose of washing and sterilizing.The washing machine uses muti-washing liquid spray and thimerosal spray.
This thimerosal can be used circularly .The capping machine can automatically carry out barrel ,washing,sterilizing,filling,capping,counting and products discharging ,with complete function ,modern design and high degree of automation.It is a new kind of barreled water auto-producing line ,which integrates mechanism,electricity and pneumatics technologies together .

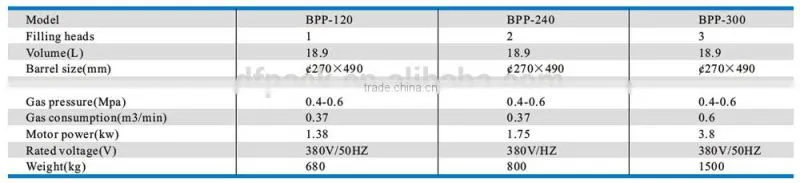

Model |
BPP-120 |
BPP-240 |
BPP-300 |
Filling heads |
1 |
2 |
3 |
Volume(L) |
18.9 |
18.9 |
18.9 |
Barrel size(mm) |
¢270x490 |
¢270x490 |
¢270x490 |
Capacity(b/n) |
60-120 |
100-240 |
280-300 |
Gas pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
Gas consumption(m3/min) |
0.37 |
0.37 |
0.6 |
Motor power(kw) |
1.38 |
1.75 |
3.8 |
Rated voltage(V) |
380V/50HZ |
380V/HZ |
380V/50HZ |
Weight(kg) |
680 |
800 |
1500 |
