CO2 laser marking machine for plastic bottle date and logo printing
Chinese co2 laser marking machine manufacturer,acrylic PCB laser marker, PCB laser marker
Quality is our culture,with us your money is safe your business is in safe.
Introduction of co2 laser marking machine:
The CO2 laser marking machine has high-speed scanning galvanometer and RF high-performance lasers, it can work with ultra-high speed and high precision, the maximum continuous working time is 24 hours. The user controls the machine by software in windows operation system. The control software can mark a variety of graphics ,text and barcodes ,support a variety of graphics, text and barcodes, support to drawing software ,for example CorelDraw, AutoCAD, etc. And res SHX, TIF font to print coding, serial numbers, batch number, date and so on. It is easy to operate and change the system.
Feature of co2 laser marking machine:
1. Designed for high line speeds
2. Long lasers operating life means minimal servicing and maintenance
3. Ultra-easy integration in production plants and open interfaces
4. Optimal marking solution for non-metal workpieces
5. Synrad Co2 lasers,high speed scanning,airtight cavity configuration
6. Marking on the fly
Model Type |
HM-CO2-10W |
HM-CO2-30W |
HM-CO2-60W |
HM-CO2-100W |
Max.laser power |
10W |
30W |
60W |
100W |
Laser wave-length |
10.64u m |
10.64u m |
10.64u m |
10.64u m |
Laser repetition frequency |
≤50KHZ |
≤50KHZ |
≤50KHZ |
≤50KHZ |
Marking area |
110*110mm |
110*110mm |
110 *110mm |
110 *110mm |
Linear speed |
8000mm/s |
8000mm/s |
8000mm/s |
8000mm/s |
Marking depth |
≤3mm |
≤5mm |
≤7mm |
≤10mm |
Min.line width |
0.05mm |
0.1mm |
0.15mm |
0.15mm |
Min.character size |
0.40mm |
0.40mm |
0.40mm |
0.40mm |
Repetition accuracy |
±0.01mm |
±0.01mm |
±0.01mm |
±0.01mm |
Cooling mode |
Air cooling |
Air cooling |
Water cooling |
Water cooling |
Total power consumed |
500W |
1.2KW |
≤2KW |
≤4KW |
Power supply |
220V/50HZ/3.5A |
220V/50HZ/6A |
220V/50HZ/10A |
220V/50HZ/20A |
Application Field of co2 laser machine:
Low consumables, non-toxic and no pollution, suitable for coding the non-metal materials, such as paper, plastic, thin film, tinfoil, timber, glass, PVC, ABS, IC and so on; applied to a variety of industries, like food, beverage, medicine, tobacco, leather, package, building materials, cosmetic and electron component, etc. Can be used with our company homemade assembly line working stage or existing assembly line directly.
Non metal Material such as leather, cloth, textile, rubber plate, wood,
bamboo products, acrylic plate, plastic, organic glass, tile, marble,
jade, crystal, shell etc, and all kinds of nonmetallic materials.
Application Materials of co2 laser machine:
Non metal Material such as leather, cloth, textile, rubber plate, wood,
bamboo products, acrylic plate, plastic, organic glass, tile, marble,
jade, crystal, shell etc, and all kinds of nonmetallic materials.

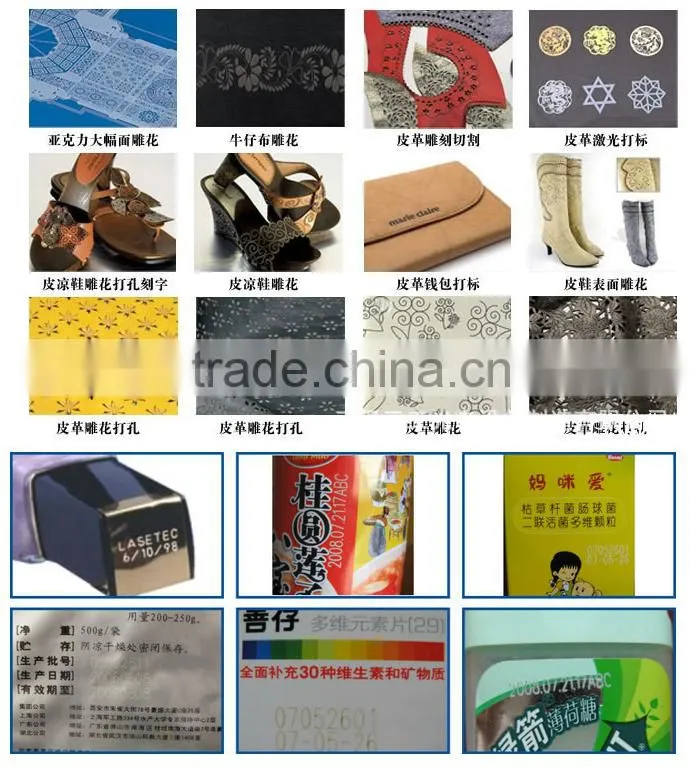

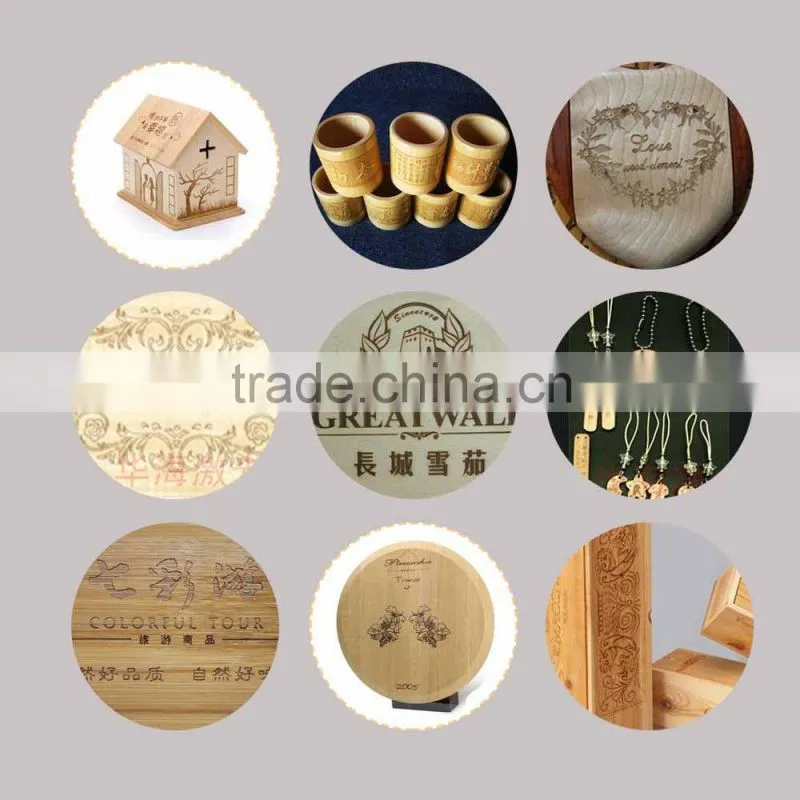

Samples by co2 laser machine:
Training to Customer:
1).We will supply with the machine operation manual in English version
For :installation and operation, including introduction for the composing
of equipment, working principle of equipment, common knowledge
of computer, controlling principle of electric devices, daily maintenance measures of equipment. Personal demonstration for installation and adjusting
of equipment, operation of equipment, programming of computer.
2). User can dispatch representatives to our factory for 2-3days for training. We
are responsible for training them free of charge. While all the charges
Including travelling charge and accommodation will be afford by the user.
Advantage of our laser machine:
co2 laser marking machine, laser marking machine co2, co2 laser marking machine price, co2 glass tube laser marking machine
portable co2 laser marking machine, co2 flying laser marking machine, co2 laser marking machine for plastic bottle, plastic co2 laser marking
1. Advanced machine technology ,simple operation, with high-speed marking vibration lens, photoelectric conversion efficiency of high marking speed the effect is not deformed and meticulous precision ( nonmetal co2 laser marking machine , hot sale co2 laser marking machine , co2 laser marking machine for non-metal materials
co2 laser marking machine manufacturers, co2 laser marking machine on jeans, co2 laser marking machine for non-metal
2.Full-enclosed Optical system design, low failure rate,maintenance-free, low processing costs supporting 24 hours of working.( co2 laser marking machine for wood , 50w co2 laser marking machine, co2 laser marking machines for sale , co2 laser mark machine for plastic, co2 non-metal laser marking machine , co2 laser metal marking machine , cheap co2 laser marking machine
Option kinds of laser marking machines following:
|
|
|
|
|
Desktop Fiber Laser Marking Machine Mini portable fiber laser machine Co2 laser marking machine Fiber Laser Marking Machine for Metal and Non Metal |
Channel letter laser welding machine Laser welding machine for Advertising Industry |
Mini laser engraving machine Co2 laser cutting machine 1325 1390 laser cutting machine Wood acrylic laser cutting machine
|
Fiber Laser cutting machine YAG laser cutting machine |
Terms & Conditions:
1.Payment Method: T/T in advance, L/C at sight , Western Union, Escrow
2.Price Validity: 1 month
3.Leading Time: 7-10 working days
4.Delivery Method: Compound wooden cases by Sea or Air.
6. Warranty and after-sale service:
1.12 months guarantee for whole machine free of charge
2.7*24 hours technical support by e-mail
3.Calling or door-to-door service,professional training to your workers
4.Use friendly English software, user manual and detailed Videos/CD
5.Priority to become our agent in your city,we offer you our factory price
