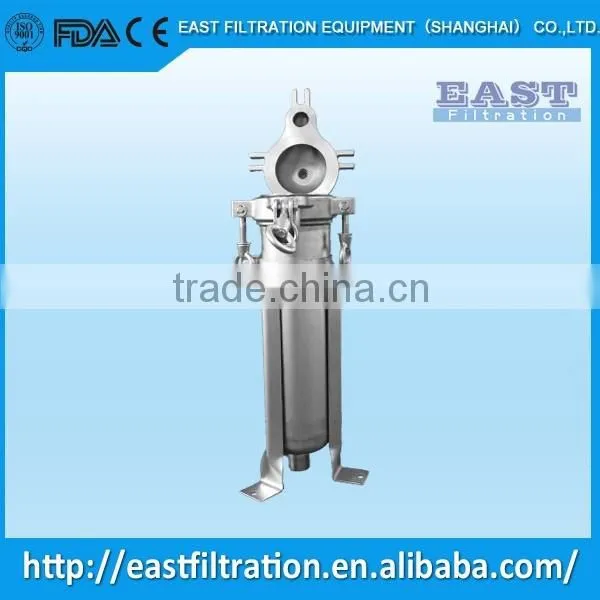

HTF SS304 SS316 Stainless Steel Single Bag Water Filter Housing
HTF SS304 SS316 Stainless Steel Single Bag Water Filter Housing
HTF bag filter also named “Top entry bag filter”
EAST Top inlet bag filter designed to 360 degree sealing of plastic collar fully press seal filter bag.
Ensure absolute no leakage, and ensure the filtration precision. It is a reliable sealing design to
satisfy with the most challenging liquid filtration process

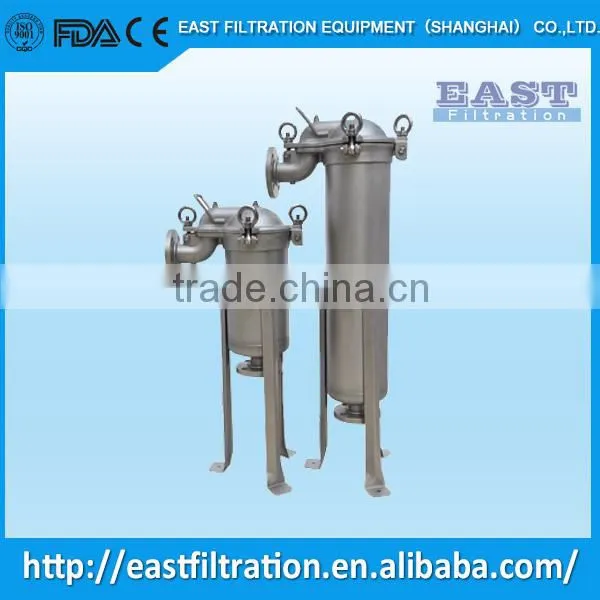

Vessel Type |
HTF-B101-050G |
HTF-B102-050G |
Size |
Size 01 |
Size 02 |
Filter Area |
0.25m2 |
0.50m2 |
Theoretical Flow Rate |
20m3/hr |
40 m3/hr |
Maximum Operating Pressure |
10.0 bar |
10.0 bar |
Maximum Operating Temperature |
120℃ |
120℃ |
All wetted Parts | ||
|
Material of Construction Strainer |
Type 304 or 316L stainless steel |
|
Seal Material |
Buna, EPDM, Viton, PTFE, Viton+PTFE |
|
Standard Inlet/Outlet |
2” Flange |
2” Flange |
Surface Finish |
Glass Bead Blasted (standard) |
|
Filter Volume |
13.0 litres |
27.0 litres |
Housing Weight |
20kg (approx.) |
25kg (approx.) |
Installation Height |
98cm (approx.) |
181cm (approx.) |
Installation Space |
50cm x 50cm (approx.) |
50cm x 50cm (approx.) |
Optional JIS/DIN/ANSI flange connection and flexible inlet/outlet orientation
HTF SS304 SS316 Stainless Steel Single Bag Water Filter Housing
1. Reliable sealing design to satisfy the rigor filtration requirement

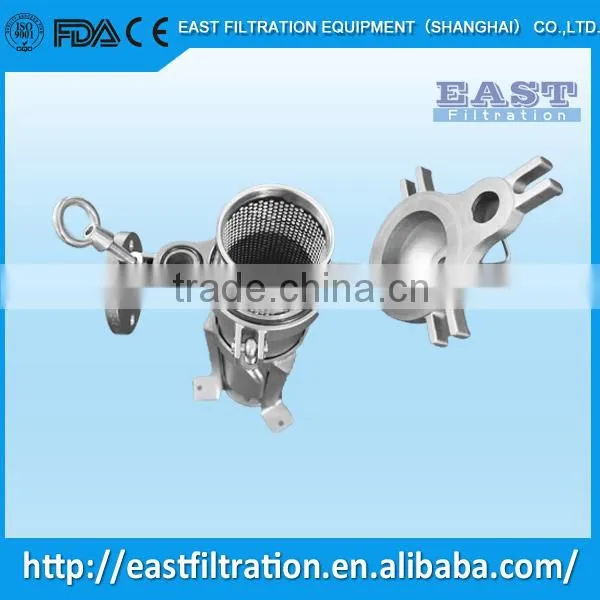

2. High precision casting of Top cover, less weld, pressure stability

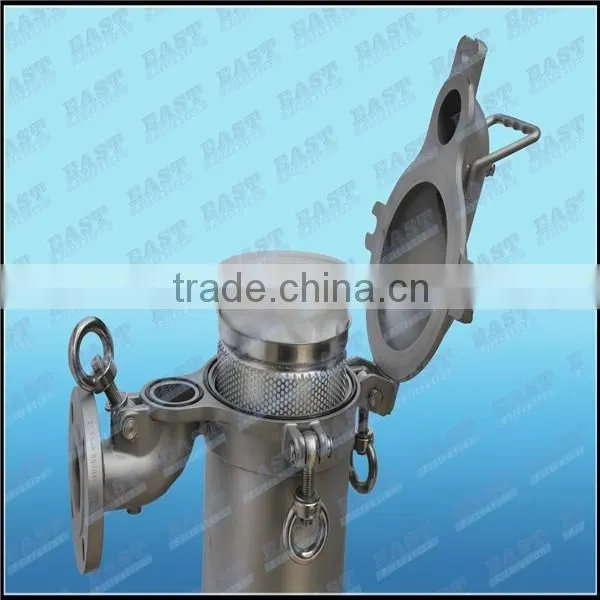

3. Top cover pressure on the bag and seal directly
4. Inside and surface treatment: sandblast, Inside is smooth, easy for cleaning.
5. ASME Designs standard
6. Operating Pressure & temp:10Bar / 120degree
HTF SS304 SS316 Stainless Steel Single Bag Water Filter Housing
Accessories
·Foot -stool or pothook to fix the filter
·Floating ball makes bag changing easy
·Magnetic bar adsorb metallic particle
·Mesh basket can replace the filter bag
·Duplex filters for double flow also available
|
HTF |
B1- |
050G |
|
1 - Single
Bag Vessel
|
B - SS304
A - SS316L
01 - 1#
02 - 2#
03 - 3#
04 - 4#
|
B – BSP Socket
N – NPT Socket
A – ANSI Flange
J – JIS Flange
G – DIN Flange
2" - 050
|
EAST Factory HTF SS304 SS316 Stainless Steel Water Filter Housing
Chemicals Filtration
- Petrochemicals Filtration
Electronic Industry
- Food & Beverage
- Fine Chemicals Filtration
- Solvent Filtration
- Edible Oil Filtration
- Adhesive Filtration
- Automotive
- Paint Filtration
- Ink Filtration
- Metal Washing
