Help CenterJP-580B Electric Measuring System
Related Products
-
JP-680A Electric Measuring SystemUS$ 1,000 - 12,000MOQ: 1 Set -
2015 Piano Type Electric Testing System (JP-580)US$ 1,000 - 5,000MOQ: 1 Set
-
JP-580 Electric Measuring SystemUS$ 1,000 - 100,000MOQ: 1 Set
-
JP-680B Electric Measuring SystemUS$ 1,000 - 12,000MOQ: 1 Set
-
2016 New Best JP Electronic Measuring Instrument , Measuring UnitUS$ 1,000 - 3,000MOQ: 1 Set

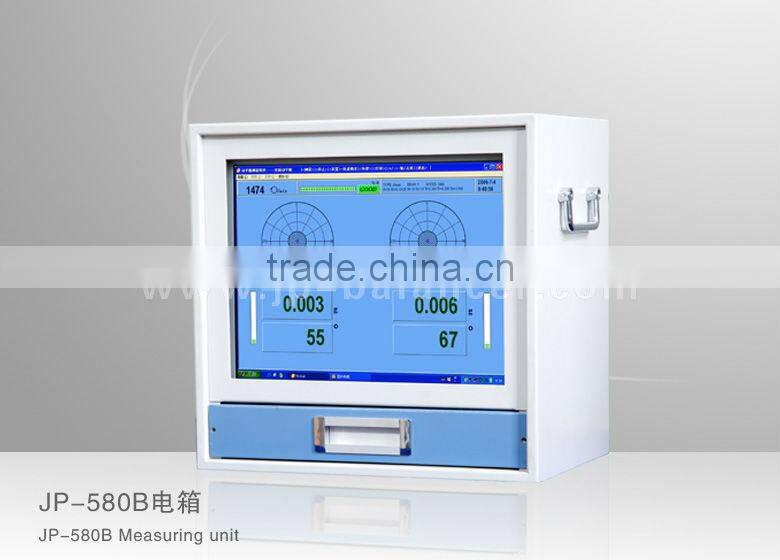

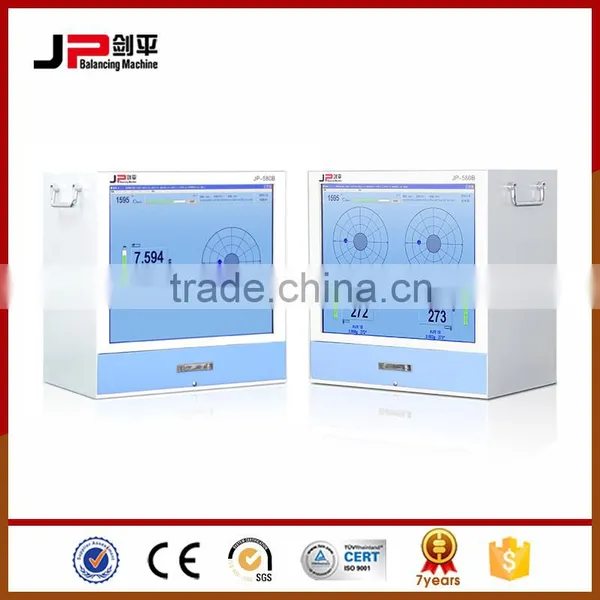

JP-580B Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen ,1G memory ,Electric board 4 G Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.
Features
- LCD of 15inches
- Windows XP Operating System
- Chinese or English Display
- Storage for 1000 sorts of rotor parameter and 10000 items of measuring records
- Sophisticated balancing software
- Multi-methods of algorithms
- 10-stage calibration offers higher precision
- Multi-methods of Compensation
- Auxiliary display for drilling and cutting
Technological Date:
- Scope of RPM: 120-5000 r/min
- Minimum resolution: 0.01mg
- Shortest measuring time: 3s
- Measurable dynamic range:1:100000
features of products:
- Various Measuring Methods: dynamic balancing, static balancing or both, ten support
modes, adding or reducing weight and CW or CCW rotating can be customized flexibly. - High Precision: multi-Calibration coefficient combination, automatically adjust the
system sensitivity, no shift-skip,dual wave filtration by both hard and soft-ware,highspeed
data compression, faster,more stable and accurate measurement. - DIY unit:Balance unit displayed, angle unit and precision displayed can be defined by
user.A real-time unit conversion is available to meet different requirement. - Complete compensation,flat key compensation,fixture compensation,up to 9 times of
dislocation of fixtures. - Technological algorithm:Indexing Algorithm,Drilling Algorithm, Milling Algorithm and
Crankshaft Algorithm. - Consummate Calibration Process:Specialized Calibration interface is provides more
convenience for maintenance.Up to 10 Calibration segments.Real-time verification of
Calibration with linear chart. - Sensor disconnection alarm:Automatic diagnosis of sensor disconnection, Prompt
evading of false balance. - Bilingual:Optional language of English or Chinese for display and report form printing.
- Convenient Operation:Numeric and vector-combined display of measured values.Hint
for all the definings of parameter and the setup of domain. - Large storage of data:Database storage.Limitless storage of Rotor data, jig data and
10000 pieces of measured loop records. - History:Auto record of history,Optional methods of recording.
- Good commonness of data:Database files can be opened in MS Office.Operations like“Find”, ”Stats”, ”Filter”, ”Classify” and ”Leadout” are available via the ancillary software.
- Multi-report Form of Measurement:Measurement report-form, Balance Report-form,
Single-plane Measurement Report-form, etc. Note information for motor data can be
added anytime and displayed in report-form.
Optional Configuration
- General management of multi-balancer: Able to establish a monitor-center for
synchronous monitoring work process of more than one balancer and effective
manipulation of the data - Cursor Guides the Angle:The cursor can show the phase position of the rotor in the
extra-added module,which can help user to find the unbalance point
After Sale Service
| Professional engineer and application specialists respond to your requests efficiently | |
| Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer | |
| Follow up the case, record the entire process. Solution will be provide with 24 hours | |
| Meanwhile,the problem complaint will be reported to QC department | |
| QC will find defect from which department ,who is in charge to identify responsibility | |
| Collecting and record customer respond,suggestion,requirement |
About Us
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co.,Ltd. is a professional manufacturer of dynamic balancing machine,which is high-tech technology enterprises of Optical-electro-mechanical Integration ,
There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine
Warranty period
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
Factory Outlook
Certificates
Material inspection
Production Process-Measuring system
easuring system
Production Process-Mechanical parts
Workshop debugging
Delivery inspection
Package and transport
