2016 New Best JP Electronic Measuring Instrument , Measuring Unit
US$ 1,000 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
JP
Model Number:
JP-380/580B/580
Payment & Shipping
Payment Methods:
Port of Shipment:
Shagnhai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Shanghai JP Electric Measuring System Made in ChinaUS$ 1,000 - 12,000MOQ: 1 Set -

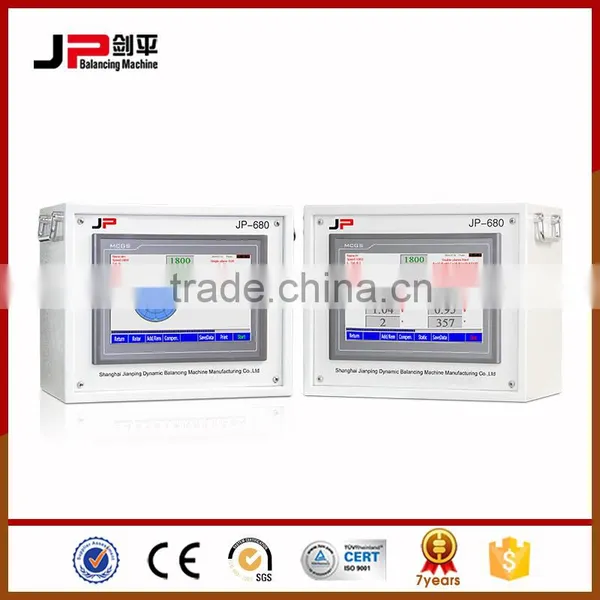

JP- 680 Electronic Measuring InstrumentUS$ 1,000 - 3,000MOQ: 1 Set
-
Jp-380 Electric Measuring SystemUS$ 1,000 - 5,000MOQ: 1 Set
-
JP-580B Electric Measuring SystemUS$ 1,000 - 10,000MOQ: 1 Set
-
JP-680A Electric Measuring SystemUS$ 1,000 - 12,000MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
JP
Model Number
JP-380/580B/580
Power
Electronic
Usage
Balancing Machine
Jp Electronic Measuring Instrument , Measuring unit

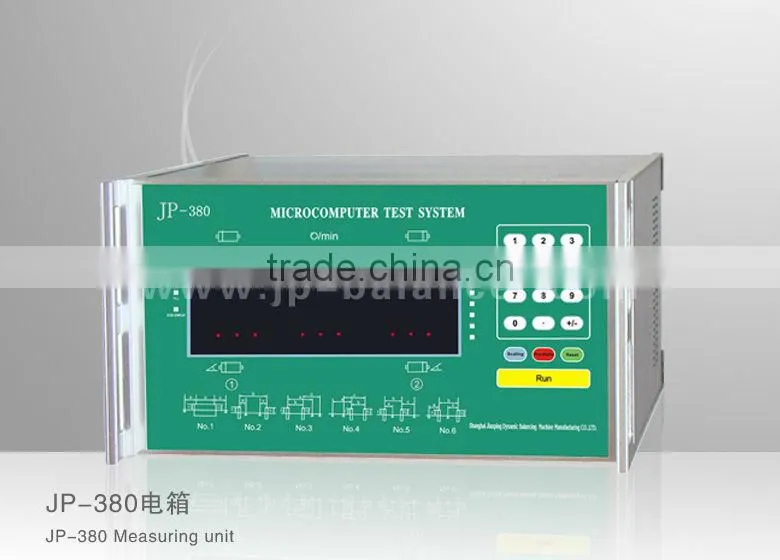

Electric Measuring System JP-380 :
JP-380 Electrical Measuring unit is a Micro-computer Electric Measuring Instrumentation newly developed by ourselves with piezoelectric transducer as electromechanical sensor,The measuring unit can show rotating speed,measured value,and phase position intuitively with options of six support models available while the piezoelectrical sensor possesses a large capacity of output,small volume and high stability
Function Introduction
- Digital Display of measured value and angle,direct and easy to read
- Intel 8051 chip,safe reliable and fast
- Imported components with lower failure rate
- Multi-methods of compensation
- Auto lock of rotating speed
Advantages
- Coming with Intel 8051Microcontroller Unit, The main machine system is highly stable and anti-jamming
- Digital-tube display,Direct and easy to read
- The High-quality main components are imported from the America and Japan
- The data collecting system employs automatic programmed amplifier and high-performance filter with the dynamic measuring range being more than 80DB
Electric Measuring System JP-580B:
JP-580B Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen ,1G memory ,Electric board 4 G Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.
Features
- LCD of 15inches
- Windows XP Operating System
- Chinese or English Display
- Storage for 1000 sorts of rotor parameter and 10000 items of measuring records
- Sophisticated balancing software
- Multi-methods of algorithms
- 10-stage calibration offers higher precision
- Multi-methods of Compensation
- Auxiliary display for drilling and cutting
Technological Date:
- Scope of RPM: 120-5000 r/min
- Minimum resolution: 0.01mg
- Shortest measuring time: 3s
- Measurable dynamic range:1:100000
features of products:
- Various Measuring Methods: dynamic balancing, static balancing or both, ten support
modes, adding or reducing weight and CW or CCW rotating can be customized flexibly. - High Precision: multi-Calibration coefficient combination, automatically adjust the
system sensitivity, no shift-skip,dual wave filtration by both hard and soft-ware,highspeed
data compression, faster,more stable and accurate measurement. - DIY unit:Balance unit displayed, angle unit and precision displayed can be defined by
user.A real-time unit conversion is available to meet different requirement. - Complete compensation,flat key compensation,fixture compensation,up to 9 times of
dislocation of fixtures. - Technological algorithm:Indexing Algorithm,Drilling Algorithm, Milling Algorithm and
Crankshaft Algorithm. - Consummate Calibration Process:Specialized Calibration interface is provides more
convenience for maintenance.Up to 10 Calibration segments.Real-time verification of
Calibration with linear chart. - Sensor disconnection alarm:Automatic diagnosis of sensor disconnection, Prompt
evading of false balance. - Bilingual:Optional language of English or Chinese for display and report form printing.
- Convenient Operation:Numeric and vector-combined display of measured values.Hint
for all the definings of parameter and the setup of domain. - Large storage of data:Database storage.Limitless storage of Rotor data, jig data and
10000 pieces of measured loop records. - History:Auto record of history,Optional methods of recording.
- Good commonness of data:Database files can be opened in MS Office.Operations like“Find”, ”Stats”, ”Filter”, ”Classify” and ”Leadout” are available via the ancillary software.
- Multi-report Form of Measurement:Measurement report-form, Balance Report-form,
Single-plane Measurement Report-form, etc. Note information for motor data can be
added anytime and displayed in report-form.
Optional Configuration
- General management of multi-balancer: Able to establish a monitor-center for
synchronous monitoring work process of more than one balancer and effective
manipulation of the data - Cursor Guides the Angle:The cursor can show the phase position of the rotor in the
extra-added module,which can help user to find the unbalance point

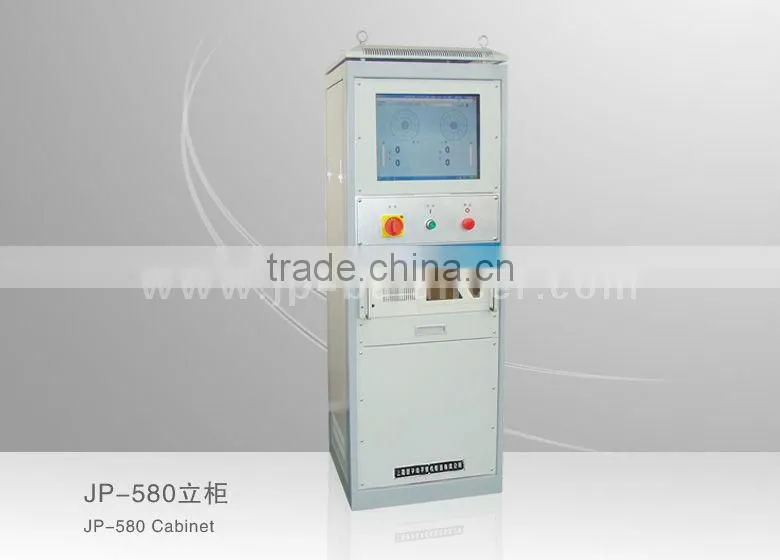

Electric Measuring System JP-580
JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing balancing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.
Features
- LCD of 17 inches
- Windows XP Operating System
- Chinese or English Display
- Storage for 1000 sorts of rotor parameter and 10000 items of measuring records
- Sophisticated balancing software
- Multi-methods of algorithms
- 10-stage calibration offers higher precision
- Multi-methods of Compensation
- Auxiliary display for drilling and cutting
Technological Date:
- Scope of RPM: 120-5000 r/min
- Minimum resolution: 0.01mg
- Shortest measuring time: 3s
- Measurable dynamic range:1:100000
features of products:
- Various Measuring Methods: dynamic balancing, static balancing or both, ten support
modes, adding or reducing weight and CW or CCW rotating can be customized flexibly. - High Precision: multi-Calibration coefficient combination, automatically adjust the
system sensitivity, no shift-skip,dual wave filtration by both hard and soft-ware,highspeed
data compression, faster,more stable and accurate measurement. - DIY unit:Balance unit displayed, angle unit and precision displayed can be defined by
user.A real-time unit conversion is available to meet different requirement. - Complete compensation,flat key compensation,fixture compensation,up to 9 times of
dislocation of fixtures. - Technological algorithm:Indexing Algorithm,Drilling Algorithm, Milling Algorithm and
Crankshaft Algorithm. - Consummate Calibration Process:Specialized Calibration interface is provides more
convenience for maintenance.Up to 10 Calibration segments.Real-time verification of
Calibration with linear chart. - Sensor disconnection alarm:Automatic diagnosis of sensor disconnection, Prompt
evading of false balance. - Bilingual:Optional language of English or Chinese for display and report form printing.
- Convenient Operation:Numeric and vector-combined display of measured values.Hint
for all the definings of parameter and the setup of domain. - Large storage of data:Database storage.Limitless storage of Rotor data, jig data and
10000 pieces of measured loop records. - History:Auto record of history,Optional methods of recording.
- Good commonness of data:Database files can be opened in MS Office.Operations like“Find”, ”Stats”, ”Filter”, ”Classify” and ”Leadout” are available via the ancillary software.
- Multi-report Form of Measurement:Measurement report-form, Balance Report-form,
Single-plane Measurement Report-form, etc. Note information for motor data can be
added anytime and displayed in report-form.
Optional Configuration
- General management of multi-balancer: Able to establish a monitor-center for
synchronous monitoring work process of more than one balancer and effective
manipulation of the data - Cursor Guides the Angle:The cursor can show the phase position of the rotor in the
extra-added module,which can help user to find the unbalance point
