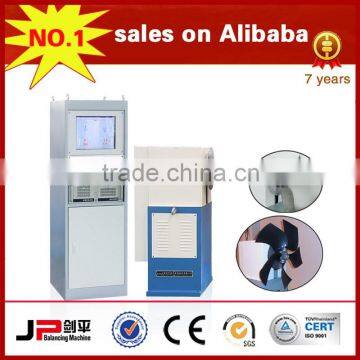

hard bearing dynamic balancing machine for Axial Fans, blowers, centrifugal fans (PHAS-16)
Production Description
• High speed and precision,easy to operate
• Widely used in balancing and calibration various types of axial flow fan
• Advanced electrical measuring system and friendly man-machine interface
• The durable and reliable sensor possesses high sensitivity
• Modular design offers a wide range of application
Range of Application
This balancing machine is a new and widely-used device which has been available and developed in recent years. It is widely used in balancing and calibration various types of axial flow fan and centrifugal fan.High speed and precision are advanages of this balancing machine.
Electrical Measuring System (Option)
Production Parameters
| Technical data at a glance | PHAS-16 |
| Max Mass of Workpiece( with clump) (kg) | 16 |
| Max Diameter of Workpiece (mm) | 700 |
| Length of Workpiece (mm) | 200 |
| Rotation Speed of Main Axis (r/min) | ~1600 |
| Motor Power (kw) | 1.5 variable-frequency |
| Min Achievable Residue Unbalace Amount (emar) | 4g· mm/kg |
| Correction methods | single/double plane |
| Dimension | 700*400*850 |
After Sale Service
| Professional engineer and application specialists respond to your requests efficiently | |
| Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer | |
| Follow up the case, record the entire process. Solution will be provide with 24 hours | |
| Meanwhile,the problem complaint will be reported to QC department | |
| QC will find defect from which department ,who is in charge to identify responsibility | |
| Collecting and record customer respond,suggestion,requirement |
About Us
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co.,Ltd. is a professional manufacturer of dynamic balancing machine,which is high-tech technology enterprises of Optical-electro-mechanical Integration ,
There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine
Warranty period
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
Factory Outlook
Certificates
Material inspection
Production Process-Measuring system
easuring system
Production Process-Mechanical parts
Workshop debugging
Delivery inspection
Package and transport
