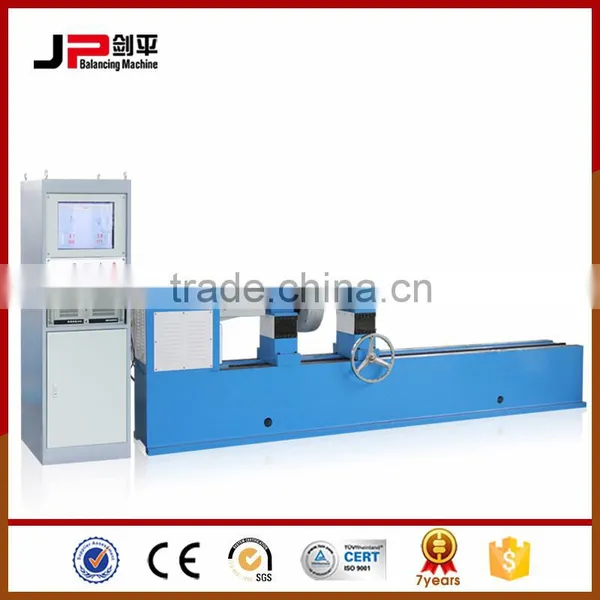

Shanghai JP drive shaft dynamic balancing machine from China supplier
Production Description
• Specially designed brackets transmit mechanical force with high rigidity
• Durable and reliable sensor possesses high sensitivity
• Permanent calibration brings high accuracy with a permission of large initial unbalance amount
• Advanced electrical measuring system and friendly man-machine interface
<img src="/kf/HTB1R_FJFVXXXXXQaXXXq6xXFXXXp/200298029/HTB1R_FJFVXXXXXQaXXXq6xXFXXXp.jpg" alt="2015 Cardan, driveshaft, propshaft balancing machine PHCW Series from professional manufacturer" ori-width="1150" ori-height="520">
Range of Application
This balancing machine is equiped with hard bearing structure. Electromechanical transducer adopts piezoelectric sensor Large output,small size, stable performance .Mainly used in the production and repair of all kinds drive shaft factories.With the advantages of high measuring speed, high precision, easy to load and unload, Investment at low cost .it is an ideal device for shaft manufacturers and maintenance factories.
<img src="/kf/HTB1ah_NFVXXXXa4XpXXq6xXFXXX8/200298029/HTB1ah_NFVXXXXa4XpXXq6xXFXXX8.jpg" alt="2015 Cardan, driveshaft, propshaft balancing machine PHCW Series from professional manufacturer" ori-width="1150" ori-height="260">
Electrical Measuring System (Option)
<img src="/kf/HTB1QQzAFVXXXXb5XVXXq6xXFXXXo/200298029/HTB1QQzAFVXXXXb5XVXXq6xXFXXXo.jpg" alt="2015 Cardan, driveshaft, propshaft balancing machine PHCW Series from professional manufacturer" ori-width="1150" ori-height="520">
<img src="/kf/HTB1Nk_MFVXXXXXxXpXXq6xXFXXX4/200298029/HTB1Nk_MFVXXXXXxXpXXq6xXFXXX4.jpg" alt="2015 Cardan, driveshaft, propshaft balancing machine PHCW Series from professional manufacturer" ori-width="1150" ori-height="520">
<img src="/kf/HTB10orPFVXXXXXSXXXXq6xXFXXXT/200298029/HTB10orPFVXXXXXSXXXXq6xXFXXXT.jpg" alt="2015 Cardan, driveshaft, propshaft balancing machine PHCW Series from professional manufacturer" ori-width="1150" ori-height="520">
Production Parameters
| Technical data at a glance | PHCW-1000/2000 |
| Max Mass of Workpiece (kg) | 1000/2000 |
| Effective length of workpiece(mm) | 3000 |
| Max Diameter of Workpiece(mm) | Φ400 |
| Shaft tube diameter of workpiece(mm) | Φ300 |
| Balancing speed(mm) | 600-1200/450-1200 |
| Spindle Speed(r/min) | 410,750 stepless speed regulation |
| Motor Power(KW) | 3 frequency conversion |
| Universal joint torque(N.M) | 300 |
| Min Achievable Residual Unbalance Amount(e mar ) | ≤5g |
| A reduced rate (%) | ≥85 |
After Sale Service
| Professional engineer and application specialists respond to your requests efficiently |
<img src="/img/pb/936/912/129/1129912936_463.jpg" alt="2015 Cardan, driveshaft, propshaft balancing machine PHCW Series from professional manufacturer" width="313" height="235" ori-width="780" ori-height="560"> |
| Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer | |
| Follow up the case, record the entire process. Solution will be provide with 24 hours | |
| Meanwhile,the problem complaint will be reported to QC department | |
| QC will find defect from which department ,who is in charge to identify responsibility | |
| Collecting and record customer respond,suggestion,requirement |
About Us
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co.,Ltd. is a professional manufacturer of dynamic balancing machine,which is high-tech technology enterprises of Optical-electro-mechanical Integration ,
There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine
Warranty period
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
Factory Outlook
<img src="/kf/HTB1.YThFVXXXXayXXXXq6xXFXXXI/200298029/HTB1.YThFVXXXXayXXXXq6xXFXXXI.jpg" ori-width="800" ori-height="779">
Certificates
<img src="/img/pb/965/684/707/707684965_239.jpg" width="800" height="779" ori-width="800" ori-height="779">
Material inspection
<img src="/img/pb/918/628/685/685628918_017.jpg" alt="2015 Cardan, driveshaft, propshaft balancing machine PHCW Series from professional manufacturer" ori-width="800" ori-height="779">
Production Process-Measuring system
<img src="/img/pb/180/633/685/685633180_768.jpg" alt="2015 Cardan, driveshaft, propshaft balancing machine PHCW Series from professional manufacturer" ori-width="800" ori-height="779">
easuring system
Production Process-Mechanical parts
<img src="/img/pb/710/634/685/685634710_420.jpg" alt="2015 Cardan, driveshaft, propshaft balancing machine PHCW Series from professional manufacturer" ori-width="800" ori-height="779">
Workshop debugging
<img src="/img/pb/863/640/685/685640863_591.jpg" alt="2015 Cardan, driveshaft, propshaft balancing machine PHCW Series from professional manufacturer" ori-width="800" ori-height="779">
Delivery inspection
<img src="/img/pb/583/818/862/862818583_508.jpg" alt="2015 Cardan, driveshaft, propshaft balancing machine PHCW Series from professional manufacturer" width="800" height="779" ori-width="800" ori-height="779">
Package and transport
<img src="/img/pb/753/647/685/685647753_777.jpg" alt="2015 Cardan, driveshaft, propshaft balancing machine PHCW Series from professional manufacturer" ori-width="800" ori-height="779">
