Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > Good Quality Mine Fan Dynamic Balance Machine From China
Good Quality Mine Fan Dynamic Balance Machine From China
US$ 1,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paper Embossing Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JP Paper Rollers Dynamic Balancing MachineUS$ 1,000 - 10,000MOQ: 1 Set -
Honda Brake Disc Balancing MachineUS$ 5,000 - 20,000MOQ: 1 Set
-
Small Motor Axial Fan Blade Balancing Machine 2016 New ProductsUS$ 1,000 - 10,000MOQ: 1 Set
-
Smoke Steam Turbine Drilling Balancing Machine Used for SaleUS$ 50,000 - 100,000MOQ: 1 Set
-
High Precision Turbine Dynamic Balancing MachineUS$ 1,000 - 10,000MOQ: 1 Set
Condition
New
Type
Paper Embossing Machine
Computerized
Yes
Place of Origin
Shanghai, China
Brand Name
Jp
Model Number
PHW-5000
Voltage
380
Power(W)
55 kw variable-frequency
Dimension(L*W*H)
4200*1200*2300
Weight
5000kg
Certification
ISO.CE
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas

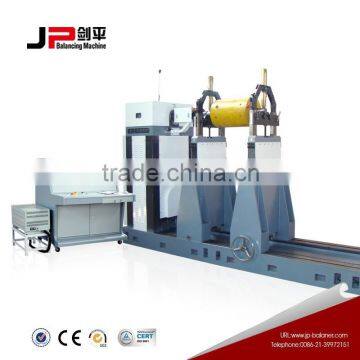

Mine Fan Dynamic Balance Machine (PHW-20000)
Production Description
• Special designed brackets can effectively transmit mechanical force
• The durable and reliable sensor possesses high sensitivity
• The permanent calibration brings high accuracy
• Driven by universal coupling,transmit the power steadily
• Applicable to rotors which can't be driven by belt or need large power
• Advanced electrical measuring system and friendly man-machine interface
• The durable and reliable sensor possesses high sensitivity
• The permanent calibration brings high accuracy
• Driven by universal coupling,transmit the power steadily
• Applicable to rotors which can't be driven by belt or need large power
• Advanced electrical measuring system and friendly man-machine interface
Range of Application
This balancing machine is mainly used in checking the balance of rotatable bodies such as good-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by gear box universal coupling , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc
Production Parameters
Technical data at a glance |
PHW-15000 |
PHW-20000 |
PHW-30000 |
Mass Scope of Workpiece (kg) |
15000 |
20000 |
30000 |
Max Diameter of Workpiece (mm) |
2800 |
2800 |
3000 |
Distance Between Two Support Bearings (mm) |
Min:450 |
Min:450 |
Min:500 |
Journal Diameter Scope of Workpiece (mm) |
60~400 |
60~400 |
80~500 |
|
Max Distance between Driving Flange and Right Bearing Support (mm) |
4200 |
5200 |
6000 |
Rotation Speed of the Main Axis (r/min) |
195,336,561, 916,13742) |
195,336,561, 916,13742) |
127,218,365, 596,895,11042) |
Motor Power (kw) |
301) |
551) |
751) |
Torque of Universal Joint Shaft (N·m) |
2250 |
5000 |
7800 |
Length of Bed(mm) |
6000 |
7000 |
8000 |
Min Achievable Residual Unbalance Amount (emar) |
2g· mm/kg |
2g· mm/kg |
2g· mm/kg |
1) Frequency conversion
2) Stepless speed regulation

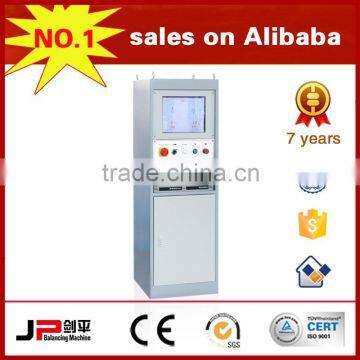

controllers functions --Computer measuring unit
Company name :shanghai jianping dynamic balancing machine manufacturing Co.,ltd
Address :No.2151 Panchuan Road ,baoshan district ,shanghai ,200949
website :
mobile:+86-13817257037
tel:+86-150 2173 9699 fax :86 021-39972969
skype :JPbalancer
QQ:742851594
wechat/whatsapp :+86-13817257037
