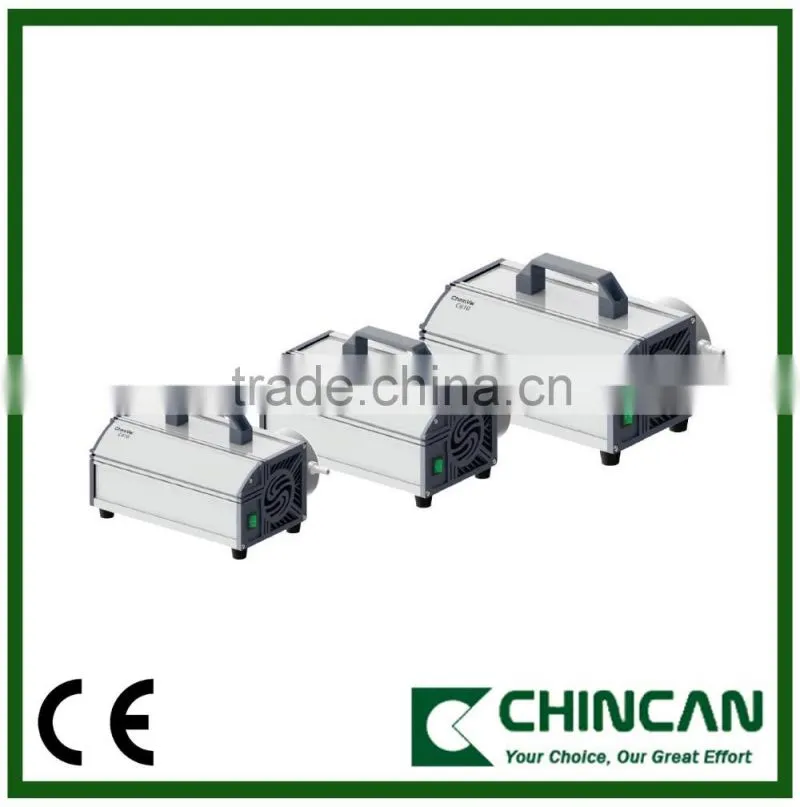

Chemical Resistant Diaphragm Vacuum Pump
- 1000 Set / Sets per Month
- Shanghai
- T/T Credit Card
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | CHINCAN | Model Number: | C510 |
Theory: | Vacuum Pump | Structure: | Diaphragm Pump | Usage: | Air Pump |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other |
Pressure: | Low Pressure | Application: | Other, filtration |
Product Description
Features
- All contacting material made of PTFE
- High resistance to acid gases
- Ultimate vacuum down to 2 mbar
- Flow rate of up to 60 L/min
- Low noise
- Resistant against high and low temperatures
- Extremely well sealed
- Overheating protection
- Handle for convenient transportation
- Easy maintenance
Application Areas
- Chemical and petrochemical Industry
- Pharma Industry
- Filtration processes
- Vacuum distillation
- Rotary evaporation
- Vacuum and centrifugal concentration
- Solid phase extraction
- Conventional drying and gel drying
- Advanced substitute for water-jet pumps
Specification:
Model | C300 | C400 | C410 | C510 | C600 | C610 | |
Power (W) | 60 | 95 | 95 | 245 | 270 | 245 | |
Work Mode | Single | Parallel | In Successions | In Successions | Parallel | In Succession | |
Ultimate Vacuum (mbar) | 100 | 100 | 13 | 8 | 90 | 2 | |
Max. Flow Rate | 22 L/min | 34 L/min | 25 L/min | 34 L/min | 60 L/min | 34 L/min | |
Outlet (mm) | 8 | 8 | 8 | 10 | 10 | 10 | |
Motor Speed (rpm) | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | |
Weight (kg) | 5 | 7 | 7 | 12.5 | 12.6 | 13.4 | |
Noise Level (dB) | 50 | 50 | 50 | 60 | 60 | 60 | |
Power supply(V) | 220V / 110V |

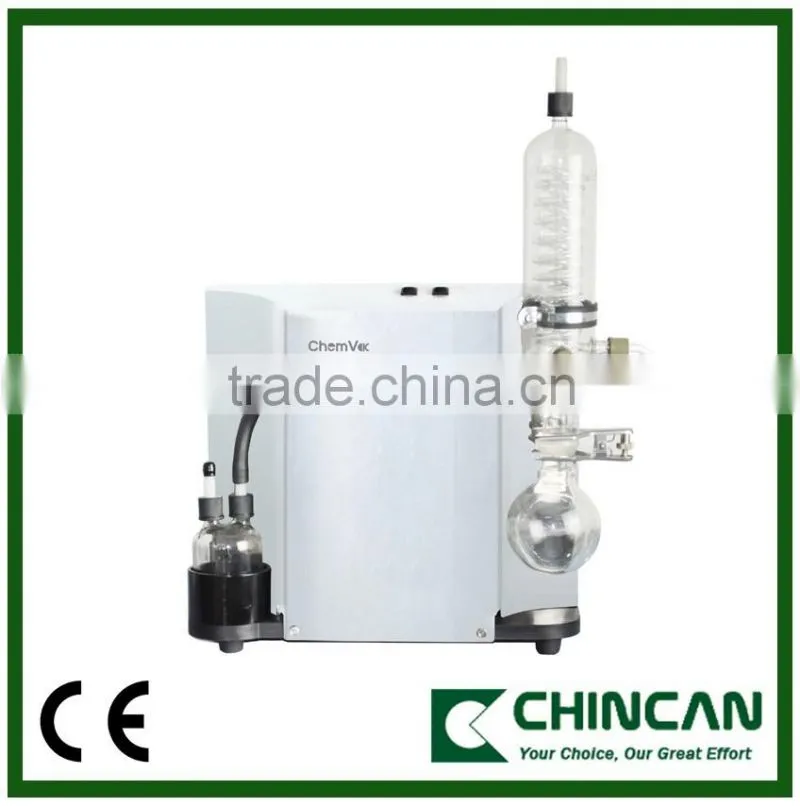

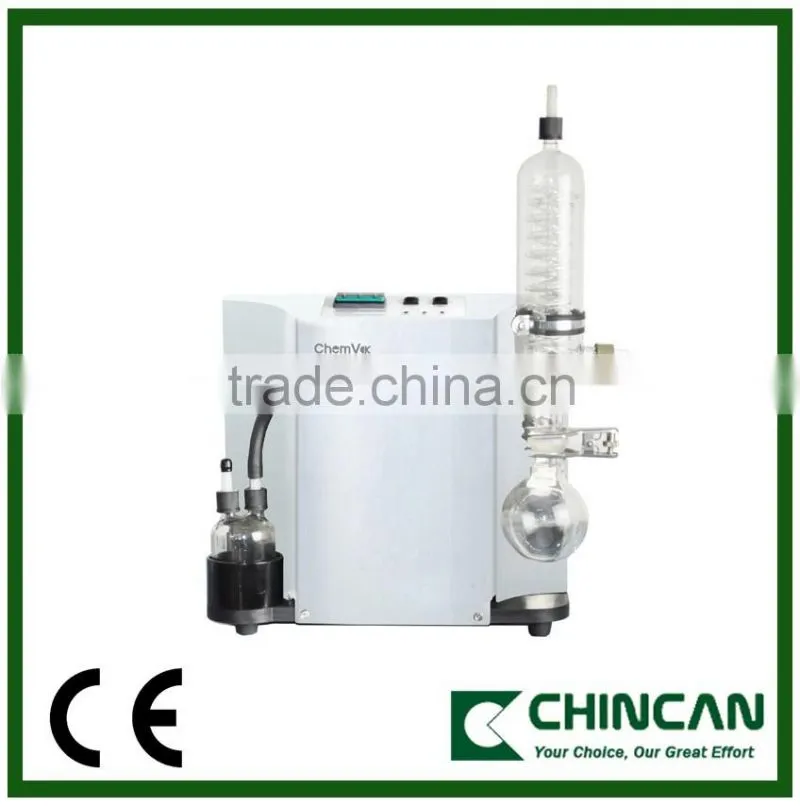

Laboratory Vacuum Systems
- Sealed system to enable a good distillation environment
- Precise control of the evaporation process
- Compact and environmental friendly design
- Low noise
- Buffer bottle prevents particles from damaging the pump
- Direct electric connection
- Ultimate vacuum range: 2 – 13 mbar
- Flow rate range: 10 – 34 L/min
CSH System
The inlet of the CSH System is connected to a segregation bottle, whereas the outlet is connected to a condenser, which is used to condensate and recover the solvent.
Established in 2004, Hangzhou Chincan Trading Co., Ltd. is a foreign trading company authorized by Chinese State Department of Foreign Economy & Trade and General Administration of Chinese Customs, which located in Hangzhou city, Zhejiang province, China.
We are a specialist company committed to exporting laboratory instruments, educational apparatus, medical & hospital equipments. With its superior performance, Chincan instruments are sold well throughout the Americas, Asia Pacific, the Middle East, Africa and Europe. With our excellent service, Chincan Trading has won a good reputation from the market.
Cooperative factories which qualified by Chincan come from many provinces and cities across China. All of them need to be ISO certified, Some products have CE.
