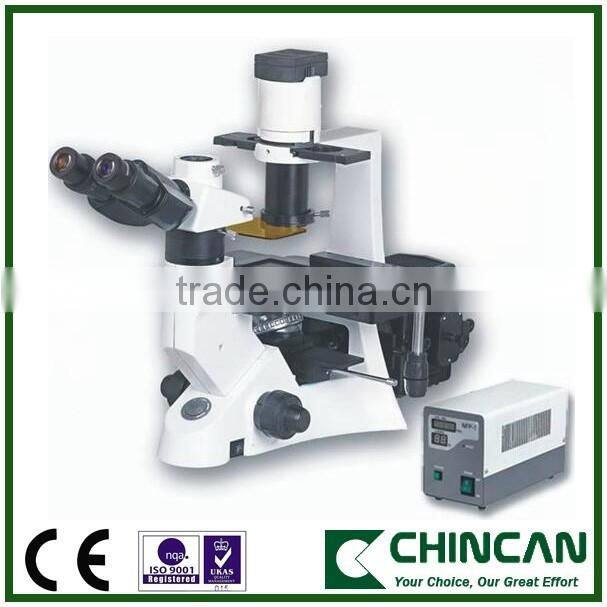

NIB-100F Professional Trinocular Inverted Fluorescent Biological Microscop with camera
Main Picture
Description
· Excellent fluorescent image with high resolution fluorescent objectives
· Protect the light leak with advanced lamp housing
· Excellent Optical Function with Infinitive Optical System
· Innovative Stand structure, Sharp Image Display, Convenient and Special for Viewing Incubating Cell Tissue
· Widely used in venereal disease examination and immuneless diagnosis
Features
More stable power supply, digital display and timer
Specification
| NIB-100F | |||||
| Optical System | Infinite Optical System | Y | |||
| Viewing Head | Trinocular Head Inclined at 30°, Interpupillary 48-75mm | Y | |||
| Eyepiece | High-point, Extra Wide Field Eyepiece EW10×/ 22 | Y | |||
| Nosepiece | Quintuple Nosepiece | Y | |||
| Objective | LWD Infinite Plan Objective | 4×/0.1, WD 18mm | Y | ||
| 10×/0.25, WD 10mm | N | ||||
| 20×/0.4, WD 5.1mm | N | ||||
| 40×/0.6, WD 2.6mm | Y | ||||
| Infinite Plan Phase Objective | PH 10×/0.25, WD 10mm | Y | |||
| PH 20×/0.4, WD 5.1mm | Y | ||||
| PH 40×/0.6, WD 0.35mm | N | ||||
| Infinite Plan Fluorescent | 4×/0.13, WD 16.3mm | N | |||
| Objective | 10×/0.3, WD 12.4mm | N | |||
| 20×/0.4, WD 1.5mm | N | ||||
| 40×/0.6, WD 2.2mm | N | ||||
| Condenser | ELWD Condenser NA 0.3, LWD 72mm | Y | |||
| Focusing | Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse | Y | |||
| Stroke 37.7mm per rotation, Fine Stroke 0.2mm per rotation | |||||
| Stage | Plain stage 160×250 mm | Y | |||
| Glass Insert | Y | ||||
| Attachable Mechanical Stage, X- Y Coaxial Control, Moving Range 120×78 mm | N | ||||
| Auxiliary Stages70×180mm | Y | ||||
| Terasaki Holder | N | ||||
| DIA. 38mm Petri Dish Holder | N | ||||
| DIA. 54mm Slide Glass Holder | N | ||||
| Illumination | Halogen Lamp6V/ 30W | Y | |||
| Filter | Blue/ Green and Ground Glass (DIA. 45mm) | Y | |||
| Phase Annulus | Y | ||||
|
Centering telescope (DIA. 30) |
N | ||||
| Photo Attachment | N | ||||
| Video Adapter | Video Adapter with C Mount | N | |||

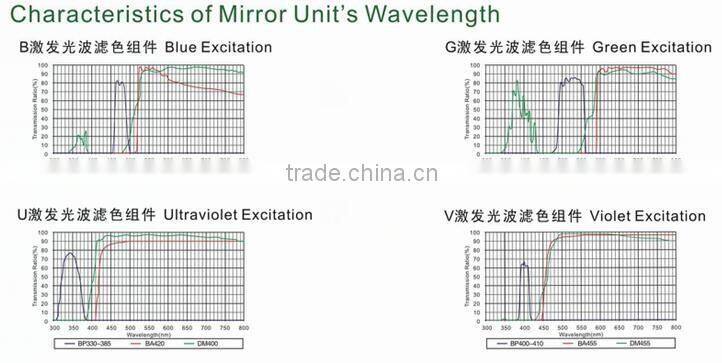

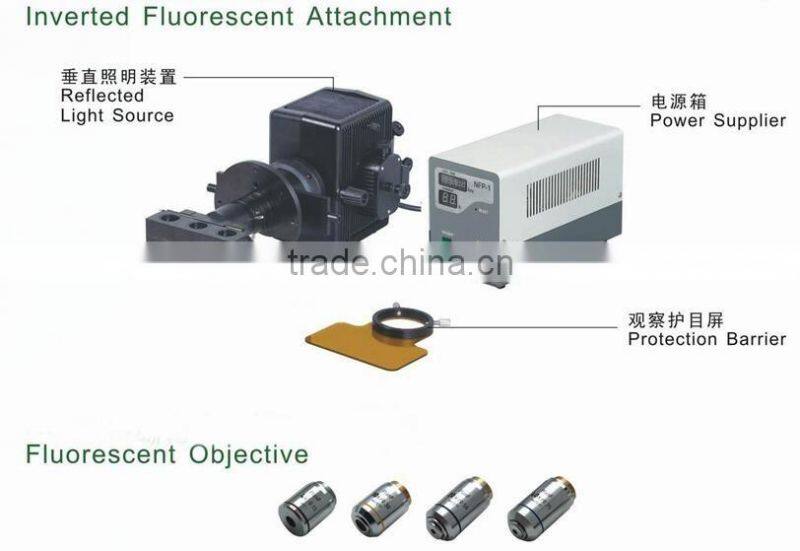

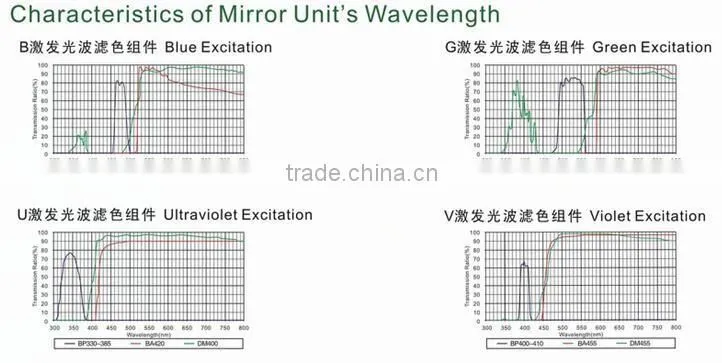

| Reflected Light Source | Excitation | Dichroic Mirror | Barrier Filter | Y | |
| Blue excitation | BP460~490 | DM500 | BA520 | Y | |
| Blue excitation (B1) | BP460~495 | DM505 | BA510-550 | N | |
| Green excitation | BP480~550 | DM570 | BA590 | Y | |
| Ultraviolet excitation | BP330~385 | DM400 | BA420 | N | |
| Violet excitation | BP400~410 | DM455 | BA455 | N | |

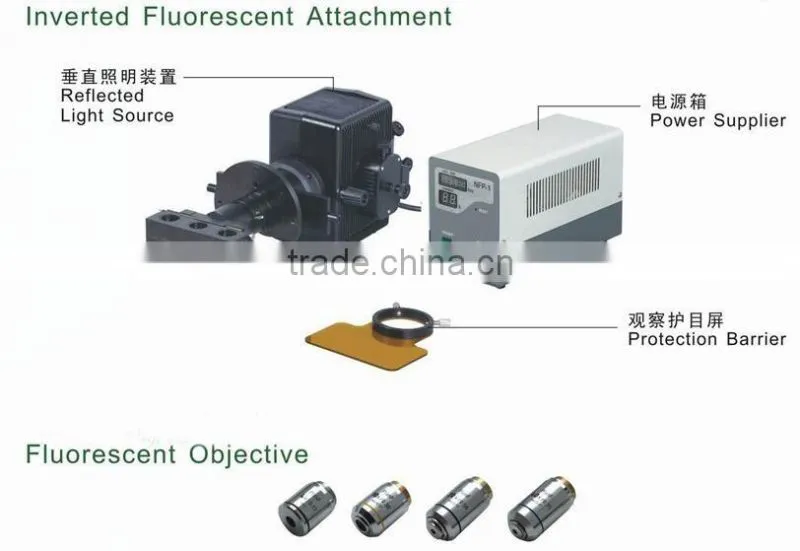

| Lamp | 100W HBO Ultra Hi-voltage Spherical Mercury Lamp | Y | |||
| Protection barrier | Barrier to Resist the Ultraviolet Light | Y | |||
| Power Supplier | Power Supplier NFP-1, 220V/ 110V interchangeable, Digital Display | Y | |||
| Immersion Oil | Fluorescent Free Oil | Y | |||
| Neutral ND25/ ND6 Filter | N | ||||
| Centering Plate | N | ||||
| Note:"Y"-- Standard Outfit, "N"-- Optional | |||||
Accesories

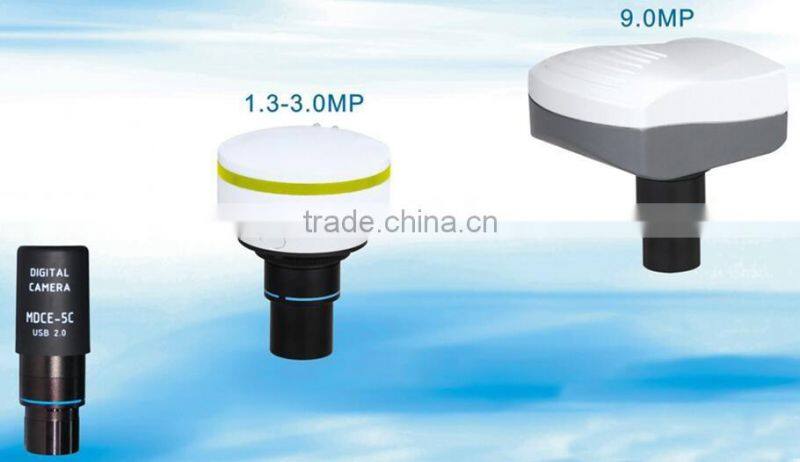

Digital Microscopy Camera (optional)
