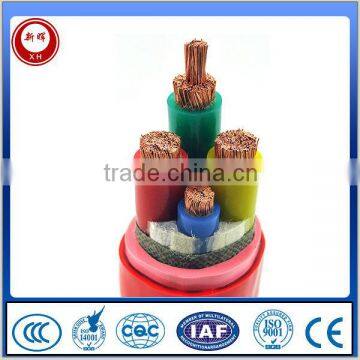

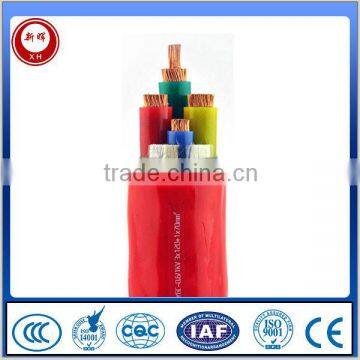

copper conductor silicone rubber sheath power cable for oil projects
1.Product Information
The power cable is fit for the fixed laying power transmission line or removable electric connecting cable with AC rated voltage up to and including 0.6/1KV. It is used widely in metallurgy, electric power, petrochemical ,electron and automobile manufacturing industry,
Specification:
1)AC rated voltage: 0.6/1KV, 14.8/3KV
2)The highest working temperature: 180℃, the lowest environment temperature: -60℃ in fixed laying occasion
3)Acceptable curved radius:10D (D is cable's outer diameter.)
1.99.99% high precision copper
2.The lowest resistance
3.The lowest eccentricity
4.Advanced production lines from Finland
5.Professional test equipments introduced from France
6.Professional and experienced R&D and Q&C engineers
3.Related techinical parameters:
|
Section mm2 |
Strand No. x mm |
Outer Diameter mm |
Ref.weight kg/km |
0.3 |
17x0.15 |
2.0 |
6.0 |
0.4 |
23x0.15 |
2.3 |
7.5 |
0.5 |
28x0.15 |
2.4 |
9.1 |
0.75 |
24x0.20 |
2.6 |
12.0 |
1.0 |
32x0.20 |
2.8 |
17.4 |
1.25 |
40x0.20 |
2.9 |
19.8 |
1.5 |
30x0.25 |
3.1 |
24.2 |
2.0 |
41x0.25 |
3.3 |
26.2 |
2.5 |
49x0.25 |
3.6 |
35 |
4 |
56x0.30 |
4.5 |
56 |
6 |
84x0.30 |
5.2 |
79 |
10 |
84x0.40 |
6.8 |
128 |
16 |
126x0.40 |
8.0 |
190 |
25 |
196x0.40 |
9.4 |
291 |
35 |
276x0.40 |
12.1 |
404 |
50 |
396x0.40 |
14.3 |
575 |
70 |
360x0.50 |
16.4 |
775 |
95 |
475x0.50 |
18.9 |
1042 |
120 |
608x0.50 |
20.4 |
1295 |
150 |
756x0.50 |
22.8 |
1610 |
185 |
925x0.50 |
24.8 |
1959 |
240 |
1221x0.50 |
28.2 |
2529 |
4.Productive Process:
Low voltage power cable productive process:

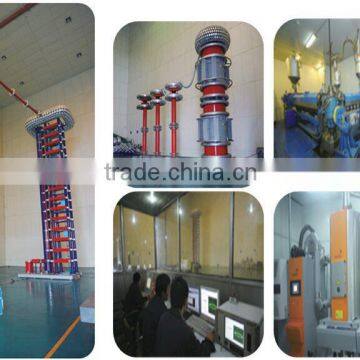

5.Advanced equipments:
6.Certificates:
1.What's your core competence products?
The core competence products are electrical wire, low voltage power cable, medium voltage power cable, high voltage power cable and extra-high voltage power cable etc.
2.What's the influence factor of quotation?
The conductor material, conductor diameter, sectional area, sheath material, screen material, armoured material and voltage degree.
3.Can you supply the OEM service?
Yes, we can produce the electric wire and power cable according to customer's requirements.
4.What's the lead time?
Usually the lead time is 20 working days after receiving the deposit.
5.Do you supply the after sale service?
Yes, we will supply professional solution or engineer once occured problem.

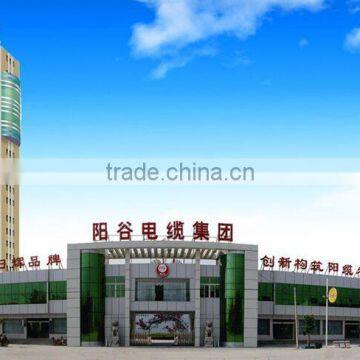

8.Company Information:
Company name: Shandong Xinhui Yanggu Cable Co.,LTD
Established time: 2006
Floor space:2,400,000 square meter
Factory address: Liaocheng, Shandong Province
Core competence products: Household Appliance Electrical Wires, Building Electrical Wire, Power Cable, Control Cable, Communication Cable, Rubber Cable, Computer Cable, Overhead Cable, Optical Fiber etc.
Certificate: ISO 9001 International Quality Management System Certificate ,ISO14001 environmental management system certification, OHSAS18001 occupational health and safety management system certification, CCC certification, CE certification, electricity certification, coal Ann sign certificate etc.
Production line quantity: 7
Professional technical people quantity: 586
9.Project Show:
Looking forward to supplying electrical wires&power cables for you. Any question, kindly please feel free to contact me.
