Product Details
Place of Origin: | Shandong, China | Brand Name: | Xinhui | Model Number: | YGC |
Insulation Material: | Rubber | Type: | Low Voltage | Application: | Power Station |
Conductor Material: | Copper | Jacket: | Rubber |
Product Description

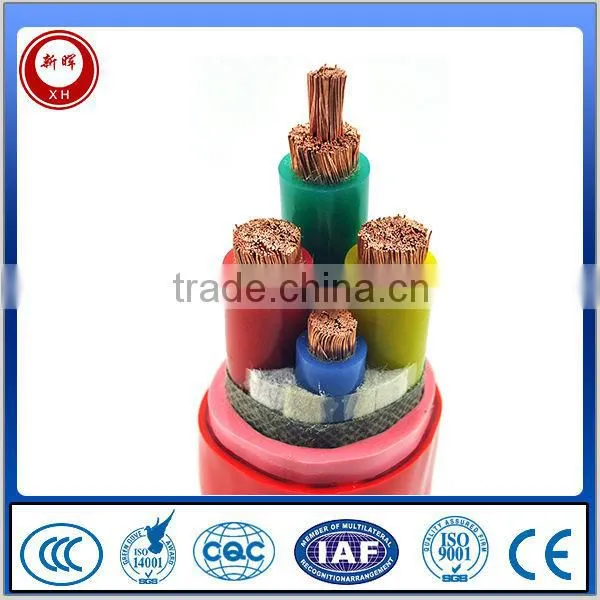

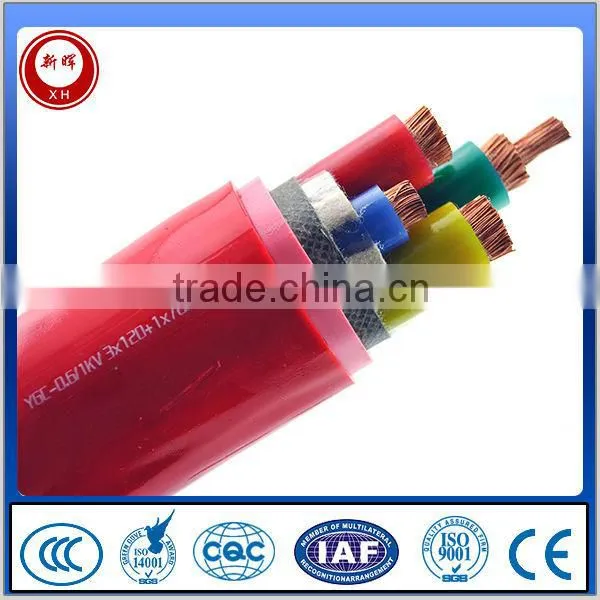

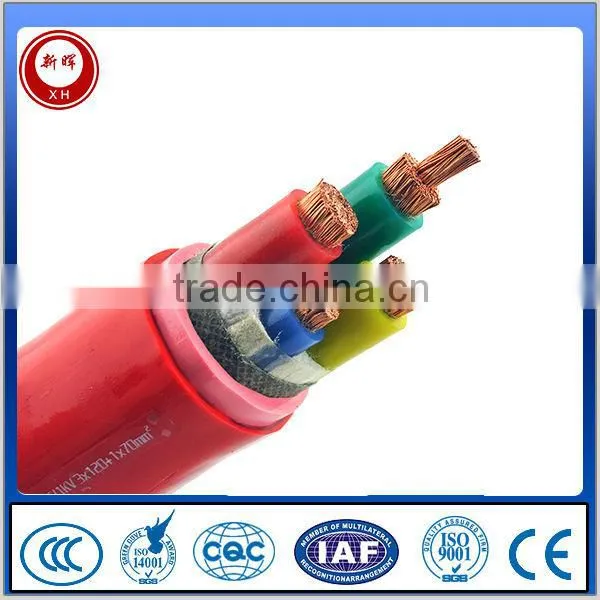

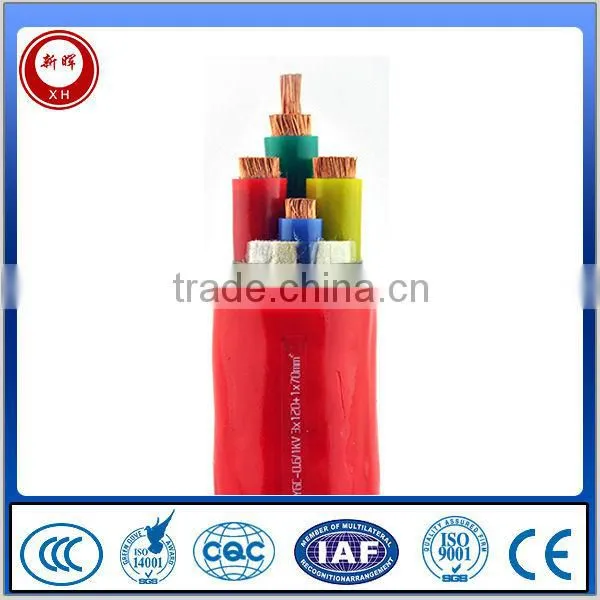

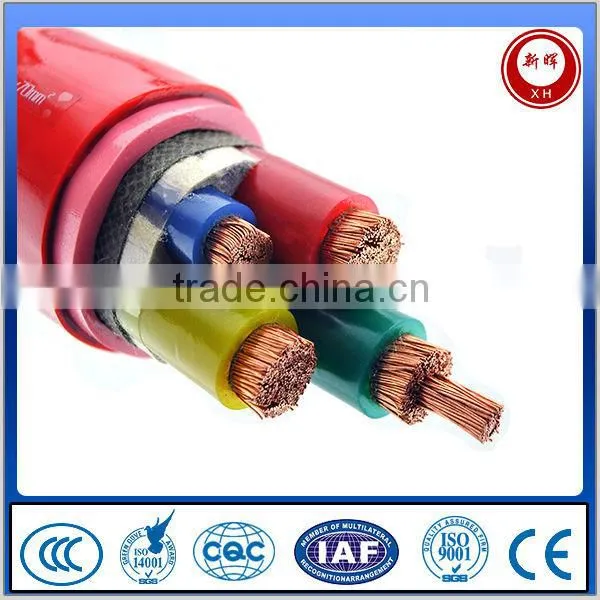

Silicon rubber insulated and sheathed power cable
The cable is suitable for ac rated voltage up to and including 0.6/1KV, can be used for power transmission line or portable electric connection cable.The product has good features such as resistance to the heat radiation, cold , acid and alkali and corrosive gas, waterproof properties.the cable is very flexible and easy to laying , be stable in high or low temperature,anti-aging performence is outstanding and widely used in metallurgy, electric power, petrochemical, electronics, automobile manufacturing and other industries.
Application:
1. Ac rated voltage U0 / U 0.6/1 kv working temperature: ≤180 ℃
environment temperature: fixed installation to -60 ℃
2. Laying temperature ≥-20 ℃.
3. Permitted minimum bending radius of the cable: 6 times of cable diameter
Type | Detailed Description of Type |
YGC | Silicon rubber insulated and sheathed power cable |
YGCR | Silicon rubber insulated and sheathed flexible power cable for movable |
YGCP | Silicon rubber insulated and sheathed copper wire braid shield power cable |
YGC22 | Silicon rubber insulated and sheathed steel belt armored power cable |
JGG | Silicon rubber insulated and sheathed installation cable |
JGGR | Silicon rubber insulated and sheathed installation flexible cable for movable |
JGGP | Silicon rubber insulated and sheathed copper wire braid shield installation cable |
JHXG | Sillicon rubber insulated Motor Lead cable |
KGG | Silicon rubber insulated and sheathed control cable |
KGGR | Silicon rubber insulated and sheathed flexible control cable |
KGGP | Silicon rubber insulated and sheathed copper wire braid shield control cable |
KGGRP | Silicon rubber insulated and sheathed copper wire braid shield flexible control cable |
KGGRP1 | Silicon rubber insulated and sheathed tinning braid shield flexible control cable |
KFG | Fluorine plastic insulated and silicon rubber sheathed control cable |
