power cable
Advantage
1.Nexans..
2.Finland Nokia production line .
3.French imports of advanced testing equipment.
4.Conductor with high purity.
5.Low eccentricity.
6.IEC,GB,CE,CCC,ISO,CQM etc.
Application of power cable
This product is suitable for rated voltage (Uo / U) 10kv and below copper core fixed laying flame retardant electric cable,adapt to low,medium transmission and distribution system.
PVC insulated eletric cable execute MT818.12-2008 standard.
XLPE insulated eletric cable execute MT818.13-2008 standard.
Operating character
1.the max rated temperature of PVC insulated cable conductor is 70℃,the max rated temperature of XLPE insulated cable conductor is 90℃.
2.During short circuit(lasting less than 5 seconds)the maximum temperature of the cable conductor shall not be above 250℃.
3.Environment temperature should be no lower than 0℃ for laying the cable.
4.bending radius:
Three core cable ≥15D;single core cable≥20D.
Mainly character
Nominal section |
1.5 |
2.5 |
4 |
6 |
10 |
16 |
25 |
35 |
50 |
70 |
95 |
120 |
150 |
185 |
240 |
300 |
20℃ DCR not exceed |
12.1 |
7.41 |
4.61 |
3.08 |
1.83 |
1.15 |
0.727 |
0.542 |
0.387 |
0.268 |
0.193 |
0.153 |
0.124 |
0.0991 |
0.0754 |
0.0601 |
Specification of power cable
1.coal mine PVC insulated flame retardant cable type,name and laying
type |
Laying occasion |
MVV |
Laying in indoor,tunnel,cable duct,pipeline,flammable and severe corrosion occasion,can not bear mechanical force. |
MVV22 |
Laying in indoor,tunnel,cable duct,pipeline,flammable and severe corrosion occasion,can bear some mechanical force,can not bear tensile force. |
MVV32 |
Laying in high drop and the shaft,can not bear high tensile force |
MVV42 |
Laying in high drop and the shaft,can bear high tensile force |
al mine XLPE insulated flame retardant cable
Type |
Laying occasion |
MYJV |
Laying in indoor,tunnel,cable duct,overhead and underground, can not bear mechanical pressure and tensile force. |
MYJV22 |
Laying in indoor,tunnel,cable duct,overhead and underground, can not bear sure mechanical pressure force. |
MJV32 |
Laying in high drop and shaft,can not bear high tensile force. |
MYJV42 |
Laying in high drop and shaft,can bear high tensile force. |
Rated voltage,nominal cross section and number of cores of cable
al mine PVC insulated flame retardant cable
Type |
Number of cores |
Rated voltage(kv)
|
|||
0.6/1 |
1.8/3 |
3.6/6.6 6.6/10 |
|||
Nominal cross section | |||||
MVV |
3 |
1.5-300 |
10-300 |
10-300 |
|
MVV22 |
2.5-300 |
10-300 |
10-300 |
||
MVV32 |
|
|
16-300 |
||
MVV42 |
|
|
16-300 |
||
MVV |
3+1 |
4-300 |
10-300 |
|
|
MVV22 |
4-300 |
10-300 |
|
||
MVV |
4 |
4-185 |
4-185 |
|
|
MVV22 |
|
4-185 |
|||
al mine XLPE insulated flame retardant cable
Type |
Number of cores |
Rated voltage(kv) |
|||
0.6/1 |
1.8/3 |
3.6/6.6/6 |
6/10 8.7/10 |
||
Nominal cross section(mm²) | |||||
MYJV |
3 |
1.5-300 |
10-300 |
25-300 |
25-300 |
MYJV22 |
4-300 |
10-300 |
25-300 |
25-300 |
|
MYJV32 |
4-300 |
10-300 |
25-300 |
25-300 |
|
MYJV42 |
4-300 |
10-300 |
25-300 |
25-300 |
|
Factory and pruduction line
Testing equipment

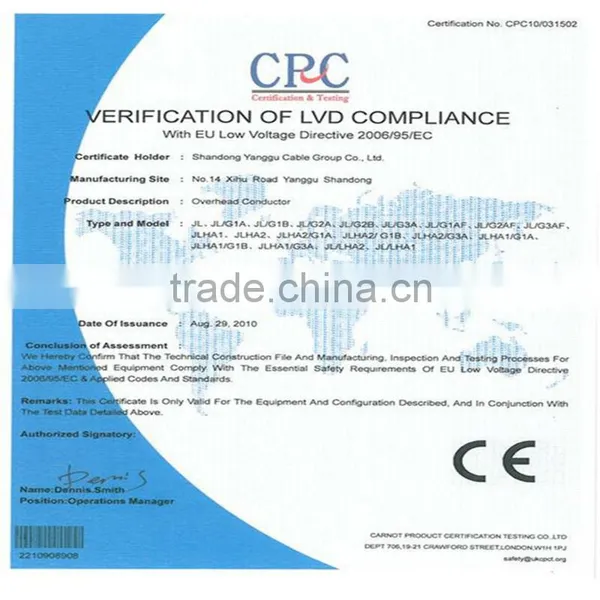

Certification
Packing&Shipping
cooperate company
| Packaging Detail: | In wooden drum . In wooden pallet. or as per buyer's requirements. |
| Delivery Detail: | Within 21 workingdays after payment confirmed. |
