aluminum or copper conductor 3 cores high voltage power cables ce certificate
1.Product Description:
The product applys to the 66KV-220KV high voltage, extra-high voltage electric line. Its mechanical property and electrical performance conform to standards IEC60840, IEC62067, GB/T11017-2002, GB/Z18890-2002 and GB/T22078-2008.
The main test voltage (KV)
| Test item/Voltage degree | 38/66 | 48/66 | 64/110 | 76/132 | 127/220 | 290/500 |
| Partial discharge test | 57 | 72 | 96 | 114 | 191 | 435 |
| AC withstand voltage test | 95 | 120 | 160 | 190 | 318 | 580 |
| Outer sheath dc withstand voltage test | 25 | 25 | 25 | 25 | 25 | 25 |
| Impulse voltage test | 320 | 450 | 550 | 650 | 1050 | 1550 |
| Power frequency voltage test after the impulse voltage | 95 | 120 | 160 | 190 | 318 | 580 |
Cable's item,name, laying occasion
| Item | Name | Laying occasion | |
| Copper core | Aluminum core | ||
| YJV | YJLV | xlpe insulation pvc sheath power cable | laying in the occasions where the cable do not need to bear tensile force and pressure,eg: pipeline,tunnel |
| YJV | YJLV | xlpe insulation pe sheath power cable | laying in the occasions where the cable do not need to bear tensile force and pressure,eg: pipeline,tunnel |
| YJLVV02 | YJLLVV02 | xlpe insulation corrugated aluminum sheath pvc sheath power cable | laying in the occasions where are damp,higher underground water level,can bear certain sidewise pressure and mechanical force as well |
| YJLVV03 | YJLLVV03 | xlpe insulation corrugated aluminum sheath pe sheath power cable | laying in the occasions where are damp,higher underground water level,can bear certain sidewise pressure and mechanical force as well |
| YJLVV02-Z | YJLLVV02-Z | xlpe insulation corrugated aluminum sheath pvc sheath longitudina resistance water power cable | laying in the occasions where are damp,higher underground water level,can bear certain sidewise pressure and mechanical force as well,cable is longitudinally resistance water |
| YJLVV03-Z | YJLLVV03-Z | xlpe insulation corrugated aluminium sheath pe sheated longitudinally resistance water power cable | laying in the occasions where are damp,higher underground water level,can bear certain sidewise pressure and mechanical force as well,cable is longitudinally resistance water |

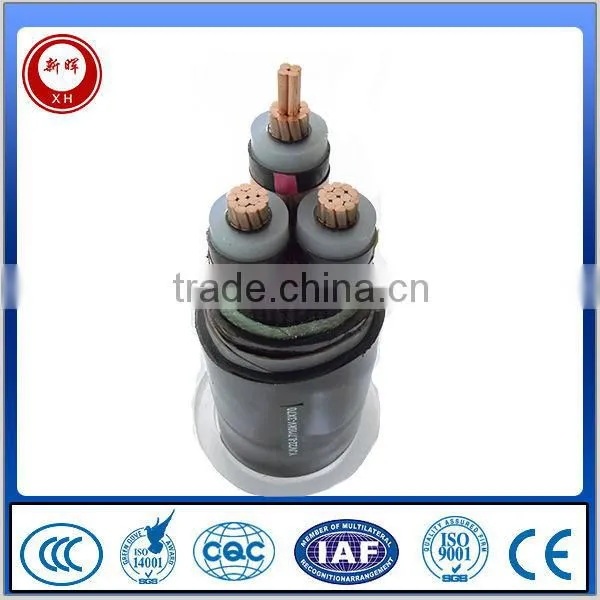

2.Product Picture
1).99.99% high precision copper
2).The lowest resistance
3).The lowest eccentricity
4).Advanced production lines from Finland
5).Professional test equipments introduced from France
6).Professional and experienced R&D and Q&C engineers

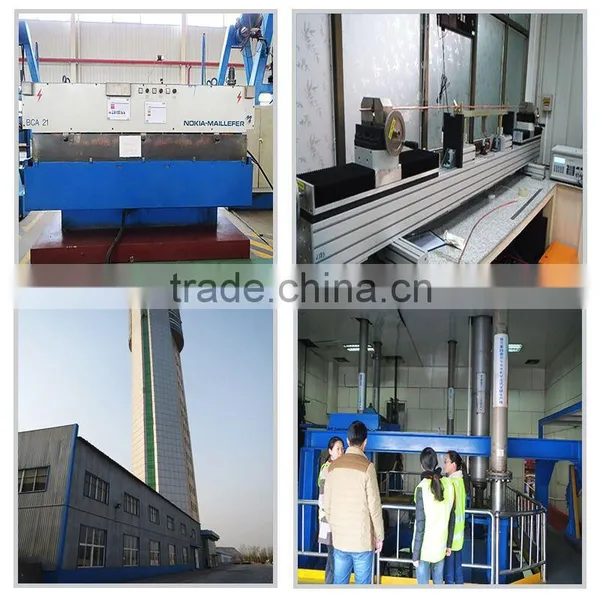

Below is our advanced production and testing equipments.
4.Certificates
5.Production Process
6.Company Information
Company name: Shandong Xinhui Yanggu Cable Co.,LTD
Established time: 2006
Floor space:2,400,000 square meter
Factory address: Liaocheng, Shandong Province
Core competence products: Household Appliance Electrical Wires, Building Electrical Wire, Power Cable, Control Cable, Communication Cable, Rubber Cable, Computer Cable, Overhead Cable, Optical Fiber etc.
Certificate: ISO 9001 International Quality Management System Certificate ,ISO14001 environmental management system certification, OHSAS18001 occupational health and safety management system certification, CCC certification, CE certification, electricity certification, coal Ann sign certificate etc.
Production line quantity: 7
Professional technical people quantity: 586
Project Show:
7.FAQ
1).Can you do OEM service?
Yes, we can produce the electric wire& cable according to customer's special requirements.
2)What's your MOQ for electric wire&cable?
For electric wire, the MOQ is 1000meters. The MOQ of power cable is 500meters.
3).What's the advantage of your products?
99.9999% purity copper conductor, imported high quality insulation material, advanced flame retardant material, low eccentricity ratio etc.
4).What's the lead time?
Usually it will take 20 working days to finish the production.
Looking forward to supplying wires&cables for you. Any question, please contact me as below.
