S&S bearing S2202 Stainless Steel self-aligning Ball Bearings Price
The Brief Description of Self-aligning Ball Bearings:
Self-aligning ball bearing has two rows of balls and a common sphered raceway in the outer ring. The bearings are consequently self-aligning and insensitive to shaft deflections and angular misalignment of the shaft relative to the housing. Additionally, self-aligning ball bearings generate less friction than any other type of rolling bearing, which enables them to run cooler even at high speeds.
Self-aligning ball bearings are available with either a cylindrical or tapered bore. Bearings with a tapered bore can be mounted directly on a shaft or on an adapter or withdrawal sleeve.
Self-aligning Ball Bearings Features:
1.The components of the self aligning ball bearings include two rows of balls, the cage, the inner ring, and the outer ring with a common concave sphered raceway.
2. This type bearings are self-aligning and insensitive to angular misalignments of the shaft relative to the housing.
3. The bearings are produced in several design: open bearings with the basic design, sealed bearings, open bearings with an extended inner ring.
4. The self alignning ball bearings have the lowest friction of all rolling bearings.
5. The bearings are available with a cylindrical bore or, in certain size ranges, with a tapered bore
Specification:
Products name |
Stainless Steel Self-aligning Ball Bearing S2202 |
Brand name |
SHR |
Cage material |
Nylon , steel , brass |
Precision |
P0 |
Sealing |
Open, |
Quality standard |
ISO9001:2008 |
Service |
OEM service |
Delivery date |
Normally ready goods and stock within 15days |
Package |
Industrial package or according to your requirement. |
Application:
Self-aligning ball bearing is designed to withstand heavy load and impact load, precision instruments, low noise machine, automobile, motorcycle, metallurgy, rolling mill, mine, petroleum, papermaking, cement, the sugar industry, general machinery , etc.
Stainless Steel Self-aligning Ball Bearings Catalog:
| Model Number | dimension(mm) | Cr(kN) | Cor(kN) | Weigth(kg) | ||
| d | D | Width | ||||
| S2200 2RS | 10 | 30 | 14 | 7.12 | 1.58 | 0.05 |
| S2201 2RS | 12 | 32 | 14 | 8.8 | 1.8 | |
| S2202 2RS | 15 | 35 | 14 | 7.65 | 1.8 | 0.06 |
| S2203 2RS | 17 | 40 | 16 | 9 | 2.45 | 0.09 |
| S2204 2RS | 20 | 47 | 18 | 12.5 | 3.28 | 0.15 |
| S2205 2RS | 25 | 52 | 18 | 12.5 | 3.4 | 0.19 |
| S2206 2RS | 30 | 62 | 20 | 15.2 | 4.6 | 0.26 |
| S2207 2RS | 35 | 72 | 23 | 21.8 | 6.65 | 0.44 |
| S2208 2RS | 40 | 80 | 23 | 22.5 | 7.38 | 0.53 |
| S2209 2RS | 45 | 85 | 23 | 23.2 | 8 | 0.55 |
| S2210 2RS | 50 | 90 | 23 | 23.2 | 8.45 | 0.68 |

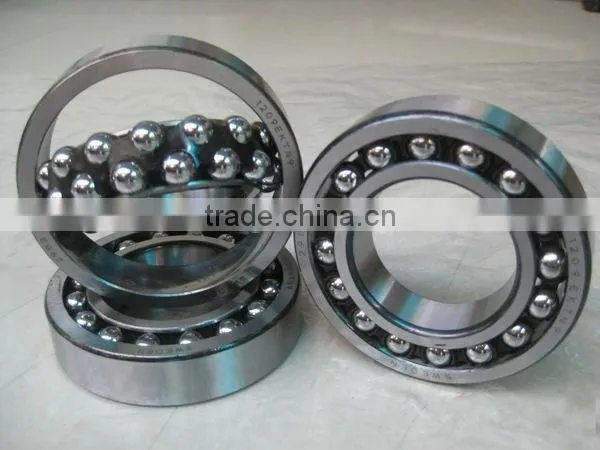

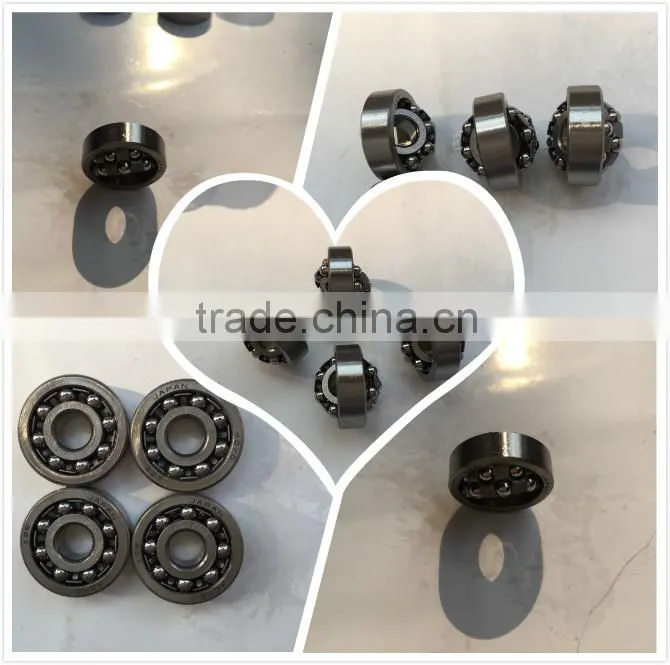

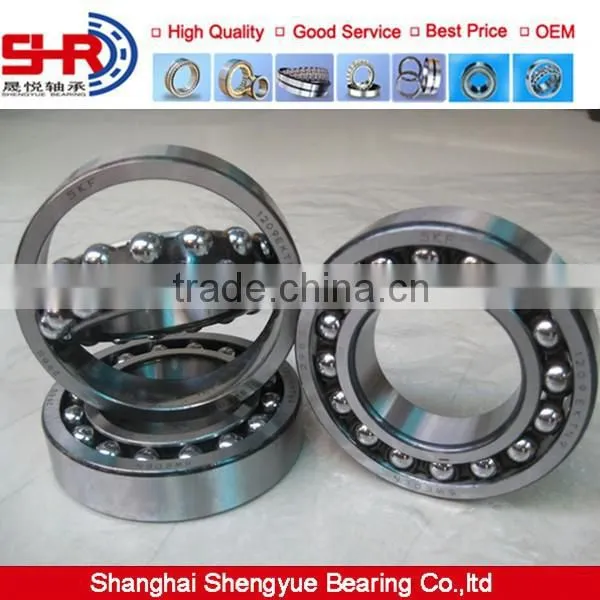

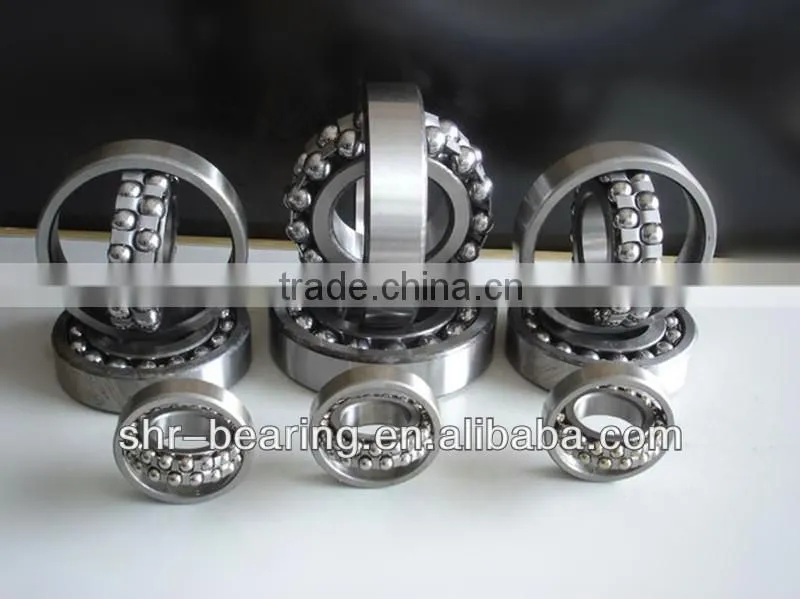

Stainless Steel Self-aligning Ball Bearings Photos:
Other types
Series |
d(mm) |
D(mm) |
B(mm) |
Weight(kg)
|
S1200~S1210 |
10~50 |
30~90 |
9~20 |
0.034~0.515 |
S2200~S2210 |
10~50 |
30~90 |
14~23 |
0.047~0.583 |
Mounting bearings with a tapered bore:
Self-aligning ball bearings with a tapered bore are always mounted with an interference fit on a tapered shaft seat or an adapter or withdrawal sleeve. As a measure of the degree of interference of the fit, either the reduction in radial internal clearance of the bearing or the axial displacement of the inner ring on its tapered seat is used.
Suitable methods for mounting self-aligning ball bearings with tapered bore are:
- Measuring the clearance reduction.
- Measuring the lock nut tightening angle.
- Measuring the axial drive-up
How to prolong the life of Self-aligning ball bearing?
1.Keep the bearing and the surrounding environment clean
2.be careful when installing
3.Using appropriate and accurate installation tools
4.To prevent rusting of the bearings
Trust us:
1.give you the best price(we have our own factory,give you the wholesale price)
2.give you the high quality and good service(we don't do a one-time deal,professional quality cast,quality molded the future)
3.short delivery time(we are in Shanghai ,convenient transportation)
4.customers' drawing and samples accepted( tell us what you want ,we will try our best )
Our service :
1. Price --Highest quality and most competitive price.
2. Warranty----- We provide 1year warranty for all bearings.
3. Delivery fast -----Goods will be sent out within 3 to 5 days for ex-stock.
4. Professional----- We are special in source and sales, as development, methods,
conjugations, and handling ,for more than 7 years.
5. Best service-----Answering e-mails or solving questions quickly.We are 24 hours online.
6.Save freight.---we have many cooperative forwarders to help you choose the best shipping ways.
Bearings Package:
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case
Bearings Lead time:
We will prepare your order as soon as possible.
1)2-3 days for ex-stock
2)6-10 days for others
Shipping & Delivery time:
1)Less than 45 Kg:DHL TNT Fedex UPS express will be better,( 4-7 days delivered to your address);
2) Between 45 to 200 Kg:Air transiportation will be better,( 5-14 days delivered to your airport);
3) Over 200 Kg:Sea transportation will be better.( Cheapest,18-45 days to your port ).
Note:We will offer the best freight for you to save the shipping cost.Besides we provide all needed documents for your Customs clearance.Of course,your forwarder will be also welcome!
Payment terms:
We accept T/T, Western Union,Paypal,Visa.
1) T/T or WU (we undertake the bank fees):
A:100% payment.
B:30% deposit ,70% before transportation.
2)PayPal (we undertake the transaction fees) :
A:100% payment.
B:30% deposit ,70% before transportation.
3) L/C at sight.
Note :We will take some pictures of your bearings before transportation.
| Price terms | Door to door,FOB,CNF,CFR,CIF,EXW,C&F |
| Shipping Airport |
Shanghai Pudong International Airport Shanghai Hongqiao International Airport |
| Shipping Port | Shanghai,Guangzhou |
Shanghai Shengyue Bearing Co., Ltd. is a professional bearing manufacturer and dealer in China. We have been engaged in bearing industry for 15 years and worked on bearing import and export for more than 8 years. We attend international bearing fairs, put in many B2B websites and achieve many customers all over the world, building up a good reputation from our customers.
SHR Bearing Factory Pictures:
Series of Self-aligning Ball Bearings We Can Supply:
With cylindrical hole |
1018,1026,1027,1029,1200,1201,1202,1203,1204,1205,1206, 1207,1208,1209,1210,1211,12121213,1214,1215,1216, 1217,12181219,1220,1221,1222 ,2200,2201,22022203,2204, 2205,2206,2207,2208,2209,22102211,2212,2213,2214,2215, 22162216K,2217,2218,2219,2220,2222 |
With tapered hole |
1204EK,1205EK,1206EK,1207EK,1208EK,1209EK,1210EK,1211EK,1212EK, 1213Ek,1215K,1216K,1217K,1218K,1219K,1220K,2205K,2206K, 2207K,2208K,2209K,2210K,2211K,2212K,2213K,2214K,2215K, 2217K,2218K,2219K,2220K,2222K |
With adapter sleeve |
1209K+H209,1209K+H209,2209K+H309,2209K+H309 1309K+H309,1309K+H309,2309K+H2309,2309K+H2309 1210K+H210,1210K+H210,2210K+H310,2210K+H310 1310K+H310,1310K+H310,2310K+H2310,2310K+H2310 1211K+H211,1211K+H211,2211K+H311,2211K+H311 1311K+H311,1311K+H311,2311K+H2311,2311K+H2311 1212K+H212,1212K+H212,2212K+H312,2212K+H312 1312K+H312,1312K+H312,2312K+H2312,2312K+H2312 1213K+H213,1213K+H213,2213K+H313,2213K+H313 1313K+H313,1313K+H313,2313K+H2313,2313K+H2313 1215K+H215,1215K+H215,2215K+H315,2215K+H315 1315K+H315,1315K+H315,2315K+H2315,2315K+H2315 |
