High quality self-aligning ball bearing 2310
The Brief Description of Self-aligning Ball Bearing:
Self-aligning ball bearing outer ring raceway is processed into spherical shape, the inner raceway with two double row deep groove ball bearings, aligning performance. It is mainly used to bear radial load, radial load at the same time, it can withstand a small amount of axial load, but generally can not bear the pure axial load, the speed limit lower than the deep groove ball bearings. This kind of bearings are used for the load prone to bending under the double bearing shaft, and dual bearings coaxial holes can not guarantee that the parts in the strict, but the inner ring and outer ring center line of the relative steepness of the center line of not more than 3 degrees.

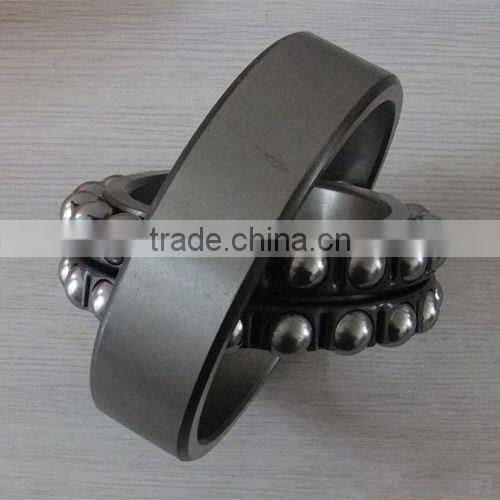

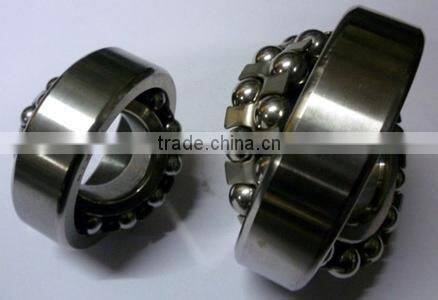

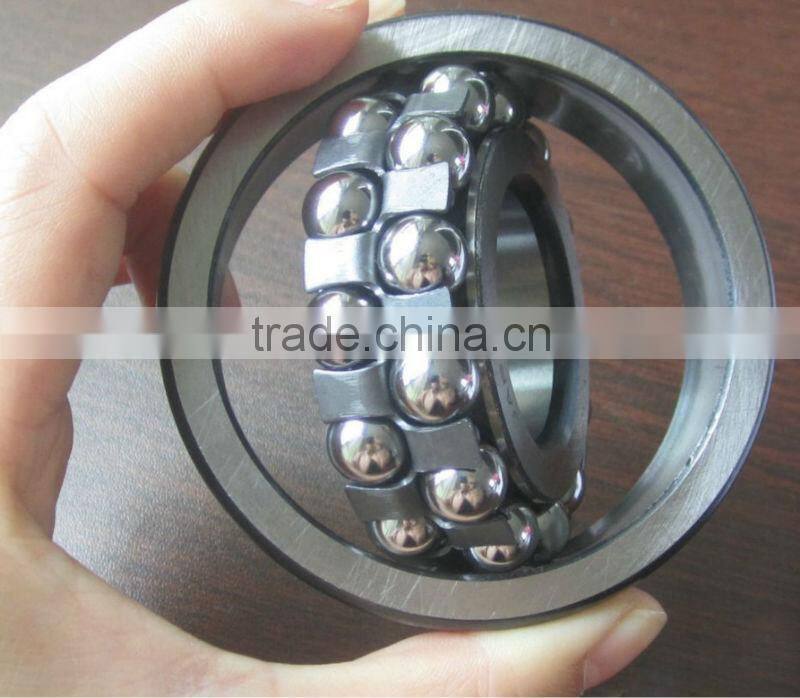

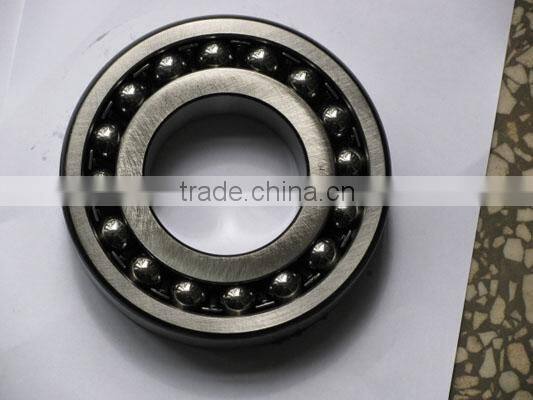

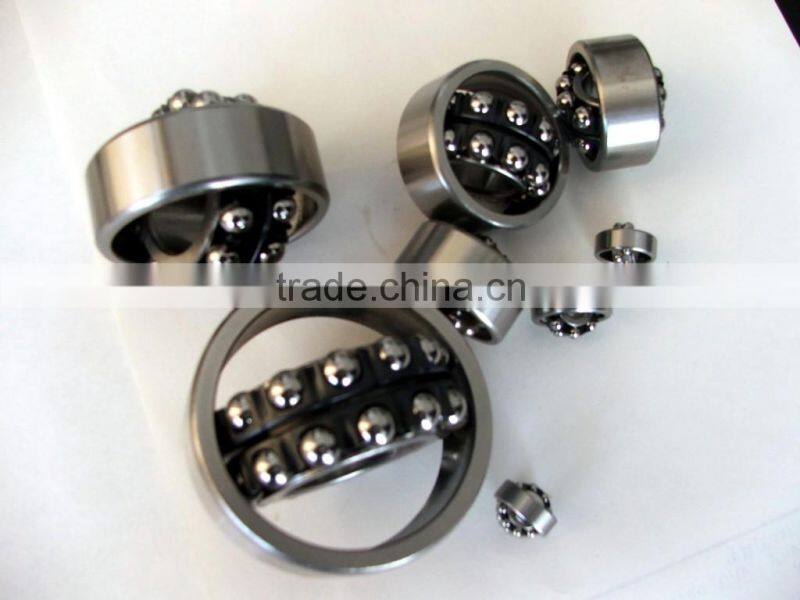

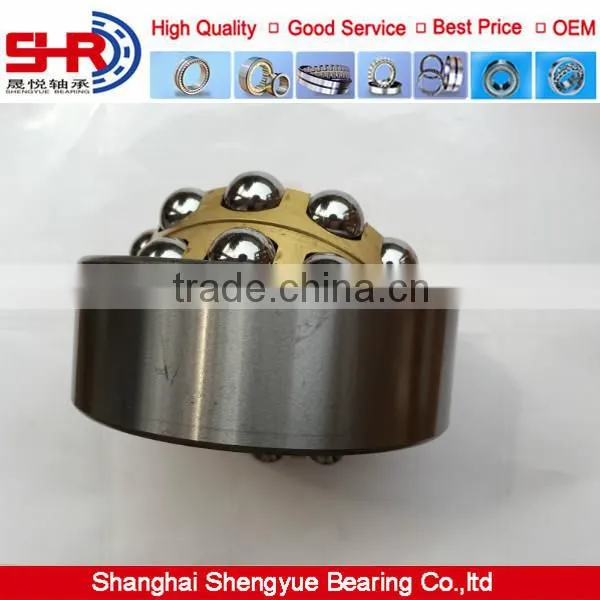

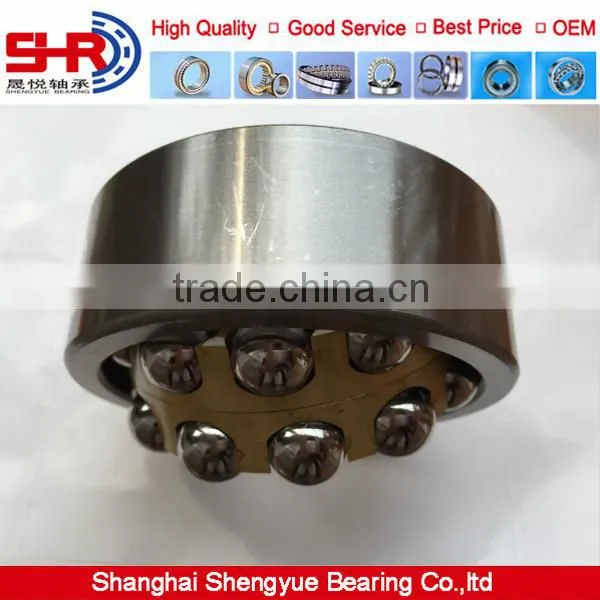

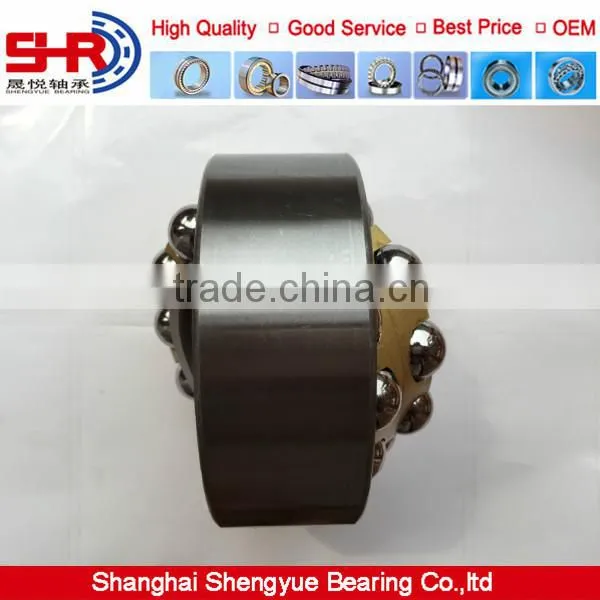

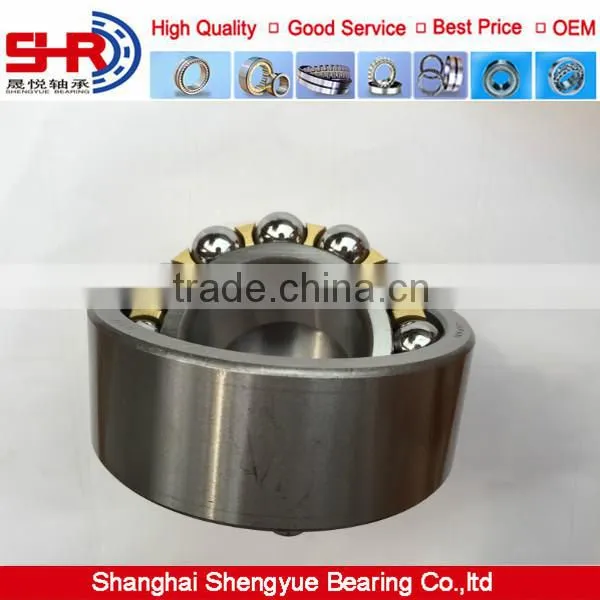

Factory price self-aligning ball bearing 2310 pictures:
Other Model Numbers for Self-aligning Ball Bearing:
| Basic Bearing No. | Main Dimension | Load rating / KN | maximum speed | Weight approximate kg |
|||||
| cylindrical bore | d mm |
D mm |
B mm |
r min mm |
Dynamic C |
Static C0 |
Grease r/min |
Oil r/min |
|
| 2302 | 15 | 42 | 17 | 1 | 12.3 | 2.91 | 14000 | 18000 | 0.108 |
| 2303 | 17 | 47 | 19 | 1 | 14.7 | 3.55 | 13000 | 16000 | 0.15 |
| 2304 | 20 | 52 | 21 | 1.1 | 18.5 | 4.7 | 11000 | 14000 | 0.193 |
| 2305 | 25 | 62 | 24 | 1.1 | 24.9 | 6.6 | 9500 | 12000 | 0.319 |
| 2306 | 30 | 72 | 27 | 1.1 | 32 | 8.75 | 8000 | 10000 | 0.48 |
| 2307 | 35 | 80 | 31 | 1.5 | 40 | 11.3 | 7100 | 9000 | 0.642 |
| 2308 | 40 | 90 | 33 | 1.5 | 45.5 | 13.5 | 6300 | 8000 | 0.889 |
| 2309 | 45 | 100 | 36 | 1.5 | 55 | 16.7 | 5600 | 7100 | 1.2 |
| 2310 | 50 | 110 | 40 | 2 | 65 | 20.2 | 5000 | 6300 | 1.58 |
| 2311 | 55 | 120 | 43 | 2 | 76.5 | 24 | 4800 | 6000 | 2.03 |
| 2312 | 60 | 130 | 46 | 2.1 | 88.5 | 28.3 | 4300 | 5300 | 2.57 |
| 2313 | 65 | 140 | 48 | 2.1 | 97 | 32.5 | 3800 | 4800 | 3.2 |
| 2314 | 70 | 150 | 51 | 2.1 | 111 | 37.5 | 3600 | 4500 | 3.9 |
| 2315 | 75 | 160 | 55 | 2.1 | 125 | 43 | 3400 | 4300 | 4.77 |
| 2316 | 80 | 170 | 58 | 2.1 | 130 | 45 | 3200 | 4000 | 5.54 |
| 2317 | 85 | 180 | 60 | 3 | 142 | 51.5 | 3000 | 3800 | 6.56 |
| 2318 | 90 | 190 | 64 | 3 | 154 | 57.5 | 2800 | 3600 | 7.76 |
| 2319 | 95 | 200 | 67 | 3 | 161 | 64.5 | 2800 | 3400 | 9.01 |
| 2320 | 100 | 215 | 73 | 3 | 187 | 79 | 2400 | 3200 | 11.6 |
Bearing self-aligning ball bearings part of sizes as follows:
| series |
bore diameter(mm) cylindrical bore |
bore diameter(mm) tapered bore |
varianstructure |
| 1200,1200K | 10-120 | 10-120 | 2RS,+H200 |
| 1300,1300K | 10-110 | 10-110 | 2RS,+H300 |
| 2200,2200K | 10-110 | 10-110 | 2RS,+H300 |
| 2300,2300K | 10-110 | 10-110 | 2RS,+H2300 |
Key Specifications/Special Features:
o Self-aligning two rows of balls and common concave sphere raceway in outer ring
o Consequently self-aligning and insensitive to angular misalignments of shaft relative to housing
o Lowest friction of all rolling bearings
o Enables to run cooler even at high speeds
Specifications:
o Materials: Gcr15/Gcr11
o Precision rating: ABEC-1, ABEC-3 and ABEC-5
o Enclosure: open
o Precision rating: P0, P6 and P5
o Series: 1200, 1300, 2200 and 2300
o Dimension: 80x 170 x 58mm
· Suitable for applications where considerable shaft deflections or misalignment
· Customized packing ways are accepted
· Packing:
Primary Competitive Advantages:
· Brand-name Parts
· Country of Origin
· Green Product
· Packaging
· Price
· Product Features
· Product Performance
· Prompt Delivery
· Quality Approvals
· Reputation
· Service
· Small Orders Accepted
Main Export Markets:
· Eastern Europe
· North America
· Mid East/Africa
· Central/South America
· Asia
· Western Europe
· Australasia
Bearings Package:
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case
Bearings Lead time:
We will prepare your order as soon as possible.
1)2-3 days for ex-stock
2)6-10 days for others
Shipping & Delivery time:
1)Less than 45 Kg:DHL TNT Fedex UPS express will be better,( 4-7 days delivered to your address);
2) Between 45 to 200 Kg:Air transiportation will be better,( 5-14 days delivered to your airport);
3) Over 200 Kg:Sea transportation will be better.( Cheapest,18-45 days to your port ).
Payment terms:
We accept T/T, Western Union,Paypal,Visa.
1) T/T or WU (we undertake the bank fees):
A:100% payment.
B:30% deposit ,70% before transportation.
2)PayPal (we undertake the transaction fees)
A:100% payment.
B:30% deposit ,70% before transportation
3) L/C at sight.
Note :We will take some pictures of your bearings before transportation.
| Price terms | FOB,CNF,CFR,CIF,Door to door |
| Shipping Airport | Shanghai Pudong International Airport |
| Shipping Port | Shanghai,Guangzhou |
Shanghai Shengyue Bearing Co., Ltd. is a professional bearing manufacturer and dealer in China. We have been engaged in bearing industry for 15 years and worked on bearing import and export for more than 8 years. We attend international bearing fairs, put in many B2B websites and achieve many customers all over the world, building up a good reputation from our customers.
We are here:
Our company Information:
| Company name | Shanghai Shengyue Bearing Co.,Ltd |
| Business type | Bearings Supplier & Bearing manufacturer |
| Location | Shanghai City,China |
| Experience | 7 years |
| Supply | Famous brands & Chinese brands bearings |
| OEM service | Providing |
| Our advantages |
1.Most Competitive Price. 2.Help you to choose the best freight. 3.Provide all document for your Customs Clearance. 4.We will undertake the responsibility if there is any problems.
Trustworthiness is the basis of great bussiness.And we have the powerful ability to support your business! |

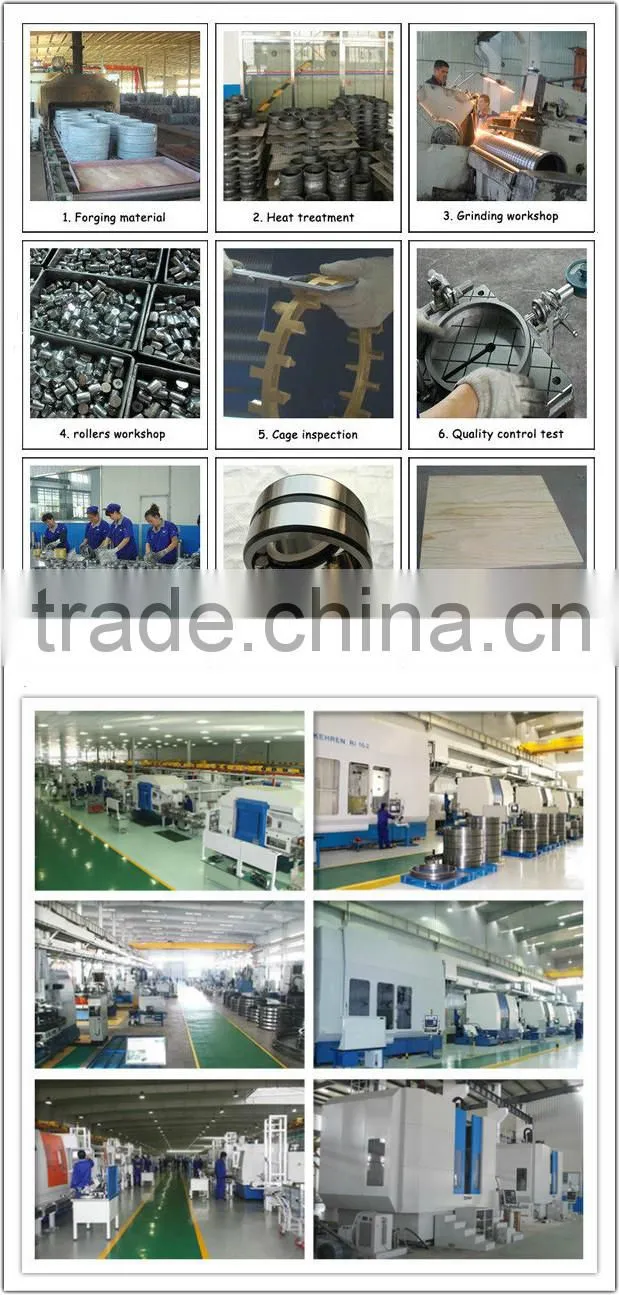

Our Factory Pictures:
If you are interested in our products,please feel free to send an inquiry or chat with us online.
We will warmly reply you immediately!---SHR Bearing
