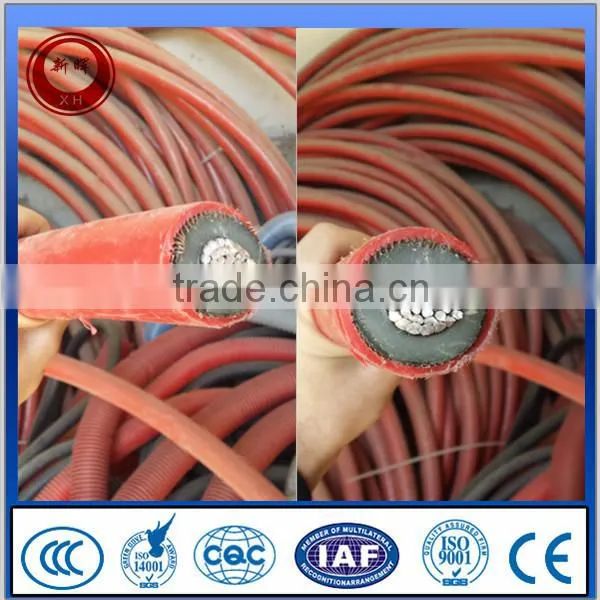

18/30(36)KV XLPE Insulated PVC Sheathed Metallic Screen Armoured Medium Voltage Cable Supplier
This product is suitable for AC 50Hz rated voltage18/30(36)KV and below electric line.
Typical mechanical and physical properties and electric properties of cable accord with GB/T12806-2008 and IEC60502.
Operating characteristic
1.laying temperature:≥0℃
2. The continuous permissible operating temperature of conductors：PVC insulated ≤ 70 ℃ ，XLPE insulated ≤90℃。
3.Max working temperature during short circuit:PVC insulated ≤160℃，XLPE insulated ≤250℃.
4.Minimum radius during cable installation:
Item Single core Three cores
Unarmored Armour Unarmored Armour
Installation 20D 15D 15D 12D
Near terminal and connect box 15D 12D 12D 10D
Cable Types
1) Copper Conductor Cables.
2) Aluminum Conductor Cables
3) Armoured/Non Armoured Cables
4) Voltage range U0/U(Um) as:
a.3.6/6(7.2) KV
b.6/10(12) KV
c.8.7/15(17.5) KV
d.12/20(24) KV
e.18/30(36) KV
Single Core Cable up to and include 800mm2.

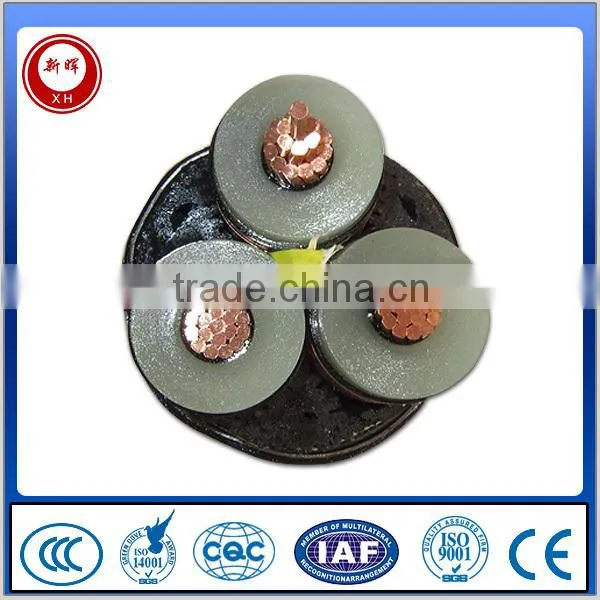

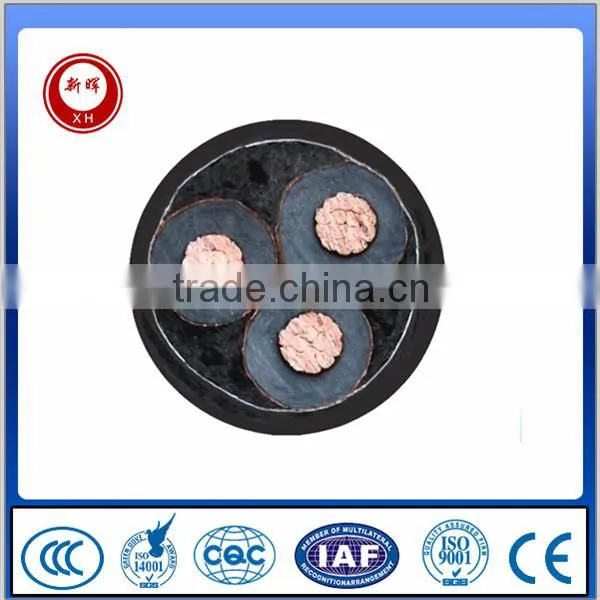

3-Core Cables up to and Including 400mm2.

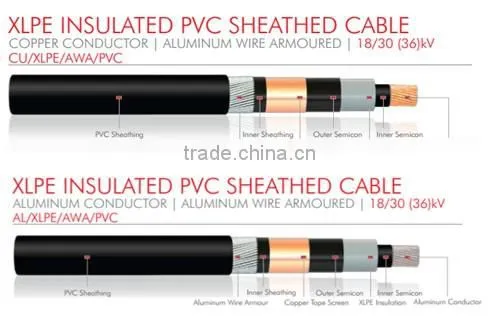

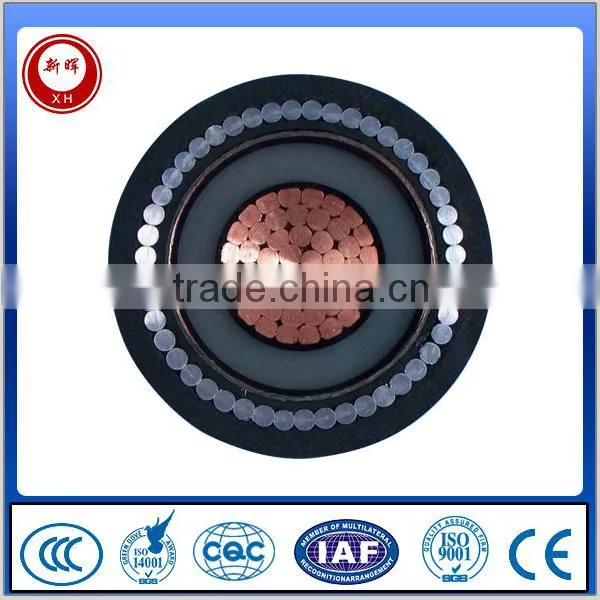

1 Core/ Copper Conductor/ XLPE Insulated/ CopperTape Screen/ Aluminum Wire Armour/ MV Cable

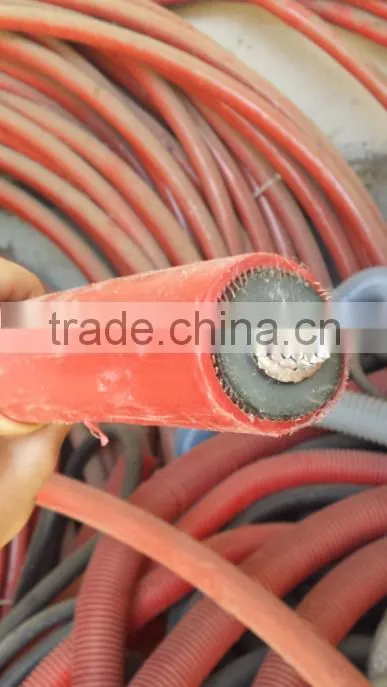

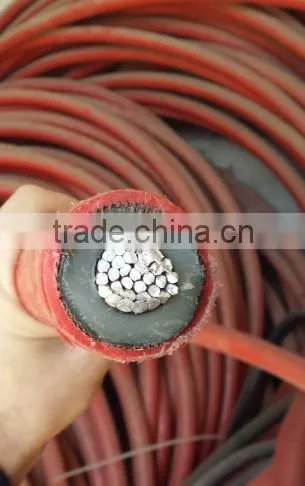

1Core /Aluminum Conductor /
XLPE Insulated /Copper Wire Screen/MV Cable

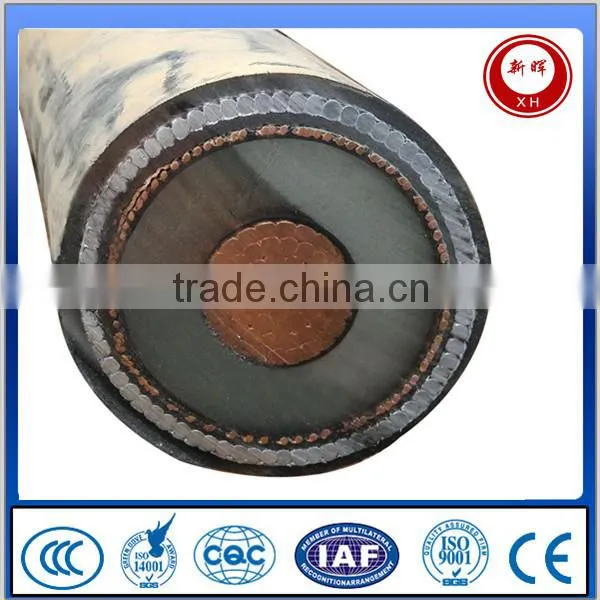

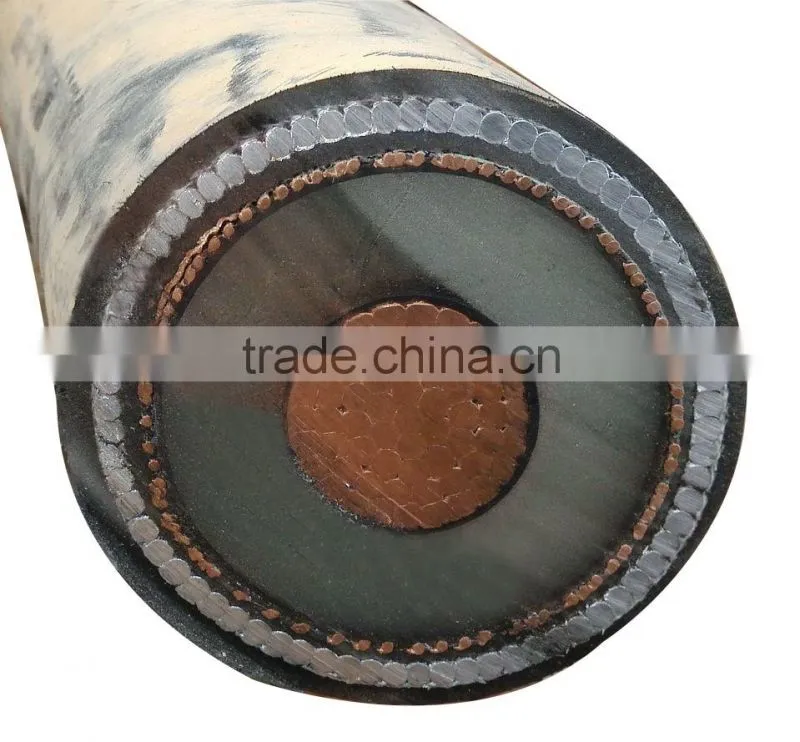

1 Core /Copper Conductor / XLPE Insulated /Copper Wire Screen/ Steel Wire Armour /MV Cable

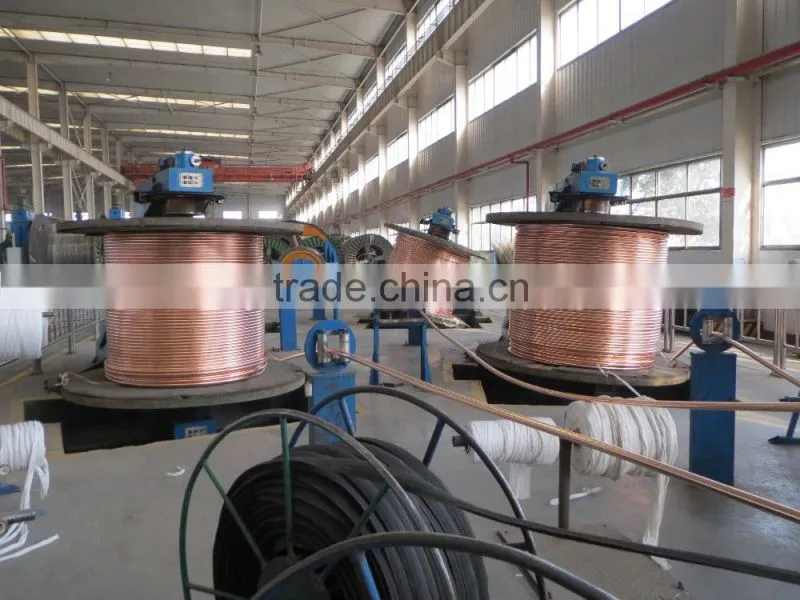

Shandong Yanggu Cable Group founded in 1980. 2012 found joint venture company with French Nexans,rename as Nexans Yanggu New Rihui Cables Co., Ltd.Nexans (Yanggu) New Rihui Cables Co., Ltd. is a joint-venture of Nexans Group. Shandong Xinhui Yanggu Cable CO.,Ltd. is Jinan Branch of Yanggu Cable Group. Shandong Xinhui Yanggu Cable Co.,Ltd. Is located in Shandong Province, China.
We specialize in Power Cables (LV Cable ,MV Cable ,HV Cable), Electrical Wires(PVC Insulated Wires), Overhead Cables(ABC Cable, ACSR Cable, AAC Cable, AAAC Cable), Instruments Cables, Mine Cables, Marine Cables, Fiber Optic Cables, Photoelectric Composite Cables, Communication Cables, Rubber Cables, Special Cables and more than 20 series with 5000 kinds of specifications of products. Our products can conform to dozens of standards such as GB, JB, IEC, BS, DIN, ASTM, UL, JIS, NF, AS/NZS and so on.Also we can produce based on customers' requirements and specifications.
We have established business relationship with more than 20 countries, such as South Korea, Malaysia,Thailand, Vietnam, Sri Lanka, Singapore, Iran, Kuwait, Pakistan, Nigeria, Ghana, Spain, Cyprus, Kuwait, Guatemala, Jordan, Chile, Peru and many other countries ,and obtained the clients trust and compliment.
By adhering to the concept of Quality First, Customer Supreme and Service Reliable, Shandong Xinhui Yanggu Cable Co.,Ltd. will grow bigger and stronger with you.
All of our staff sincerely welcome your coming and look forward to your cooperation.

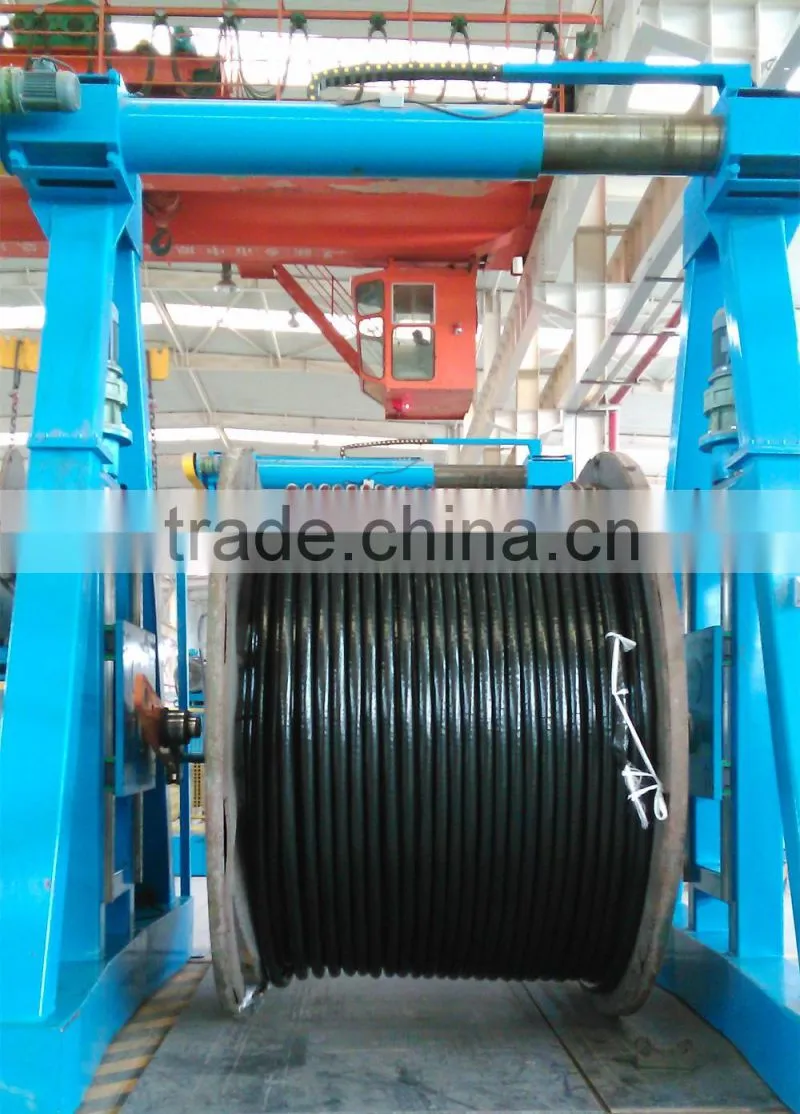

Packing
Wooden Drum
Steel Drum
Steel Wooden Drum
Accpet custom-made requiements
Delivery
1.What's your main performance?
1).3 billion RMB sales in 2015 .
2). 1032 experts .
3.) Complete testing equipments from French and Finland Nokia
4).260 main production equipments
5). Accept Customised Cable
2.When can I get the quotation?
Within 24 hours after getting the inquiry,if you are very urgent to get the price,pls call us to give complete specifications about the wire or cable. price will be calculated soon.
3.How long about the delivery?
Usually wihin 21working days after payment, mainly according to the quantity.
4.What's your mission?
Provide safe ,environmentally-friendly wire and cable to our customers in delivering electricity and data.
