armoured marine cable
all kinds of power cablespecifications
1.3+2 core
2. Low-Voltage
3. 0.6/1KV
4. 3x70+2x35mm2
all kinds of power cable main applications
1.transmission and distribution lines of rated voltage up to and including 0.6/1kV
2.accordant with GB/T12706-2008[Power cables extruded insulation and their accessories of rated voltages 1kV(Um=1.2kV)up to 35kV(Um=40.5kV)]and IEC60502 [Extruded insulation power cables and appendices for rated voltages 1kV(Um=1.2kV)up to 30kV(Um=36kV)].
all kinds of power cable Properties
1 Max. continuous operating temperature of conductor is 70℃.
2 Short (the longest duration of no more than 5s) maximum operating temperature of cable conductor is:
cross-section ≤ 300 mm2, 160 ℃; cross section> 300 mm2, 140 ℃.
3 The installation temperature should not over 0℃,if the ambient temperature is lower than 0℃,the
cable should be preheated ,the bending radius of cable should not less than 10-20 times .
Item |
Name |
Laying occasion |
|
Copper core |
Aluminum core |
||
YJV |
YJLV |
XLPE insulated PVC sheathed power cable |
Laying in indoors,tunnel and pipe |
YJY |
YJLY |
XLPE insulated PE sheathed power cable |
|
YJV22 |
YJLV22 |
XLPE insulated steel tape armoured PVC sheathed power cable |
buried-pipe laying, not suitable for pipe |
YJV23 |
YJLV23 |
XLPE insulated steel tape armoured PE sheathed power cable |
|
YJV32 |
YJLV32 |
XLPE insulated light steel wire armoured PVC sheathed power cable |
Laying in the riverbed of rivers or shallow sea,as the connection line of across the river or oil,gas plate, also can be used for the high head area in land |
YJV33 |
YJLV33 |
XLPE insulated light steel wire armoured PVC sheathed power cable |
|
YJV42 |
YJLV42 |
XLPE insulated heavy steel wire armoured PVC sheathed power cable |
|
YJV43 |
YJLV43 |
XLPE insulated heavy steel wire armoured PE sheathed power cable |
|

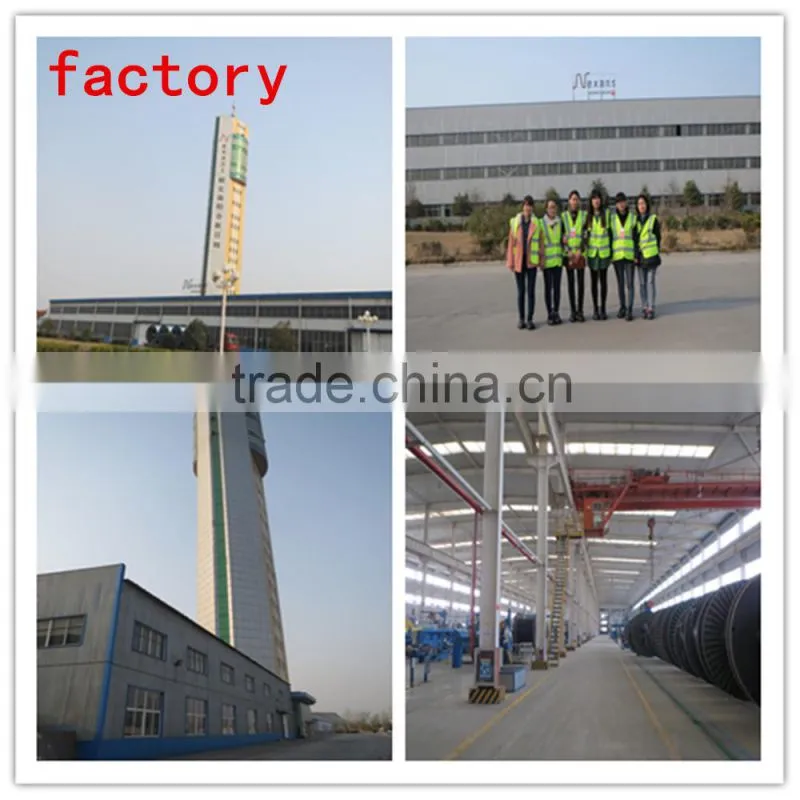

all kinds of power cable factory pictures

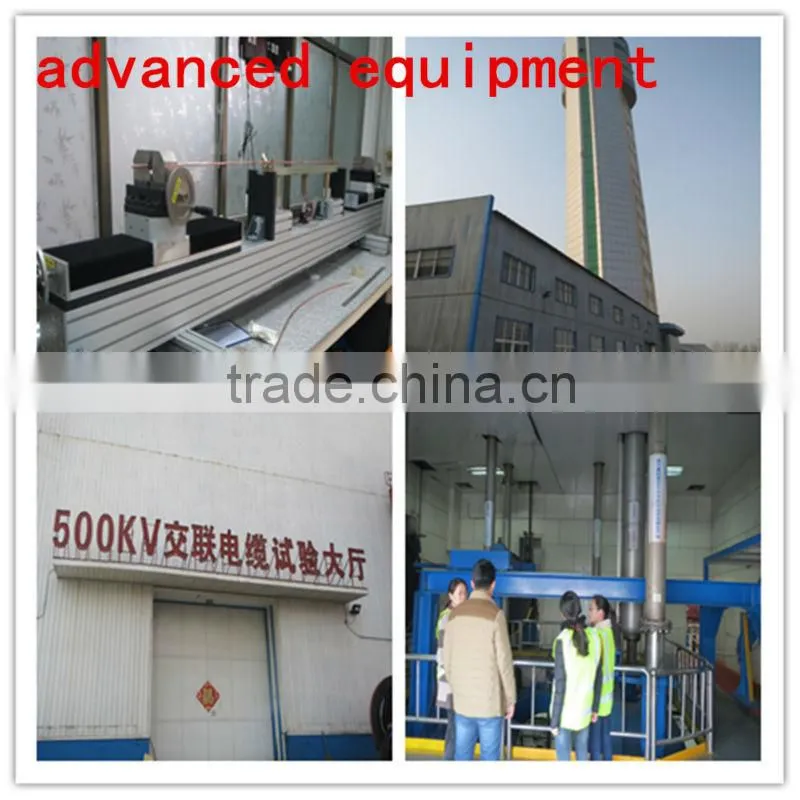

all kinds of power cable equipment in our factory

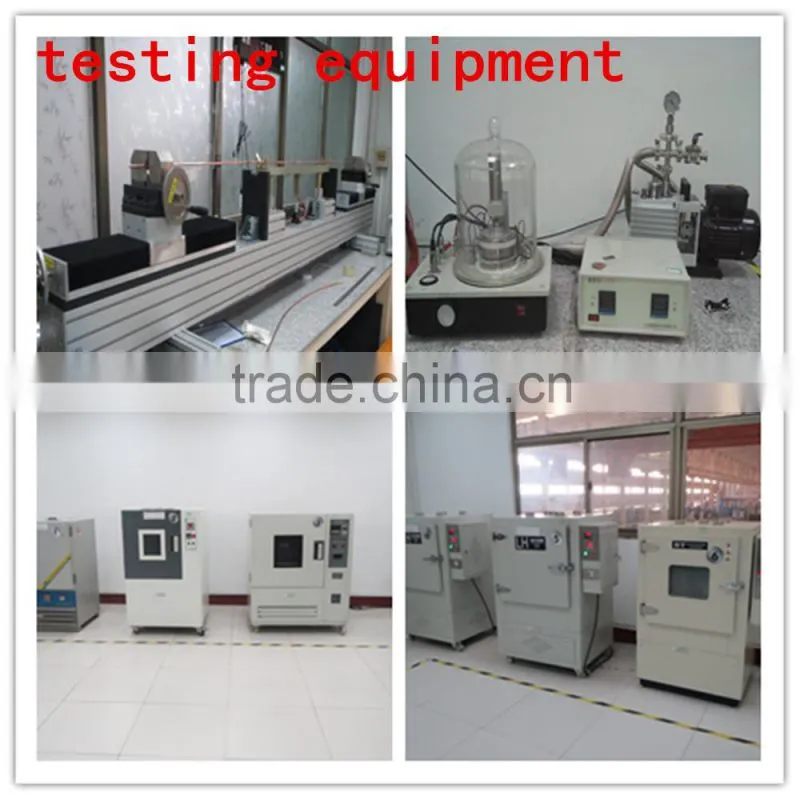

all kinds of power cable laboratory equipment
all kinds of power cable certificate
Kindly contact us if any questions,.Pls contact us directly!
