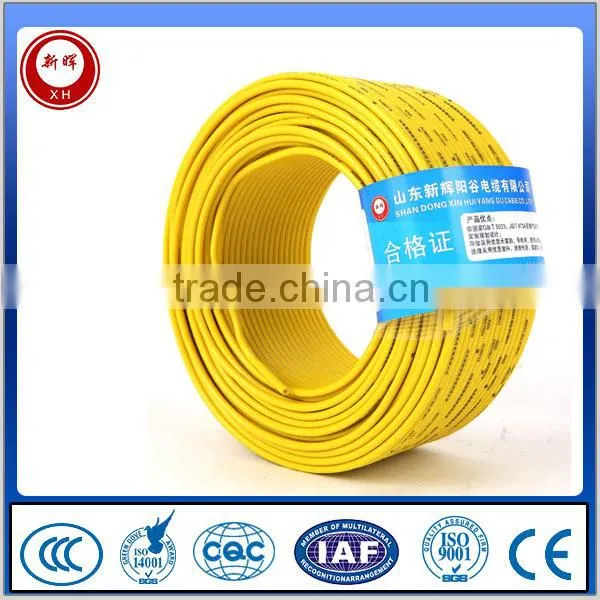

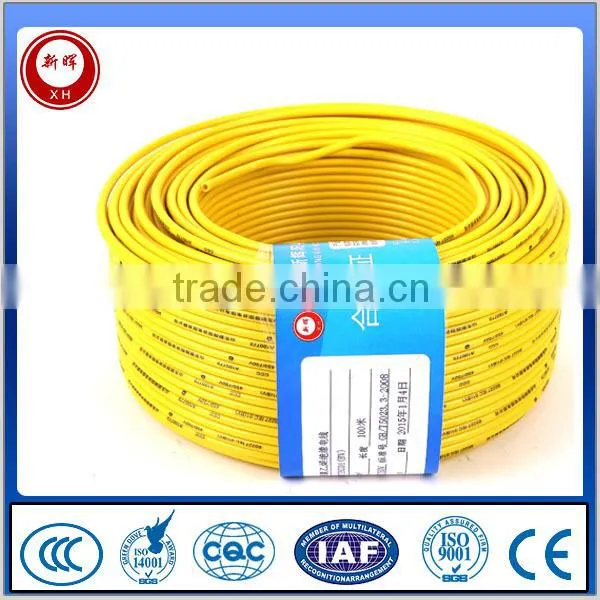

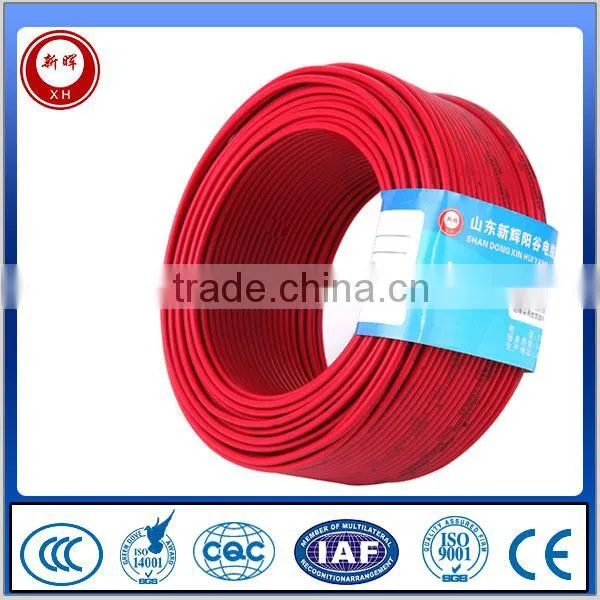

Flame Retardant Fire Resistant Cable 4mm Copper Wire
- 100000 Meter / Meters per Month
- Any port in china
- T/T L/C D/P D/A
-
Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
-
Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
-
XTW CXWT 300V UL62 PVC FIexible Cord
-
Enameled Copper wire
-
3x185mm2 Overhead Insulated Cable
-
Service Drop Cable XLPE/PVC/PE Insulated
Product Details
| Place of Origin: | Shandong, China | Brand Name: | Xinhui | Model Number: | RVV |
| Type: | Insulated | Application: | Underground | Conductor Material: | Copper |
| Conductor Type: | Solid | Insulation Material: | PVC |
Product Description
Nexans(Yanggu)New Rihui Cable Co.,Ltd,is a joint-venture of Nexans Group.
It has become a power cabl manufacturing of Nexans base in China since its creation on Aug.31st 2012,It is a qualified supplier to state grid of China corporation of 110kV and 220Kv:And a qualified supplier to china southern Grid;a major supplier to Shandong and North china for MV/lV cables and qualified supplier in oil and Gas and power generation markets.
Nexans(Yanggu)New Rihui is aiming to be a preferred power cables supplier for china,Asia and other worldwide export markets by continuous investment and leading techonology equipment
copper wire prices specifications
CROSS SECTION AREA:
0.75, 1, 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm² etc.
wiring electrical main characteristics
1). Single or multiple cores PVC insulated
2). AC 450/750V
3). Model: 0.75-240mm²
4). Rated temperature: 65~75°C
5). CCC IEC ISO (IEC 60227-1:2007)
6). Design and manufacture according to the requirements of customers.
BV/RV Specification
Code Designation by IEC | Code Designation by GB | Voltage | Products Name | Constructions | Maximum conductor temperature |
60227 IEC 01 | BV | 450/750 V | Single-core non-sheathed cable with rigid conductor for general purposes | Cl.1 Solid Copper Conductor or Cl.2 Stranded Copper Conductor, PVC/C Insulation | 70 °C. |
60227 IEC 02 | RV | 450/750 V | Single-core non-sheathed cable with flexible conductor for general purposes | Cl.5 Flexible Stranded Copper Conductor, PVC/C Insulation | 70 °C. |
60227 IEC 05 | BV | 300/500 V | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70 °C | Cl.1 Solid Copper Conductor, PVC/C Insulation | 70 °C. |
60227 IEC 06 | RV | 300/500 V | Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor t emperature of 90 °C | Cl.5 Flexible Stranded Copper Conductor, PVC/C Insulation | 90 °C. |
60227 IEC 07 | BV-90 | 300/500 V | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90 °C | Cl.1 Solid Copper Conductor, PVC/E Insulation | 90 °C. |
60227 IEC 08 | RV-90 | 300/500 V | Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90 °C | Cl.5 Flexible Stranded Copper Conductor, PVC/E Insulation | 90 °C. |
60227 IEC 10 | BVV | 300/500 V | Light PVC Sheathed Cable | Cl.1 Solid Copper Conductor or Cl.2 Stranded Copper Conductor, PVC/C Insulation, PVC/ST5 Sheathed | 70 °C. |
60227 IEC 52 | RVV | 300/300 V | Light PVC Sheathed Cord | Cl.5 Flexible Stranded Copper Conductor, PVC/D Insulation, PVC/ST5 Sheathed | 70 °C. |
60227 IEC 53 | RVV | 300/500 V | Ordinary PVC Sheathed Cord | Cl.5 Flexible Stranded Copper Conductor, PVC/D Insulation, PVC/ST5 Sheathed | 70 °C. |
RVVP | 300/300V | Copper cable with PCV insulation and sheathed for copper braid screened | CI.5 Flexible Stranded Copper Conductor, PVC Insulation, Copper braid screened, PVC sheathed | 70 ° |
This product adapt to AC rated voltage (Uo/U)450/750 and below power, household appliances, instruments, small power tools, power lighting, etc.
Operating characteristic
1.laying temperature ≥0℃
2.2.cable woring temperature:the maximum working temperature of 60227IEC07(BV-90),60227IEC08(RV-90) is 90℃,other is 70℃.
3.bending radius:D<25mm,should not less than 4D;D≥25mm,should not less than 6D
