Solid Stranded Copper Wire Housing Electrical Cable

Solid Stranded Copper Wire Housing Electrical Cable photo-1
Solid Stranded Copper Wire Housing Electrical Cable photo-2
Solid Stranded Copper Wire Housing Electrical Cable photo-3

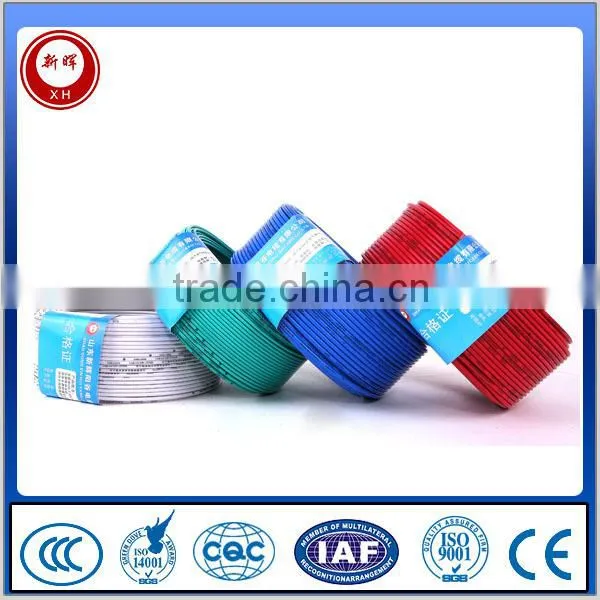

Solid Stranded Copper Wire Housing Electrical Cable photo-4
Solid Stranded Copper Wire Housing Electrical Cable photo-5

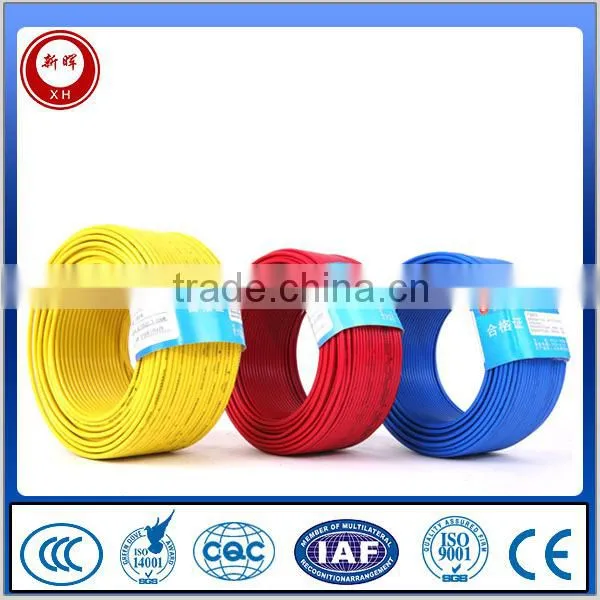

Solid Stranded Copper Wire Housing Electrical Cable photo-6
US$ 111.00 - 111.00 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Xinhui
Model Number:
RVV
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in china
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Xinhui
Model Number RVV
Type Insulated
Application Underground
Conductor Material Copper
Conductor Type Solid
Insulation Material PVC
Company Information
solid stranded copper wire housing electrical cable

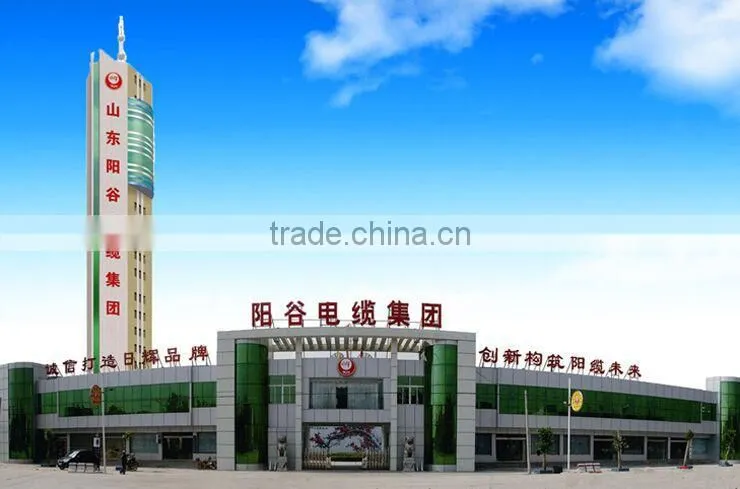

Nexans(Yanggu)New Rihui Cable Co.,Ltd,is a joint-venture of Nexans Group.

It has become a power cabl manufacturing of Nexans base in China since its creation on Aug.31st 2012,It is a qualified supplier to state grid of China corporation of 110kV and 220Kv:And a qualified supplier to china southern Grid;a major supplier to Shandong and North china for MV/lV cables and qualified supplier in oil and Gas and power generation markets.

Nexans(Yanggu)New Rihui is aiming to be a preferred power cables supplier for china,Asia and other worldwide export markets by continuous investment and leading techonology equipment



solid stranded copper wire housing electrical cable

production BV

power cable 5x25mm

CROSS SECTION AREA:

0.75, 1, 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm² etc.

wiring electrical  main characteristics

1). Single or multiple cores PVC insulated

2). AC 450/750V

3). Model: 0.75-240mm²

4). Rated temperature: 65~75°C

5).  CCC IEC ISO (IEC 60227-1:2007)

6). Design and manufacture according to the requirements of customers.

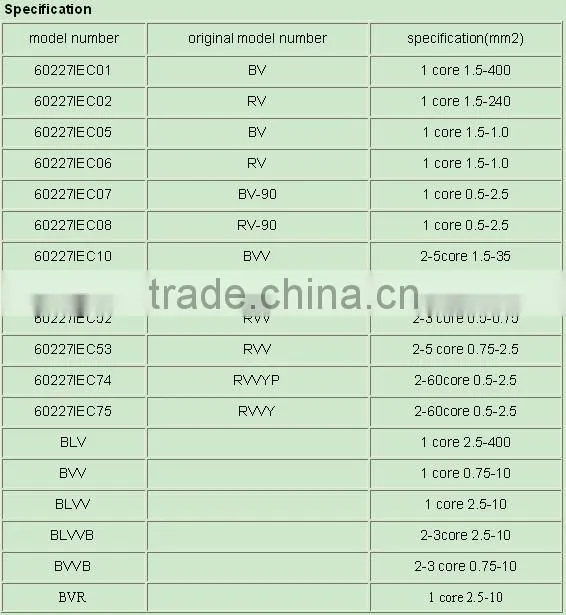

BV/RV Specification

Code

Designation

 by IEC

Code

Designation

by GB

Voltage

Products

 Name

Constructions

Maximum

conductor

temperature

60227 IEC 01

BV

450/750 V

Single-core non-sheathed

 cable with rigid conductor

 for general purposes

Cl.1 Solid Copper

Conductor or Cl.2 Stranded

Copper Conductor,

PVC/C Insulation

70 °C.

60227 IEC 02

RV

450/750 V

Single-core non-sheathed

cable with flexible conductor

 for general purposes

Cl.5 Flexible Stranded

Copper Conductor,

PVC/C Insulation

70 °C.

60227 IEC 05

BV

300/500 V

Single-core non-sheathed

cable with solid conductor for

 internal wiring for a conductor

 temperature of 70 °C

Cl.1 Solid Copper

Conductor, PVC/C

Insulation

70 °C.

60227 IEC 06

RV

300/500 V

Single-core non-sheathed

cable with flexible conductor

for internal wiring for a conductor t

emperature of 90 °C

Cl.5 Flexible Stranded

Copper Conductor,

PVC/C Insulation

90 °C.

60227 IEC 07

BV-90

300/500 V

Single-core non-sheathed

cable with solid conductor

for internal wiring for a conductor

 temperature of 90 °C

Cl.1 Solid Copper

 Conductor, PVC/E

Insulation

90 °C.

60227 IEC 08

RV-90

300/500 V

Single-core non-sheathed

cable with flexible conductor

 for internal wiring for a conductor

 temperature of 90 °C

Cl.5 Flexible Stranded

Copper Conductor,

PVC/E Insulation

90 °C.

60227 IEC 10

BVV

300/500 V

Light PVC Sheathed Cable

Cl.1 Solid Copper

Conductor or Cl.2

Stranded Copper

Conductor, PVC/C

 Insulation, PVC/ST5 Sheathed

70 °C.

60227 IEC 52

RVV

300/300 V

Light PVC Sheathed Cord

Cl.5 Flexible Stranded

 Copper Conductor, PVC/D

 Insulation, PVC/ST5 Sheathed

70 °C.

60227 IEC 53

RVV

300/500 V

Ordinary PVC Sheathed Cord

Cl.5 Flexible Stranded

 Copper Conductor,

PVC/D Insulation,

PVC/ST5 Sheathed

70 °C.



RVVP

300/300V

Copper cable with PCV

insulation and sheathed

for copper braid screened

CI.5 Flexible Stranded Copper Conductor, PVC Insulation, Copper braid screened, PVC sheathed

70 °

solid stranded copper wire housing electrical cable

Related Products

This product adapt to AC rated voltage (Uo/U)450/750 and below power, household appliances, instruments, small power tools, power lighting, etc.

Operating characteristic

1.laying temperature ≥0℃

2.2.cable woring temperature:the maximum working temperature of 60227IEC07(BV-90),60227IEC08(RV-90) is 90℃,other is 70℃.

3.bending radius:D<25mm,should not less than 4D;D≥25mm,should not less than 6D



solid stranded copper wire housing electrical cable
