control power cable pvc insulated low voltage electrical cable
Product Details:
1.Laying temperature ≥0℃
2.Conductor's working temperature ≤70℃(PVC), or ≤90℃ (PE)
3.Min bending radius
a.without armoured layer, ≥ 6D (D is the cable's actual outer diameter)
b.with armoured layer or copper tape, ≥ 12D
ft cable with screen layer,≥ 6D
4.The finished products can be standed with pressure proof test of AC 50Hz, 3000V, 5min, and isn't breakdown.
5.Standard:GB/T3956-2008
6.Nominal sectional area(mm2):0.75, 1.0, 1.5, 2.5,4, 6,10
7.No. of cores:2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52,61
8.Application: Electrical appliance and instruments' connecting lines
9.Usage occasion:laying in the indoor, cable duct, pipe etc fixed occasion where can stand large external mechanical force and with screen required
Advantages:
1.99.99% purity of copper
2.the lowest of eccentricity
3.the advanced production line from Finland
4.the test equipments introduced from France
5.the professional and experienced R&D and Q&C engineer
Product Range:
| Item | Rated voltage(V) | Nominal sectional area of conductor (mm2) | ||||||||
| PVC item | PE item | 0.5 | 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 | |
| Core quantity | ||||||||||
| KVV | KYJV | - | 2-61 | 2-14 | 2-10 | |||||
| KVVP | KYJVP | |||||||||
| KVVP2 | KYJVP2 | - | 4-61 | 4-14 | 4-10 | |||||
| KVV22 | KYJV22 | - | 7-61 | 4-61 | 4-14 | 4-10 | ||||
| KVVP2-22 | KYJV32 | |||||||||
| KVV32 | KYJVR | - | 19-61 | 7-61 | 4-14 | 4-10 | ||||
| KVVR | KYJVRP | - | 4-61 | - | - | |||||
| KVVRP | KYJVP2-22 | 4-61 | 4-48 | |||||||

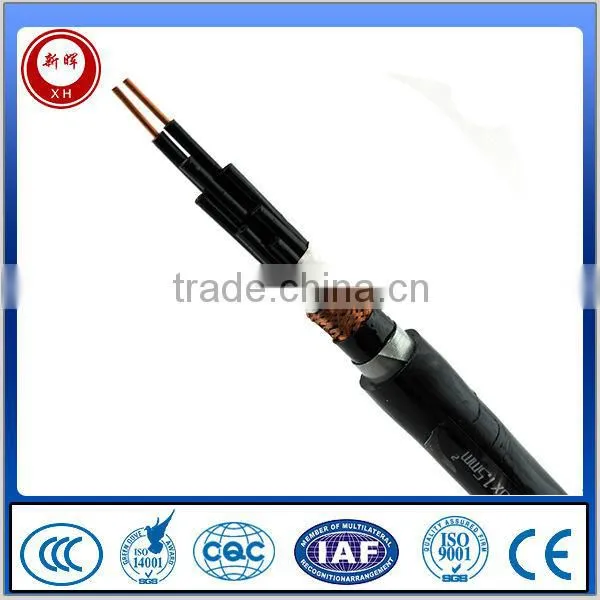

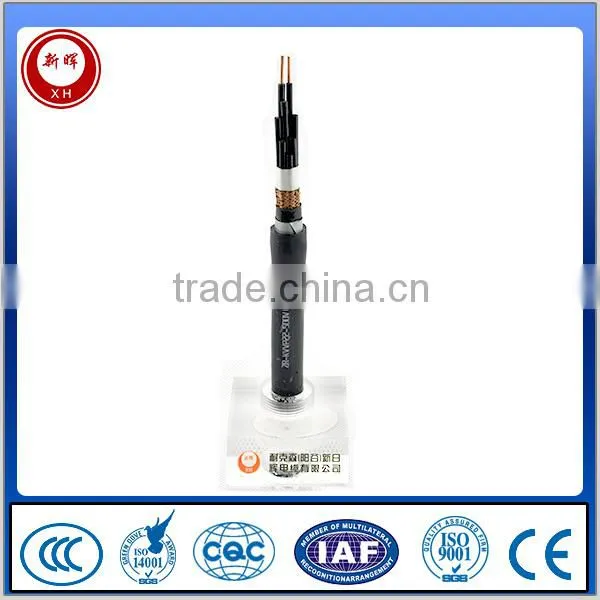

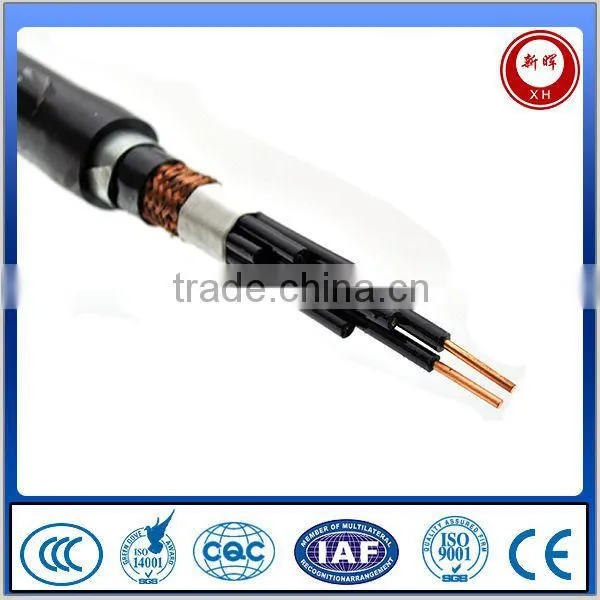

Cable Pictures:
productive process:
The productive process of low voltage power cable
Certificates:
If you are interested in our power cable, please feel free to contact me as below.
