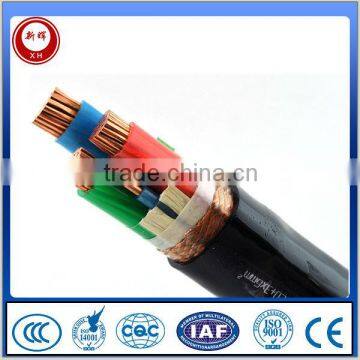

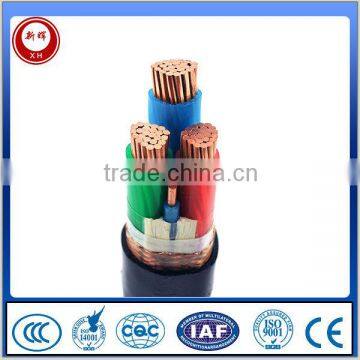

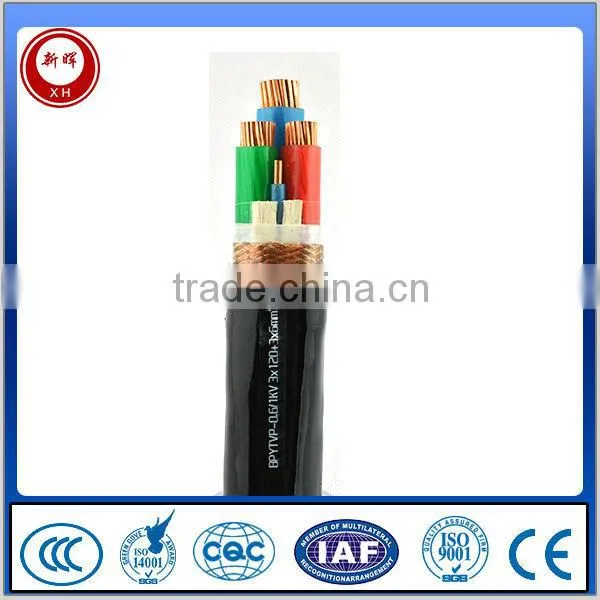

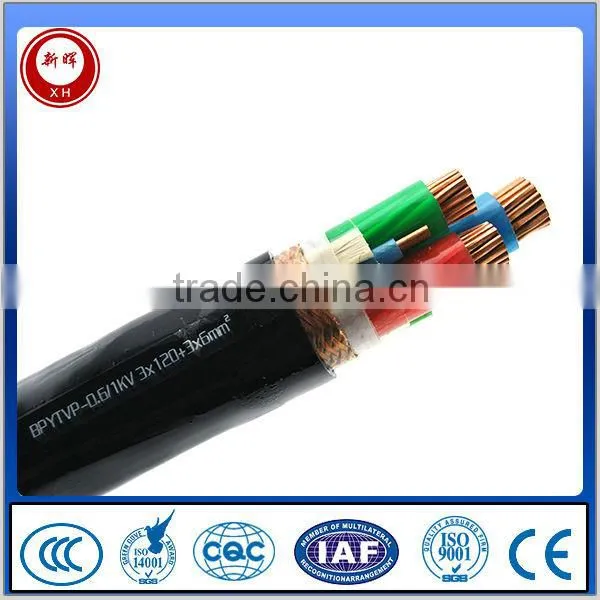

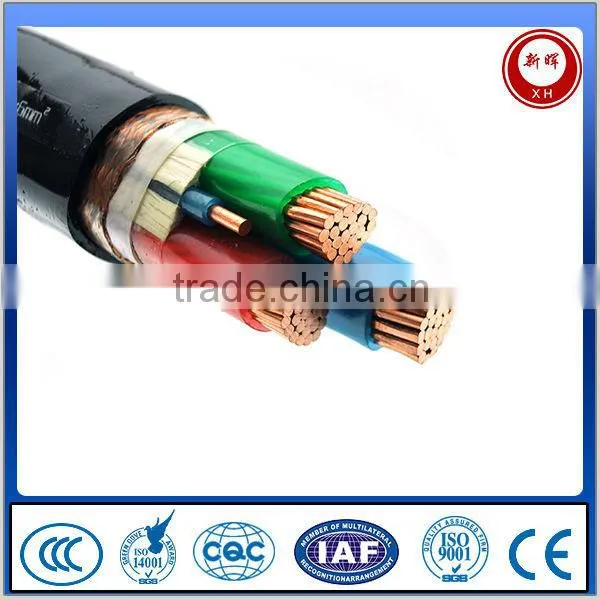

XLPE insulated PVC sheathed freqency converter cable
Used as power supply cable or electrical connections in frequency covering systems (with a rated voltage: 0.6/1kV and below), it has a strong capacity to endure voltage surge, pulse voltage while covering frequency and excellent shielding capacity. It can counteract the negative effects of electroimagnetic waves, reduces the frequency conversion noises and ensure the stability of the system functioning. It is widely used in metallurgy, electric power and petro-chemical industries.
Application:
Rated voltage: 0.6/1kV
Maximum working temperature: 90° C
Min environment temperature: Fixed laying no less than 60° C; PVC sheathed cable no less than -40° C
Allowed bending radius: No less than 15 times of the outer diameter of the cable.
| Type | Designation |
| BPYJVP | XLPE insulated PVC sheathed woven copper wire shield converter used main circuit cable |
| BPYJVP1 | XLPE insulated PVC sheathed copper wire wind shield converter used main circuit cable |
| BPYJVP1-2 | XLPE insulated PVC sheathed copper wire wind copper tape wrapped double shield converter used main circuit cable |
| BPYJVP3 | XLPE insulated PVC sheathed Al/plastic compound tape shield converter used main circuit cable |
| ZR-BPYJVP | XLPE insulated PVC sheathed woven copper wire shield flame-retardant converter used main circuit cable |
| ZR-BPYJVP1 | XLPE insulated PVC sheathed copper wire wind shield flame-retardant converter used main circuit cable |
| ZR-BPYJVP1-2 | XLPE insulated PVC sheathed copper wire wind copper tape wrapped double shield flame-retardant converter used main circuit cable |
| ZR-BPYJVP3 | XLPE insulated PVC sheathed Al/plastic compound tape shield flame-retardant converter used main circuit cable |
| WDZ-BPYJYP | XLPE insulated PO sheathed woven copper wire shield low-smoke halogen-free flame-retardant converter used main circuit cable |
| WDZ-BPYJYP2 | XLPE insulated PO sheathed copper tape shield low-smoke halogen-free flame-retardant converter used main circuit cable |
| WDZ-BPYJYP1 | XLPE insulated PO sheathed copper wire wind shield low-smoke halogen-free flame-retardant converter used main circuit cable |
| WDZ-BPYJYP1-2 | XLPE insulated PO sheathed copper wire wind copper tape wrapped double shield low-smoke halogen-free flame-retardant converter used main circuit cable |
| WDZ-BPYJYP3 | XLPE insulated PO sheathed Al/plastic compound tape shield low-smoke halogen-free flame-retardant converter used main circuit cable |

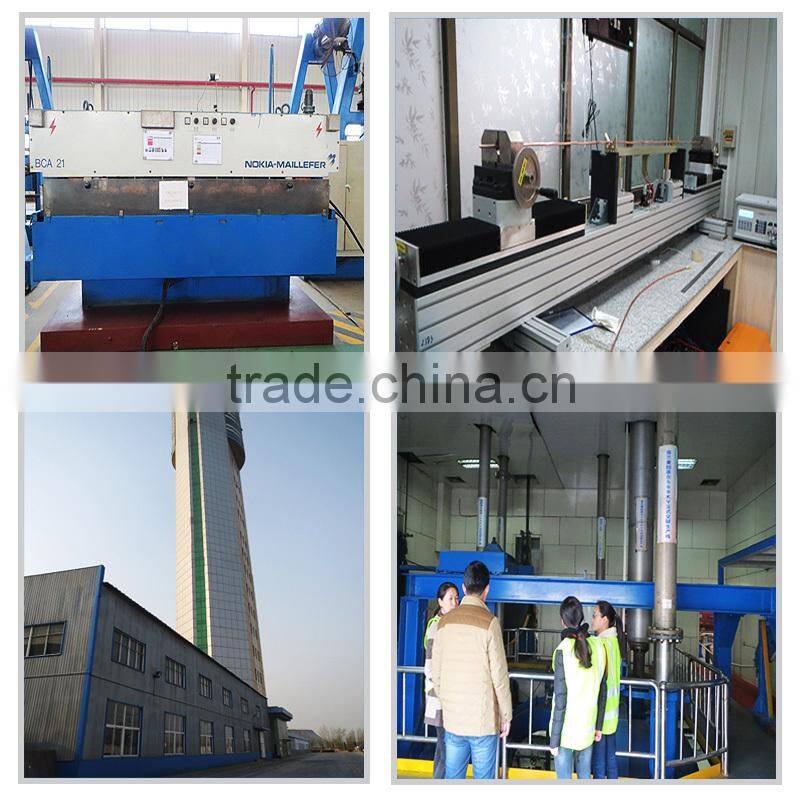

Productive process
1 You inquiry replied in hours
2 Your label design in the requirement ready in 2 days.
3 Conductors 100% inspected in accordance with Standard
4 Products remake or refund guarantee due to quality issue
5 Prompt shipment ,cargoes loading photos sent to you by e—mail
6 Fast ,responsible and sincere after—sale service.
Certification
