China PE Insulated PVC Sheathed Computer Power Cable Made in China
US$ 0.1 - 50
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Nexans
Model Number:
ZR-DJYPVPR
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Suppliers Electrical Control Cable With CE CCC ISOUS$ 0.1 - 50MOQ: 1000 Meters -
Ailibaba Express Braided Computer Cable Made in ChinaUS$ 0.1 - 50MOQ: 500 Meters
-
Steel Tape Shield Armored Control Cable Made in ChinaUS$ 0.1 - 50MOQ: 500 Meters
-
Multicore 4mm sq Flexible Cable Control CablesUS$ 0.1 - 50MOQ: 500 Meters
-
High Quality Power Connection Cable Computer Cable for SaleUS$ 0.1 - 50MOQ: 500 Meters
Place of Origin
Shandong, China
Brand Name
Nexans
Model Number
ZR-DJYPVPR
Application
Computer
Conductor Material
Copper
Jacket
PVC
Insulation Material
PE

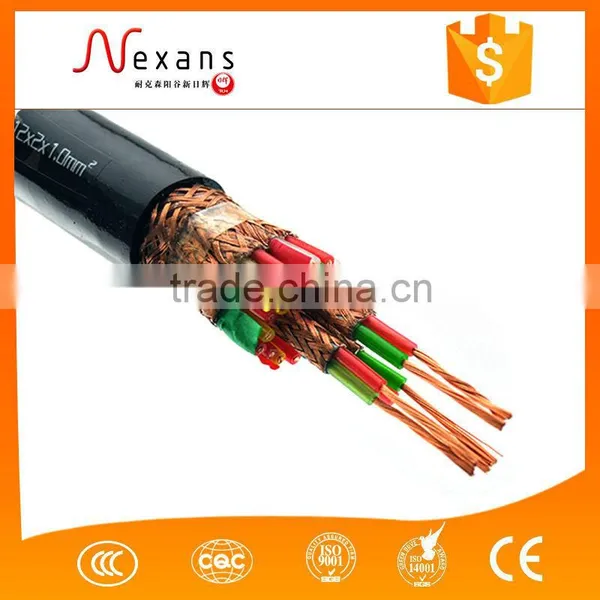

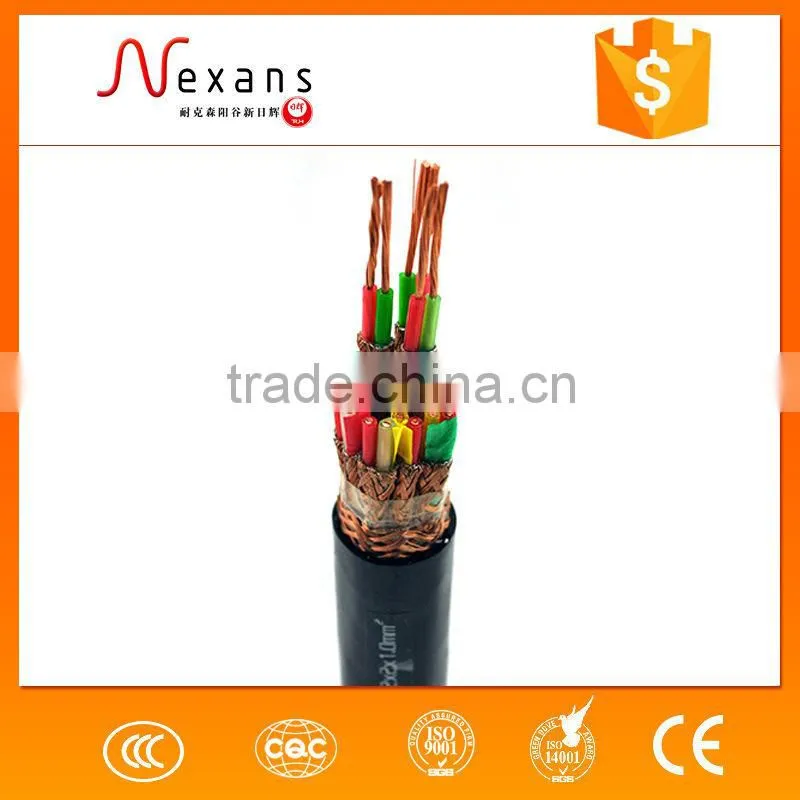

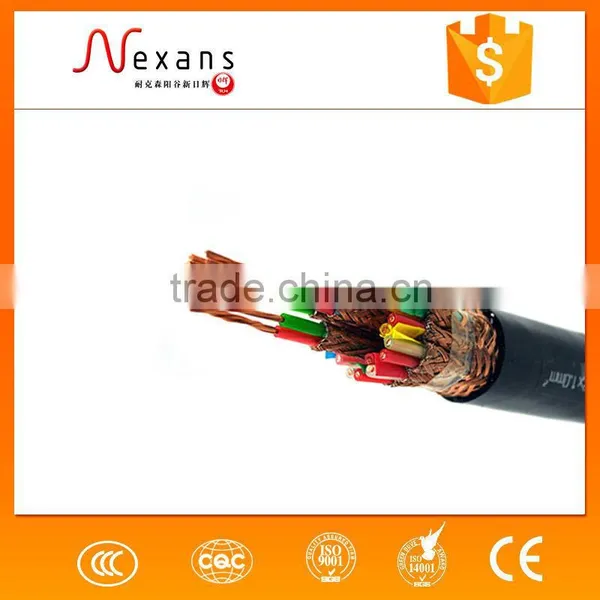

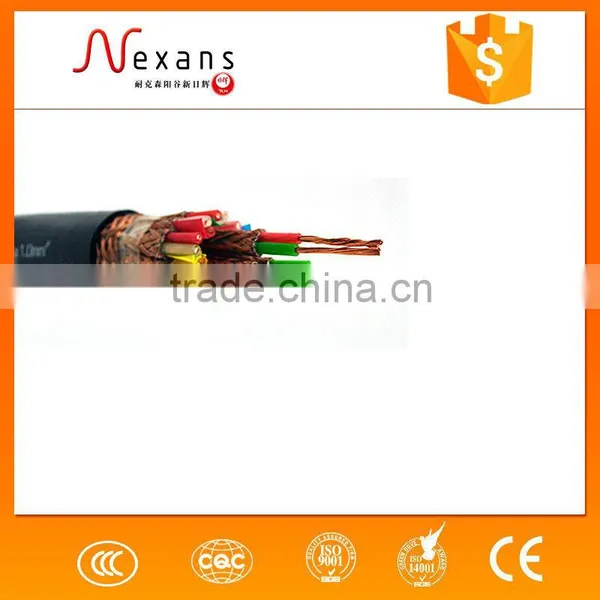

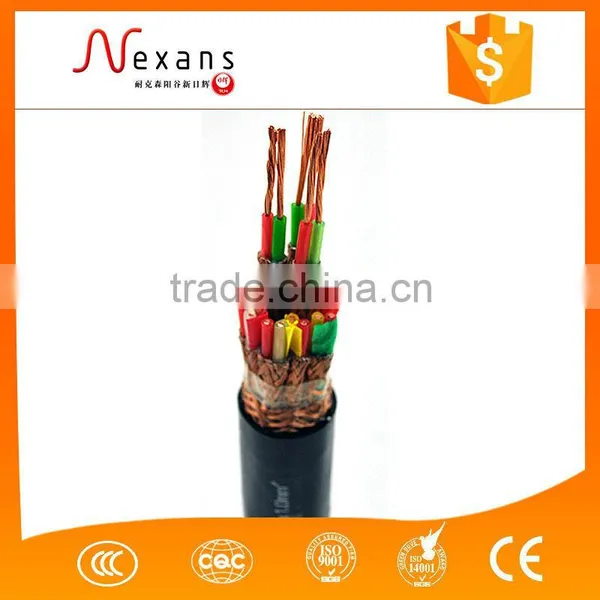

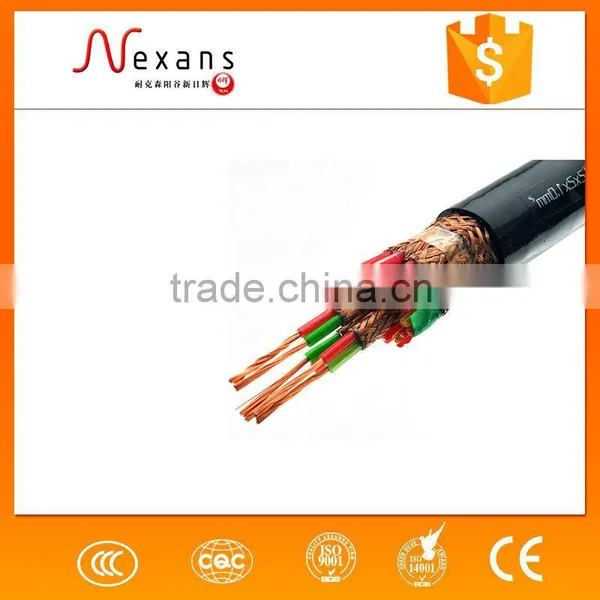

China PE insulated PVC sheathed computer power cable made in china
Product Description
This product is suitable for rated voltage 500 v or below ,be the connectivity cable for the computer and automation .
Technical parameter
1. Rated A. C. Voltage U0/U: 300/350V; Max long time working temperature allowed:
For PVC insulation, two types: 70 or 90º C;
For PE insulation: 70º C;
For XLPE insulation: 90º C (XLPE insulation includes silane XLPE & irradiation XLPE insulation)
2. Min. Ambient temperature: Fixed installing -40º C; Unfixed installing -15º C. No lower than 0º C when installing.
3. Min. Bending radius allowed:
For non-armored soft cable or braided shielding cable, no less than 6 times of outer diameter;
For cable with metallic tape wrapped shielding or steel wire/steel tape armor, no less than 12 times of outer diameter.
| sectional area(mm²) | wire structure | overall diameter(mm) | approx weight(kg/km) | ||||
| radical/diameter(mm) | DJYVP | DJYVP2 | DJYVP3 | DJYVP | DJYVP2 | DJYVP3 | |
| 1×2×0.5 | 1/0.80 | 7.6 | 7.3 | 9.6 | 65 | 47 | 83 |
| 1×2×0.75 | 1/0.97 | 8.2 | 7.8 | 10 | 71 | 52 | 90 |
| 1×2×1.0 | 1/1.13 | 8.8 | 8.5 | 10.6 | 81 | 61 | 103 |
| 1×2×1.5 | 1/1.38 | 9.5 | 9.2 | 11.3 | 100 | 78 | 124 |
| 1×2×2.5 | 1/1.78 | 10.5 | 10.2 | 12.3 | 132 | 109 | 164 |
| 2×2×0.5 | 1/0.8 | 10.5 | 10 | 12.5 | 109 | 84 | 139 |
| 2×2×0.75 | 1/0.97 | 11.2 | 10.7 | 13.2 | 134 | 106 | 165 |
| 2×2×1.0 | 1/1.13 | 12.6 | 12.1 | 14.6 | 158 | 129 | 196 |
| 2×2×1.5 | 1/1.38 | 13.8 | 13.3 | 15.8 | 244 | 211 | 284 |
| 2×2×2.5 | 1/1.78 | 16.2 | 15.7 | 18.2 | 270 | 243 | 343 |
| 3×2×0.5 | 1/0.80 | 11 | 10.5 | 13 | 132 | 105 | 163 |
| 3×2×0.75 | 1/0.97 | 12.2 | 11.7 | 14.2 | 169 | 139 | 202 |
| 3×2×1.0 | 1/1.13 | 13.7 | 13.2 | 15.7 | 196 | 165 | 236 |
| 3×2×1.5 | 1/1.38 | 15 | 14.5 | 17 | 249 | 214 | 303 |
| 3×2×2.5 | 1/1.78 | 17.2 | 16.7 | 9.2 | 347 | 308 | 415 |
| 4×2×0.5 | 1/0.8 | 11.8 | 11.3 | 12.8 | 165 | 135 | 199 |
| 4×2×0.75 | 1/0.97 | 12.7 | 12.2 | 14.7 | 206 | 173 | 242 |
| 4×2×1.0 | 1/1.13 | 14.4 | 14 | 16.4 | 249 | 206 | 295 |
| 4×2×1.5 | 1/1.38 | 15.7 | 15 | 17.7 | 310 | 272 | 370 |
| 4×2×2.5 | 1/1.78 | 18.7 | 18.2 | 20.9 | 462 | 400 | 518 |
| 5×2×0.5 | 1/0.80 | 13 | 12.5 | 15 | 194 | 162 | 233 |
| 5×2×0.75 | 1/0.97 | 14 | 13.5 | 16 | 247 | 212 | 299 |
| 5×2×1.0 | 1/1.13 | 16 | 15.5 | 18 | 288 | 250 | 349 |
| 5×2×1.5 | 1/1.38 | 17.5 | 17 | 19.5 | 384 | 341 | 449 |
| 5×2×2.5 | 1/1.78 | 20.9 | 20.4 | 23 | 564 | 496 | 627 |
| 7×2×0.75 | 1/0.8 | 13.8 | 13.3 | 15.8 | 242 | 207 | 296 |
| 7×2×0.75 | 1/0.97 | 15.3 | 14.8 | 17.3 | 310 | 272 | 368 |
| 7×2×1.0 | 1/1.13 | 17.4 | 17 | 19.5 | 375 | 333 | 441 |
| 7×2×1.5 | 1/1.38 | 19 | 18.5 | 21.2 | 512 | 448 | 566 |
| 7×2×2.5 | 1/1.78 | 22.7 | 22.2 | 25 | 728 | 654 | 798 |
| 8×2×0.5 | 1/0.80 | 15.3 | 14.8 | 17.3 | 277 | 240 | 336 |
| 8×2×0.75 | 1/0.97 | 16.8 | 16.3 | 18.8 | 367 | 325 | 429 |
| 8×2×1.0 | 1/1.13 | 19.2 | 18.7 | 21.5 | 455 | 382 | 499 |
| 8×2×1.5 | 1/1.38 | 20.4 | 20 | 22.6 | 592 | 520 | 649 |
| 8×2×2.5 | 1/1.78 | 4.5 | 24 | 26.8 | 850 | 770 | 950 |
| 10×2×0.5 | 1/0.80 | 18.2 | 17.7 | 20.2 | 382 | 319 | 430 |
| 10×2×0.75 | 1/0.97 | 20 | 19.5 | 22 | 486 | 417 | 538 |
| 10×2×1.0 | 1/1.13 | 22.8 | 22.3 | 25 | 579 | 504 | 640 |
| 10×2×1.5 | 1/1.38 | 24.7 | 24.2 | 27 | 752 | 668 | 817 |
| 10×2×2.5 | 1/1.78 | 28.8 | 28.3 | 31.2 | 1155 | 1000 | 1210 |
| 12×2×0.5 | 1/0.80 | 18.8 | 18.3 | 21 | 425 | 360 | 474 |
| 12×2×0.75 | 1/0.97 | 20 | 20.2 | 22.8 | 545 | 472 | 597 |
| 12×2×1.0 | 1/1.13 | 23.5 | 23 | 25.8 | 652 | 574 | 715 |
| 12×2×1.5 | 1/1.38 | 25.4 | 26 | 27.6 | 850 | 765 | 920 |
| 12×2×2.5 | 1/1.78 | 30.7 | 30 | 32.8 | 1305 | 1150 | 1367 |
| 14×2×0.5 | 1/0.80 | 19.5 | 19 | 21.7 | 475 | 407 | 528 |
| 14×2×0.75 | 1/0.97 | 21.5 | 21 | 23.7 | 622 | 545 | 677 |
| 14×2×1.0 | 1/1.13 | 24.6 | 24.1 | 26.8 | 736 | 655 | 804 |
| 14×2×1.5 | 1/1.38 | 26.7 | 26.2 | 29 | 1030 | 883 | 1070 |
| 14×2×2.5 | 1/1.78 | 32.5 | 32 | 35 | 1480 | 1315 | 1544 |
| 16×2×0.5 | 1/0.80 | 21 | 20.5 | 23 | 538 | 466 | 594 |
| 16×2×0.75 | 1/0.97 | 23 | 22.5 | 25 | 694 | 613 | 752 |
| 16×2×1.0 | 1/1.13 | 26 | 25.5 | 28.4 | 823 | 738 | 919 |
| 16×2×1.5 | 1/1.38 | 28.5 | 28 | 31 | 1165 | 1010 | 1209 |
| 16×2×2.5 | 1/1.78 | 34.5 | 34 | 37 | 1675 | 1500 | 1743 |
| 19×2×0.5 | 1/0.80 | 22.4 | 22 | 24.4 | 610 | 535 | 669 |
| 19×2×0.75 | 1/0.97 | 23.7 | 23.2 | 25.7 | 790 | 706 | 854 |
| 19×2×1.0 | 1/1.13 | 27 | 26.5 | 29.4 | 854 | 863 | 1056 |
| 19×2×1.5 | 1/1.38 | 29.6 | 29.1 | 32 | 1350 | 1185 | 1396 |
| 19×2×2.5 | 1/1.78 | 36 | 35.5 | 38.5 | 1925 | 1740 | 1998 |
| 24×2×0.5 | 1/0.80 | 25.5 | 25 | 27.7 | 780 | 692 | 876 |
| 24×2×0.75 | 1/0.97 | 28.2 | 27.8 | 30.7 | 1100 | 940 | 1141 |
| 24×2×1.0 | 1/1.13 | 32.5 | 32 | 34.8 | 1320 | 1150 | 1378 |
| 24×2×1.5 | 1/1.38 | 35.2 | 34.7 | 37.6 | 1720 | 1910 | 2159 |
| 24×2×2.5 | 1/1.78 | 42.5 | 42 | 45 | 2465 | 2250 | 2555 |
Advantages
| The advantages of product |
| 1.99.99% high precision copper |
| 2.The lowest resistance |
| 3.The lowest eccentricity |
| 4.Advanced production lines from Finland |
| 5.Professional test equipments introduced from France |
| 6.Professional and experienced R&D and Q&C engineers |
