electric power tool/lighting flexible power cable
- 1000000 Meter / Meters per Month
- Qingdao China; Tianjin China
- T/T L/C D/P D/A Credit Card PayPal
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Shandong, China | Brand Name: | XINHUI | Model Number: | Flexible copper/PVC/PVC |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Construction |
Conductor Material: | Copper | Jacket: | PVC |
Product Description

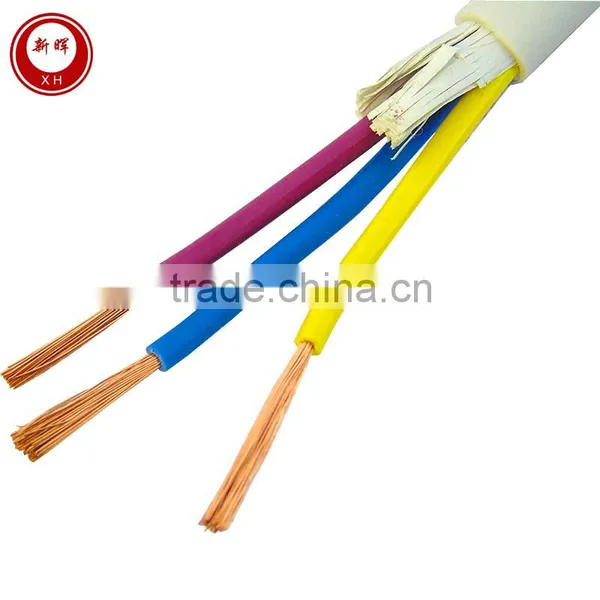

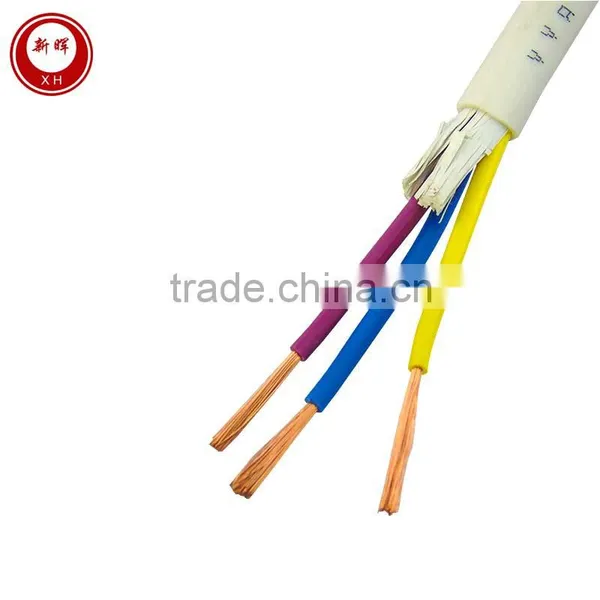

electric power tool/lighting flexible power cable
1.This product adapt to AC rated voltage (Uo/U)450/750 and below power, household appliances, instruments, small power tools, power lighting, etc.
2.Operating characteristic
1)laying temperature ≥0℃
2)cable woring temperature:the maximum working temperature of 60227IEC07(BV-90),60227IEC08(RV-90) is 90℃,other is 70℃.
3)bending radius:D<25mm,should not less than 4D;D≥25mm,should not less than 6D.
3.Specification
model number | original model number | specification(mm2) |
60227IEC01 | BV | 1 core 1.5-400 |
60227IEC02 | RV | 1 core 1.5-240 |
60227IEC05 | BV | 1 core 1.5-1.0 |
60227IEC06 | RV | 1 core 1.5-1.0 |
60227IEC07 | BV-90 | 1 core 0.5-2.5 |
60227IEC08 | RV-90 | 1 core 0.5-2.5 |
60227IEC10 | BVV | 2-5core 1.5-35 |
60227IEC43 | SVR | 1 core 0.5-0.75 |
60227IEC52 | RVV | 2-3 core 0.5-0.75 |
60227IEC53 | RVV | 2-5 core 0.75-2.5 |
60227IEC74 | RVVYP | 2-60core 0.5-2.5 |
60227IEC75 | RVVY | 2-60core 0.5-2.5 |
BLV |
| 1 core 2.5-400 |
BVV |
| 1 core 0.75-10 |
BLVV |
| 1 core 2.5-10 |
BLVVB |
| 2-3core 2.5-10 |
BVVB |
| 2-3 core 0.75-10 |
BVR |
| 1 core 2.5-10 |
BVVR |
| 1-3 core 0.5-2.5 |

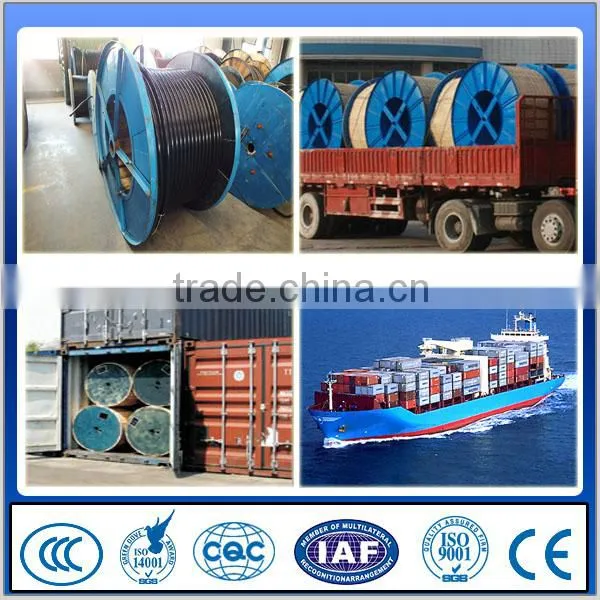

4.Package
5.Certificates: Produce high quality cable& wires.
6.Yanggu cable group
1) Production equipment 860 (sets) and testing equipment 314 (Taiwan) sets
2) Main production:
House/building electrical wires
Aerial Cable AAC/AAAC/ACSR/ABC Cable
Control cable/ instrument cable
Optical fiber cable
7.Why choose us:
1)Quick response in 12 hours.
6)Professional technical service.
7)Standard product quality.
8)Warranty for 2 years.
