High quality linear ball bearing lm8uu
Small-diameter linear propeller will be assembled with a retainer frame which has little noisy when it works. Please write a sign of "A"at the end of the nominal type, when the temperature is above 80centigrade degree, we'll assemble metal retainer frame for safety. But the nominal type below LM12 will be assembled with synthetic resin retainer.
Application:
Our linear bearing is a high precision bushing which offers unlimited travel distance with minimum frictional resistance. With high performance and a wide range of types, our bearings being used in many fields such as machine tools, industrial machines, electrical equipment, food processing machines, and optical and measuring equipment.
Details:

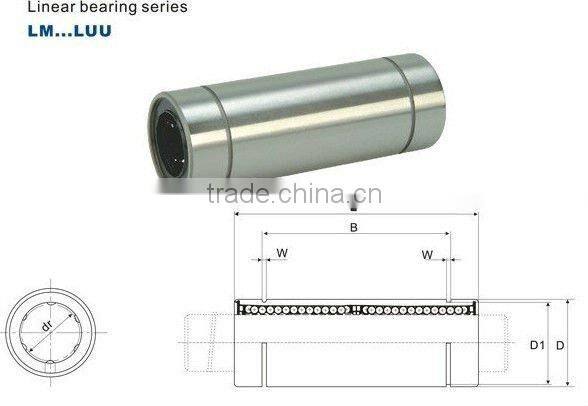

| LM...L UU series | Inner Diameter | Dimension(mm) | Mass (gf ) | basic load rating | ||||||||||
| Model Type |
Steel Ball row No |
dr (mm) | Tolerance(µ m) | Outer Dimension D | Length L | B | W | D1 | Dynamic C(N) | Static C0 (N) | ||||
| dr (mm) | Tolerance | L | Tolerance | dr (mm) | Tolerance | |||||||||
| LM6LUU | 4 | 6 | 12 | 0 | 35 | 27 | 1.1 | 11.5 | 16 | 324 | 529 | |||
| LM8LUU | 4 | 8 | 0 | 15 | -13 | 45 | 35 | 1.1 | 14.3 | 31 | 413 | 784 | ||
| LM10LUU | 4 | 10 | -10 | 19 | 55 | 0 | 44 | 0 | 1.3 | 18 | 62 | 588 | 1100 | |
| LM12LUU | 4 | 12 | 21 | 0 | 57 | -0.3 | 46 | -0.3 | 1.3 | 20 | 80 | 657 | 1200 | |
| LM13LUU | 4 | 13 | 23 | -16 | 61 | 46 | 1.3 | 22 | 90 | 814 | 1570 | |||
| LM16LUU | 5 | 16 | 28 | 70 | 53 | 1.6 | 27 | 145 | 1230 | 2350 | ||||
| LM20LUU | 5 | 20 | 0 | 32 | 0 | 80 | 61 | 1.6 | 30.5 | 180 | 1400 | 2750 | ||
| LM25LUU | 5 | 25 | -12 | 40 | -19 | 112 | 82 | 1.85 | 38 | 440 | 1560 | 3140 | ||
| LM30LUU | 6 | 30 | 45 | 123 | 89 | 1.85 | 43 | 580 | 2490 | 5490 | ||||
| LM35LUU | 6 | 35 | 0 | 52 | 0 | 135 | 0 | 99 | 0 | 2.1 | 49 | 795 | 2650 | 6470 |
| LM40LUU | 6 | 40 | -15 | 60 | -22 | 154 | -0.4 | 121 | -0.4 | 2.1 | 57 | 1170 | 3430 | 8040 |
| LM50LUU | 6 | 50 | 80 | 192 | 148 | 2.6 | 76.5 | 3100 | 6080 | 15900 | ||||
| LM60LUU | 6 | 60 | -20 | 90 | -25 | 211 | 170 | 3.15 | 86.5 | 3500 | 7650 | 20000 | ||
Models
| LM6UU | LM6UU-OP | LM6UU-AJ | LME5UU | LM6LUU | KH0622 |
| LM8UU | LM8UU-OP | LM8UU-AJ | LME8UU | LM8LUU | KH0824 |
| LM10UU | LM10UU-OP | LM10UU-AJ | LME12UU | LM10LUU | KH126 |
| LM12UU | LM12UU-OP | LM12UU-AJ | LME20UU | LM12LUU | KH1228 |
| LM13UU | LM13UU-OP | LM13UU-AJ | LME25UU | LM13LUU | KH1428 |
| LM16UU | LM16UU-OP | LM16UU-AJ | LME30UU | LM16LUU | KH1428 |
| LM20UU | LM20UU-OP | LM20UU-AJ | LME40UU | LM20LUU | KH1630 |
| LM25UU | LM25UU-OP | LM25UU-AJ | LME50UU | LM25LUU | KH2030 |
| LM30UU | LM30UU-OP | LM30UU-AJ | LME60UU | LM30LUU | KH2540 |
| LM35UU | LM35UU-OP | LM35UU-AJ | LM35LUU | KH3050 | |
| LM40UU | LM40UU-OP | LM40UU-AJ | LM40LUU | KH4060 | |
| LM50UU | LM50UU-OP | LM50UU-AJ | LM50LUU | KH5070 | |
| LM60UU | LM60UU-OP | LM60UU-AJ | LM60LUU | ||
| LM80UU | LM80UU-OP | LM80UU-AJ | |||
| LM100UU | LM100UU-OP | LM100UU-AJ |

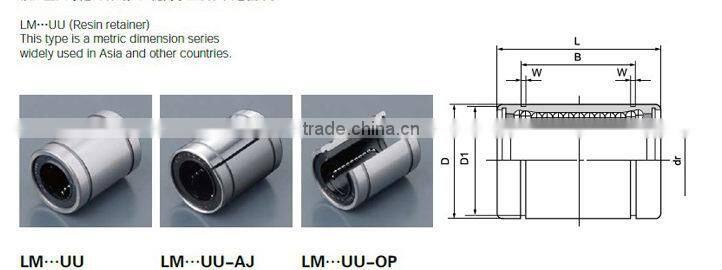

"LM" metric standard type linear bearing
"LME" inch standard type linear bearing
"UU" rubber seals on the both sides of the long type linear bearing
"OP" open type linear bearing
"AJ" adjustment type linear bearing
*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision mini bearing

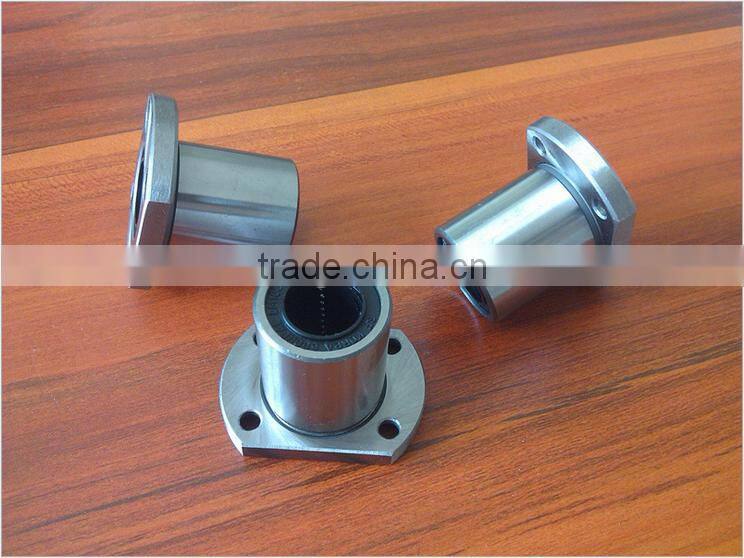

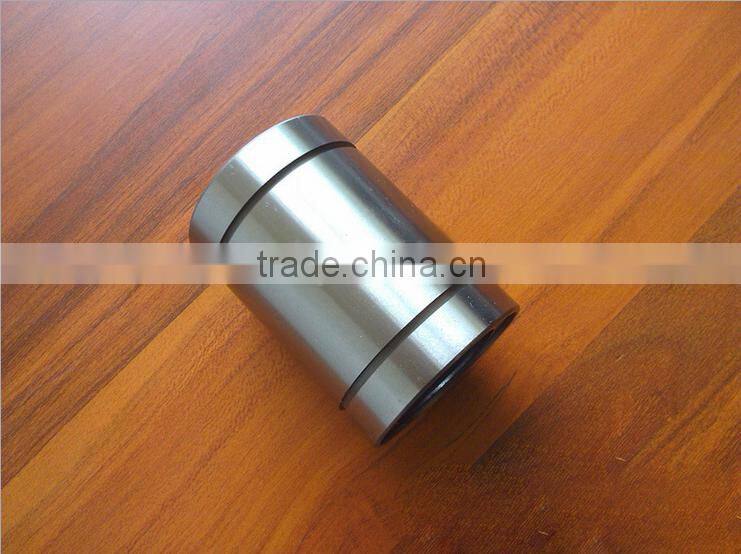

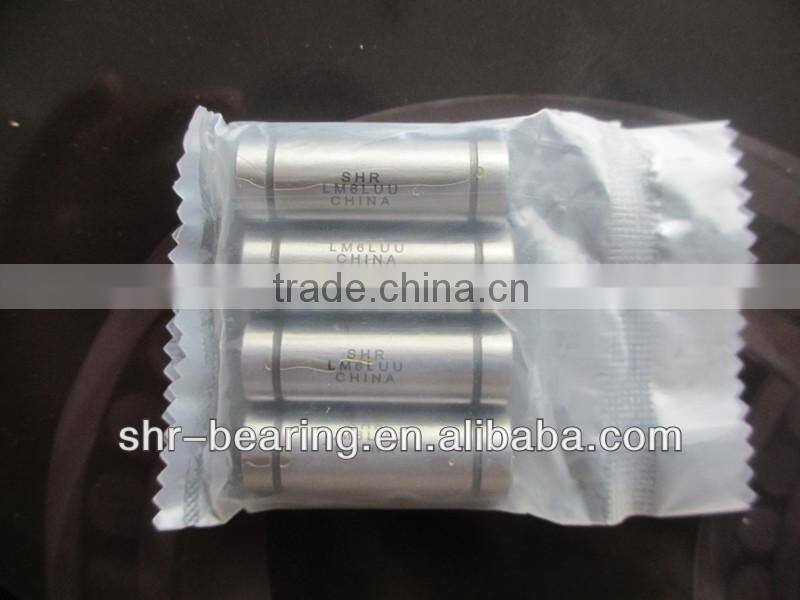

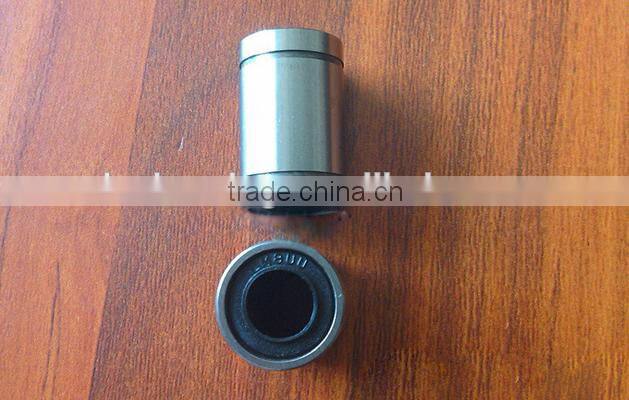

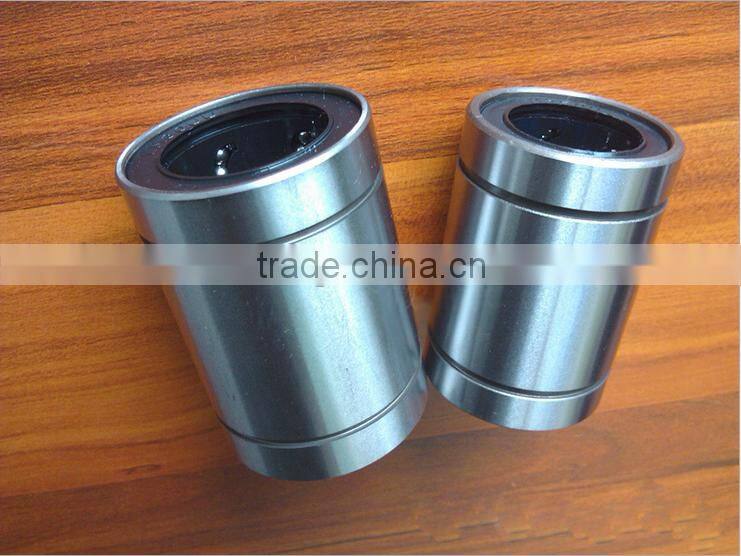

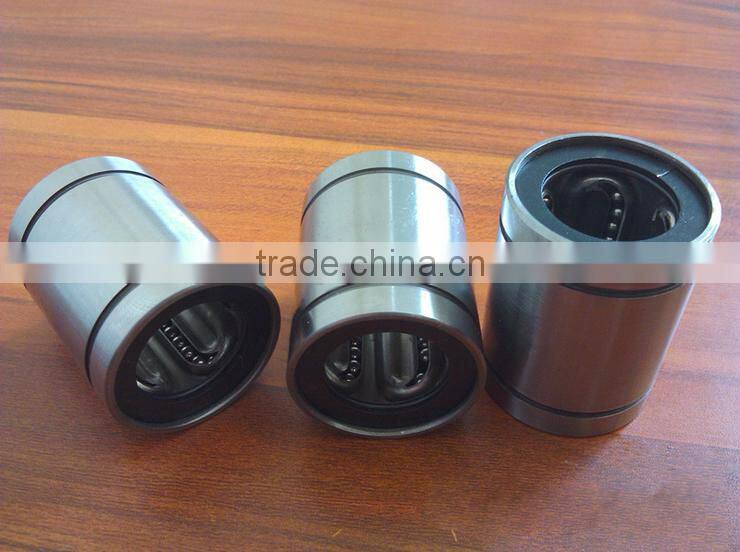

The real pictures of Linear Bearing LM8UU LM10UU LM16UU LM20UU

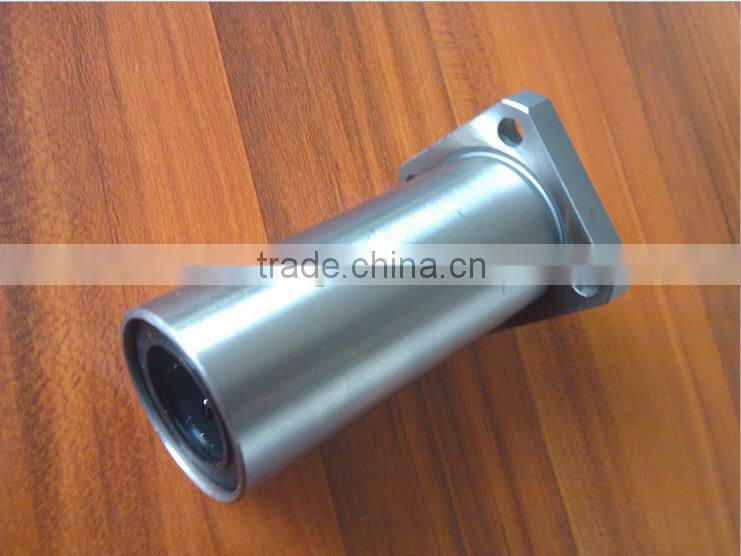

Other hotsale Linear Bearing ,Linear Ball bearing,Linear motion bearing

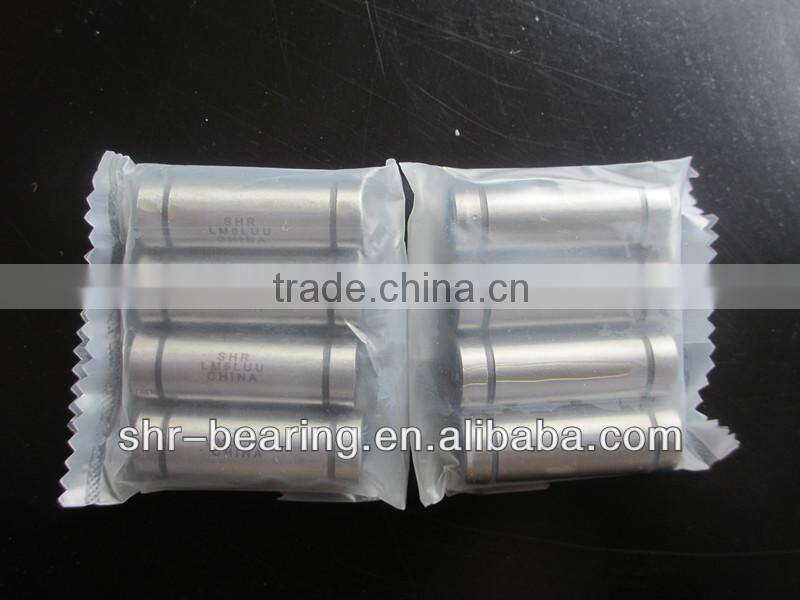

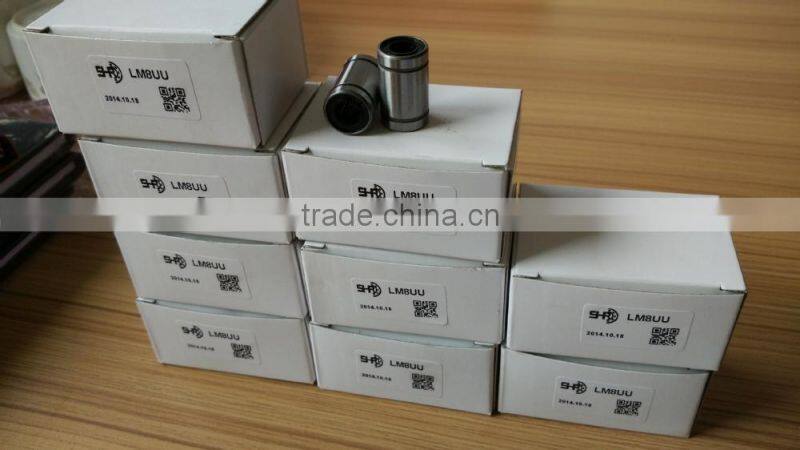

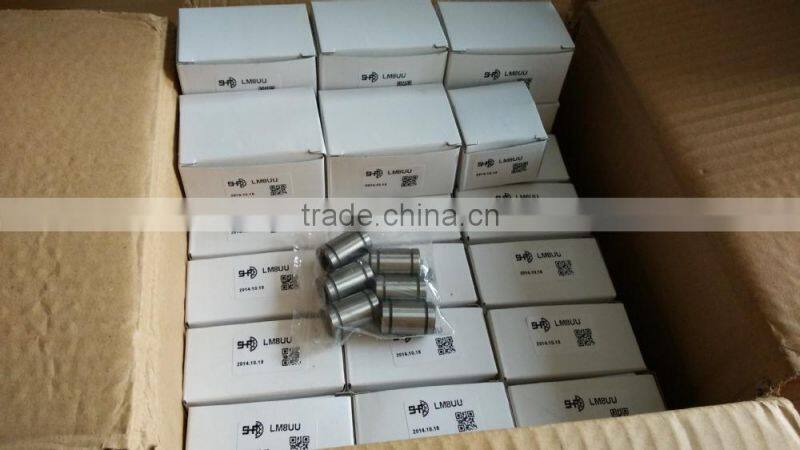

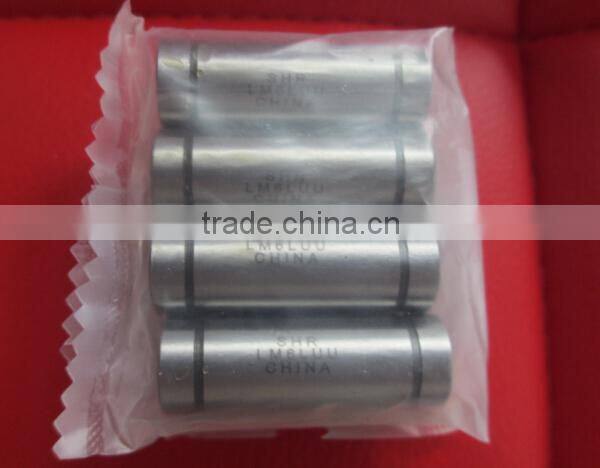

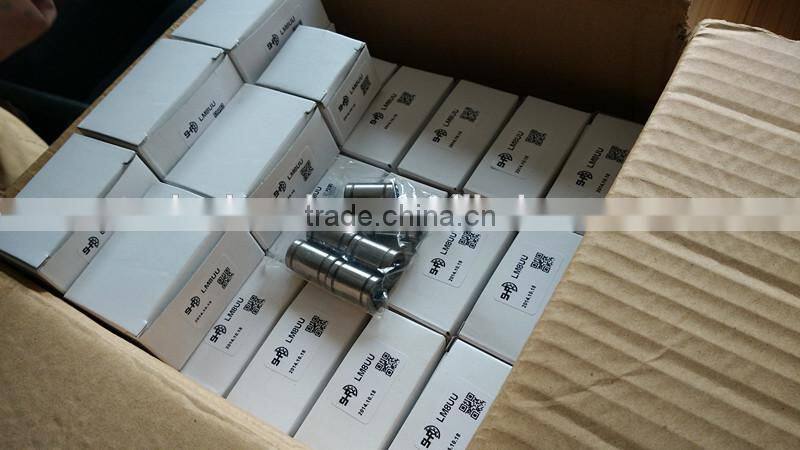

1. For small ones:anti-rust oil+vacuum plastic bag+paper box+wooden box
2. For big ones:anti-rust oil+waterproof belt+professional belt+wooden box
Payment Terms:
L/C ,T/T ,western Union
1. 30% deposit By T/T, Western Union, Paypal, 70% before delivery.
2. 100% L/C at sight
Other information:
Production Lead time: 7~25days; If we have this item in stock , 2days delivery.
Delivery Date: within 3-5days after your payment.
Sample: Free, but we don't bear the freight of sample
MOQ: 1 set Supply Ablility:100000 pcs/Month
