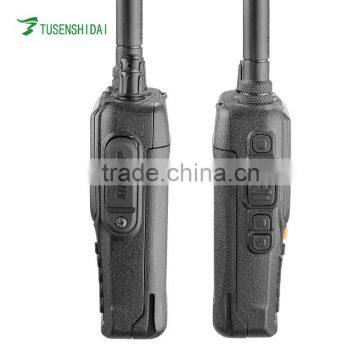

WOUXUN KG-UV8D 128 Channels Walkie Talkie 5-10KM Long Talk Range Two Way Radio Handheld 5W Transceiver Quality Choice photo-1

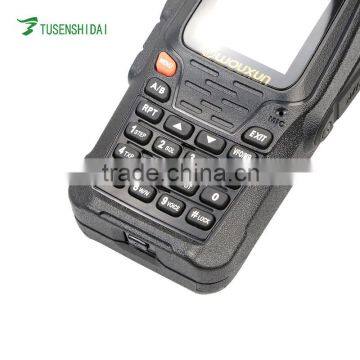

WOUXUN KG-UV8D 128 Channels Walkie Talkie 5-10KM Long Talk Range Two Way Radio Handheld 5W Transceiver Quality Choice photo-2

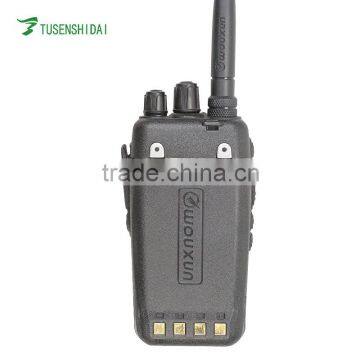

WOUXUN KG-UV8D 128 Channels Walkie Talkie 5-10KM Long Talk Range Two Way Radio Handheld 5W Transceiver Quality Choice photo-3
WOUXUN KG-UV8D 128 Channels Walkie Talkie 5-10KM Long Talk Range Two Way Radio Handheld 5W Transceiver Quality Choice photo-4

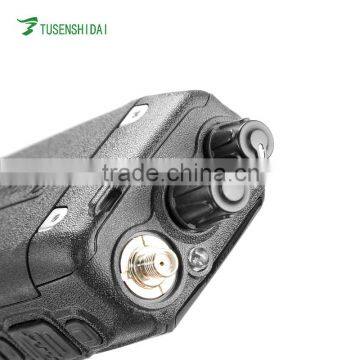

WOUXUN KG-UV8D 128 Channels Walkie Talkie 5-10KM Long Talk Range Two Way Radio Handheld 5W Transceiver Quality Choice photo-5

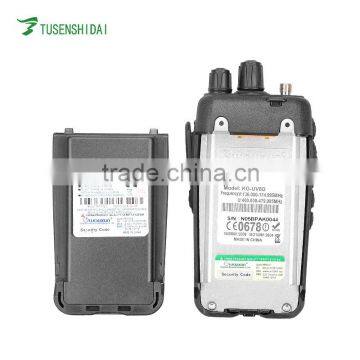

WOUXUN KG-UV8D 128 Channels Walkie Talkie 5-10KM Long Talk Range Two Way Radio Handheld 5W Transceiver Quality Choice photo-6
US$ 75 - 85 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
WOUXUN
Model Number:
KG-UV8D
Contact Supplier Request Quote Chat Now
Quanzhou Tucson Age Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name WOUXUN
Model Number KG-UV8D
Type Handheld
Dimensions 124.5*61.49*33.88mm(no battery and antenna)
Frequency Range 136-174MHz 400-480MHz
Storage Channel 128 Channels
Talk Range 5-10km

WOUXUN KG-UV8D 128 Channels Walkie Talkie 5-10KM Long Talk Range Two Way Radio Handheld 5W Transceiver

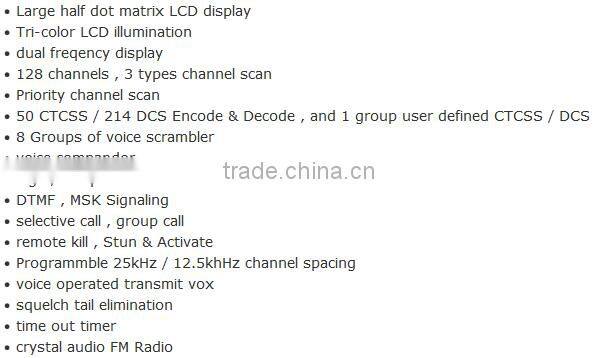

Main Features


WOUXUN KG-UV8D 128 Channels Walkie Talkie 5-10KM Long Talk Range Two Way Radio Handheld 5W Transceiver



Product Description

WOUXUN KG-UV8D 128 Channels Walkie Talkie 5-10KM Long Talk Range Two Way Radio Handheld 5W Transceiver

Frequency(Dual band) 136-174MHz & 400-470MHz 144-146MHz & 430-440MHz
136-174MHz & 400-480MHz 144-148MHz & 430-450MHz
136-174MHz & 420-520MHz
Step 5KHz/6.25KHz/10KHz/12.5KHz/25KHz/50KHz/100KHz
Channel 128
Work Mode F2D/F3E
Operating Temperature -20°C~+40°C
Antenna Resistance 50ohm
Voltage 7.4VDC
Battery capacity 1700mAh Li-ion Battery
weight 490g
Size 124.5×61.49×33.88(mm)
Receiving
Adjacent Channel Selectivity Wide≤70dB Narrow≤60dB
Inter Modulation Wide≤65dB Narrow≤60dB
Spurious Response ≤70dB
Audio Response Wide+1~-3dB(0.3~3KHz) Narrow+1~-3dB(0.3~2.55KHz)
Signal to Noise Ratio Wide≥45dB Narrow≥40dB
Audio Distortion ≤5%
Audio Power Transceiver≤ 500mW
Sensitivity UHF/VHF:0.25µV(12dB SINAD)
Transmitter
Type of Modulation Wide16k F3E Narrow11k F3E
Adjacent Channel Power Wide≥70dB Narrow≥60dB
Spurious ≥60dB
Audio Response Wide+1~-3dB(0.3~3KHz) Narrow+1~-3dB(0.3~2.55KHz)
Max Frequency Deviation Wide±5KHz Narrow±2.5KHz
Frequency Stability ±2.5ppm
Audio Distortion ≤5%
Output Power 5W/1W(VHF)
4W/1W(UHF)
Packaging & Shipping

WOUXUN KG-UV8D 128 Channels Walkie Talkie 5-10KM Long Talk Range Two Way Radio Handheld 5W Transceiver
WOUXUN KG-UV8D 128 Channels Walkie Talkie 5-10KM Long Talk Range Two Way Radio Handheld 5W Transceiver

WOUXUN KG-UV8D 128 Channels Walkie Talkie 5-10KM Long Talk Range Two Way Radio Handheld 5W Transceiver

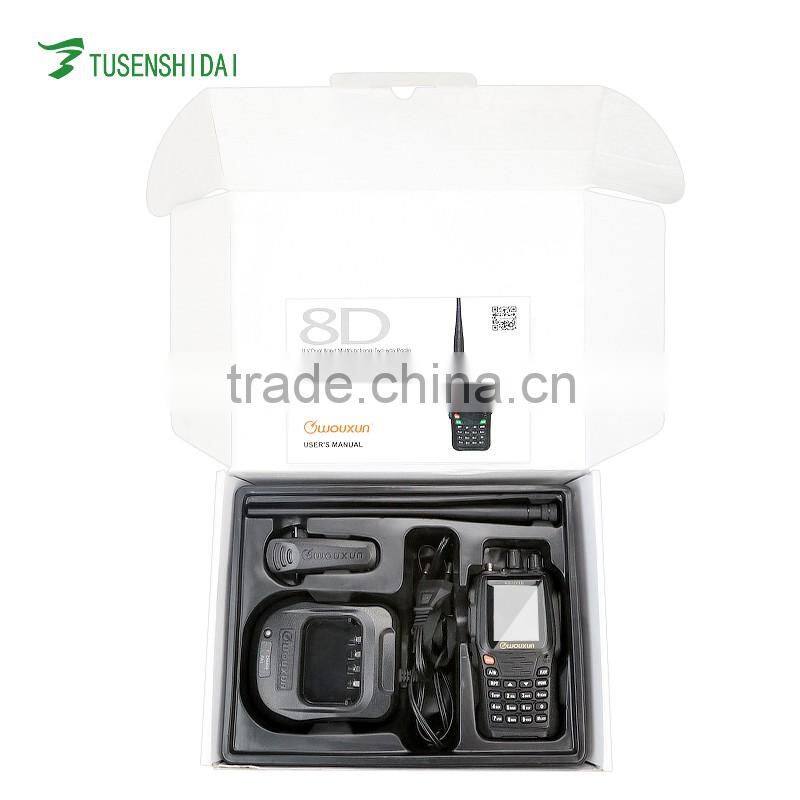

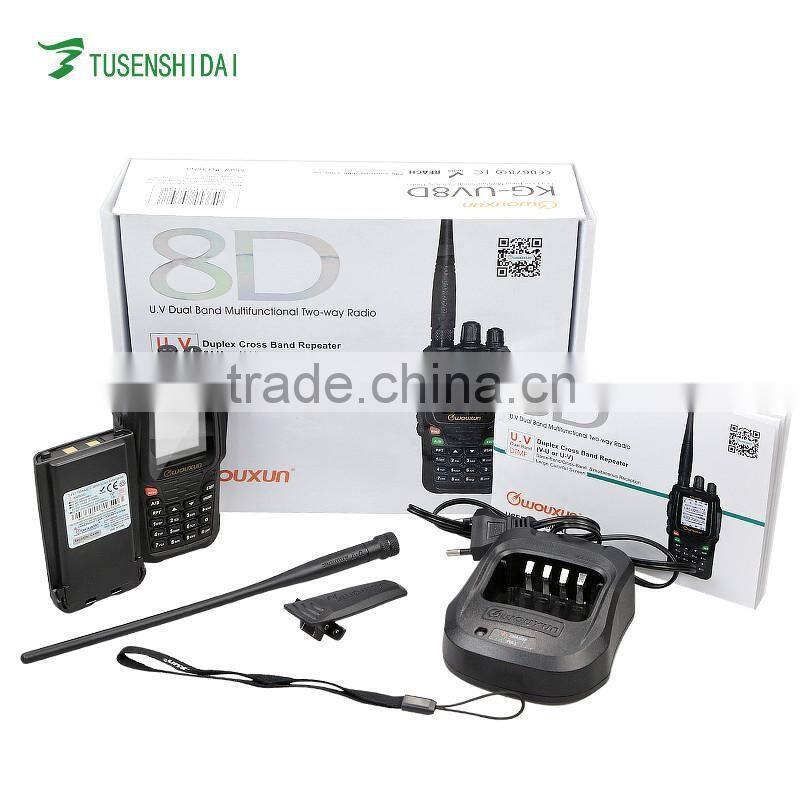

PACKING DETAILS:
1 X Host
1 X DC7.4V Li-ion Batterypack
1 X Antenna
1 X Strap
1 X Blet clip
1 X Charger
1 X User's Manual



Our Services

WOUXUN KG-UV8D 128 Channels Walkie Talkie 5-10KM Long Talk Range Two Way Radio Handheld 5W Transceiver

Shipping time

1-2days for sample order,3-5days for bulk order



Customer Service

1.OEM&ODM service offered

2.Sample's fee can be refund after order reached 1000sets.

3.Delivery can be express: DHL,UPS,FedEx,EMS,TNT.



Warranty

Before delivery, we will check the item's quality strictly one by one. Life-warranty for radio body & accessories, please contact us immediately when you get defective,thanks.



Payment terms

Payment:T/T,Western Union,escrow below US$1000 accept Paypal payment term(please do Not believe anybody by Email say our band changed,thank you)
