Home > Consumer Electronics > Two Way Radio > Handheld Two Way Radio > 2016 Hot Selling Walkie Talkie Two Way Radio WOUXUN KG-UV8D 5W Ham FM Transceiver With 128CH

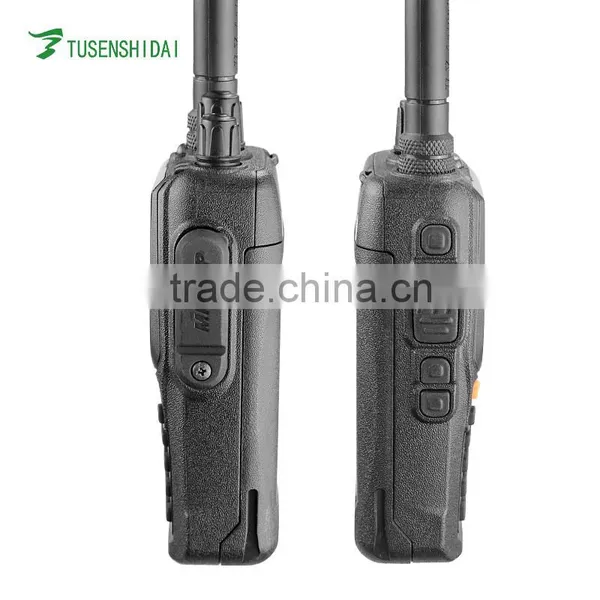

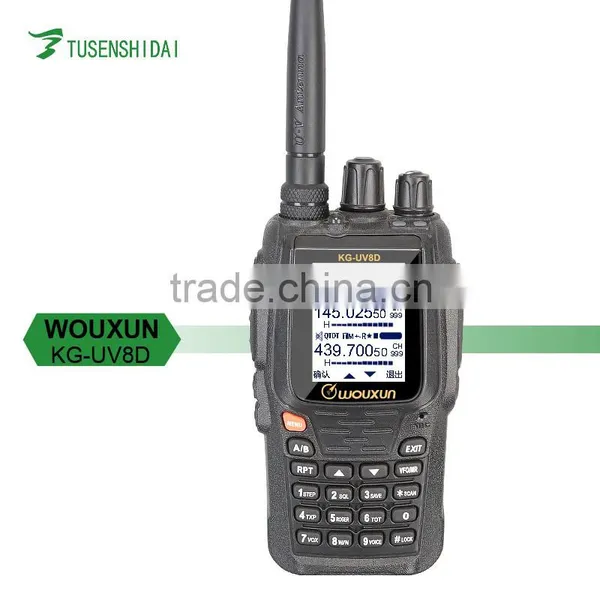

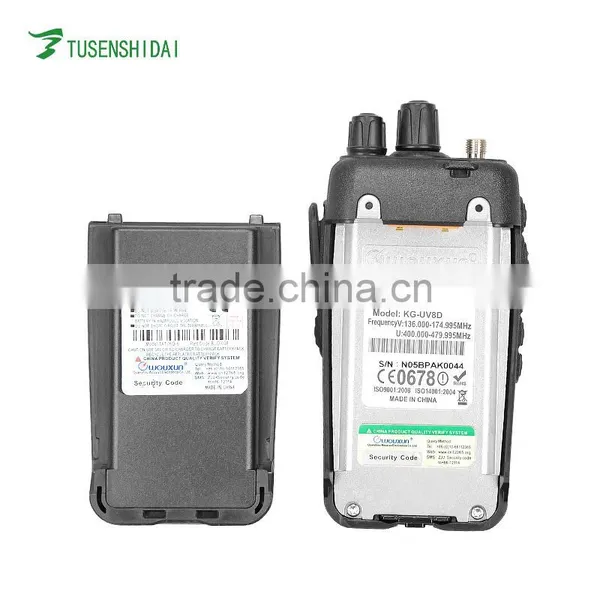

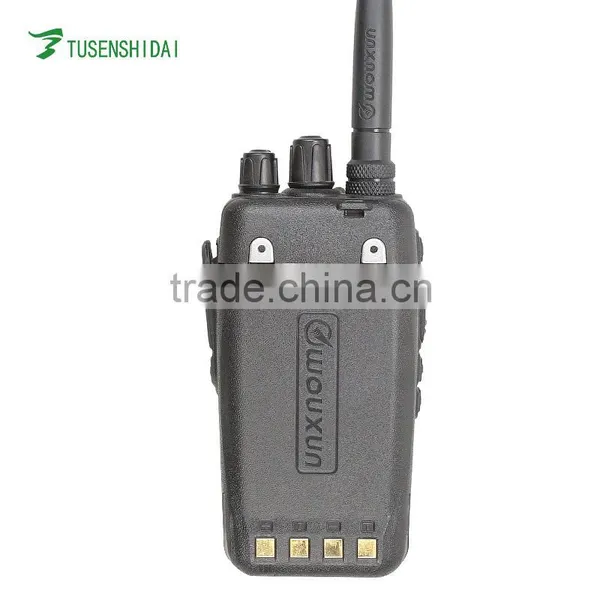

2016 Hot Selling Walkie Talkie Two Way Radio WOUXUN KG-UV8D 5W Ham FM Transceiver With 128CH
US$ 75 - 85
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
WOUXUN
Model Number:
KG-UV8D
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality 2 Way Radio WOUXUN KG-UV9D FM Vhf Uhf Transceiver Mini Radio With 999CH Quality ChoiceUS$ 110 - 120MOQ: 1 Piece -
Two Way Radio WOUXUN Walkie Talkie KG-UV9D 5W Interphone Handheld Transceiver Quality ChoiceUS$ 110 - 120MOQ: 1 Piece
-
China Two Way Digital Radio Walkie Talkie WOUXUN KG-UV8D Mobile RadioUS$ 75 - 85MOQ: 1 Piece
-
KG-689 UHF or VHF Ham Two Way Radio 5W Waterproof IP55 FM TransceiverUS$ 48 - 53MOQ: 1 Piece
-
WOUXUN Two Way Radio 5W KG-UV8D Walkie Talkie Dual Band TransceiverUS$ 75 - 85MOQ: 1 Piece
Place of Origin
Fujian, China
Brand Name
WOUXUN
Model Number
KG-UV8D
Type
Handheld
Dimensions
124.5*61.49*33.88mm(no battery and antenna)
Frequency Range
136-174MHz 400-480MHz
Storage Channel
128 Channels
Talk Range
5-10km
2016 Hot Selling Walkie Talkie Two Way Radio WOUXUN KG-UV8D 5W Ham FM Transceiver with 128CH

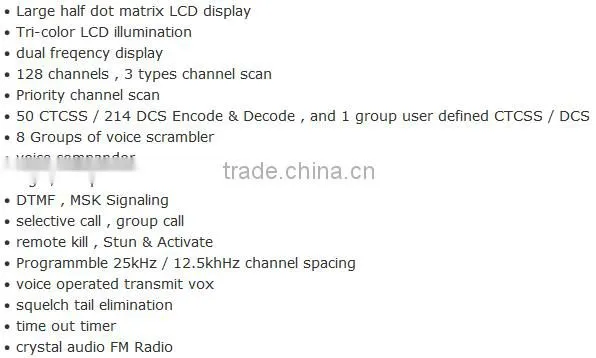

Main Features
Product Description
2016 Hot Selling Walkie Talkie Two Way Radio WOUXUN KG-UV8D 5W Ham FM Transceiver with 128CH
| Frequency(Dual band) |
136-174MHz & 400-470MHz 144-146MHz & 430-440MHz 136-174MHz & 400-480MHz 144-148MHz & 430-450MHz 136-174MHz & 420-520MHz |
| Step | 5KHz/6.25KHz/10KHz/12.5KHz/25KHz/50KHz/100KHz |
| Channel | 128 |
| Work Mode | F2D/F3E |
| Operating Temperature | -20°C~+40°C |
| Antenna Resistance | 50ohm |
| Voltage | 7.4VDC |
| Battery capacity | 1700mAh Li-ion Battery |
| weight | 490g |
| Size | 124.5×61.49×33.88(mm) |
| Receiving | |
| Adjacent Channel Selectivity | Wide≤70dB Narrow≤60dB |
| Inter Modulation | Wide≤65dB Narrow≤60dB |
| Spurious Response | ≤70dB |
| Audio Response | Wide+1~-3dB(0.3~3KHz) Narrow+1~-3dB(0.3~2.55KHz) |
| Signal to Noise Ratio | Wide≥45dB Narrow≥40dB |
| Audio Distortion | ≤5% |
| Audio Power | Transceiver≤ 500mW |
| Sensitivity | UHF/VHF:0.25µV(12dB SINAD) |
| Transmitter | |
| Type of Modulation | Wide16k F3E Narrow11k F3E |
| Adjacent Channel Power | Wide≥70dB Narrow≥60dB |
| Spurious | ≥60dB |
| Audio Response | Wide+1~-3dB(0.3~3KHz) Narrow+1~-3dB(0.3~2.55KHz) |
| Max Frequency Deviation | Wide±5KHz Narrow±2.5KHz |
| Frequency Stability | ±2.5ppm |
| Audio Distortion | ≤5% |
| Output Power | 5W/1W(VHF) |
| 4W/1W(UHF) |
Packaging & Shipping
2016 Hot Selling Walkie Talkie Two Way Radio WOUXUN KG-UV8D 5W Ham FM Transceiver with 128CH

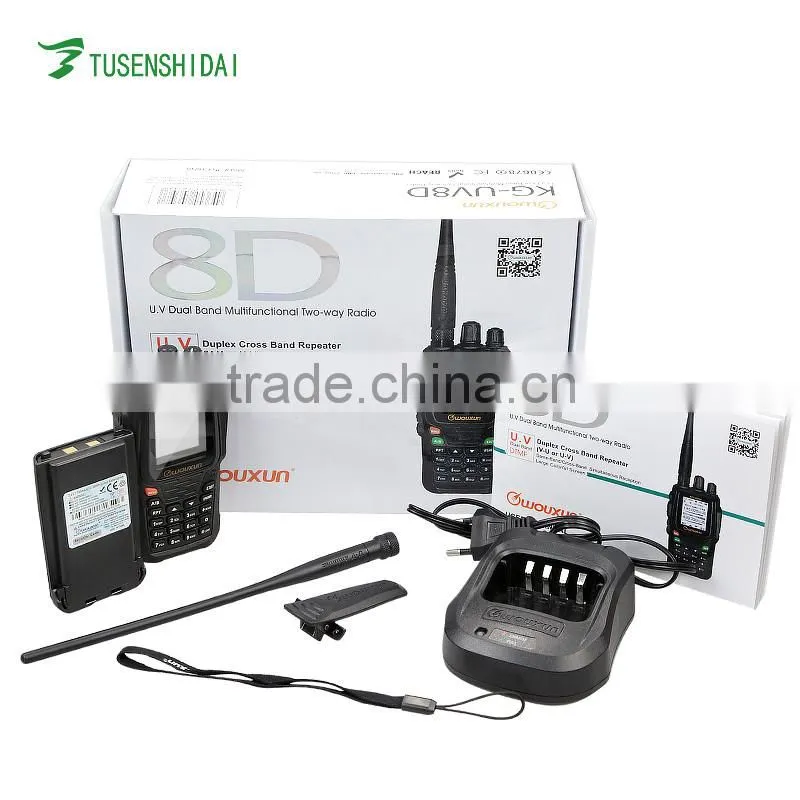

PACKING DETAILS:
1 X Host
1 X DC7.4V Li-ion Batterypack
1 X Antenna
1 X Strap
1 X Blet clip

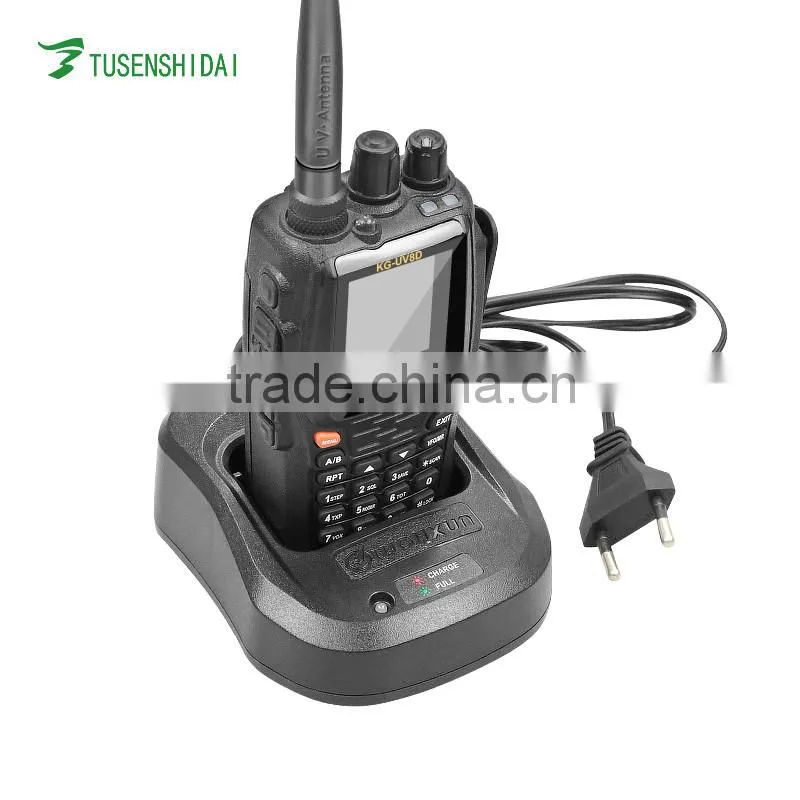

1 X Charger
1 X User's Manual
