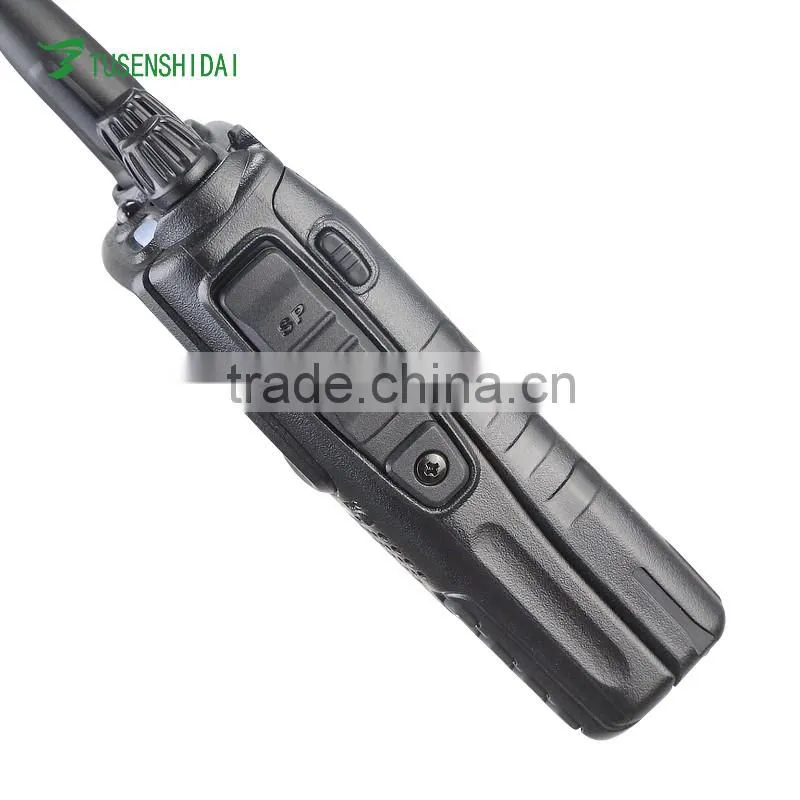

Best Sell High Quality 2 Way Radio WOUXUN KG-UV9D VHF UHF FM Transceiver With 999CH
FEATURES:
1. QT/DQT Encoding/Decoding,QT/DQT Scan
2. Non-Standard CTCSS can be set arbitrarily
3. VOX Function
4. Multi Definition for Sidekeys
5. Chinese/English Screen Display
6. Incoming Message Display Caller ID display
7. DTMF Encoding&Decoding
8. Channel groups scanning
9. SOS Function
10.Priority Scan Function
Best Sell High Quality 2 Way Radio WOUXUN KG-UV9D VHF UHF FM Transceiver With 999CH
| Technicial Specification: | ||
| Frequency Range | Suitable for different countries or areas | |
| 1 TX: 136-174MHZ(FM) 400-512MHZ(FM) | ||
|
2 RX: 76-108MHZ(FM) 108-136MHZ(Air ground) 230-250MHZ/350-400MHZ/400-512MHZ/700-985MHZ(FM) | ||
| Step | 2.5K/5KHz/6.25KHz/10KHz/12.5KHz/25KHz/50KHz/100KHz | |
| Channel Number | 999 | |
| Work Mode | F2D/F3E | |
| Operating Temperature | -20℃~+40℃ | |
| Operating Voltage | 7.4VDC | |
| Battery Capacity | 2000mAh Li-ion Battery | |
| Antenna Impedance | 50Ω | |
| Weight | 490 g | |
| Size | 124.5X61.5X33.9 (mm) | |
| Receiver | Wide | Narrow |
| Adjacent Channel Selectivity | ≤70dB | ≤60dB |
| Inter Modulation | ≤65dB | ≤60dB |
| Spurious Response | ≤70dB | ≤70dB |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio | ≥45dB | ≥40dB |
| Audio Distortion | ≤5% | |
| Audio Power | ≤500mW | |
| Sensitivity | 108-136MHz(AM) -106.0dbm SN 13dB | |
| 136-180MHz -119.0dbm SINAD 13dB | ||
| 230-250MHz -116.0dbm SINAD 13dB | ||
| 350-400MHz -119.0dbm SINAD 13dB | ||
| 400-512MHz -119.0dbm SINAD 13dB | ||
| 700-986MHz -96.0dbm SINAD 12dB | ||
| Transmitter | Wide | Narrow |
| Type of Modulation | 16K F3E | 11K F3E |
| Adjacent Channel Power | ≥70dB | ≥60dB |
| Spurious Response | ≥60dB | ≥60dB |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~3KHz) |
| Max Frequency Deviation | ±5KHz | ±2.5KHz |
| Frequency Stability | ±2.5ppm | |
| Audio Distortion | ≤5% | |
| Output Power | VHF H:5W, M:2W, L:1W | |
| UHF H:4W, M:2W, L:1W | ||
Best Sell High Quality 2 Way Radio WOUXUN KG-UV9D VHF UHF FM Transceiver With 999CH
Best Sell High Quality 2 Way Radio WOUXUN KG-UV9D VHF UHF FM Transceiver With 999CH

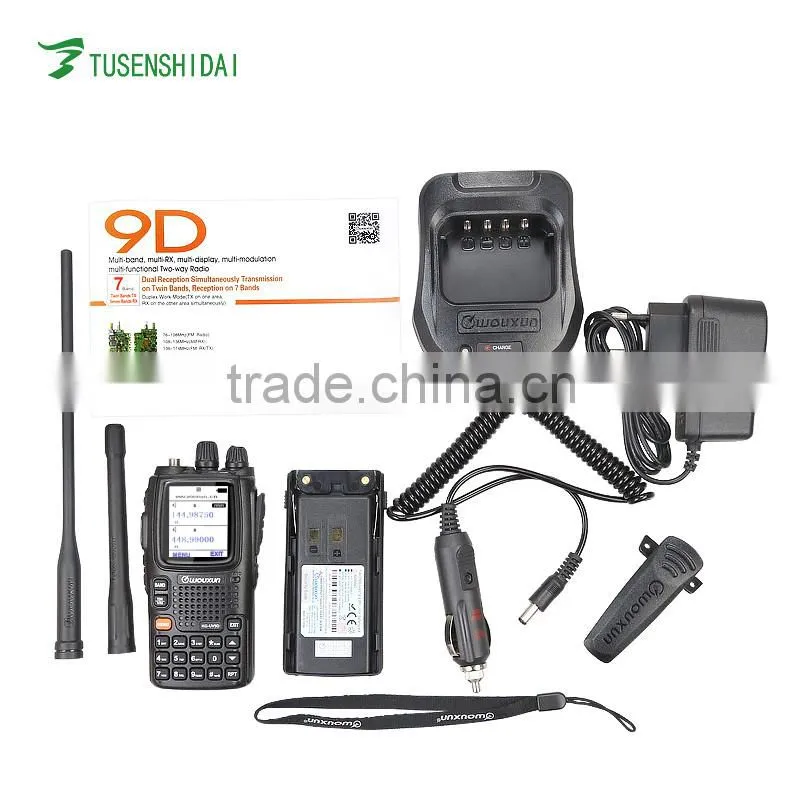

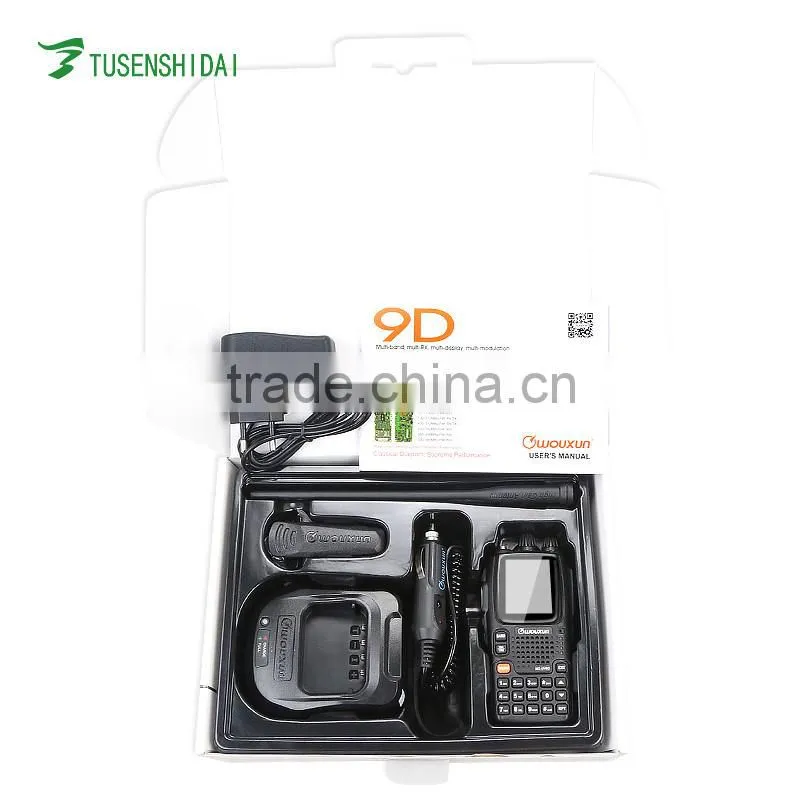

PACKING ITEMS:
1* WouXun KG-UV9D made in china walkie talkie
2* Antanna (short + long)
1* 2000mAh Battery

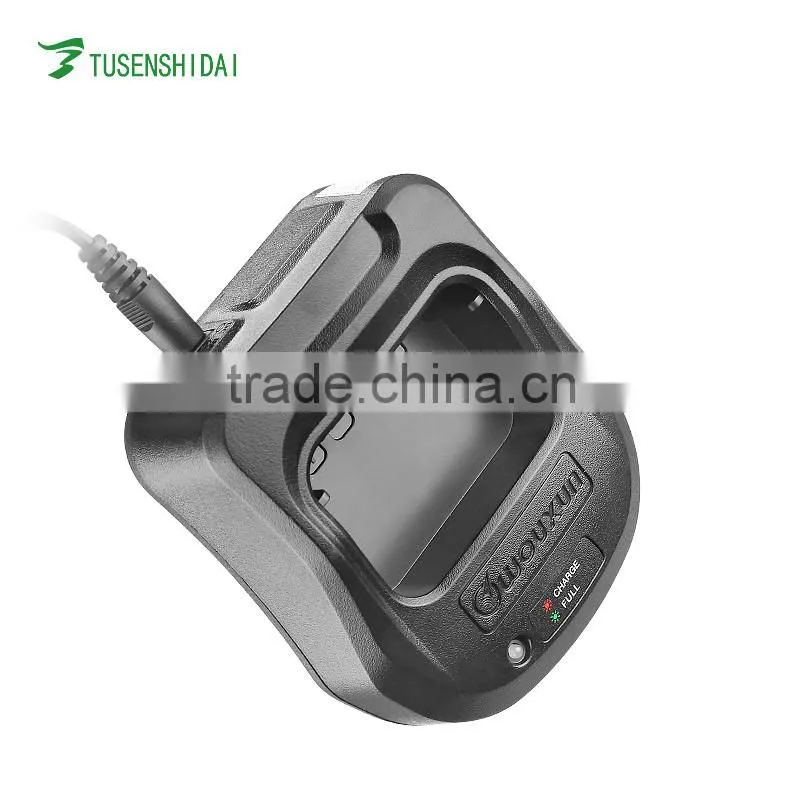

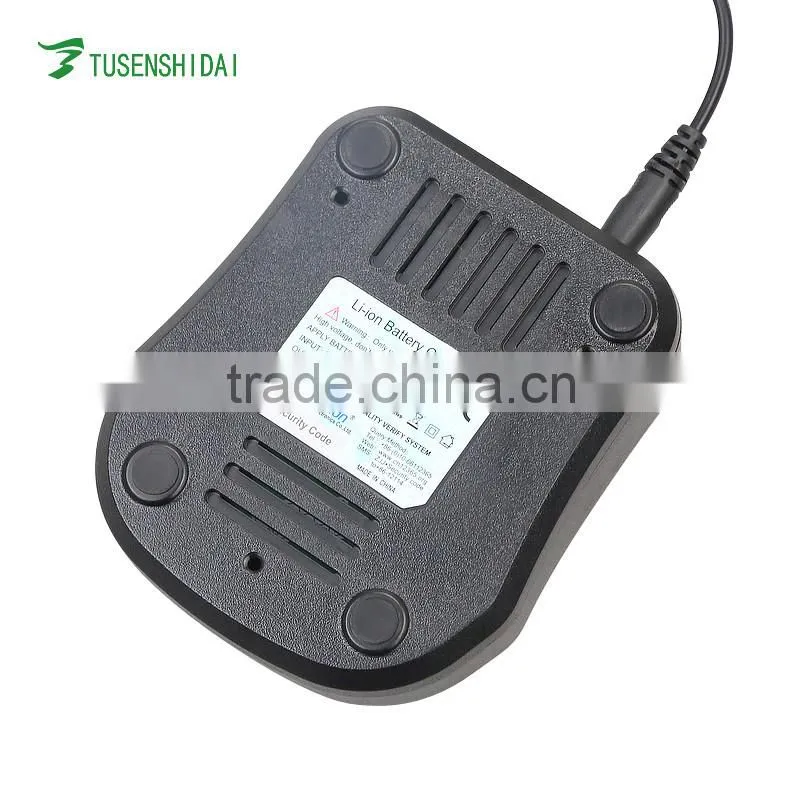

1* Desktop charger

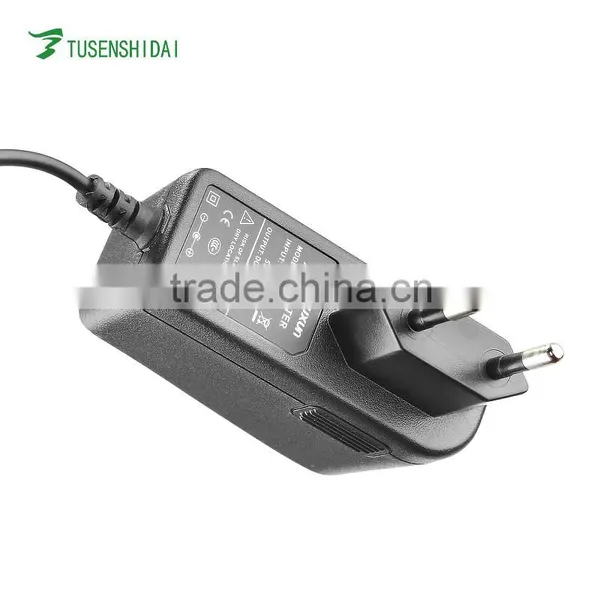

1* Charger
1* Belt CliP
1* Strap
1* Car charger
Shipping time
1-2days for sample order,3-5days for bulk order
Customer Service
1.OEM&ODM service offered
2.Sample's fee can be refund after order reached 1000sets.
3.Delivery can be express: DHL,UPS,FedEx,EMS,TNT.
Warranty
Before delivery, we will check the item's quality strictly one by one. Life-warranty for radio body & accessories, please contact us immediately when you get defective,thanks.
Payment terms
Payment:T/T,Western Union,escrow below US$1000 accept Paypal payment term(please do Not believe anybody by Email say our band changed,thank you)
