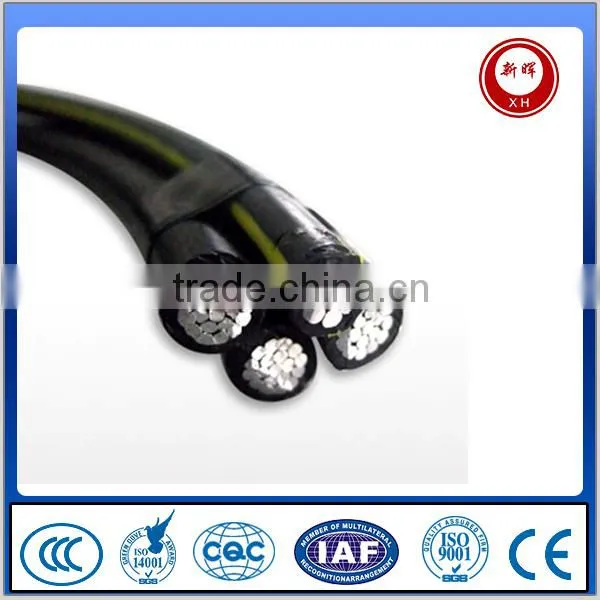

ABC cable electrical overhead cable
1.APPLICATION
Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system.
It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.
Caledonian LV Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance),
as a secondary cable (pole to pole) or street lighting. This over-head cable provides reinforced insulation acc. IEC 61140 and fulfill therefore Class II acc. IEC 61140.
It is not flame retardant. But this could be if requested change to a flame retardant cable.
2.STANDARDS
Basic design to BS 7870 / TNB Specification(IEC 60502) / HD 626 S1 / NFC 33-209 / AS/NZS 3560-1 standards

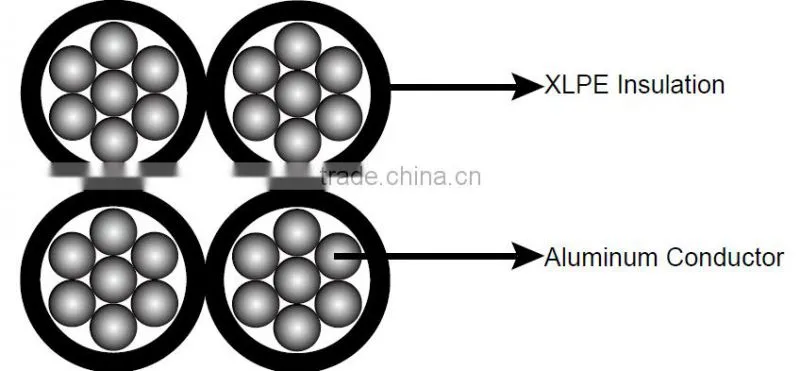

3.CABLE CONSTRUCTION
Conductor: Aluminium conductor, round stranded compressed (RM).
Insulation: XPLE compound, UV-resistant.Core Identification: 1, 2 resp. 3 raised longitudinal ribs on the surface of the cores.
The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm² and a minimum of 16 ribs for cores above 50 mm².
In the case of five core bundles the surface of the protective core should be smooth.
4.ELECTRICAL PROPERTIES
Rated Voltage |
0.6/1kV |
Test Voltage |
4 Veff kV |
Minimum Laying Temperature |
-20°C |
Operating Temperature |
-40°C~ +90°C |
Maximum Short-circuit Temperature |
250°C |
Maximum Conductor Temperature |
80°C |
Minimum Bending Radius |
18×OD |
5.Construction Parameters
| Specification | Modle no. | No. of cores×cross sectional area | Modle no. | No. of cores×cross sectional area |
| ABC Cable 0.6/1kV | 1 | 1×70 | 21 | 4×120 |
| ABC Cable 0.6/1kV | 2 | 1×95 | 22 | 4×150 |
| ABC Cable 0.6/1kV | 3 | 2×16 | 23 | 2×16+2×1.5 |
| ABC Cable 0.6/1kV | 4 | 2×25 | 24 | 2×25+2×1.5 |
| ABC Cable 0.6/1kV | 5 | 2×35 | 25 | 2×35+2×1.5 |
| ABC Cable 0.6/1kV | 6 | 2×50 | 26 | 2×50+2×1.5 |
| ABC Cable 0.6/1kV | 7 | 2×70 | 27 | 4×16+2×2.5 |
| ABC Cable 0.6/1kV | 8 | 2×95 | 28 | 4×25+2×2.5 |
| ABC Cable 0.6/1kV | 9 | 2×120 | 29 | 4×35+2×2.5 |
| ABC Cable 0.6/1kV | 10 | 2×150 | 30 | 4×50+2×2.5 |
| ABC Cable 0.6/1kV | 11 | 4×16 | 31 | 3×25+54.6 |
| ABC Cable 0.6/1kV | 12 | 4×25 | 32 | 3×35+54.6 |
| ABC Cable 0.6/1kV | 13 | 4×35 | 33 | 3×50+54.6 |
| ABC Cable 0.6/1kV | 14 | 4×50 | 34 | 3×70+54.6 |
| ABC Cable 0.6/1kV | 15 | 4×70 | ||
| ABC Cable 0.6/1kV | 16 | 4×95 | ||
| ABC Cable 15kV | 17 | 1×95 | ||
| ABC Cable 15kV | 18 | 1×120 | ||
| ABC Cable 33kV | 19 | 1×120 | ||
| ABC Cable 33kV | 20 | 1×150 | ||
| ABC Cable 0.6/1kV | 35 | 3×70+70 | 49 | 3×150+95+16 |
| ABC Cable 0.6/1kV | 36 | 3×95+70 | 50 | 3×50+50+16 |
| ABC Cable 0.6/1kV | 37 | 3×120+70 | 3×70+50+16 | |
| ABC Cable 0.6/1kV | 38 | 3×120+95 | 3×95+50+16 | |
| ABC Cable 0.6/1kV | 39 | 3×150+95 | ||
| ABC Cable 0.6/1kV | 40 | 3×25+54.6+16 | ||
| ABC Cable 0.6/1kV | 41 | 3×35+54.6+16 | ||
| ABC Cable 0.6/1kV | 42 | 3×50+54.6+16 | ||
| ABC Cable 0.6/1kV | 43 | 3×70+54.6+16 | ||
| ABC Cable 0.6/1kV | 44 | 3×70+70+16 | ||
| ABC Cable 0.6/1kV | 45 | 3×95+70+16 | ||
| ABC Cable 0.6/1kV | 46 | 3×120+70+16 | ||
| ABC Cable 0.6/1kV | 47 | 3×120+70+25 | ||
| ABC Cable 0.6/1kV | 48 | 3×120+95+16 |
6.Package: Protect cable, easy to transport, convenient to lay and install.
7.Certificates: Produce high quality cable& wires.
| ISO 9001 | ISO14001 |
|
|
| OHSAS 18001 | ROHS |
|
|
| CE | CE |
|
|
8.Yanggu cable group: Do the best enterprise
|
|
1) Production equipment 860 (sets) and testing equipment 314 (Taiwan) sets
2) Main production:
House/building electrical wires
Aerial Cable AAC/AAAC/ACSR/ABC Cable
Control cable/ instrument cable
Optical fiber cable
9.Best service:
Quick response in 12 hours.
Professional technical service
Standard product quality.
Warranty for 2 years.
