5200 5300 Ball Bearing Angular Contact Bearing 5201

5200 5300 ball bearing angular contact bearing 5201

Model:5201

Size:12*32*15.9

Material:Gcr-15

Processing customized :Yes

Operating characteristic:High temperature

Precision Grade:P0(ABEC-1)  P6(ABEC-3)  P5(ABEC-5)  P4(ABEC-7)

Vibration:Z1V1   Z2V2   Z3V3

Cage:stamping steel,brass solid cage

Service:OEM or as your demands

Features:

1.Separable type structure

2.Can withstand two-way axial load, radial load and can limit the axial displacement of two direction

3.Single bearing can replace the positive combination or on the back of the combination of angular contact ball bearings

4.Because it is double half inner ring (or outer ring), put more balls, so has a large carrying capacity

5.Four-point contact ball bearings are suitable for pure axial load under or predominantly axial load of axial, radial loads

6.Compared with other ball bearing,when the radial clearance phase at the same time, the axial clearance is smaller , the limiting speed is higher.

Do you know?

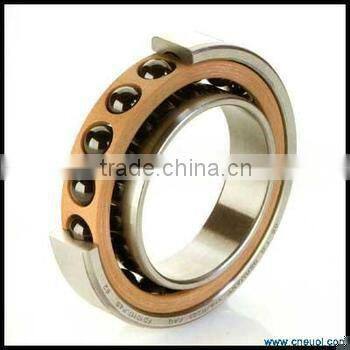

Single row angular contact ball bearing

1.Pretenion is made on angular contact ball bearing to increase rigidity and accuracy of bearing.

2.This bering creates axial thrust load when being forced by radial load,thus two should be configurd(or combined) face tp face or back to back.

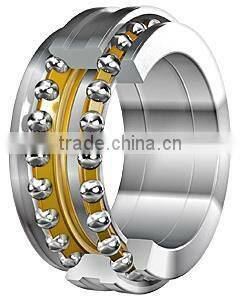

Double row angular contact ball bearing

1.Double row angular contact ball bearing can bear the large radial and axial combined load, and its limit speed is high.It is the non-separated type of bearing.Compared with the single row angular contact ball bearing, it has thgh rigidity, and it can bear the two-way axial load.

2.This type of bearing may work together with the four row cylindrical roller bearing on the rolling mill, to limit the axial displacement of the working roll. And it can work with other bearings, as the locating bearing of mill roll.

Four point contact ball bearing

1.Standard structure is that its inner ring is equally divided in axial direction, with 35 degrees contact angle which is applicable to axial load or combined load in which axial load is major composition.

2.Single bearing can bear double way axial load and certain extent radial load.According to differents direction of axial load,ring and sphere always contact at two points on any contact line.

Application:

Single row angular contact ball bearing

spindle, the high frequency motor, gas turbine, centrifuge, small cars frot tire, differential pinions axis.

Double row angular contact ball bearing

oil pump, arjen robben, air compressor, air blower watts of all kinds of transmission, fuel injection pump, printing machines.

Other Series:

5200 series:

5200  5201  5202  5203  5204  5205  5206  5207  5208  5209  5210 ……

5300 series:

5300  5301  5302  5303  5304  5305  5306  5307  5308  5309……

 718 series:

71815C  71816C  71817C  71818C  71819C  71820C  71821C  71822C  71824C  71826C  71828C  71830C  71832C  71834C  71836C  71838C  71840C  71844C  71848C  71852C  71856C  71860C  71864C  71868C  71872C  ……

719 series:

71915C  71916C  71917C  71918C  71919C  71920C  71921C  71922C  71924C  71926C  71928C  71930C  71932C  71934C  71936C  71938C  71940C  71944C  71948C  71952C  71956C  71960C  71964C  71968C  71972C  ……

70 series:

7018  7019  7020  7021  7022  7024  7026  7028  7030  7032  7034  7036  7038  7040  7044  7048  7052  7056  7060  7064  7068  7072  7076  7080  7084……

72 series:

7216  7217  7218  7219  7220  7221  7222  7224  7226  7228  7230  7232  7234  7236  7238  7240  7244……
