7300 Series Ntn Single Row Angular Contact Ball Bearing 7313B Price

The Brief Description of  Angular Contact Ball Bearings:

Angular contact ball bearings are the most repesentive of the rolling bearings,a wide range of uses.for speed operation,but also very durable,without regular maintenance.small coefficient of friction of such bearings  ,limte high-speed,simple structure,low mannufactringcost and easy to reach a higher mannufacturing precision.

Universal design

   Single row angular contact ball bearings of universal design have the suffix UA, UL or UO and are intended for fitting in pairs in an X, O or tandem arrangement or fitting in groups. These bearings can be fitted in any arrangement required. For tandem arrangements, pay attention to the guidelines in the section link.

  The suffix UA indicates small axial internal clearance, the suffix UL indicates slight preload and the suffix UO indicates freedom from clearance in an X or O arrangement.

  When ordering bearings, the total quantity of bearings must be stated, not the number of bearing pairs or bearing groups.

Sealing

   Bearings with the suffix 2RS have lip seals on both sides. Contact RS seals  are suitable for giving protection against dust, contamination and damp atmospheres.

Lubrication

   Bearings with lip seals on both sides are greased with a high quality grease and are lubricated for life.

   Open bearings and bearings with seals on one side are not greased. They can be lubricated with grease or oil.

Operating temperature

   Open angular contact ball bearings can be used at operating temperatures from -30 °C to +150 °C. Bearings with a diameter D > 240 mm are dimensionally stable up to +200 °C.

   Angular contact ball bearings with cages made from glass fibre reinforced polyamide are suitable for operating temperatures up to +120 °C, restricted by the cage material.

   Sealed bearings are suitable for operating temperatures from -30 °C to +110 °C, restricted by the lubricant and the seal material.

Cages

   Angular contact ball bearings with solid cages made from glass fibre reinforced polyamide have the suffix TVP or TVH.

   Solid brass cages have the suffix MP.

   The bearings are also available with universally applicable sheet steel window cages (suffix JP).

   Check the chemical resistance of polyamide to synthetic greases and lubricants with EP additives.

   Aged oil and additives in the oil can impair the operating life of plastic cages at high temperatures.

   The oil change intervals must be observed.

Angular Contact Ball Bearing 7300 series :

The advantage of our bearings:

1.ISO 9001:2008
2.R&D capability
3.High precision and durability
4.Well performance
5.Reasonable price and quick delivery
6.Long life and low noise

7.Easy to use and install
8.Bearings made in superior steel
9.No maintenance cost
10.Corrosion resistance
11.Used in various industries
12.Good quality and best services
13.Gain domestic and overseas markets

Angular Contact Ball Bearings 7313B Applications:

Single row: machine tool spindle,  high frequency motor, gas turbine, centrifuge, differential pinion-shaft, small cars’s front wheel, etc.

Double row: oil pump, roots blower, air compressor, all kinds of transmission gearbox, fuel injection pump, printing machinery, etc.

Angular Contact Ball Bearings:

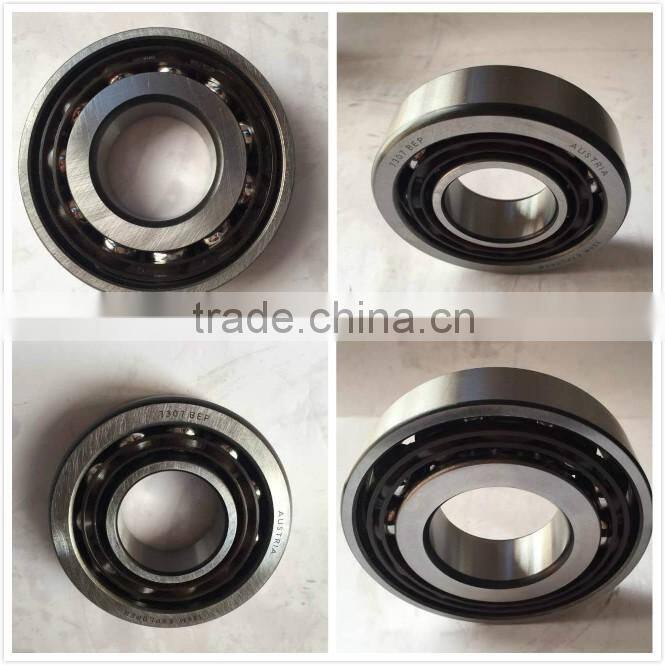

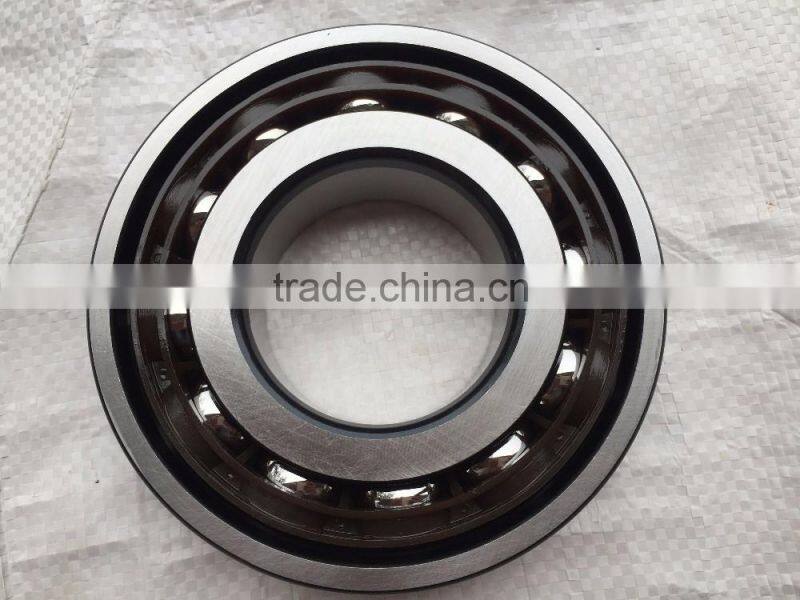

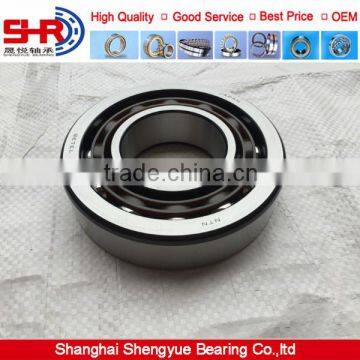

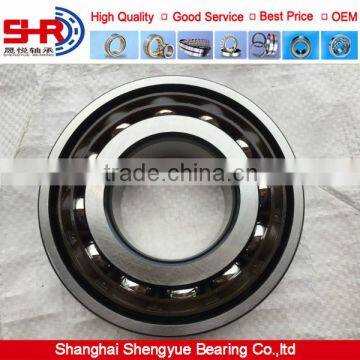

 Angular Contact Ball Bearing Pictures:

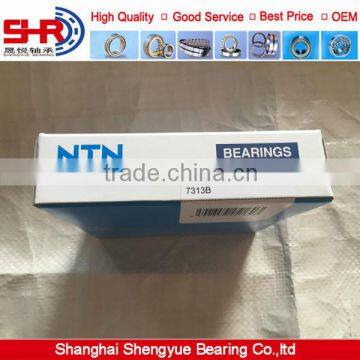

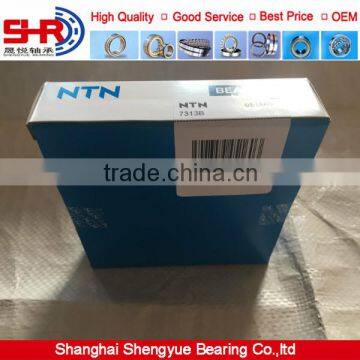

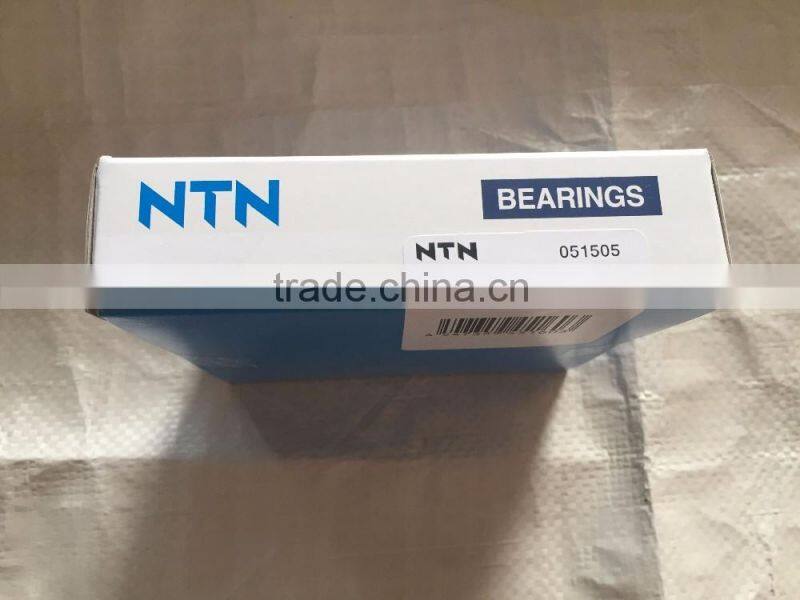

Bearings Package:

Original Package:

    1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);

    2):Small sizes:Plastic Tube + Carton

    3):Big sizes:Wooden Case

Bearings Lead time:

 We will prepare your order as soon as possible.

    1)2-3 days for ex-stock

    2)6-10 days for others

Shipping & Delivery time:

1)Less than 45 Kg:DHL TNT Fedex UPS express will be better,( 4-7 days delivered to your address);

2) Between 45 to 200 Kg:Air transiportation will be better,( 5-14 days delivered to your airport);

3) Over 200 Kg:Sea transportation will be better.( Cheapest,18-45 days to your port ).

Payment terms:

We accept  T/T, Western Union,Paypal,Visa.

1) T/T or WU (we undertake the bank fees):

        A:100% payment.

        B:30% deposit ,70% before transportation.

2)PayPal (we undertake the transaction fees) :

        A:100% payment.

        B:30% deposit ,70% before transportation

3) L/C at sight.

Note :We will take some pictures of your bearings before transportation.

Shanghai Shengyue Bearing Co., Ltd. is a professional bearing manufacturer and dealer in China. We have been engaged in bearing industry for 15 years and worked on bearing import and export for more than 8 years. We attend international bearing fairs, put in many B2B websites and achieve many customers all over the world, building up a good reputation from our customers.

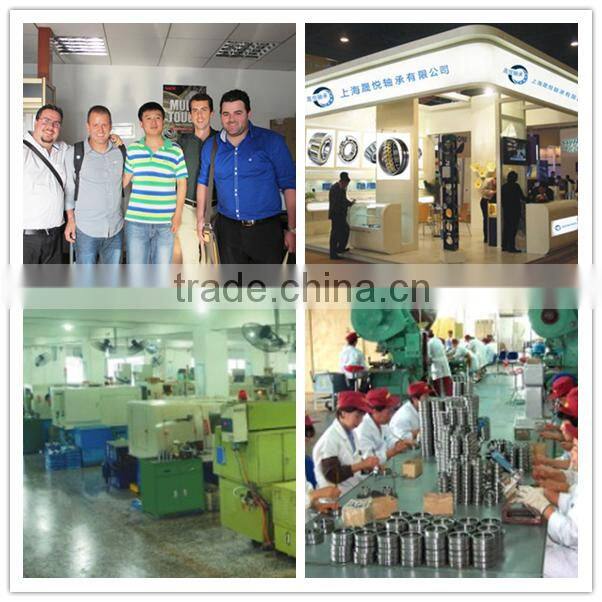

SHR Bearing Factory Pictures:

If you are interested in our products,please feel free to send an inquiry or chat with us online.

We will warmly reply you immediately!---SHR Bearing
