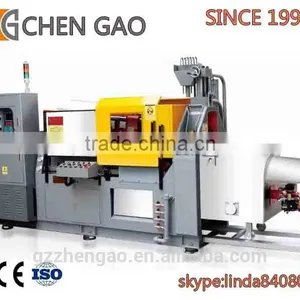

Help Center22 Years History CHEN GAO Brand 30T Zinc Injection Molding Machine
Related Products
-
22 Years CHEN GAO Brand 50T Zinc Injection Molding MachineNegotiableMOQ: 12 Sets -
22 Years History CHEN GAO Brand 88T Zamak Die Casting MachineNegotiableMOQ: 1 Set
-
22years CHEN GAO Brand 50T Zamak Die Casting MachineNegotiableMOQ: 1 Set
-
22 Years History CHEN GAO Brand 130T Zamak Die Casting MachineNegotiableMOQ: 1 Set
-
22 Years History CHEN GAO Brand 168T Zamak Die Casting MachineNegotiableMOQ: 1 Set
1 Company information
1 Computer controled
2 Double pump and double proportional pressure folw rate control adopted for hydraulic system .
3 Cabin type structure is adopted for front and secondary platens with high rigidity and comparable
lighter weight .
4 Enhanced ribs are adopted for tail platen and C type frame ,more stong .
5 Design with especially large die height ,and larger than similar type of machine .
6 Mould adjustment gear wheel with hydraulic type has stable transmission ,convenient operation
and precisely durable .
7 The automatic lubrication system with type of integrated capacity has made every rotating pairs
of machine hinge obtain good lubrication .
8 The machine is even symmetric and beautiful in configuration ,firm and strong . The safety door
structure with unique design is safe and reliable .
9 Water-cooling and plunger lubrication system are equipped along with the machine ,and to assist
the whole machine to achieve reliable and safety production .
10 Our patent :furnace can save above 30% energy .
Machine in customer factory :
3 Specification of 30T zinc injection molding machine
| MODEL | CM-30 | |
| LOCKING FORCE | ton | 30 |
| TIE-BAR DIAMETER | mm | 45 |
| SPACE BETWEEN TIE(WXH) | mm | 275×275 |
| DIE HEIGHT(MIN/MAX) | mm | 80/300 |
| DIE STROKE | mm | 180 |
| SHOT POSITION | mm | 0/40 |
| DIAMETER OF PLUNGER | mm | 36/40 |
| PLUNGER STORKE | mm | 120 |
| INJECTION FORCE(MAX) | ton | 4.5 |
| MAX SHOT WEIGHT(ZN) | kg | 0.6/0.7 |
| TRAVERSE STORKE | mm | 160 |
| RUCIBLE CAPACITY | kg | 250 |
| ELECTRIC MELTING CAPACITY | kg | 300 |
| EJECTION FORCE | ton | 3.4 |
| EJECTION STORKE(MAX) | mm | 50 |
| MOTOR POWER | KW | 7.5 |
| ELECTRIC FURNACE POWER | KW | 21 |
| OPERATION PRESSURE | kg/cm² | 125 |
| CAPACITY OF OIL TANK | L | 180 |
| ACCUMUL ATION | L | 12 |
| MACHINE SIZE | mm | L 3385 |
| W 1322 | ||
| H 1916 | ||
| MACHINE WEIGHT | ton | 2.5 |
