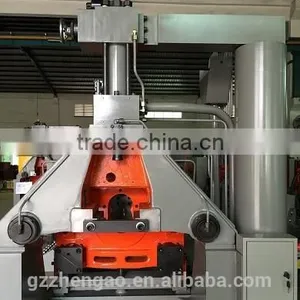

Help Center22 Years History CHEN GAO Brand 88T Zamak Die Casting Machine
Related Products
-
22years CHEN GAO Brand 50T Zamak Die Casting MachineNegotiableMOQ: 1 Set -
22 Years History CHEN GAO Brand 130T Zamak Die Casting MachineNegotiableMOQ: 1 Set
-
22 Years History CHEN GAO Brand 168T Zamak Die Casting MachineNegotiableMOQ: 1 Set
-
22 Years History CHEN GAO Brand 268T Automatic Zamak Die Casting MachineNegotiableMOQ: 1 Set
-
22 Years Brand CHEN GAO 50T Full Automatic Metal Die Casting Machine for ZincNegotiableMOQ: 12 Sets
1 Company instruction
Guangzhou Chen Gao Die-Casting Machinery Co., Ltd. was established in 1993,and located in Guang zhou city ,China .Major in manufacturing zamak die casting machine (30ton—280ton)and aluminium die casting machine (130ton---1,000ton) .We have CE ,not only sell to China local market ,also export to all over the world ,such as Middle East , Europe ,South America ,Africa ,South Asia and so on .
High quality ,good service and reasonable price , Chen Gao is your best choice .

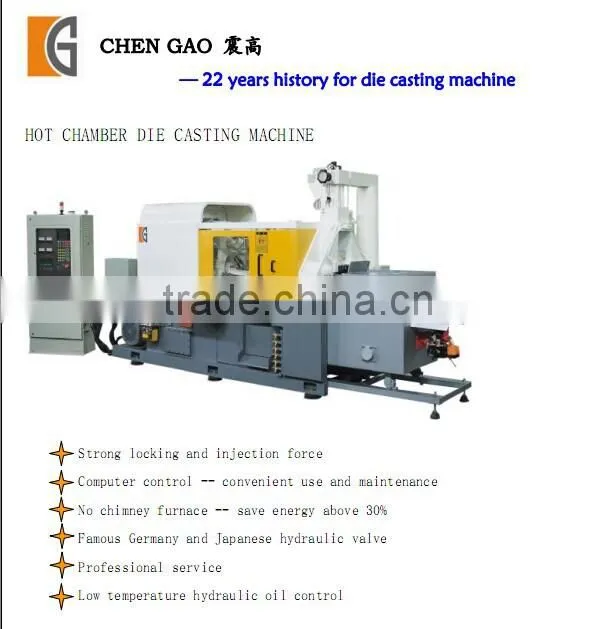

zamak die casting machine:
Model:CG88

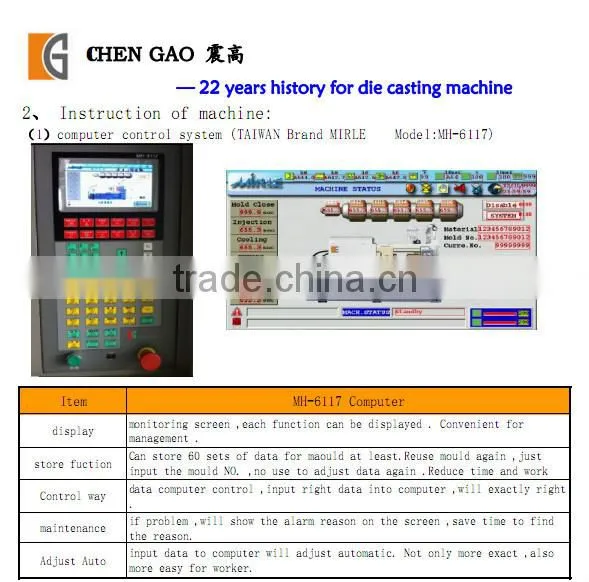

1 computer controled system ,can store more than hundreds mould number ,and have fuction of memeory .
2 Two-stage injection adjustment can meet the high quality castings .
3 Very fast mould locking function,the production cycle is reduced effecrively .
4 The proportional flow rate control is adopted for slow speed injection,and fast slow can be adjusted by NC. It helps
runner system achieved best results in gas discharging ,and greatly raised products rate for die castings .

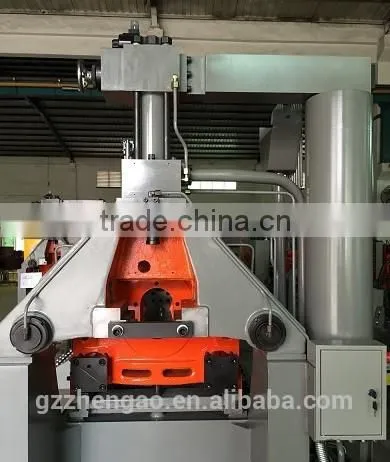

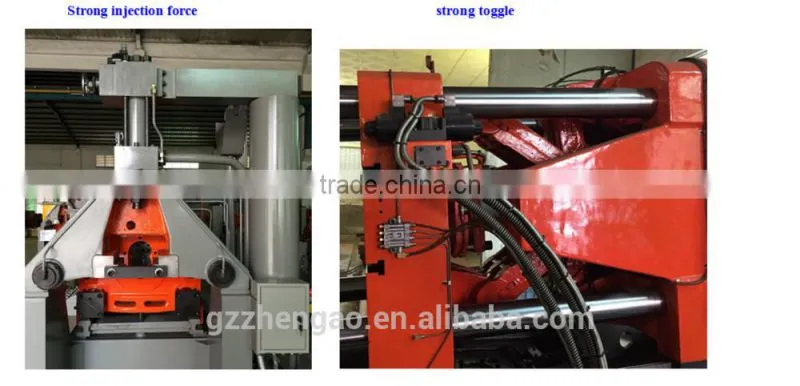

5 Good injection performance ,large ejection force ,and high die casting force ,good die casts solidification .
6 Unique energy saving design for proportional type of hydraulic system ,and it makes any adjustment freely achieved
their best status ,such as speed pressure in movement of mould opening /locking ,ejector and nozzle clamping unit .

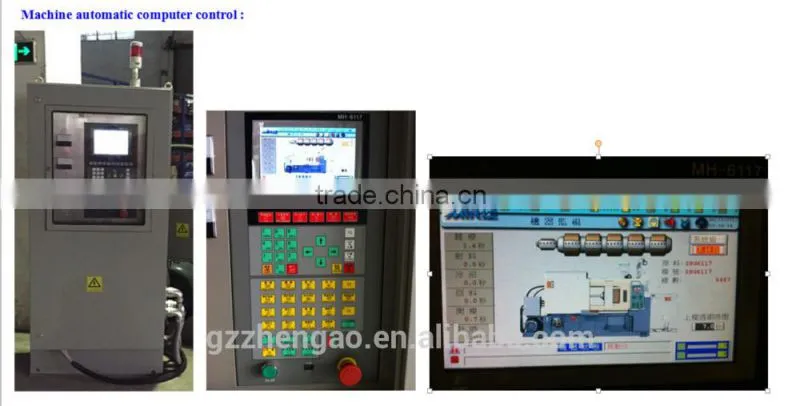

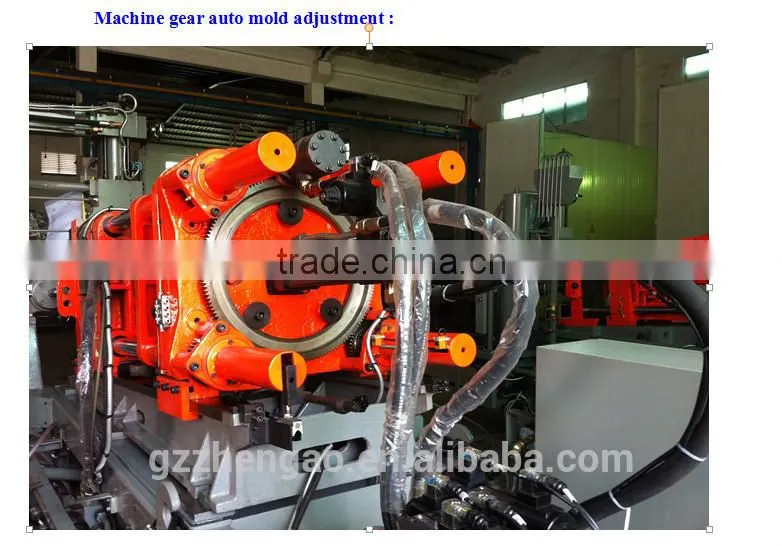

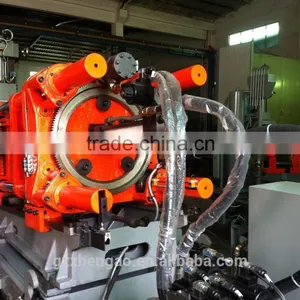

7 Adopt computer control for automatic mould adjustment ,and is easy in operation .Precision for positon control
reached 0.1mm
8 Adopt safety device by electro-mechanic interlocking ,and ensure injection at safety door is closed and after mould is
tightly locked and nozzle clamping unit ia closed .To make sure the safety .

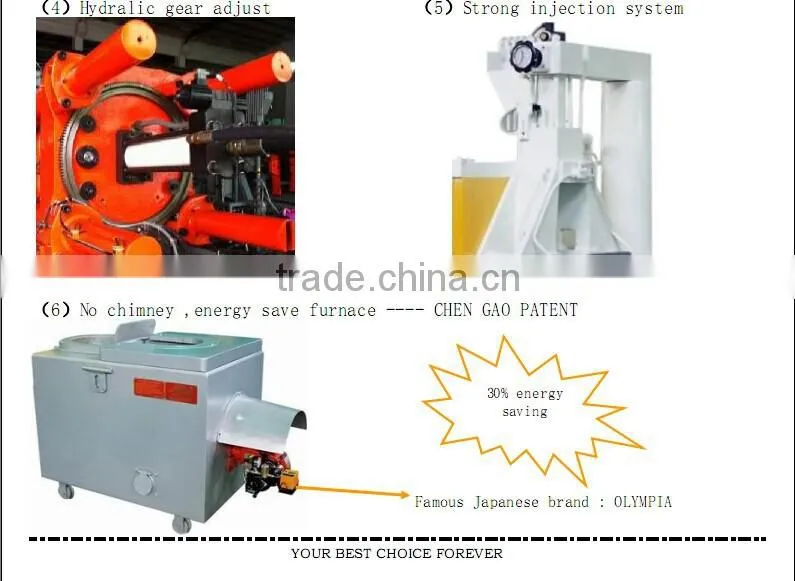

9 Patent:furnace can save above 30% energy .
3. Specification of 88T zamak die casting machine :
| MODEL | CG-88 | |
| LOCKING FORCE | ton | 88 |
| TIE-BAR DIAMETER | mm | 60 |
| SPACE BETWEEN TIE(WXH) | mm | 360×360 |
| MOLD THICKNESS(MIN/MAX) | mm | 127/350 |
| DIE STROKE | mm | 270 |
| SHOT POSITION | mm | 0/50 |
| DIAMETER OF PLUNGER | mm | 50/55 |
| PLUNGER STORKE | mm | 130 |
| INJECTION FORCE(MAX) | ton | 8.5 |
| MAX SHOT WEIGHT(ZN) | kg | 1.1/1.3 |
| TRAVERSE STORKE | mm | 210 |
| RUCIBLE CAPACITY | kg | 350 |
| ELECTRIC MELTING CAPACITY | kg | 300 |
| EJECTION FORCE | ton | 5.5 |
| EJECTION STORKE(MAX) | mm | 60 |
| MOTOR POWER | KW | 11 |
| ELECTRIC FURNACE POWER | KW | 21 |
| OPERATION PRESSURE | kg/cm² | 145 |
| CAPACITY OF OIL TANK | L | 225 |
| ACCUMUL ATION | L | 20 |
| MACHINE SIZE | mm | L 3808 |
| W 1437 | ||
| H 2055 | ||
| MACHINE WEIGHT | ton | 4 |
