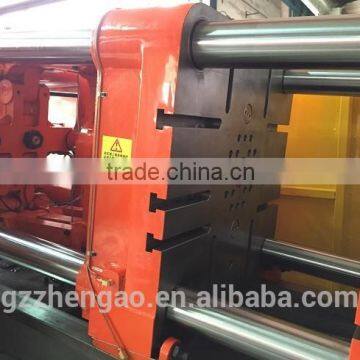

Help Center22 Years History CHEN GAO Brand 130T Hot Chamber Die Casting Machine
Related Products
-
22 Years Brand CHEN GAO 168T Hot Chamber Die Casting MachineNegotiableMOQ: 1 Set -
22 Year History CHEN GAO Brand 30T Hot Chamber Die Casting MachineNegotiableMOQ: 1 Set
-
22 Years History Brand CHEN GAO 268ton High Pressure Automatic Hot Chamber Die Casting MachineNegotiableMOQ: 1 Set
-
22 Years History "CHEN GAO " 88ton Hot Chamber Zinc Die Casting MachineNegotiableMOQ: 1 Set
-
22 Years History CHEN GAO Brand 30 Ton Full Automatic Metal Die Casting Machine for ZincNegotiableMOQ: 1 Set
1 Company brief :

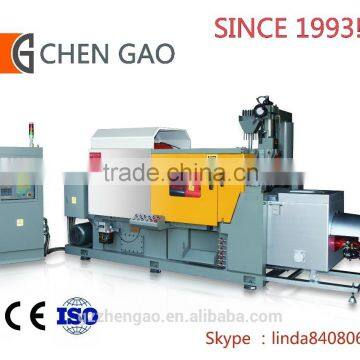

hot chamber die casting machine
Model:CG130

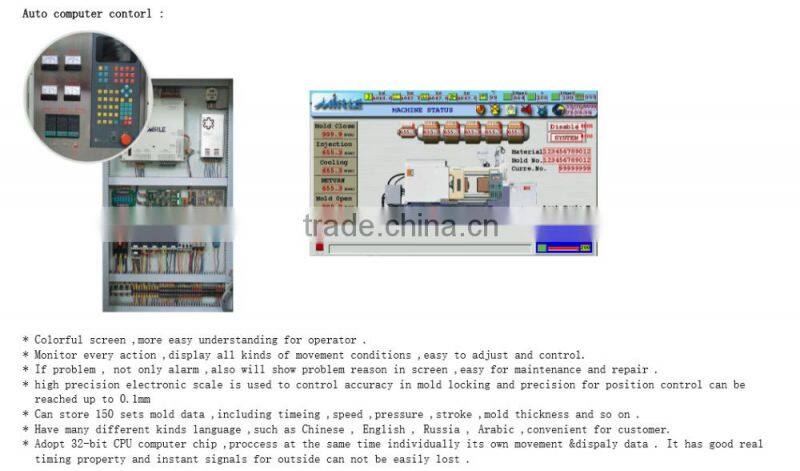

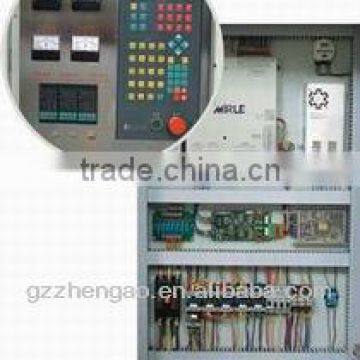

1 computer controled system ,can store more than hundreds mould number ,and have fuction of memeory .

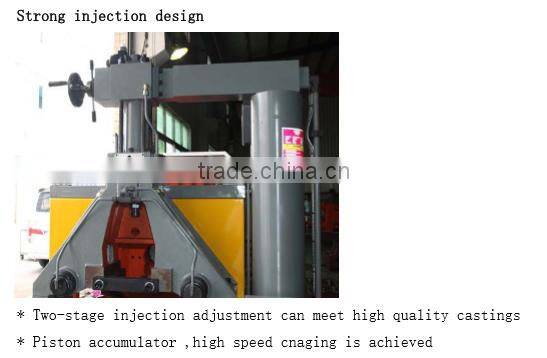

2 Two-stage injection adjustment can meet the high quality castings .
3 Very fast mould locking function,the production cycle is reduced effecrively .
4 The proportional flow rate control is adopted for slow speed injection,and fast slow can be adjusted by NC. It helps runner
system achieved best results in gas discharging ,and greatly raised products rate for die castings .
5 Good injection performance ,large ejection force ,and high die casting force ,good die casts solidification .
6 Unique energy saving design for proportional type of hydraulic system ,and it makes any adjustment freely achieved their
best status ,such as speed pressure in movement of mould opening /locking ,ejector and nozzle clamping unit .

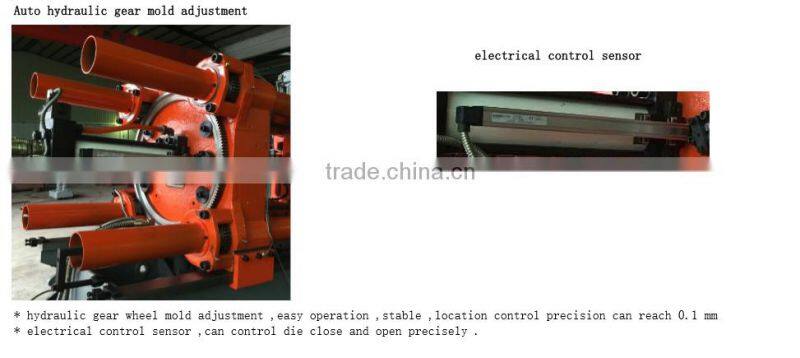

7 Adopt computer control for automatic mould adjustment ,and is easy in operation .Precision for positon control reached
0.1mm
8 Adopt safety device by electro-mechanic interlocking ,and ensure injection at safety door is closed and after mould is tightly
locked and nozzle clamping unit ia closed .To make sure the safety .

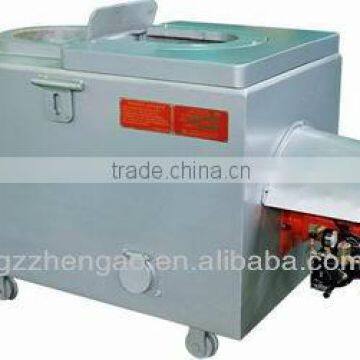

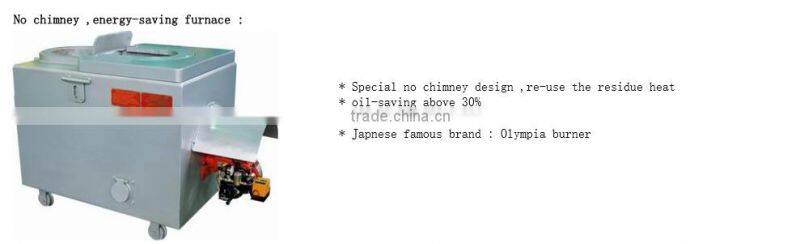

9 Patent:furnace can save above 30% energy .
4.Specification of 130T hot chamber die casting machine :
| MODEL | CG-130 | |
| LOCKING FORCE | ton | 130 |
| TIE-BAR DIAMETER | mm | 75 |
| SPACE BETWEEN TIE(WXH) | mm | 410×410 |
| DIE HEIGHT(MIN/MAX) | mm | 160/450 |
| DIE STROKE | mm | 280 |
| SHOT POSITION | mm | 0/65 |
| DIAMETER OF PLUNGER | mm | 55/60 |
| PLUNGER STORKE | mm | 140 |
| INJECTION FORCE(MAX) | ton | 9.5 |
| MAX SHOT WEIGHT(ZN) | kg | 1.6/1.9 |
| TRAVERSE STORKE | mm | 210 |
| RUCIBLE CAPACITY | kg | 350 |
| ELECTRIC MELTING CAPACITY | kg | 300 |
| EJECTION FORCE | ton | 7.3 |
| EJECTION STORKE(MAX) | mm | 70 |
| MOTOR POWER | KW | 15 |
| ELECTRIC FURNACE POWER | KW | 21 |
| OPERATION PRESSURE | kg/cm² | 145 |
| CAPACITY OF OIL TANK | L | 250 |
| ACCUMUL ATION | L | 20 |
| MACHINE SIZE | mm | L 4129 |
| mm | W 1460 | |
| mm | H 2100 | |
| MACHINE WEIGHT | ton | 5 |
